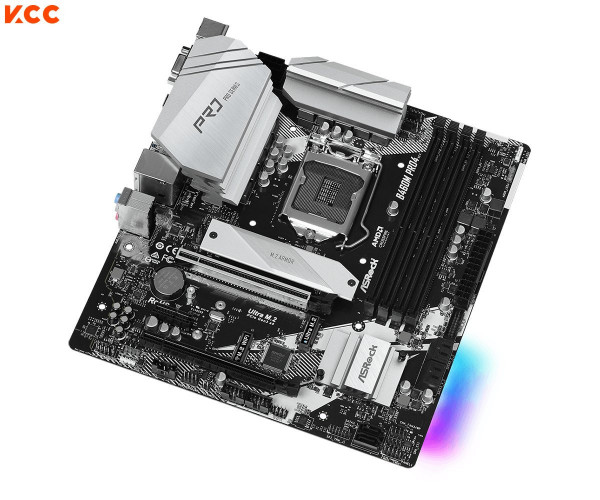

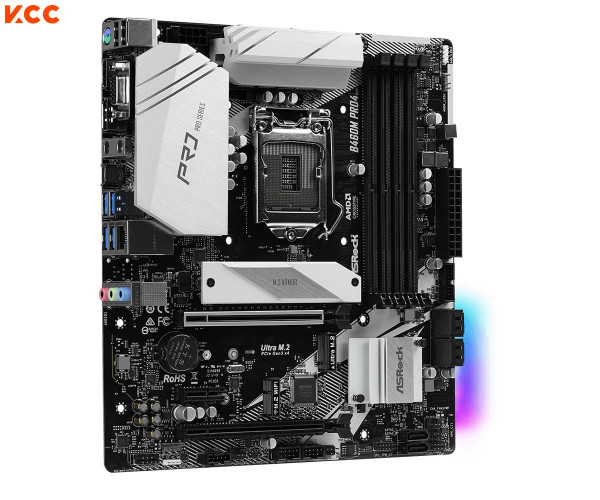

Mainboard ASROCK B460M PRO4 – 4 Khe Ram (2nd)

+ So sánh
Lượt xem: 715 | 0 đánh giá | Tình trạng : Hết hàng | Thương hiệu : ASROCK | Cập nhật : 23/02/2025
Liên hệ
Thông số sản phẩm

Hỗ trợ Intel Core thế hệ 10 (Socket 1200).

Chipset Intel B460, thiết kế 9 pha nguồn.

4 khe DDR4, tối đa 128GB, 2933MHz.

Đồ họa: HDMI 4K@30Hz, DisplayPort 4K@60Hz.

Âm thanh 7.1 HD Realtek ALC1200, Nahimic Audio.

LAN Gigabit Intel I219V, bảo vệ chống sét.

2 khe M.2 PCIe Gen3 x4 (32 Gb/s).

Khuyến mại

🔹 Lưu ý: Sản phẩm cũ có thể tiềm ẩn rủi ro, shop bán theo đúng hiện trạng. Quý khách vui lòng cân nhắc kỹ trước khi mua! 🔹

Bảo hành: 3 tháng

Liên hệ với nhân viên kinh doanh

YÊN TÂM MUA SẮM TẠI KCCSHOP
support-icon TOP 1 Bán Lẻ Rẻ Như Bán Buôn
support-icon Sản phẩm chính hãng 100%
support-icon 1 Đổi 1 trong 30 ngày đầu
support-icon Bảo hành tại nhà nhanh gọn.
support-icon Bảo vệ giá trong vòng 7 ngày.
CHÍNH SÁCH GIAO HÀNG
Giao hàng Grab siêu tốc trong 2h
Giao hàng toàn quốc
Nhận hàng và thanh toán tại nhà

Khách hàng đánh giá, nhận xét

0/5

0 đánh giá & nhận xét
  • 5 sao
    0 đánh giá
  • 4 sao
    0 đánh giá
  • 3 sao
    0 đánh giá
  • 2 sao
    0 đánh giá
  • 1 sao
    0 đánh giá

Bạn đã dùng sản phẩm này?

Gửi đánh giá của bạn

Hỏi và đáp (0 bình luận)

Lưu ý: Vui lòng ấn vào đây để xác thực Captcha trước khi gửi bình luận cho sản phẩm
re
CAPT
CHA
Để gửi bình luận, bạn cần nhập tối các trường có *
Thông số kỹ thuật
Unique Feature ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Steel Slots
ASRock Full Coverage M.2 Heatsink
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU - Supports 10th Gen Intel® Core™ Processors (Socket 1200)
- Digi Power design
- 9 Power Phase design
- Supports Intel® Turbo Boost Max 3.0 Technology
Chipset - Intel® B460
Bộ nhớ RAM - Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots

Please refer to Memory Support List on ASRock's website for more information.
Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.

Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST, VCCSA Voltage Multi-adjustment
Card đồ họa - Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1
- Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc
- Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
- Supports Triple Monitor
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports

Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

VP9 10bit and VC-1 are for decode only.
VP8 and VP9 encode are not supported by Windows® OS.
Card âm thanh - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- ELNA Audio Caps
- PCB Isolate Shielding
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio
LAN - Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel® I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Khe cắm - 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))
- 1 x PCI Express 3.0 x1 Slot
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Supports NVMe SSD as boot disks
Kho tiền - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

PCIe RAID function is not supported
Supports Intel® Optane™ Technology (M2_1)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Cổng kết nối - 1 x SPI TPM Header
- 1 x Chassis Intr
