Mainboard Asus B840M AYW GAMING WIFI DDR5

+ So sánh

Lượt xem: 1 | 0 đánh giá | Tình trạng : Còn hàng | Thương hiệu : ASUS | Cập nhật : 07/01/2026

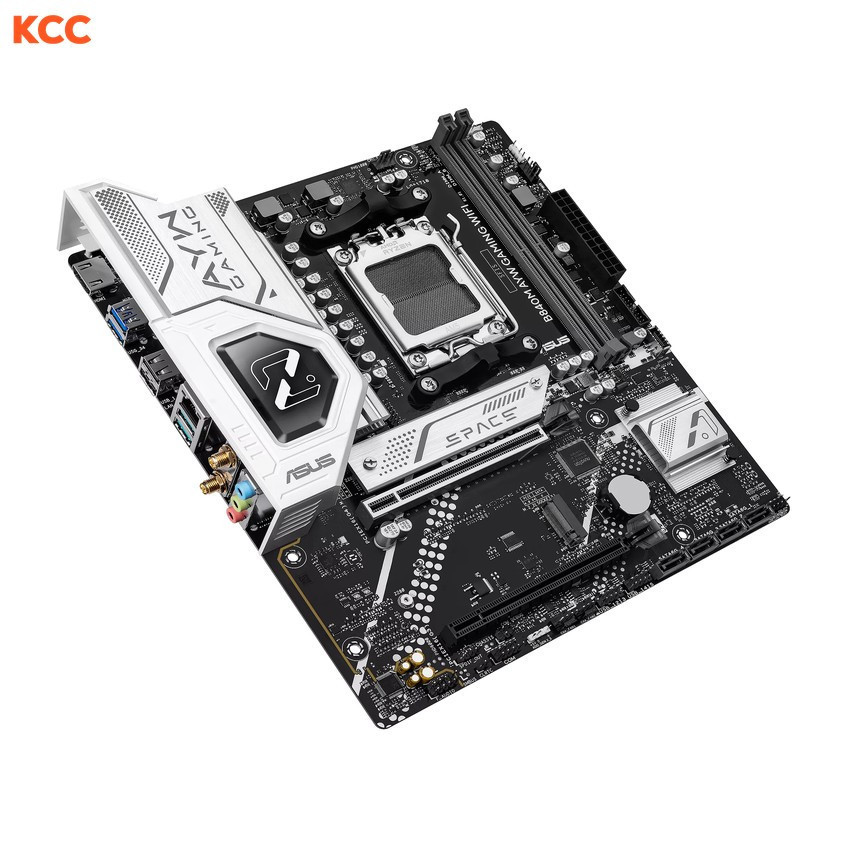

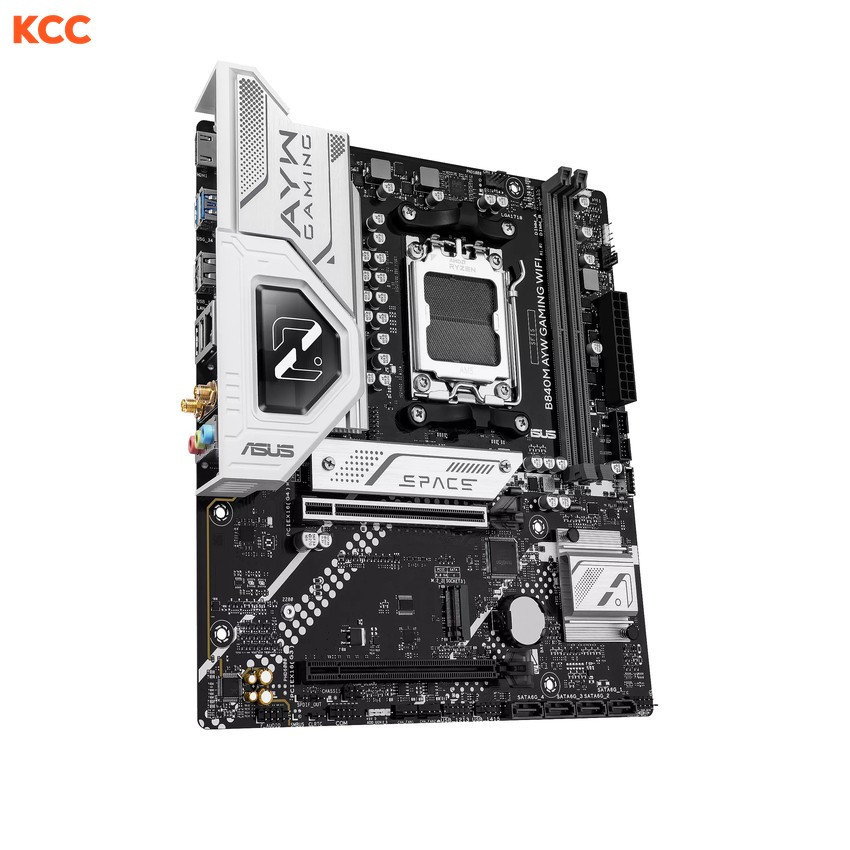

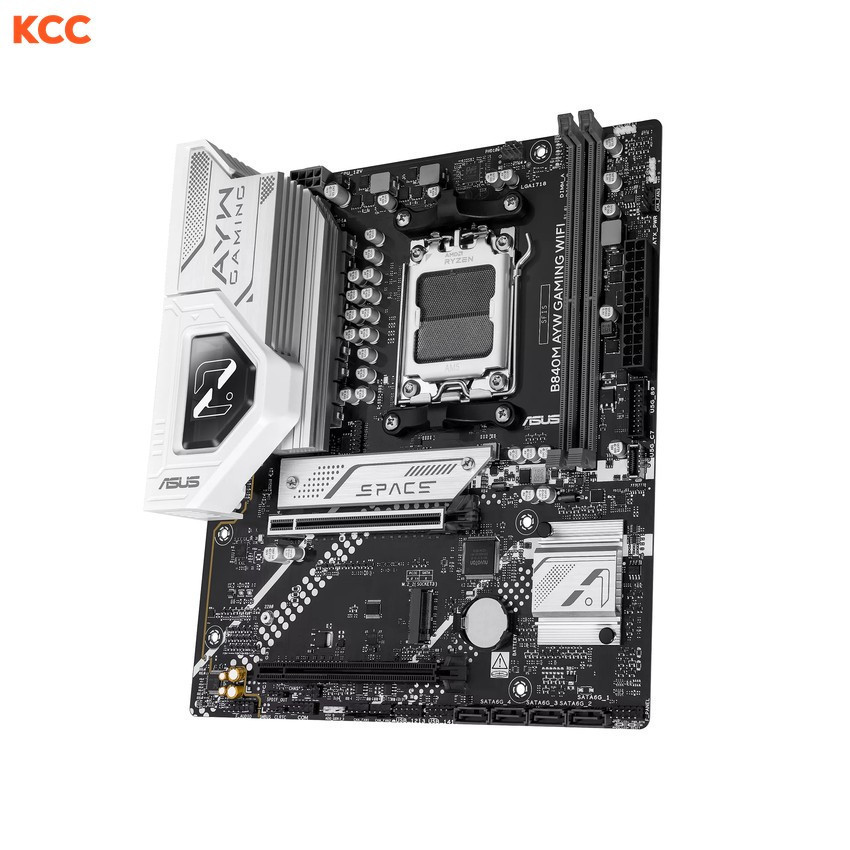

Mainboard Asus B840M AYW GAMING WIFI DDR5

Giá khuyến mại : Liên hệ

Build PC với sản phẩm này

Thông số sản phẩm

Socket AM5 Ryzen 9000/8000/7000 series.

Chipset AMD B840.

RAM tối đa 128GB DDR5 8000+MT/s (OC).

1 cổng HDMI hỗ trợ 4K@60Hz.

2 khe M.2 PCIe 4.0 x4.

4 cổng SATA 6Gb/s.

Wi-Fi 6, Bluetooth v5.3.

Bảo hành: 36 tháng

Thêm vào giỏ ĐẶT MUA NGAY Giao tận nhà (COD)
Hoặc Nhận tại cửa hàng

Để lại số điện thoại, chúng tôi sẽ tư vấn cho Quý khách!

Gọi đặt mua: 0912.074.444 (08h - 21h)

ƯU ĐÃI THÊM

🎁 Cam kết giá tốt nhất, có báo giá tốt hơn liên hệ Zalo KCCSHOP
🎁 Giảm tới 2% & Dịch vụ hậu mãi vip cho K-Member
🎁 Miễn phí vệ sinh - phần mềm trọn đời sản phẩm

YÊN TÂM MUA SẮM TẠI KCCSHOP

TOP 1 Bán Lẻ Rẻ Như Bán Buôn

Sản phẩm chính hãng 100%

1 Đổi 1 trong 30 ngày đầu

Bảo hành tại nhà nhanh gọn.

Bảo vệ giá trong vòng 7 ngày.

TƯ VẤN - ĐẶT HÀNG

Kinh Doanh HN: 0912.074.444

Kinh Doanh HN: 05833.12345

Kinh Doanh HCM : 0966.666.308

Bảo Hành : 0888.129.444

CHÍNH SÁCH GIAO HÀNG
Giao hàng Grab siêu tốc trong 2h
Giao hàng toàn quốc
Nhận hàng và thanh toán tại nhà

Khách hàng đánh giá, nhận xét

0/5

0 đánh giá & nhận xét

5 sao
0 đánh giá
4 sao

0 đánh giá
3 sao

0 đánh giá
2 sao

0 đánh giá
1 sao

0 đánh giá

Bạn đã dùng sản phẩm này?

Gửi đánh giá của bạn

Hỏi và đáp (0 bình luận)

Thông số kỹ thuật

Model	B840M AYW GAMING WIFI
CPU	AMD Socket AM5 for AMD Ryzen ^™ 9000 & 8000 & 7000 Series Desktop Processors Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset	AMD B840 Chipset
Memory	2 x DIMM slots, max. 128GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Results may vary according to system components. XMP/EXPO/AEMP Profiles: Rated memory module speeds require a BIOS performance profile setting. Results may vary according to system components and can be impacted when four DIMM slots are used. Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x HDMI ^™ port Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B840 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ). Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode) AMD B840 Chipset 4 x SATA 6Gb/s ports Specifications vary by CPU types.
RAID Support	AMD RAIDXpert2 Technology Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10
Ethernet	1 x Realtek ^® 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth ^® v5.3 The Bluetooth ^® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 6 ports) 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C ^® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C ^® power delivery output: max. 5V/3A.
Audio	Realtek ^® 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

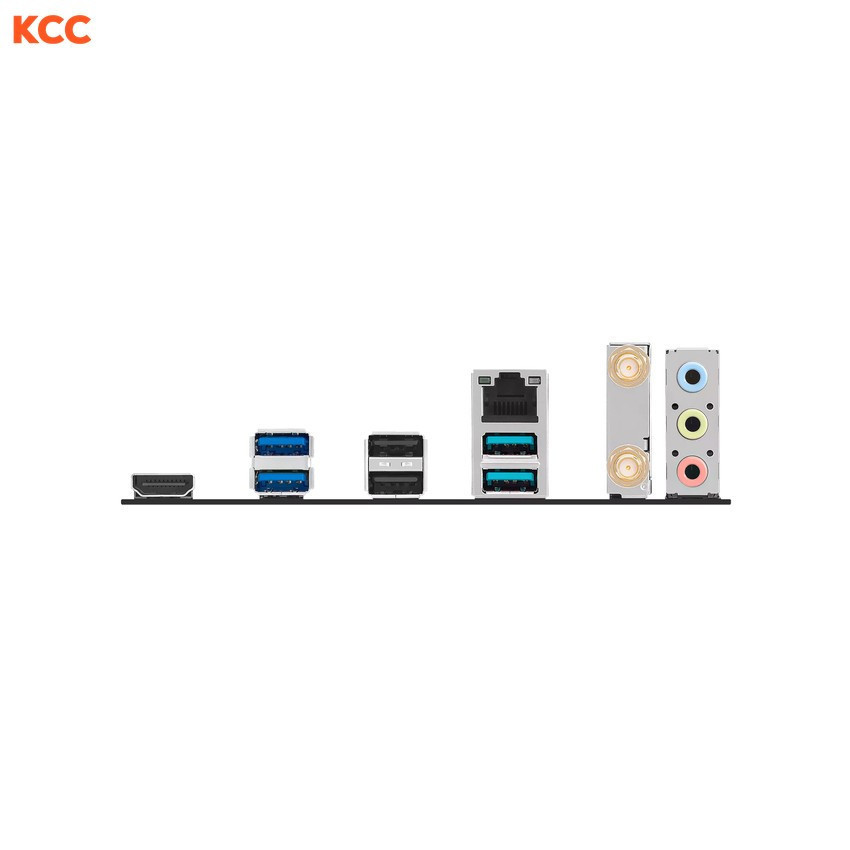

Back Panel I/O Ports	2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI ^™ port 1 x Wi-Fi module 1 x Realtek ^® 2.5Gb Ethernet port 3 x Audio jacks
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C ^® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design Aura Sync - Addressable RGB Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert

Xem thêm thông số kỹ thuật

THÔNG SỐ KỸ THUẬT

Model	B840M AYW GAMING WIFI
CPU	AMD Socket AM5 for AMD Ryzen ^™ 9000 & 8000 & 7000 Series Desktop Processors Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset	AMD B840 Chipset
Memory	2 x DIMM slots, max. 128GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Results may vary according to system components. XMP/EXPO/AEMP Profiles: Rated memory module speeds require a BIOS performance profile setting. Results may vary according to system components and can be impacted when four DIMM slots are used. Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x HDMI ^™ port Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B840 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ). Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode) AMD B840 Chipset 4 x SATA 6Gb/s ports Specifications vary by CPU types.
RAID Support	AMD RAIDXpert2 Technology Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10
Ethernet	1 x Realtek ^® 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth ^® v5.3 The Bluetooth ^® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 6 ports) 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C ^® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C ^® power delivery output: max. 5V/3A.
Audio	Realtek ^® 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI ^™ port 1 x Wi-Fi module 1 x Realtek ^® 2.5Gb Ethernet port 3 x Audio jacks
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C ^® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design Aura Sync - Addressable RGB Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert
