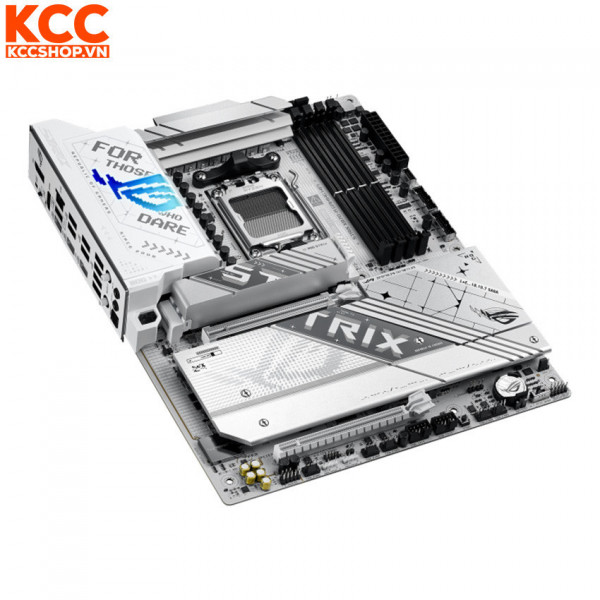

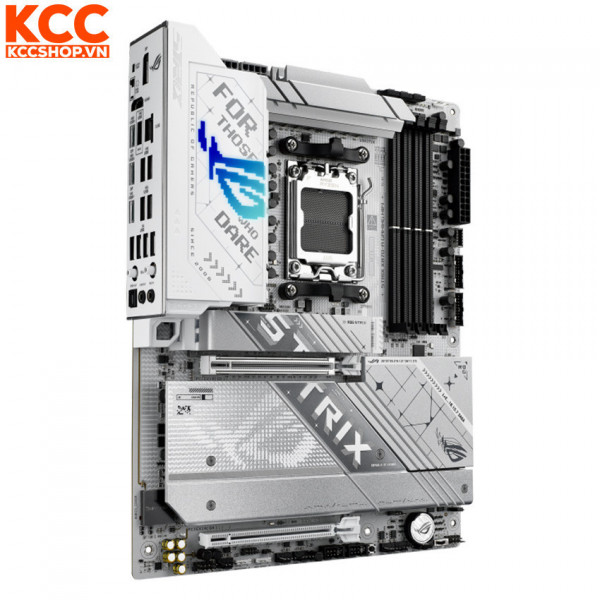

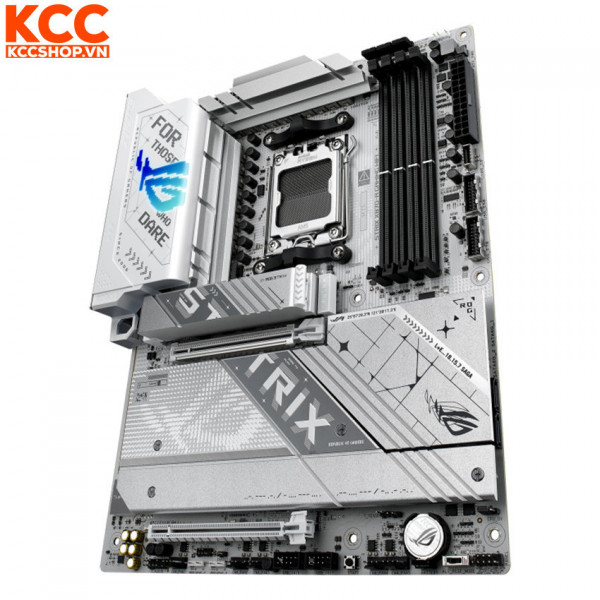

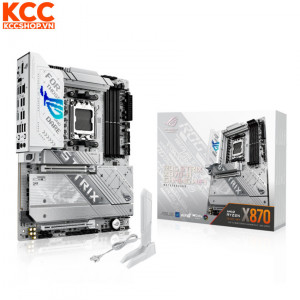

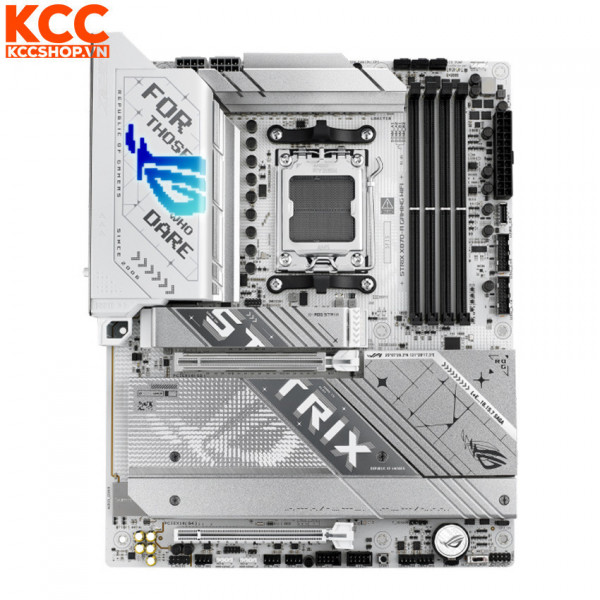

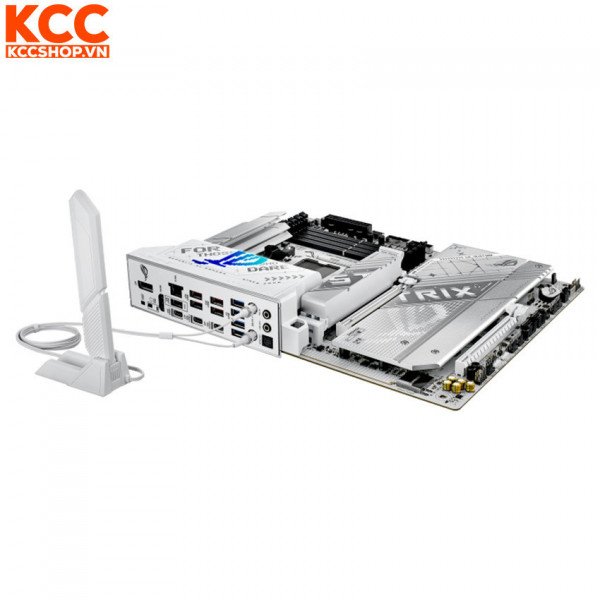

Mainboard Asus ROG STRIX X870-A GAMING WIFI DDR5

Loại sản phẩm

Mainboard

Thương hiệu

ASUS

Model

ROG STRIX X870-A GAMING WIFI

Hỗ trợ Socket

AMD Socket AM5 for AMD Ryzen^™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

AMD X870 Chipset

Hỗ trợ bộ nhớ

4 x DIMM slots, max. 192GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen^™ 9000 & 8000 & 7000 Series Processors

Khe mở rộng

AMD Ryzen^™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen^™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870 Chipset
1 x PCIe 4.0 x16 slots (support x1 mode)

Srorage

Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen^™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
AMD Ryzen^™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports

Mạng Ethernet

1 x Intel^® 2.5Gb Ethernet
ASUS LANGuard

Bluetooth, không dây

Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth^® v5.4

USB

Rear USB (Total 6 ports)
2 x USB4^® (40Gbps) ports(2 x USB Type-C^® with DP Alt mode)*
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C^® with up to 30W PD Fast-charge)**
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 8 ports)
1 x USB 20Gbps connector (supports USB Type-C^®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Âm thanh

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

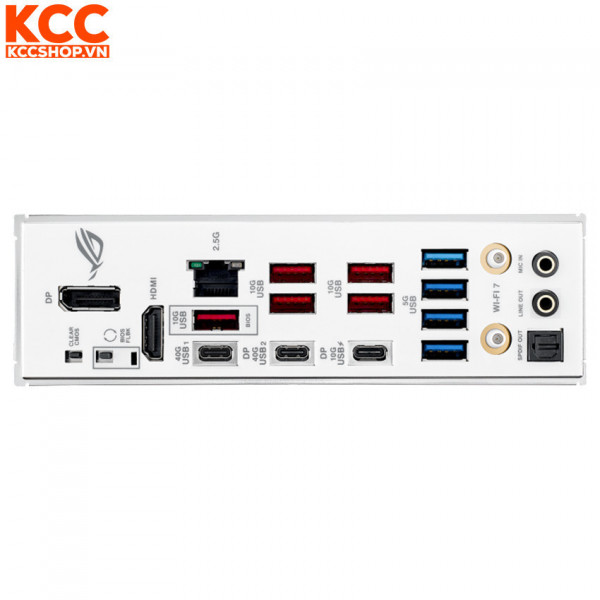

Cổng I/O mặt sau

2 x USB4^® (40Gbps) ports (2 x USB Type-C^® with DP Alt mode)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C^® with up to 30W PD Fast-charge)
4 x USB 5Gbps ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel^® 2.5Gb Ethernet
2 x Audio jacks 
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button 
1 x Clear CMOS button 

Đầu nối I/O bên trong

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Hệ điều hành

Windows® 11  , Windows® 10  64-bit

Yếu tố hình thức

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
