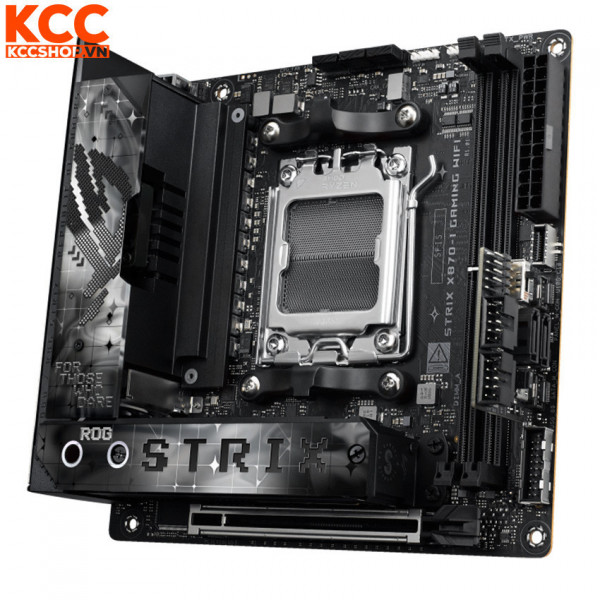

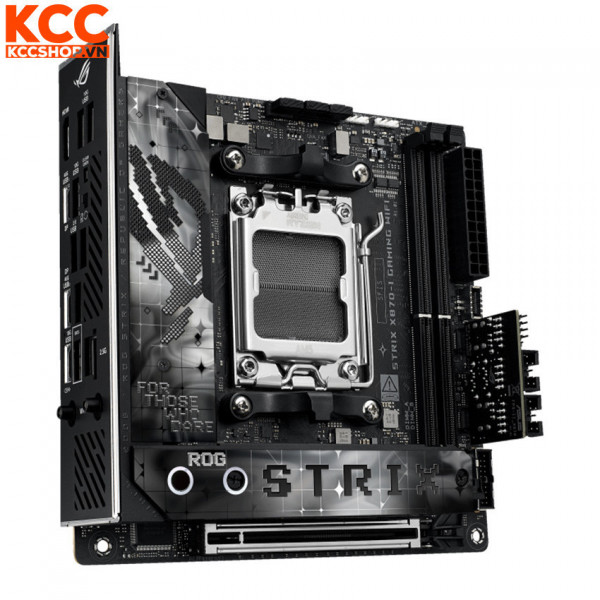

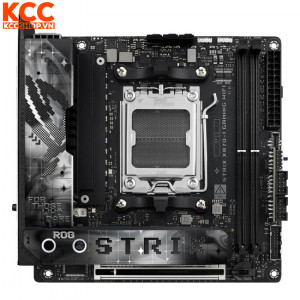

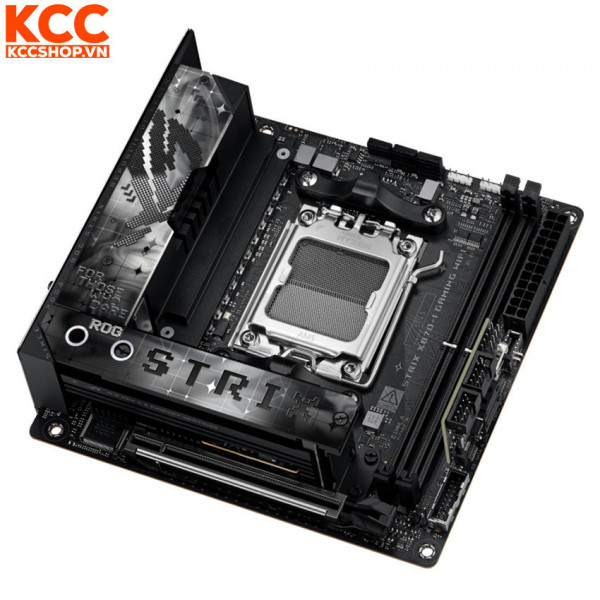

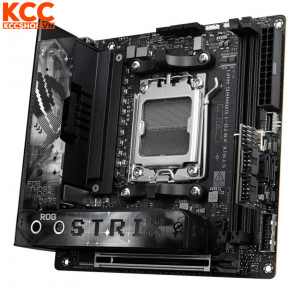

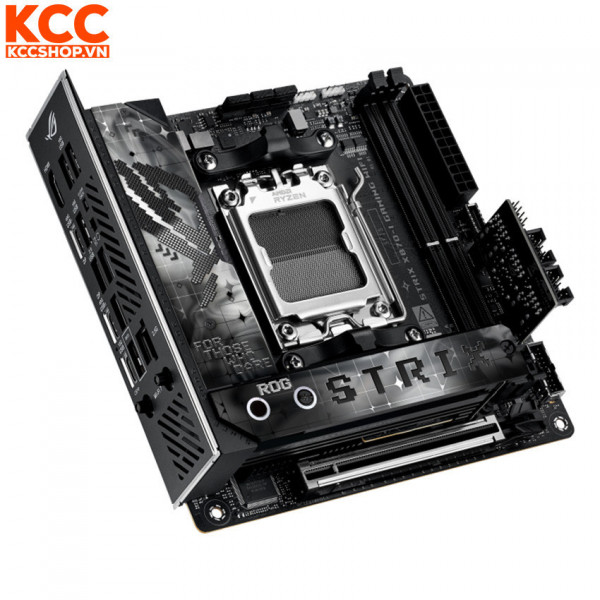

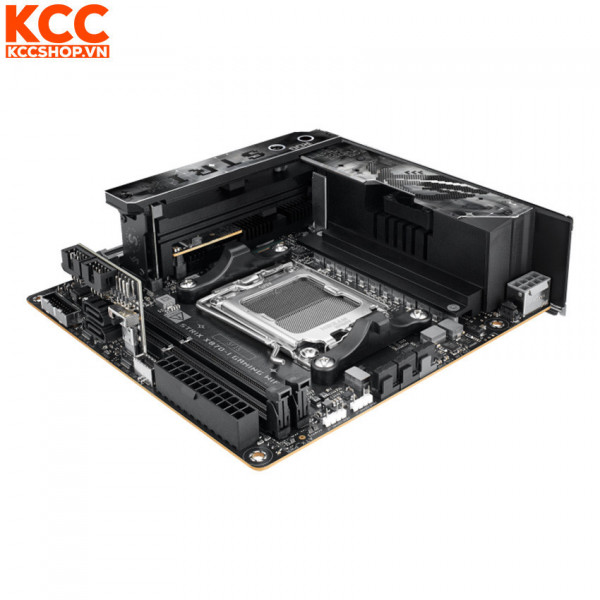

Mainboard Asus ROG STRIX X870-I GAMING WIFI DDR5

Loại sản phẩm

Mainboard

Thương hiệu

ASUS

Model

ROG STRIX X870-I GAMING WIFI

Hỗ trợ Socket

AMD Socket AM5 for AMD Ryzen^™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

AMD X870 Chipset

Hỗ trợ bộ nhớ

2 x DIMM slots, max. 96GB, DDR5
Supports up to
8400+MT/s(OC) with Ryzen™ 9000 Series Processors,
8600+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors

Khe mở rộng

AMD Ryzen^™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot
AMD Ryzen^™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

Srorage

Total Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen^™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
AMD Ryzen^™ 8000 Series Desktop Processors
M..2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
2 x SATA 6Gb/s ports

Mạng Ethernet

1 x Intel^® 2.5Gb Ethernet
ASUS LANGuard

Bluetooth, không dây

Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
Bluetooth^® v5.4

USB

Rear USB (Total 6 ports)
2 x USB4^® (40Gbps) port(s)(2 x USB Type-C^®)
5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C^®)
3 x USB 2.0 port(s) (3 x Type-A)
Front USB (Total 8 ports)
1 x USB 10Gbps connector (supports USB Type-C^®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
* USB Type-C^® power delivery output: max. 5V/3A
ROG STRIX HIVE II(Total 2 ports)
2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C^®)
ROG FPS Card (Total 3 ports)
2 x USB 2.0 headers additional 3 USB 2.0 ports

Âm thanh

ROG Strix Hive II Audio Features
- ROG Hyper-Grounding Technology
- ESS^® SABRE9260Q DAC
- Silver-plated audio jacks
- Dedicated audio PCB layers

Cổng I/O mặt sau

2 x USB4^® (40Gbps)(2 x USB Type-C^®)
5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C^®, 1 port supports ROG STRIX HIVE II)
3 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel^® 2.5Gb Ethernet port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Đầu nối I/O bên trong

Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage related
2 x M.2 slots (Key M)

Miscellaneous
2 x Addressable Gen 2 headers
1 x 2-pin Power Button header
1 x Thermal Sensor header
2 x USB Type-C^® connectors to install ROG FPS card
ROG FPS card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Front Panel header
1 x Alteration PCIe Mode switch
2 x USB 2.0 headers support 3
additional USB 2.0 ports

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Hệ điều hành

Windows® 11  , Windows® 10  64-bit

Yếu tố hình thức

Mini-ITX Form Factor
6.7 inch x 6.7 inch (17 cm x 17 cm)
