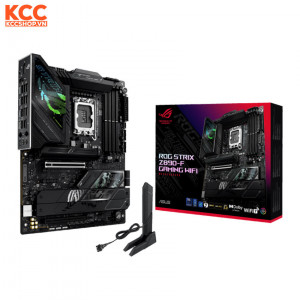

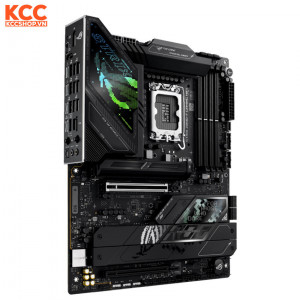

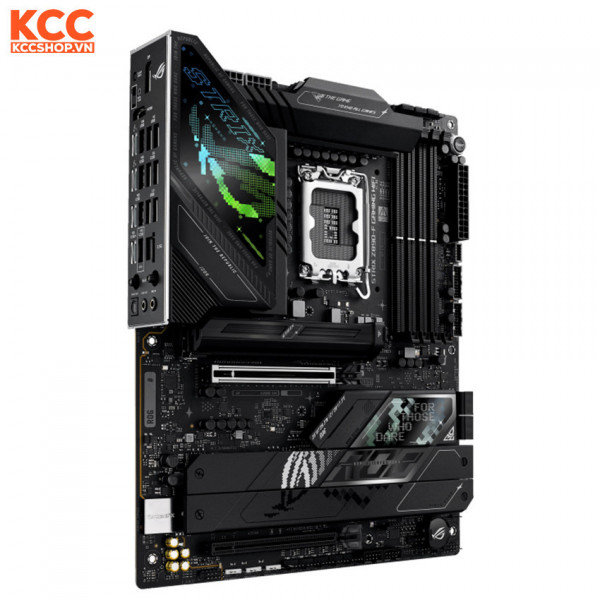

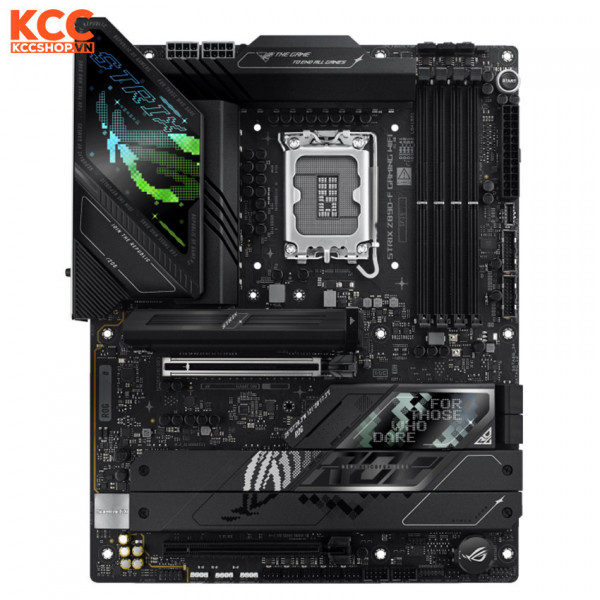

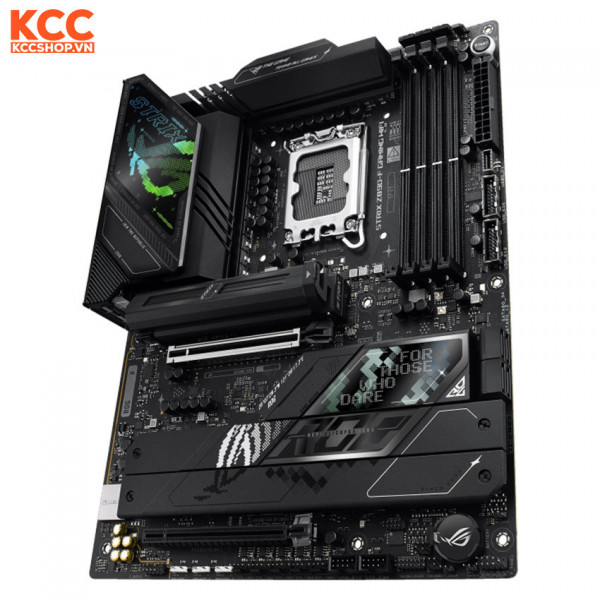

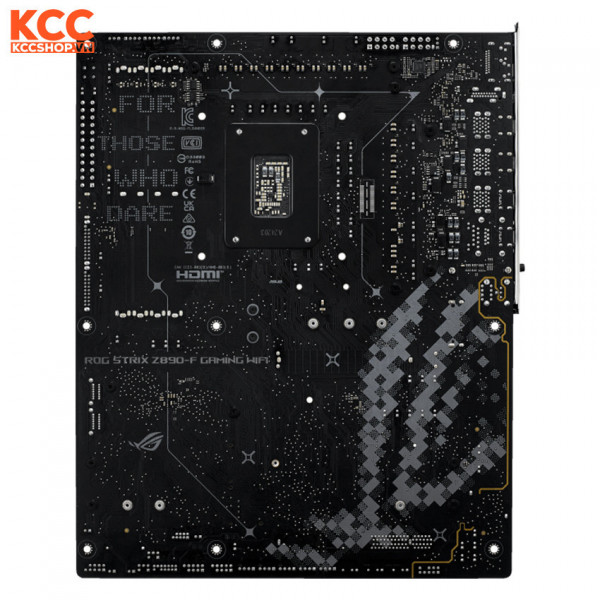

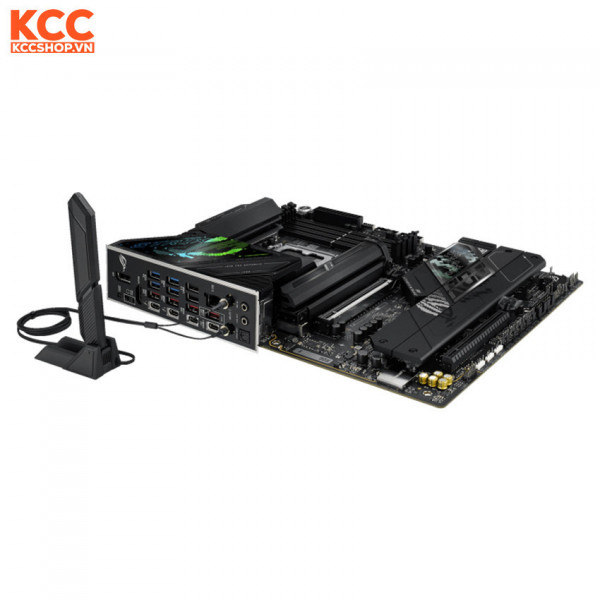

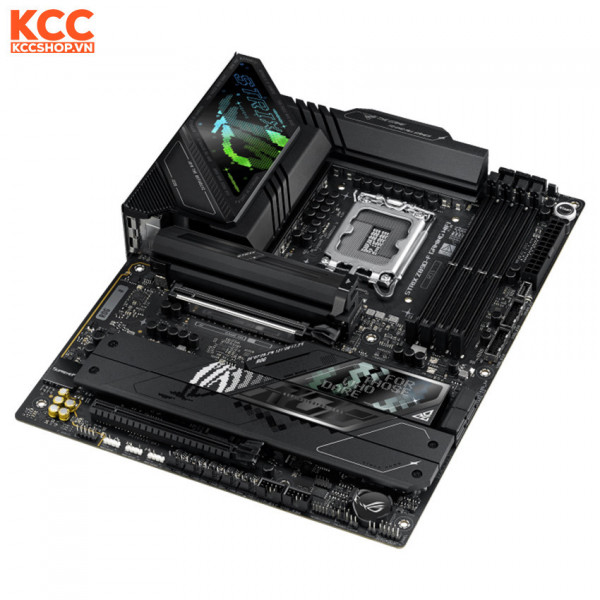

Mainboard Asus ROG STRIX Z890-F GAMING WIFI

Loại sản phẩm

Mainboard

Thương hiệu

ASUS

Model

ROG STRIX Z890-F GAMING WIFI

Hỗ trợ Socket

Intel^® Core™ Ultra Processors (Series 2), LGA1851

Chipset

Intel^® Z890 Chipset

Hỗ trợ bộ nhớ

4 x DIMM slots, max. 192GB, DDR5
Support up to 8600+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
Supports Intel^® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
DIMM Fit
ASUS Enhanced Memory Profile III (AEMP III)

Khe mở rộng

Intel^® Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
Intel^® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

Srorage

Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
Intel^® Core™ Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel^® Z890 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

Mạng Ethernet

1 x Intel^® 2.5Gb Ethernet
ASUS LANGuard

Bluetooth, không dây

Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth^® v5.4

USB

Rear USB (Total 14 ports)
2x Thunderbolt™ 4 (2 x USB Type-C^®)
6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C^®* + 1 x USB Type-C^® with up to 30W PD Fast-charge)**
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports
Front USB (Total 9 ports)
1 x USB 20Gbps connector (1 x USB Type-C^®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Âm thanh

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

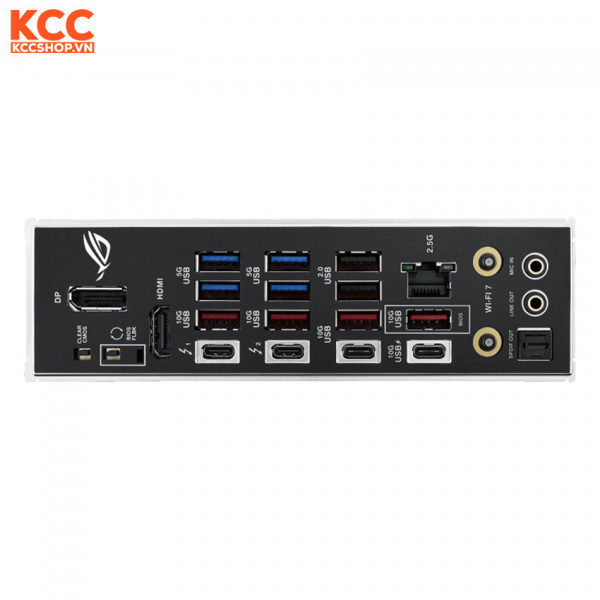

Cổng I/O mặt sau

2 x Thunderbolt™ 4 (2 x USB Type-C^®)
6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C^® + 1 x USB Type-C^® with up to 30W PD Fast-charge)**
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel^® 2.5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Đầu nối I/O bên trong

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C^®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4^®) header

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Hệ điều hành

Windows® 11  , Windows® 10  64-bit

Yếu tố hình thức

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
