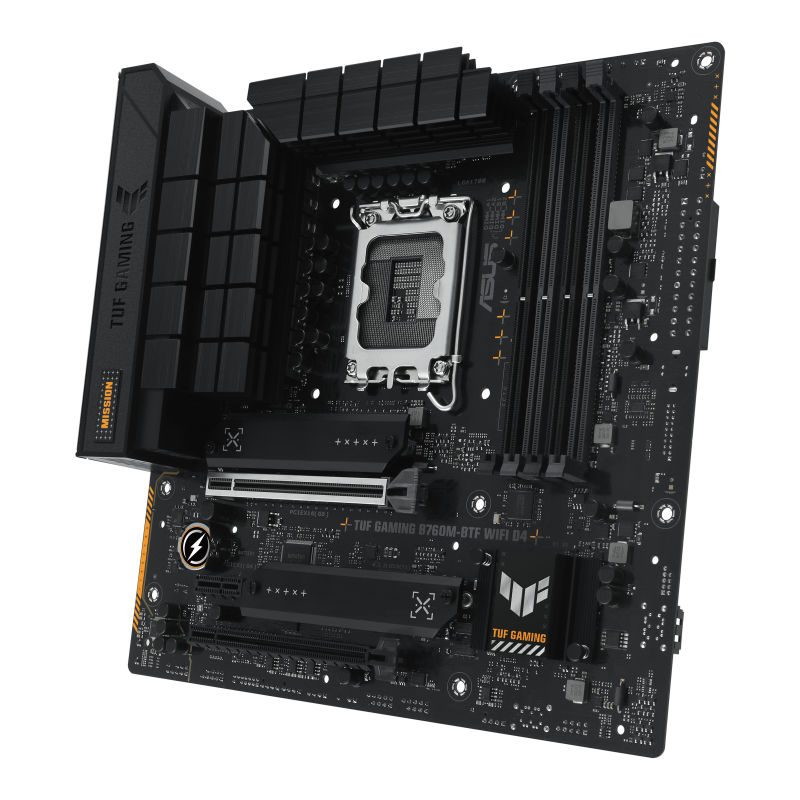

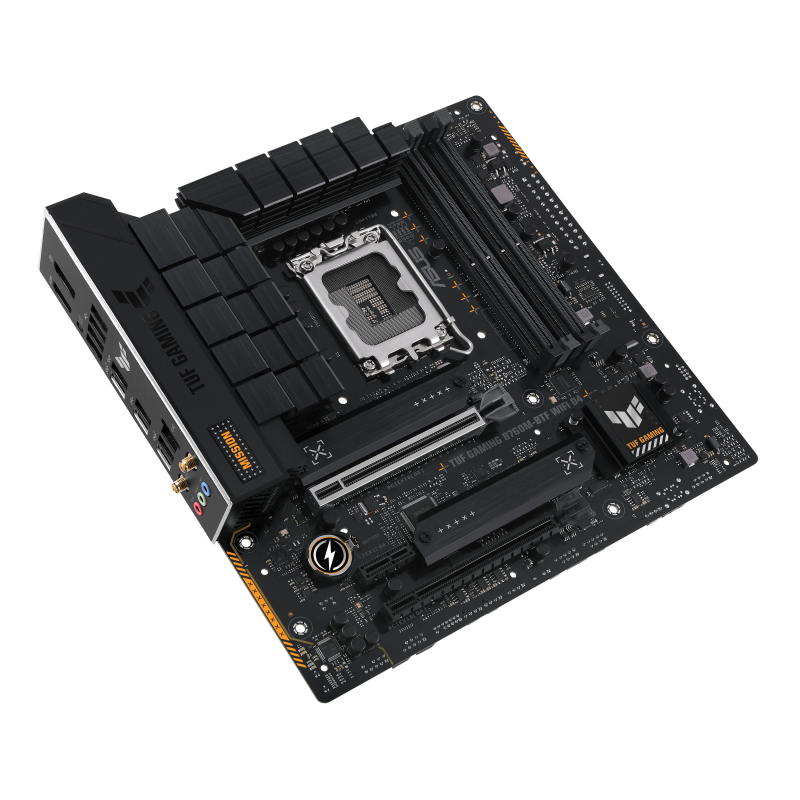

Mainboard ASUS TUF GAMING B760M-BTF WIFI D4 (DDR4)

CPU

Intel® Socket LGA1700 cho Bộ xử lý Intel® Core ™, Pentium® Gold và Celeron® thế hệ thứ 12,13 *

Hỗ trợ công nghệ Intel® Turbo Boost 2.0 và công nghệ Intel® Turbo Boost Max 3.0 **

* Tham khảo www.asus.com để biết danh sách hỗ trợ CPU.
** Hỗ trợ công nghệ Intel® Turbo Boost Max 3.0 tùy thuộc vào loại CPU.

Chipet

Intel® B760 Chipset

Bộ nhớ

4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel^® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

Đồ họa

1 x DisplayPort**
1 x HDMI™port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.

Khe mở rộng

Bộ xử lý Intel ^® Thế hệ ^thứ 13 & 12 ¹
x Khe cắm PCIe 5.0 x16 Chipset
Intel ^® B760
1 x Khe cắm PCIe 4.0 x16 (hỗ trợ chế độ x4)
1 x Khe cắm PCIe 4.0 x1
- Để đảm bảo tính tương thích của thiết bị được cài đặt, vui lòng tham khảo https: //www.asus.com/support/ để biết danh sách các thiết bị ngoại vi được hỗ trợ.

Lưu trữ

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel^® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 4.0 x4 mode)
Intel^® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s ports
* Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10.
** M.2_3 slot shares bandwidth with PCIEX16(G4) slot. When M.2_3 slot has be installed a device, PCIEX16(G4) slot will be disabled.

LAN

1 x Realtek 2.5Gb Ethernet

USB

Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C^®)
3 x USB 3.2 Gen 1 ports (2 x Type-A + 1 x USB Type-C^®)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C^®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.
** USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

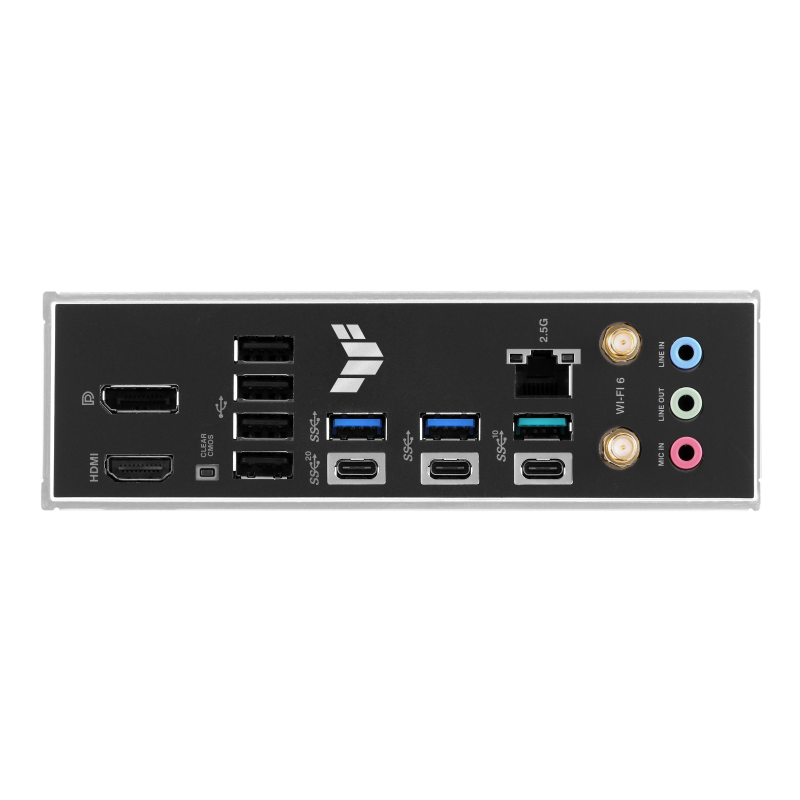

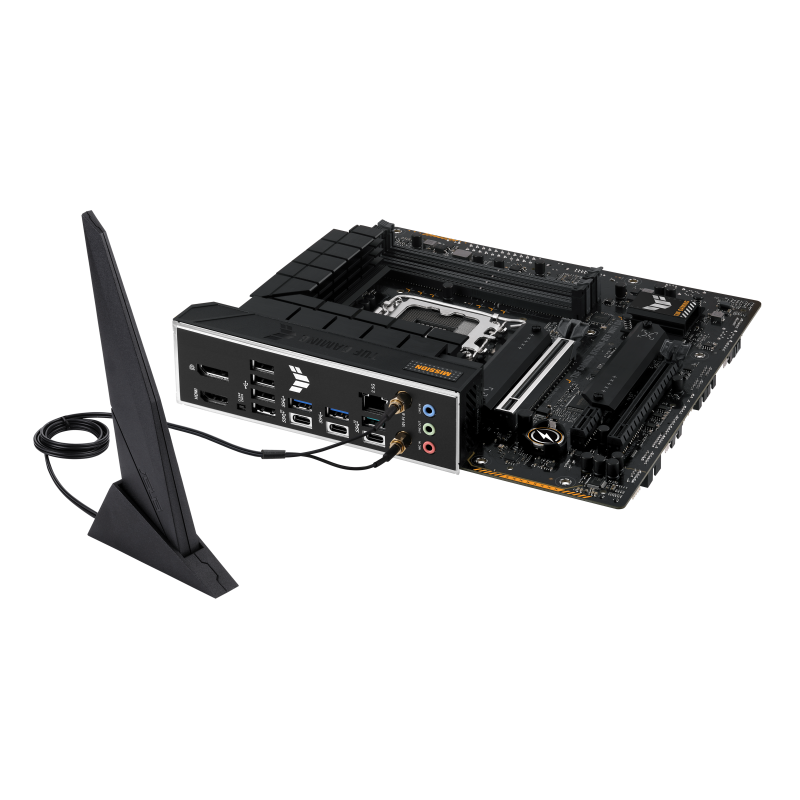

Cổng I/O mặt sau

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x USB Type-C^®)
3 x USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C^®)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI^TM port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x Clear CMOS button

Đầu nối I/O nội bộ

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C^® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 10-1 pin System Panel header
1 x Thunderbolt™ (USB4^®) header

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Khả năng quản lý

WOL bởi PME, PXE

Phụ kiện

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x TUF Gaming sticker
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation
1 x User guide

Kích thước

MicroATX

9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Hệ điều hành

Windows® 11 64-bit, Windows® 10 64-bit
