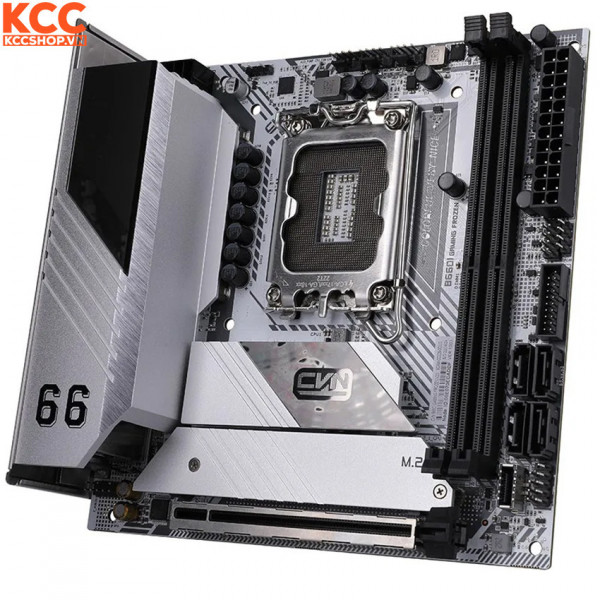

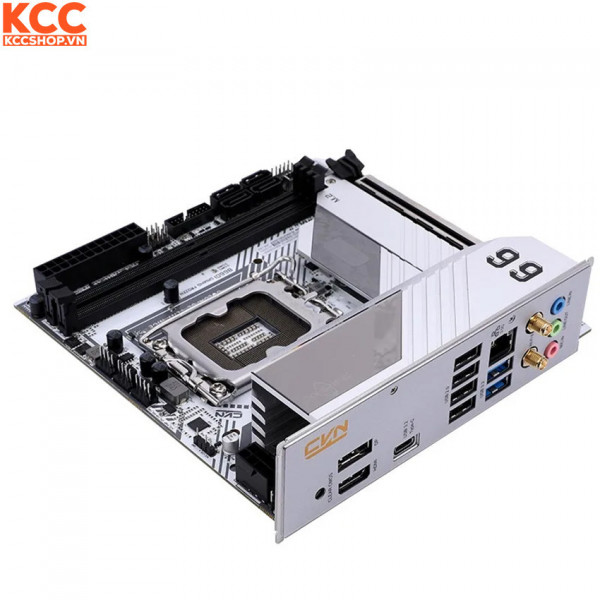

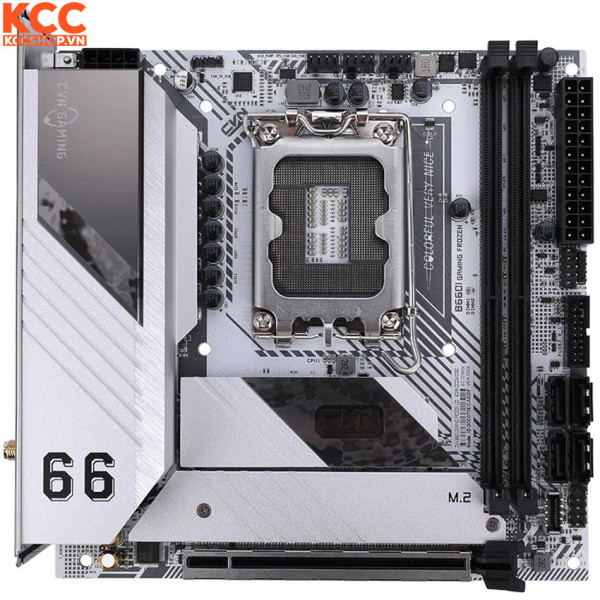

Mainboard Colorful CVN B660I GAMING FROZEN V20

Loại sản phẩm

Mainboard

Thương hiệu

Colorful

Model

BATTLE-AX B660M-D V20

Chipset

Intel B660

Hỗ trợ socket

14th/13th/12th Gen Intel® Core™ Processors (Socket 1700)

Hỗ trợ bộ nhớ

The motherboard provides 2x memory slots, a single memory supports a maximum capacity of 32GB, the total memory capacity supports a maximum capacity of 64GB, and supports DDR4-4600 (OC)/4200 (OC)/4000 (OC)/3600 (OC)/3200/2933 /2800/2666/2400 MHz specification memory, support Extreme Memory Profile (XMP) memory; support dual-channel memory and memory overclocking technology! *Reminder: The overclocking frequency of the memory also depends on the overclocking performance of the CPU and the memory itself !

Cổng kết nối SATA

4xSATA 6Gbps ports, Supports RAID0, 1, 5, 10, 2x M.2 SSD slots (the M.2 slot with silkscreen "CPU_M.2" supports PCIe 4.0x4 / SATA protocol M.2 hard drives, and the M.2 with silkscreen "PCH_M.2" 2 slots support PCIe 3.0x4 protocol M.2 hard disk)

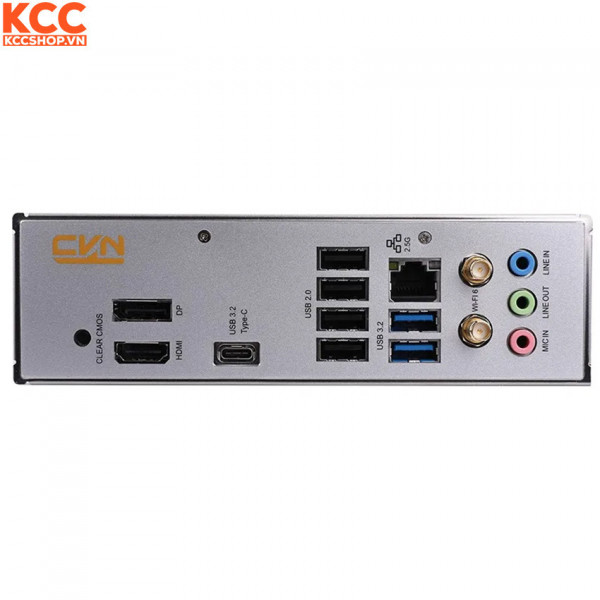

Bảng I/O

I/O: 1x HDMI port, 1x DP port, 3x USB 3.2 Gen1 (2 Type-A+1 Type-C) ports, 4x USB 2.0 ports, 1x 2.5Gbps network port, WiFi 6 module port, 6 Channel Audio Interface; Onboard: 1x USB 3.2 Gen 1 header, 1x USB 3.2 Gen 1 Slot, 1x USB 2.0 header, 1x System Fan header, 1x CPU Fan header, 1x Water-Pump fan header, 1x 5V 3-pin ARGB header, 1x front panel header, 1x front audio header, 1x speaker header

Khe mở rộng

1xPCI Express 5.0x16 slot

BIOS

128M UEFI, support multiple languages

LAN

Realtek 2.5Gbps LAN

Audio

6 channel sound card

Chuẩn kích thước

170mm x 170mm, ITX
