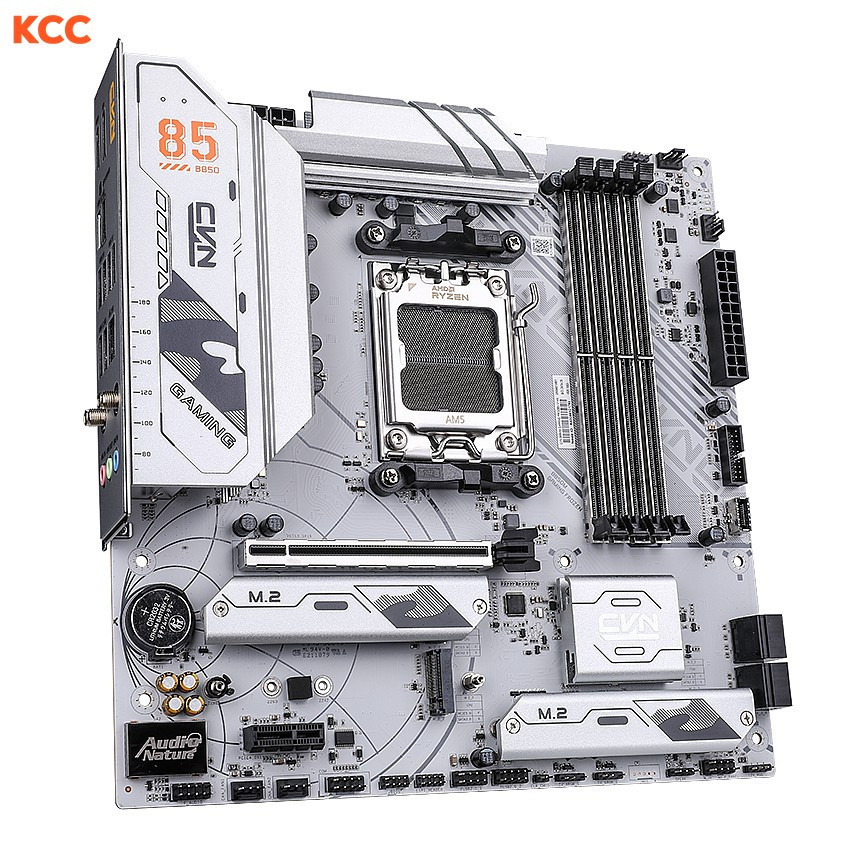

Bo mạch chủ CVN B850M GAMING FROZEN V14A.
Chipset AMD B850, dòng CVN series.
Hỗ trợ Ryzen 7000/8000/9000 series AM5.
4 khe DDR5, tối đa 192GB, 8400MHz(OC).
3 M.2, 4 SATA 6Gb/s, RAID 0/1.
1 PCIe 5.0 x16, 1 PCIe 4.0 x1.
LAN 2.5Gbit, WiFi 6, Bluetooth 5.2.
Để lại số điện thoại, chúng tôi sẽ tư vấn cho Quý khách!
ƯU ĐÃI THÊM
0/5
0 đánh giá & nhận xétBạn đã dùng sản phẩm này?
Gửi đánh giá của bạnModel | CVN B850M GAMING FROZEN V14A |
---|---|
Product Series | CVN series |
Chipset | AMD B850 |
Processor | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard ( Please visit www.colorful.cn for the latest memory compatibility list) |
Memory | 4 DDR5 memory slots, supporting up to 192 GB memory (single slot supports up to 48 GB) -Supports DDR5-8400(OC)/8200(OC)/8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)4800(OC)/4600(OC)/4400MHz memory -Supports Extreme Memory Profile (XMP) memory technology -Supports EXtended Profiles for Overclocking (EXPO) Memory Technology -Supports dual-channel memory technology (Please visit Colorful's official website www.colorful.cn to check the latest memory compatibility list)" |
SATA Ports | Supports 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces in total, supports creating RAID 0 and RAID 1 disk arrays with M.2 NVMe hard disk devices -M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) -M.2_2 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) -M.2_3 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) (Whether PCIe 5.0 is supported depends on the CPU of the motherboard) |

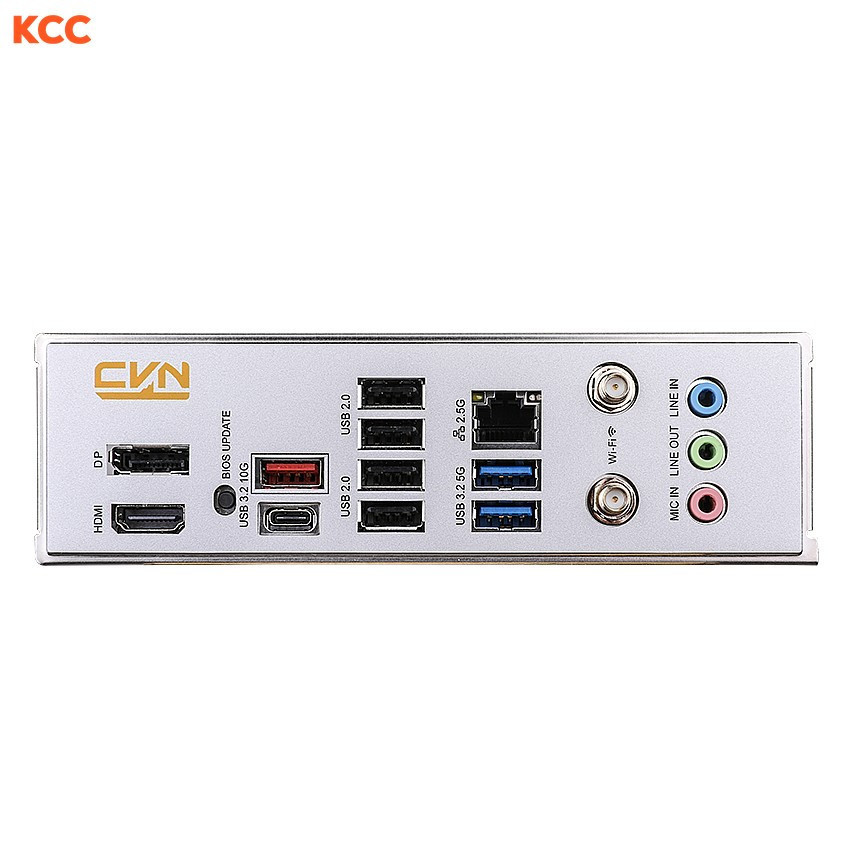

Board I/O | Rear I/O interface: -4 USB 2.0 interfaces -2 USB 3.2 Gen 1 5Gbps Type-A interfaces -1 USB 3.2 Gen 2 10Gbps Type-C interface -1 USB 3.2 Gen 2 10Gbps Type-A interface -1 DP 1.2 interface, supporting up to 4K 60Hz resolution -1 HDMI 2.0 interface, supporting up to 4K 60Hz resolution -1 2.5G network interface -2 Wi-Fi 6 antenna interfaces -3 audio interfaces (audio input/audio output/microphone) -1 BIOS update button Onboard device interface: -2 USB 2.0 pins can be expanded to 4 USB 2.0 Type-A interfaces -1 USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 5Gbps Type-A interfaces -1 USB 3.2 Gen 1 Type-C slot can be expanded 1 USB 3.2 Gen 1 5Gbps Type-C interface -1 CPU fan pin -3 system fan pins -1 water cooling pump pin -3 5V 3-pin ARGB pins -1 12V 4-pin RGB pin -1 front audio pin -1 front panel pin -1 speaker pin -1 serial port pin -1 clear CMOS jumper -1 BIOS burner pin -1 diagnostic card pin |
Expansion Slots | 1×PCIe 5.0 x16 slot 1×PCIe 4.0 x1 slot |
BIOS | 256M UEFI, supports multiple languages |
Power Management | Support S3, S4, network S5 wake-up, support scheduled startup, call startup |
Hardware Monitor | CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring |
LAN | RTL8125BG 2.5Gbit network card, AX200 WiFi 6 wireless network card, Bluetooth 5.2 |
Audio | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels |
Configuration | M-ATX 245mm x 245mm |
