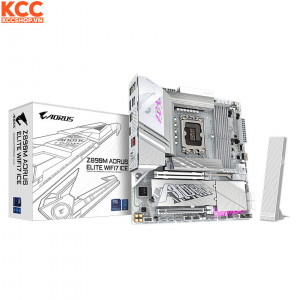

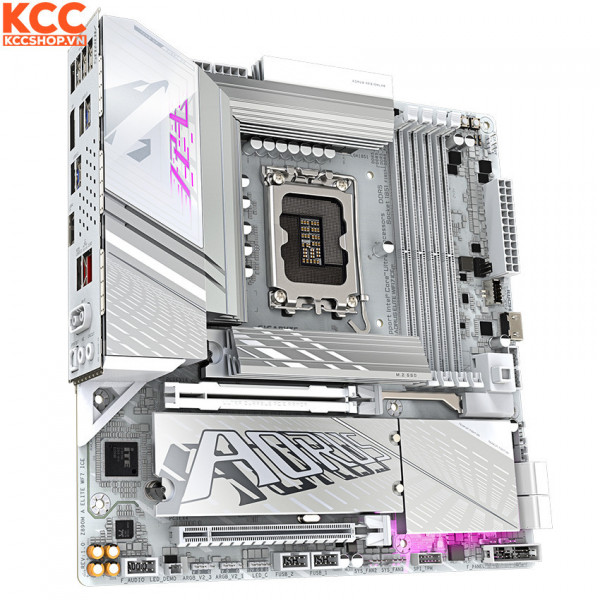

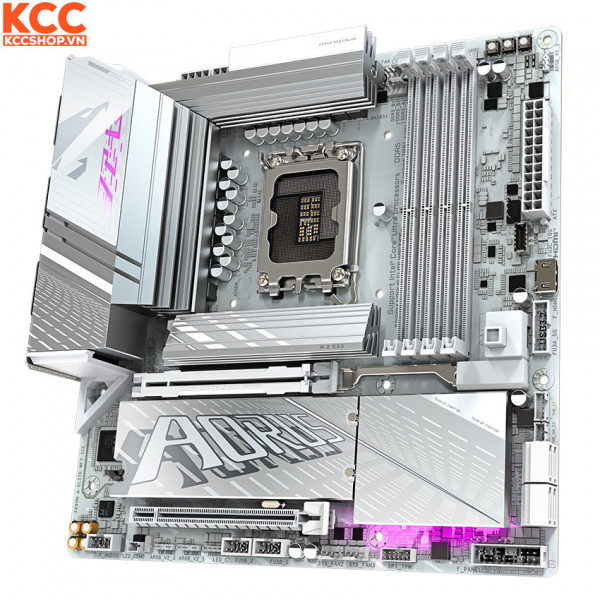

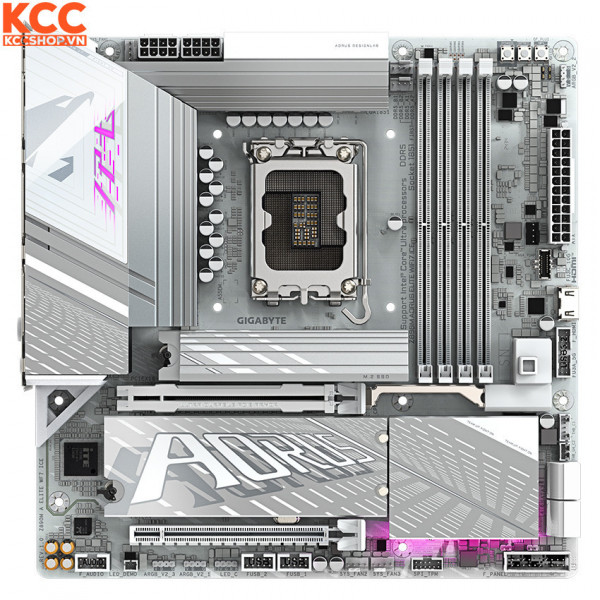

Mainboard Gigabyte Z890M AORUS ELITE WIFI7 ICE

Loại sản phẩm

Mainboard

Thương hiệu

Gigabyte

Model

Z890M A ELITE WIFI7 ICE

Hỗ trợ Socket

LGA1851 socket: Support for Intel® Core™ Ultra Processors
L3 cache varies with CPU

Chipset

Intel® Z890 Express

Hỗ trợ bộ nhớ

4 x DIMM slots, Max. 256GB, DDR5 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Support for DDR5 6400/5600 MT/s memory modules

Khe mở rộng

CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Srorage

CPU:
- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Mạng Ethernet

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Bluetooth, không dây

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard

USB

CPU:
- 1 x USB4® USB Type-C® port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Âm thanh

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Support for S/PDIF Out

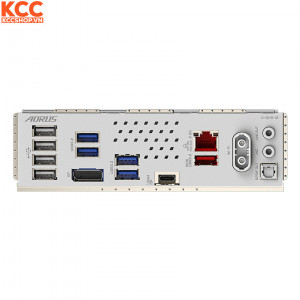

Cổng I/O mặt sau

1 x USB4® USB Type-C® port (DisplayPort^(Note))
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports

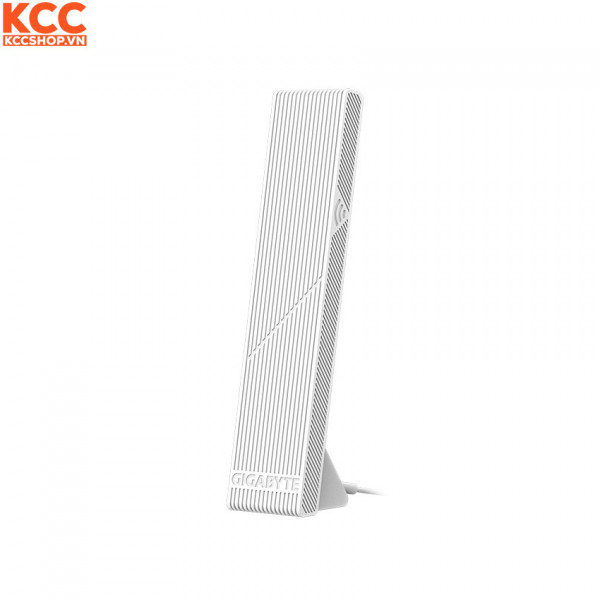

2 x antenna connectors (2T2R)
1 x DisplayPort^(Note)
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

Đầu nối I/O bên trong

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port^(Note)
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Hệ điều hành

Windows® 11  , Windows® 10  64-bit

Yếu tố hình thức

Micro ATX Form Factor; 24.4cm x 24.4cm
