Mainboard MSI MAG X570 TOMAHAWK WIFI

CPU

Hỗ trợ 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4

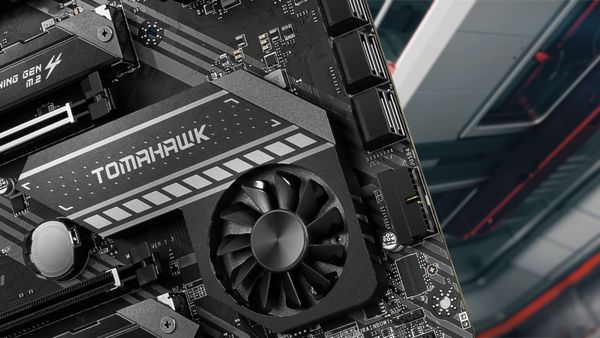

CHIPSET

AMD® X570 Chipset

BỘ NHỚ

• 4x DDR4 memory slots, Hỗ trợ tối đa 128GB
• 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600+ Mhz by A-XMP OC MODE
• 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466+ Mhz by A-XMP OC MODE
• Hỗ trợ chế độ Dual-Channel
• Hỗ trợ chế độ non-ECC UDIMM memory
• Hỗ trợ chế độ ECC UDIMM memory (non-ECC mode)
• Hỗ trợ un-buffered memory

SLOT MỞ RỘNG

• 1x PCIe 4.0/3.0 x16 slot (PCI_E1)
• 3rd Gen AMD Ryzen™ hỗ trợ PCIe 4.0 x16 mode
• 2nd Gen AMD Ryzen™ hỗ trợ PCIe 3.0x16 mode
• Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
• 1x PCIe 4.0/3.0 x16 slot (PCI_E3), hỗ trợ chế độ x4
• 2x PCIe 3.0 x1 slots

GPU

• 1x HDMI 1.4 port, hỗ trợ xuất hình tối đa 4096x2160 @24Hz

1. Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors
2. Maximum shared memory of 2048 MB

MULTI-GPU

Hỗ trợ công nghệ 2-Way AMD® CrossFire™

LAN

1x Realtek® 8125B 2.5Gbps LAN Controller

WIRELESS & BLUETOOTH®

Intel® Wi-Fi 6 AX200

• Hỗ trợ 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
• Hỗ trợ Bluetooth® 5.0
• The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot

LƯU TRỮ

• 6x SATA 6Gb/s ports (from AMD® X570 Chipset)
• 2x M.2 slots (Key M) [1]
• M2_1 slot (from AMD® Processor)
• Hỗ trợ chế độ PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
• Hỗ trợ chế độ PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
• Hỗ trợ chế độ 2242/ 2260/ 2280/ 22110 storage devices
• M2_2 slot (from AMD® X570 Chipset)
• Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
• Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
• Supports SATA 6Gb/s
• Supports 2242/ 2260/ 2280 storage devices

RAID

Hỗ trợ RAID 0, RAID 1 and RAID 10

USB

AMD® X570 Chipset

• 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
• 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors
• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® Processor

• 2x USB 3.2 Gen 2 10Gbps (3rd Gen AMD Ryzen™) or USB 3.2 Gen 1 5Gbps (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
• 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO

Realtek® ALC1200 Codec

• 7.1-Channel High Definition Audio
• Supports Optical S/PDIF output

INTERNAL CONNECTORS

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x 4-pin ATX 12V power connector

6x SATA 6Gb/s connectors

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

2x USB 3.2 Gen 1 5Gbps connectors (supports

additional 4 USB 3.2 Gen 1 5Gbps ports)

1x USB 3.2 Gen 2 10Gbps Type-C Port

1x 4-pin CPU fan connector

1x 4-pin water-pump connector

4x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x TPM module connector

1x Serial port connector

1x Clear CMOS jumper

1x Chassis Intrusion connector

2x 4-pin RGB LED connectors

2x 3-pin RAINBOW LED connectors

4x EZ Debug LEDs

1x TBT connector [1]

1x RTD3 connector

1 x Thunderbolt card needs to support RTD3.

CỔNG KẾT NỐI ( MẶT SAU )

Keyboard / Mouse
Wireless / Bluetooth
USB 3.2 Gen 1 5Gbps Type A
USB 3.2 Gen 2 10Gbps Type A
2.5G LAN port
Audio Connectors
USB 2.0
HDMI port
USB 3.2 Gen 2 10Gbps Type C
USB 3.2 Gen 2 10Gbps Type A
Optical S/PDIF out

I/O CONTROLLER

NUVOTON NCT6797 Controller Chip

HARDWARE MONITOR

CPU/ System/ Chipset temperature detection
CPU/ System/ Chipset fan speed detection
CPU/ System/ Chipset fan speed control

BIOS

1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.1, SM BIOS 2.8
Multi-language

KIỂU THIẾT KẾ

ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
