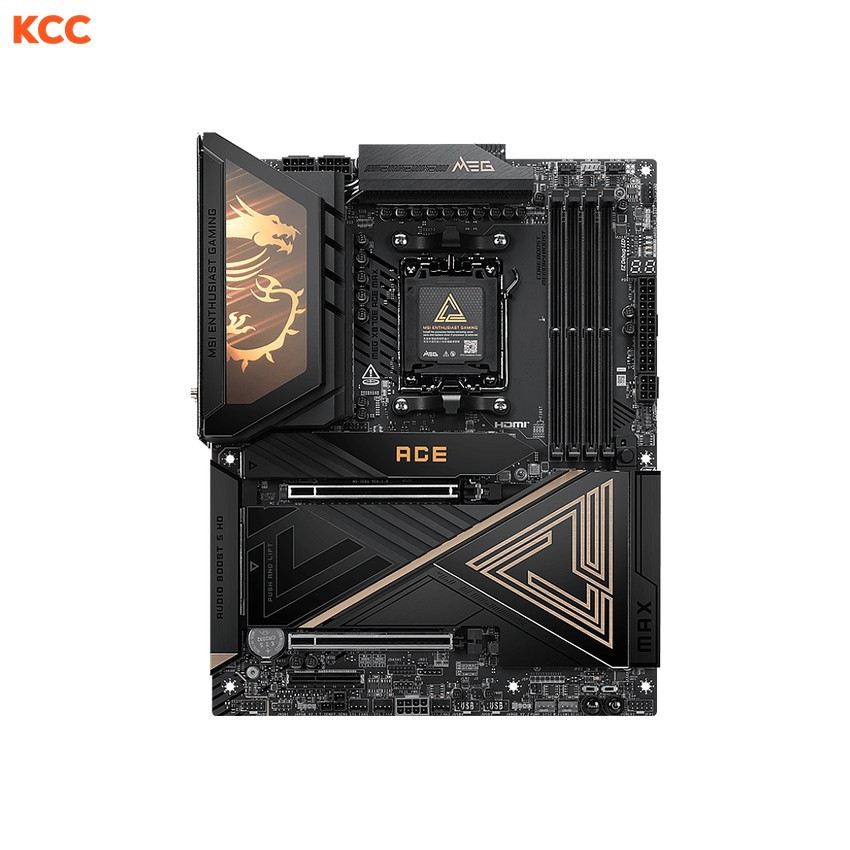

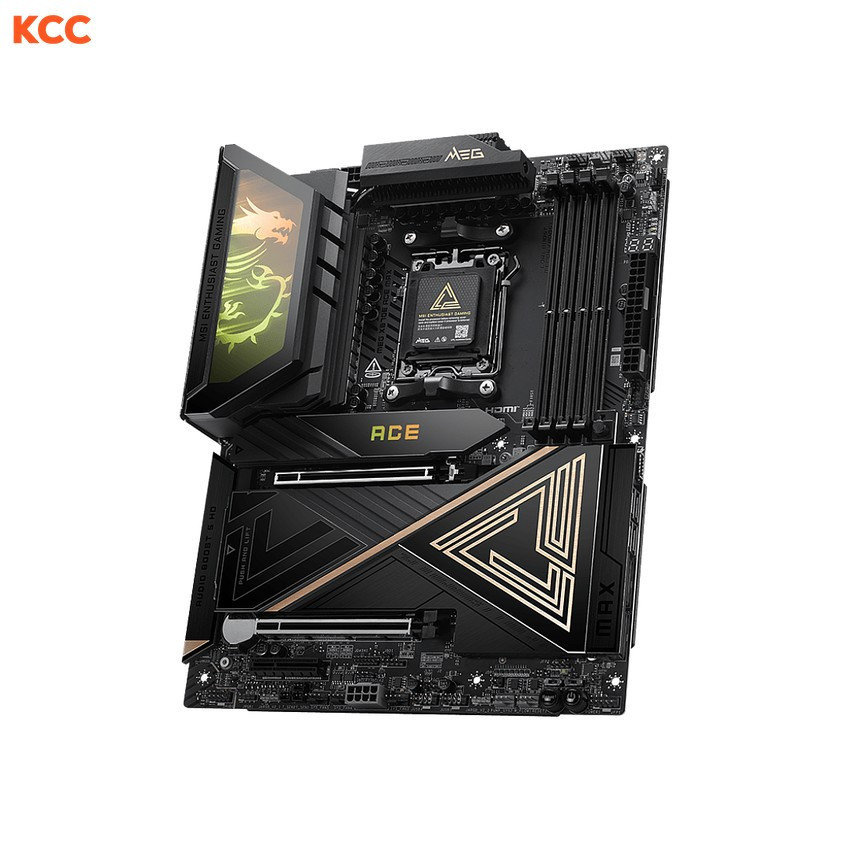

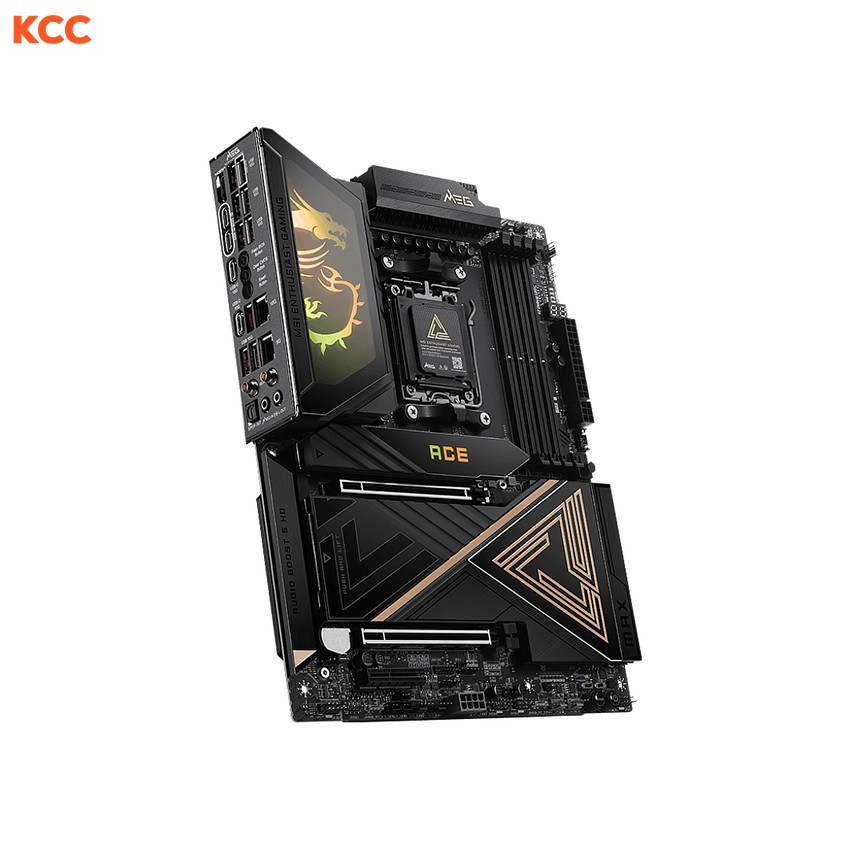

Mainboard MSI MEG X870E ACE MAX DDR5

+ So sánh

Lượt xem: 0 | 0 đánh giá | Tình trạng : Còn hàng | Thương hiệu : MSI | Cập nhật : 21/12/2025

Giá khuyến mại : Liên hệ

Build PC với sản phẩm này

Thông số sản phẩm

Chipset: AMD X870E.

CPU: Hỗ trợ Ryzen 9000/8000/7000 series, socket AM5.

RAM: 4x DDR5, tối đa 256GB, 8400(OC)/5600(JEDEC) MT/s.

Đồ họa: HDMI 8K 60Hz, 2x Type-C DisplayPort 4K 120Hz.

Khe cắm: 2x PCI-E x16, 1x PCI-E x4.

Lưu trữ: 5x M.2, 4x SATA 6G.

USB: 4x 2.0, 4x 5Gbps, 9x 10Gbps, 3x Type C.

Bảo hành: 36 tháng

Thêm vào giỏ ĐẶT MUA NGAY Giao tận nhà (COD)
Hoặc Nhận tại cửa hàng

Để lại số điện thoại, chúng tôi sẽ tư vấn cho Quý khách!

Gọi đặt mua: 0912.074.444 (08h - 21h)

ƯU ĐÃI THÊM

🎁 Cam kết giá tốt nhất, có báo giá tốt hơn liên hệ Zalo KCCSHOP
🎁 Giảm tới 2% & Dịch vụ hậu mãi vip cho K-Member
🎁 Miễn phí vệ sinh - phần mềm trọn đời sản phẩm

YÊN TÂM MUA SẮM TẠI KCCSHOP

TOP 1 Bán Lẻ Rẻ Như Bán Buôn

Sản phẩm chính hãng 100%

1 Đổi 1 trong 30 ngày đầu

Bảo hành tại nhà nhanh gọn.

Bảo vệ giá trong vòng 7 ngày.

TƯ VẤN - ĐẶT HÀNG

Kinh Doanh HN: 0912.074.444

Kinh Doanh HN: 05833.12345

Kinh Doanh HCM : 0966.666.308

Bảo Hành : 0888.129.444

CHÍNH SÁCH GIAO HÀNG
Giao hàng Grab siêu tốc trong 2h
Giao hàng toàn quốc
Nhận hàng và thanh toán tại nhà

Khách hàng đánh giá, nhận xét

0/5

0 đánh giá & nhận xét

5 sao
0 đánh giá
4 sao

0 đánh giá
3 sao

0 đánh giá
2 sao

0 đánh giá
1 sao

0 đánh giá

Bạn đã dùng sản phẩm này?

Gửi đánh giá của bạn

Hỏi và đáp (0 bình luận)

Thông số kỹ thuật

Chipset	AMD X870E
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only The DIMM slots on this motherboard only have single-sided latches. CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz 2x Type-C DisplayPort USB4 ^® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	2x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU) PCI_E1 & PCI_E2 slots • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors) PCI_E3 & M.2_1 share the bandwidth. M.2_1 will run at x2 speed when installing device in the PCI_E3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M.2_1 slot. Please refer to the PCIe configuration table in the manual for more details.
Audio	Realtek ^® ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Storage	5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G M.2_1: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. M.2_1 & PCI_E3 share the bandwidth. M.2_1 will run at x2 speed when installing device in the PCI_E3 slot. You can switch M.2_1 slot to x4 in the BIOS, but this will disable the PCI_E3 slot. USB 40Gbps Type-C ports & M2_2 share the bandwidth. USB 40Gbps Type-C ports will run at x2 speed when installing device in the M2_2 slot. You can switch M.2_2 to x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices RAID 5/ 10 configuration is only supported by Ryzen™ 9000/ 7000 series processors.

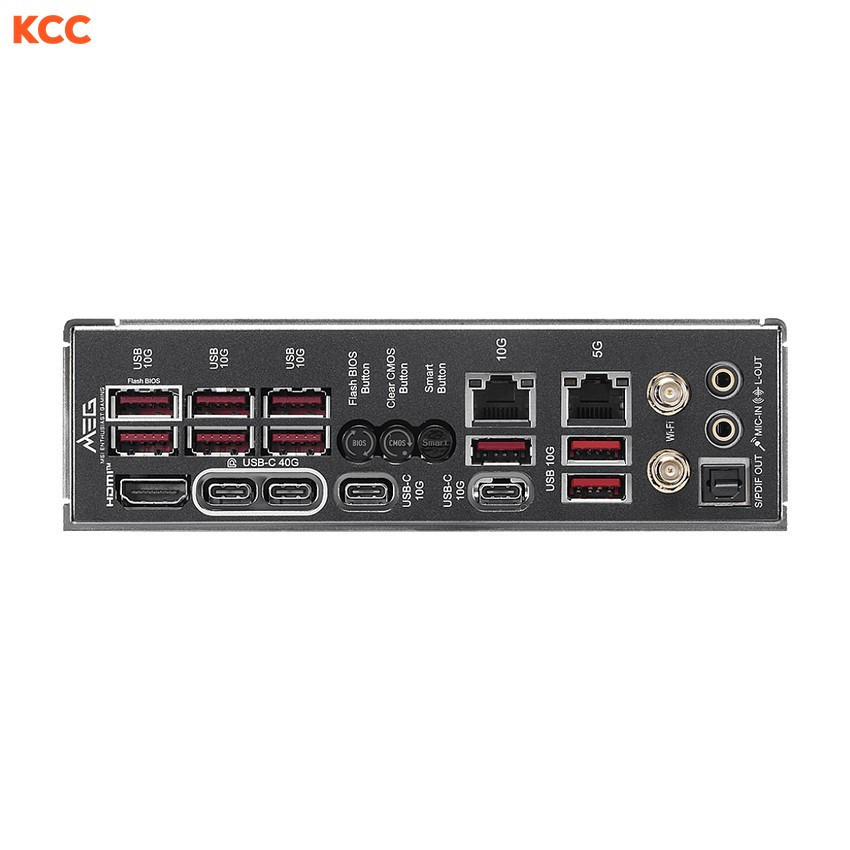

USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 9x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) USB 40Gbps Type-C ports on the back panel only run PCIe 4.0 x2 when install Ryzen™ 8500/ 8300 Series processors. USB 40Gbps Type-C ports & M2_2 share the bandwidth. USB 40Gbps Type-C ports will run at x2 speed when installing device in the M2_2 slot. You can switch M.2_2 to x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports.
LAN	1x Marvell ^® AQC113CS 10Gbps LAN 1x Realtek ^® 8126 5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 2x

Xem thêm thông số kỹ thuật

THÔNG SỐ KỸ THUẬT

Chipset	AMD X870E
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only The DIMM slots on this motherboard only have single-sided latches. CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz 2x Type-C DisplayPort USB4 ^® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	2x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU) PCI_E1 & PCI_E2 slots • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors) PCI_E3 & M.2_1 share the bandwidth. M.2_1 will run at x2 speed when installing device in the PCI_E3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M.2_1 slot. Please refer to the PCIe configuration table in the manual for more details.
Audio	Realtek ^® ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Storage	5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G M.2_1: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. M.2_1 & PCI_E3 share the bandwidth. M.2_1 will run at x2 speed when installing device in the PCI_E3 slot. You can switch M.2_1 slot to x4 in the BIOS, but this will disable the PCI_E3 slot. USB 40Gbps Type-C ports & M2_2 share the bandwidth. USB 40Gbps Type-C ports will run at x2 speed when installing device in the M2_2 slot. You can switch M.2_2 to x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices RAID 5/ 10 configuration is only supported by Ryzen™ 9000/ 7000 series processors.
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 9x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) USB 40Gbps Type-C ports on the back panel only run PCIe 4.0 x2 when install Ryzen™ 8500/ 8300 Series processors. USB 40Gbps Type-C ports & M2_2 share the bandwidth. USB 40Gbps Type-C ports will run at x2 speed when installing device in the M2_2 slot. You can switch M.2_2 to x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports.
LAN	1x Marvell ^® AQC113CS 10Gbps LAN 1x Realtek ^® 8126 5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 2x
