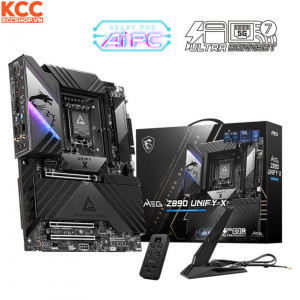

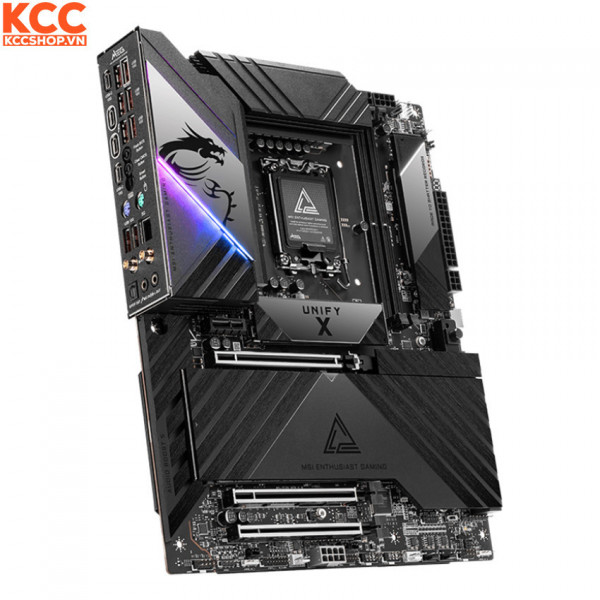

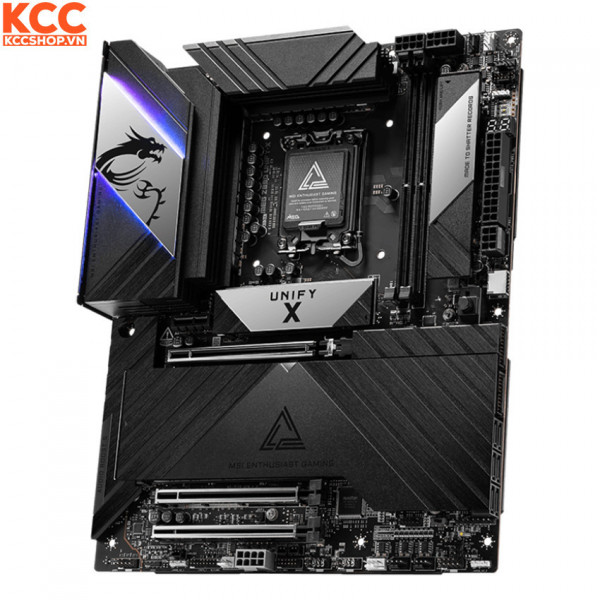

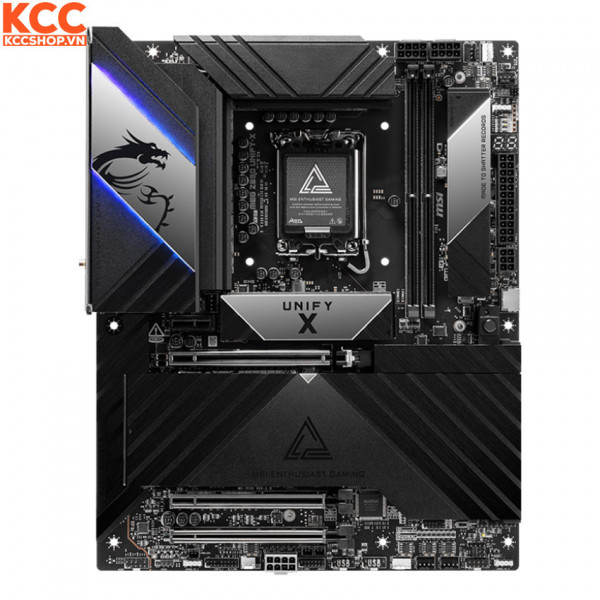

Mainboard MSI MEG Z890 UNIFY-X

Loại sản phẩm

Mainboard

Thương hiệu

MSI

Model

MEG Z890 UNIFY-X

Chipset

INTEL Z890

Hỗ trợ CPU

Supports Intel® Core™ Ultra Processors (Series 2)

LGA 1851

RAM

2x DDR5 UDIMM, Maximum Memory Capacity 128GB

Memory Support 9600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

Max. overclocking frequency:

• 1DPC 1R Max speed up to 9600+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s

Đồ họa

2x Type-C DisplayPort

Thundebolt™ 4 ports supporting DisplayPort 1.4 with HBR3 over USB Type-C, with a maximum resolution of 8K@60Hz

Slot

3x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x1 (From Chipset)

PCI_E2 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E3 Gen PCIe 5.0 supports up to x8 (From CPU)

PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

Audio

Realtek® ALC4080 Codec

7.1-Channel USB High-Performance Audio

Supports S/PDIF output

Supports up to 32-Bit/384 kHz playback on front panel

Lưu trữ

6x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices

M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices

M.2_6 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

6x SATA 6G

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Onboard Thunderbolt

2x Thunderbolt4 ports (Rear)

Support up to 40Gbps transfer rate with Thunderbolt devices

Support up to 20Gbps transfer rate with USB4 devices

Support up to 10Gbps transfer rate with USB 3.2 devices

Support up to 5V/3A,15W power charging

Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices

Support up to 8K display

USB

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Front)

8x USB 10Gbps Type A (Rear)

2x USB 10Gbps Type C (Rear)

1x USB 20Gbps Type C (Front)

LAN

1x Intel® Killer E5000B 5G LAN

Bảng I/O bên trong

1x Thunderbolt5 card connector(JTBT5, support RTD3)

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x Power Connector(PCIE_PWR 8pin)

1x Front Type-C Quick Charge Connector(PD_PWR1)

1x CPU Fan

2x Combo Fan (Pump_Sys Fan)

4x System Fan

1x EZ Conn-header (JAF_2)

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Water Flow connector

1x Slow Mode Booting Jumper(JSLOW)

1x Front Audio (JAUD)

2x Thermal Sensor connectors(T_SEN)

1x Tuning Controller connector(JDASH)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

V-check point

4x USB 2.0 ports

4x USB 5Gbps Type A ports

1x USB 20Gbps Type C ports

Wifi và Bluetooth

Intel® Killer™ BE1750x Wi-Fi 7

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4, MLO, 4KQAM

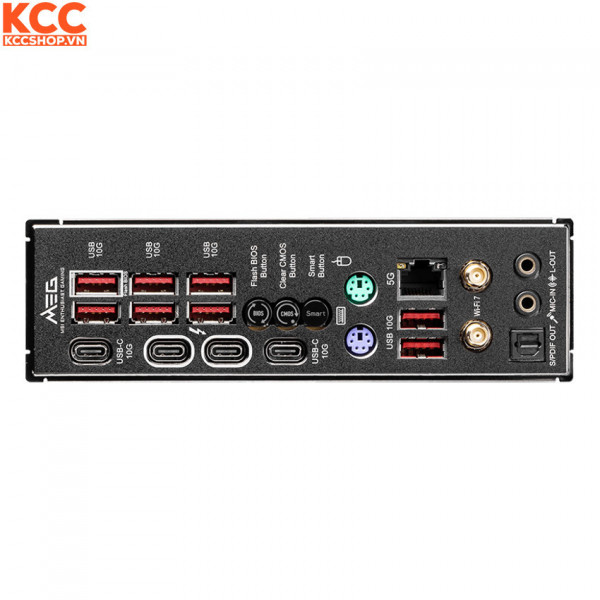

Bảng I/O phía sau

USB 10Gbps (Type-A)

Flash BIOS Button

Clear CMOS Button

Smart Button

5G LAN

Wi-Fi / Bluetooth

HD Audio Connectors

USB 10Gbps (Type-C)

Thunderbolt™ 4 40Gbps (Type-C)

USB 10Gbps (Type-C)

Keyboard / Mouse

USB 10Gbps (Type-A)

Optical S/PDIF-Out

Hỗ trợ hệ điều hành

Windows® 11 64-bit

Chuẩn kích cỡ

ATX

243.84mmx304.8mm
