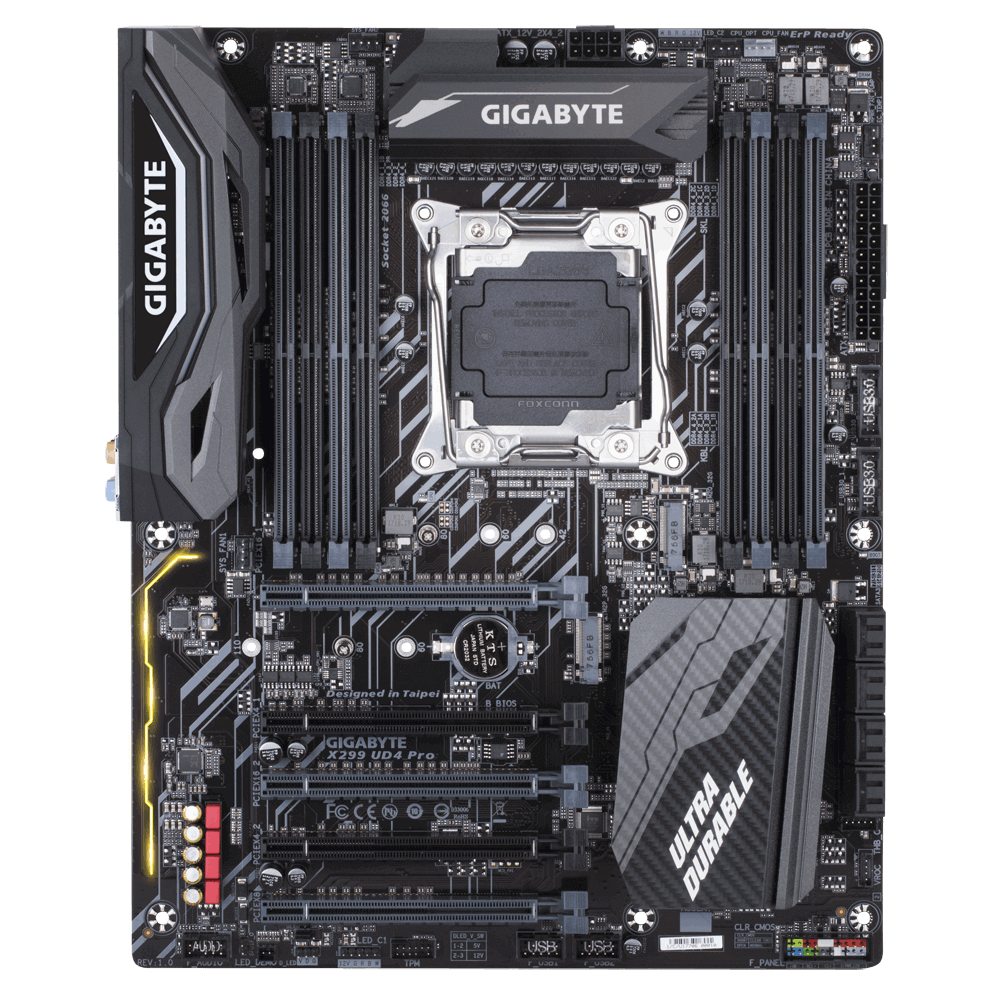

GIGABYTE X299 UD4 Pro

Intel® X299 Express Chipset / Intel Socket 2066

Intel® Core™ X series processors in the LGA2066 package

8 x DDR4 DIMM sockets supporting up to 128 GB of system memory. * Support for up to 512 GB of system memory when using Registered DIMMs. * Supported when using a 44-lane or 28-lane CPU (6-core or above).
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory. * Supported when using a 16-lane CPU (4-core).
4 channel memory architecture. * Supported when using a 44-lane or 28-lane CPU (6-core or above). Dual channel memory architecture. Supported when using a 16-lane CPU (4-core).
Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules Support for non-ECC Un-buffered DIMM memory modules Support for Registered DIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operate in non-ECC mode) Support for Extreme Memory Profile (XMP) memory modules

2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (All of the PCI Express slots conform to PCI Express 3.0 standard.) * Refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration," for the installation notices for the PCI Express x16 slots.
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G)
8 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
Intel® VROC Ready

• Realtek® ALC1220 codec • High Definition Audio • 2/4/5.1/7.1-channel • Support for S/PDIF Out
• Intel® GbE LAN chip (10/100/1000 Mbit)
• 1 x PS/2 keyboard/mouse port • 2 x USB 3.1 Gen 2 Type-A ports (red) • 6 x USB 3.1 Gen 1 ports • 1 x RJ-45 port • 6 x audio jacks
• 12.0 in. x 8.9 in. (30.5 cm x 24.4 cm) • ATX Form Factor
• Supports 2-Way AMD® CrossFire™ Technology*
