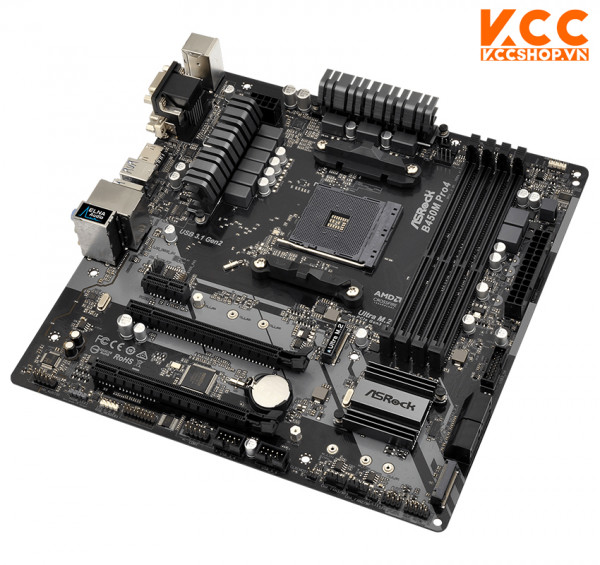

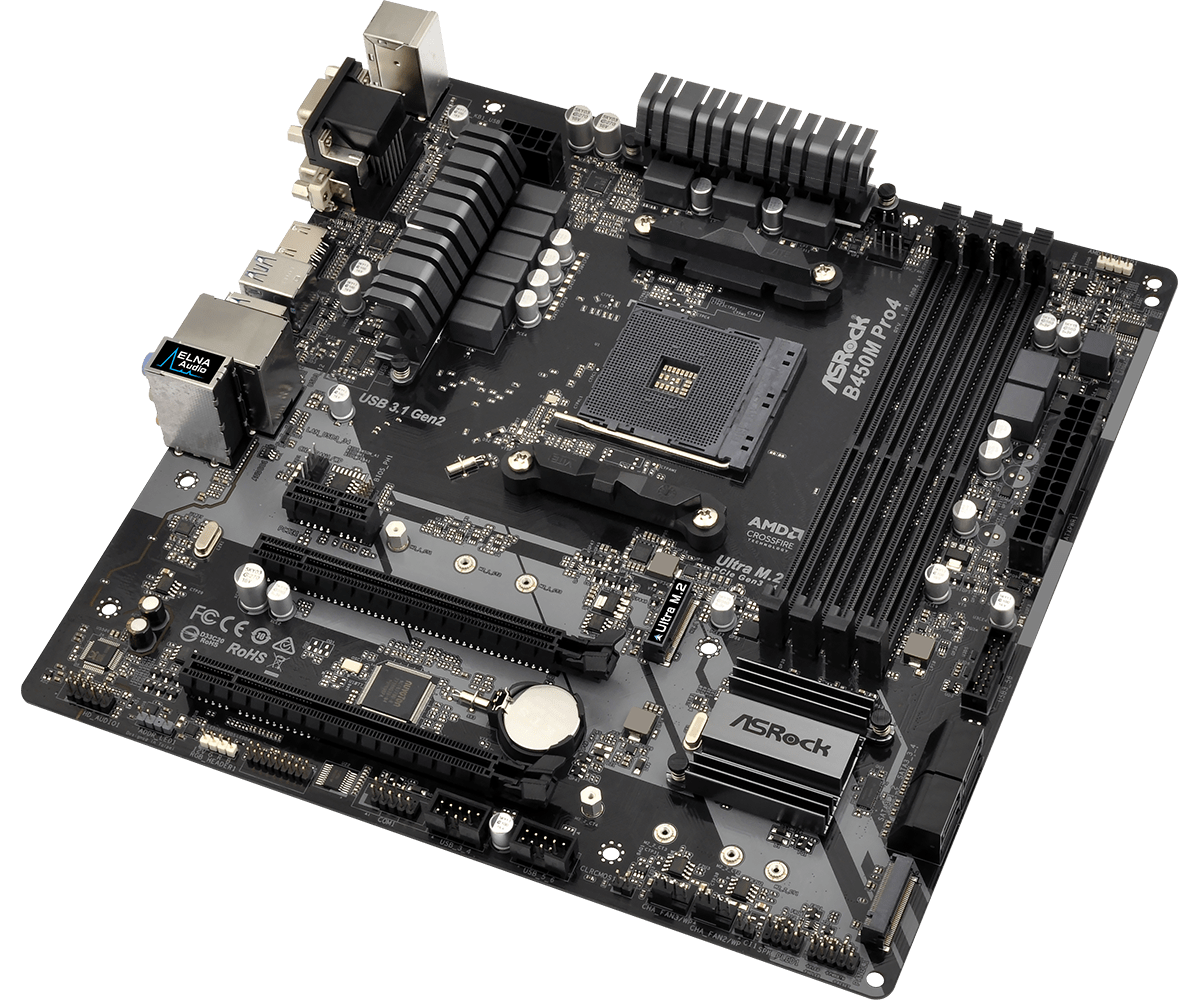

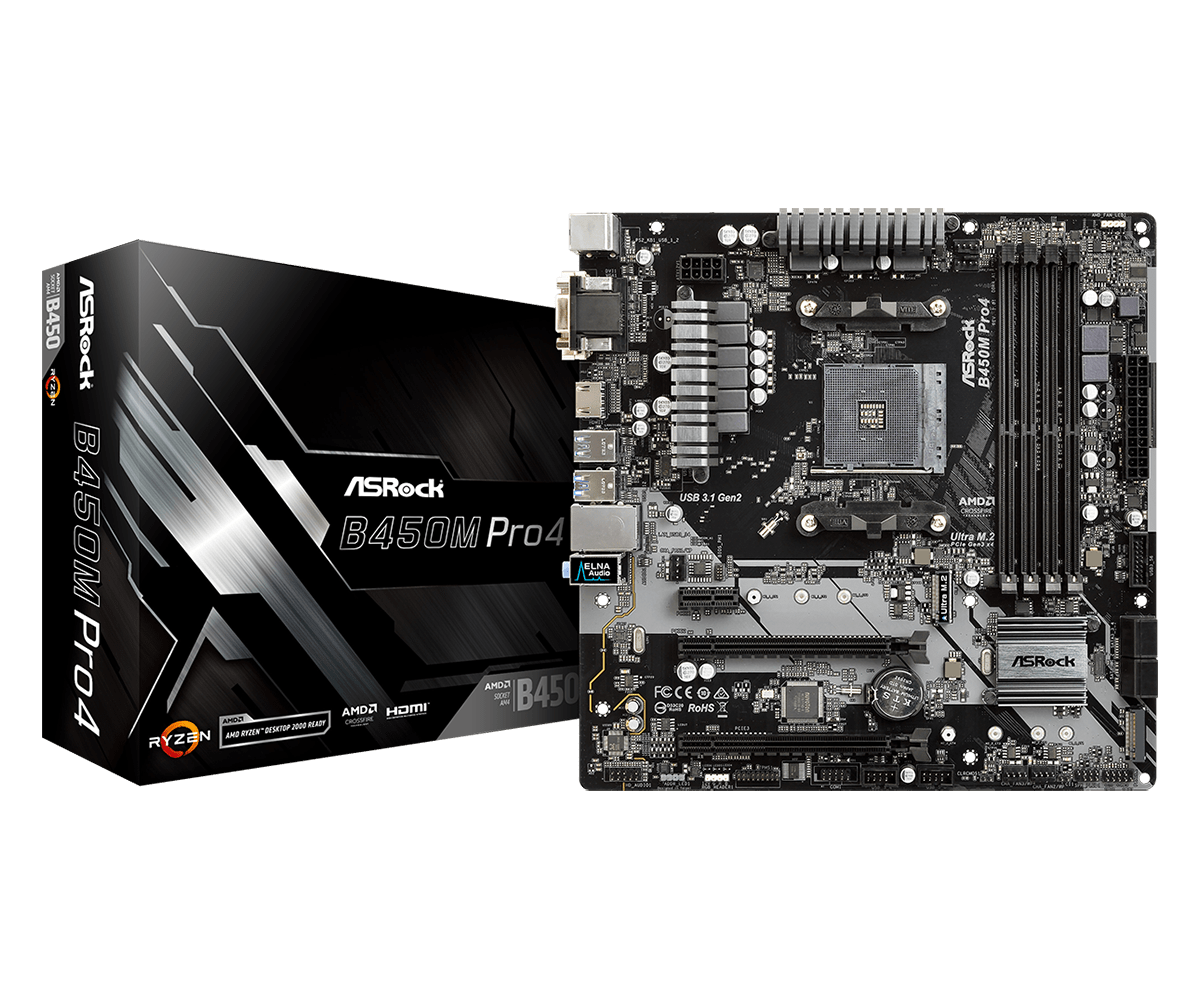

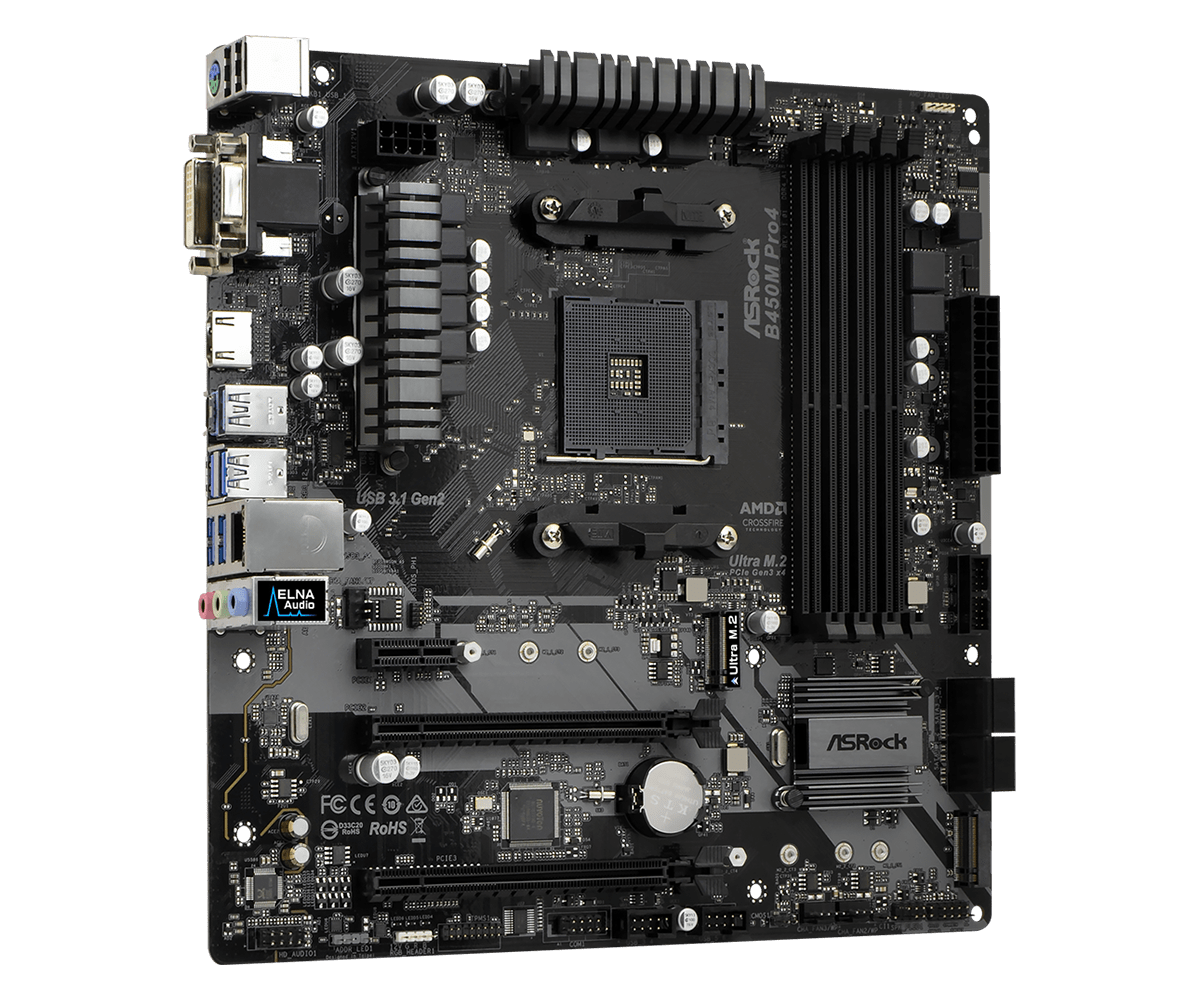

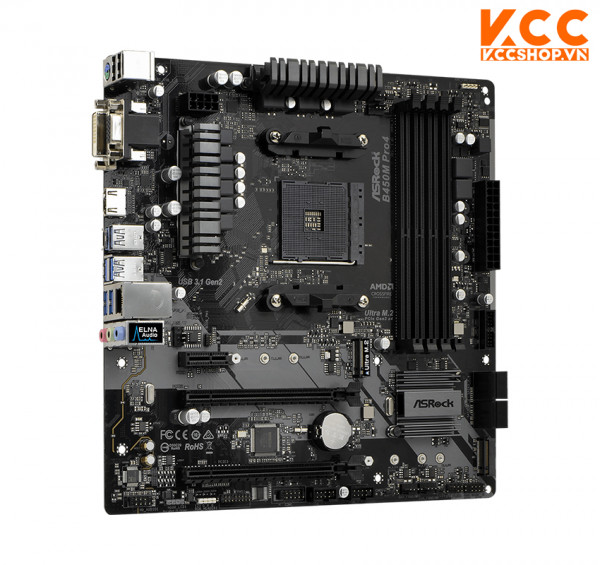

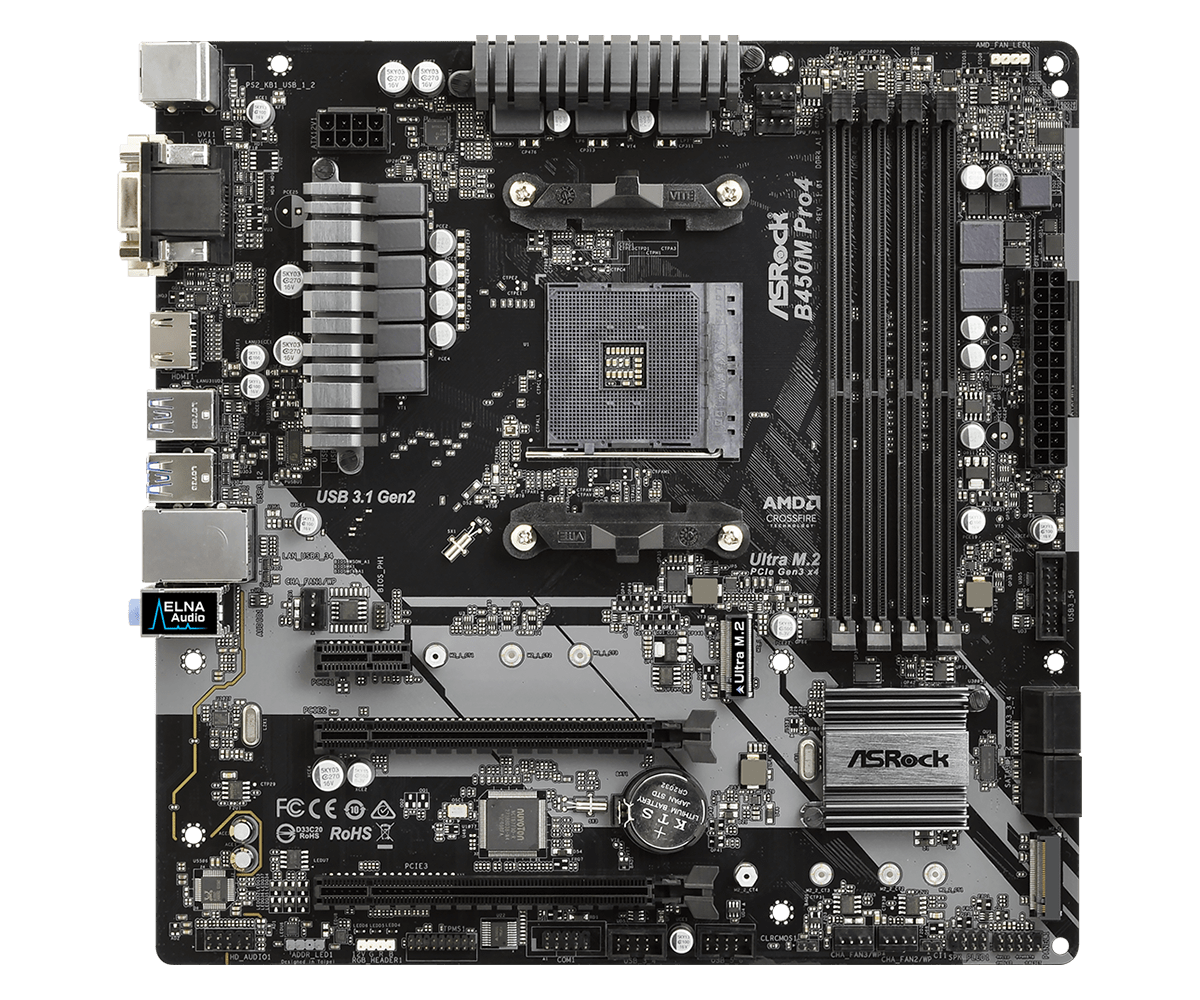

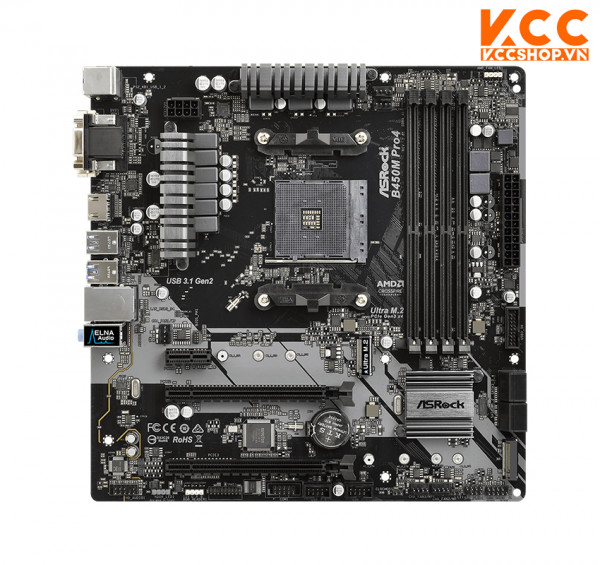

Mainboard ASROCK B450M PRO 4 + So sánh

Sản phẩm

Mainboard - Bo mạch chủ

Tên Hãng

Asrock

Model

B450M Pro4-F

CPU hỗ trợ

- AMD AM4 Socket - Digi Power design - 9 Power Phase design

Chipset

AMD B450

RAM hỗ trợ

- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Matisse) support DDR4 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Picasso) support DDR4 2933/2667/2400/2133 non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory* - Max. capacity of system memory: 64GB** - 15μ Gold Contact in DIMM Slots

Âm Thanh

 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)

LAN / Wireless

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111GR

Khe cắm mở rộng

AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) AMD Ryzen series CPUs (Picasso, Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) AMD Athlon series CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)* - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)- 1 x PCI Express 2.0 x1 Slot - Supports AMD Quad CrossFireX™ and CrossFireX™

Ổ cứng hỗ trợ

- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug* - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)** - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module

Cổng kết nối (Bên Trong)

- 1 x COM Port Header - 1 x TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 1 x Addressable LED Header** - 1 x AMD Fan LED Header*** - 1 x CPU Fan Connector (4-pin)**** - 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x AMD LED Fan USB Header - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

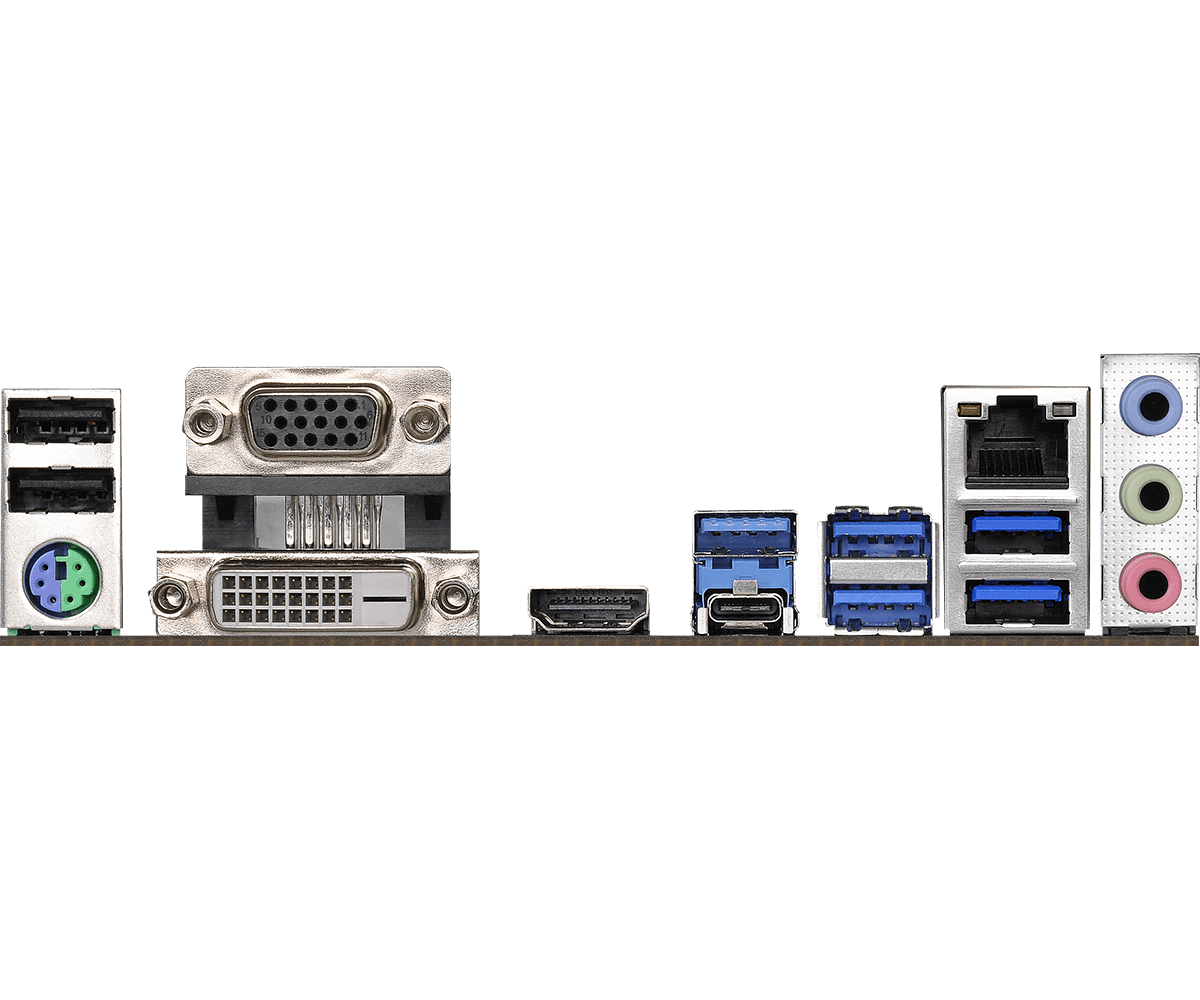

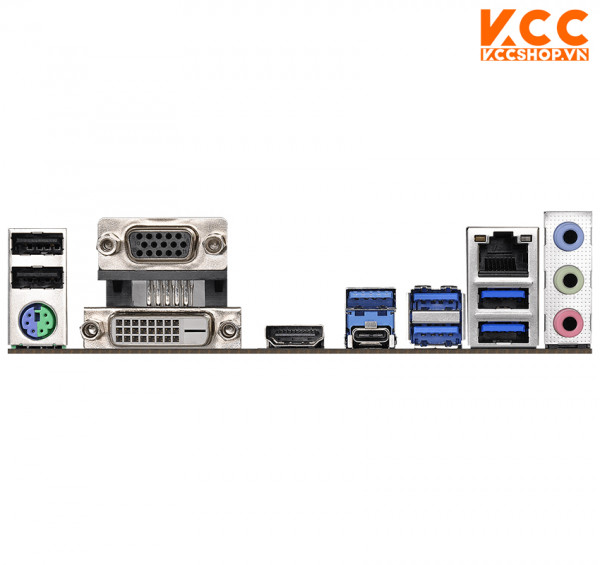

Cổng kết nối (Phía Sau)

- 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone

Kích cỡ

- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
