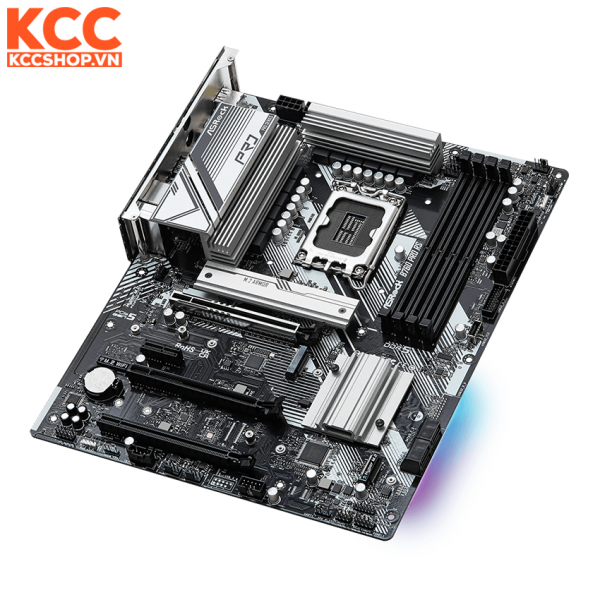

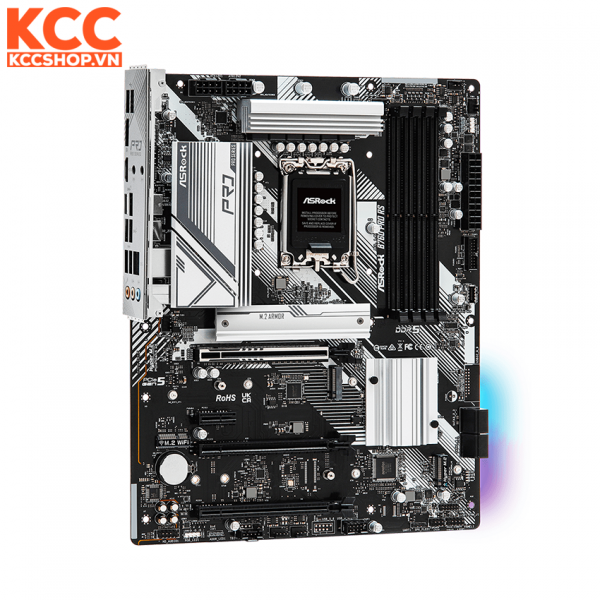

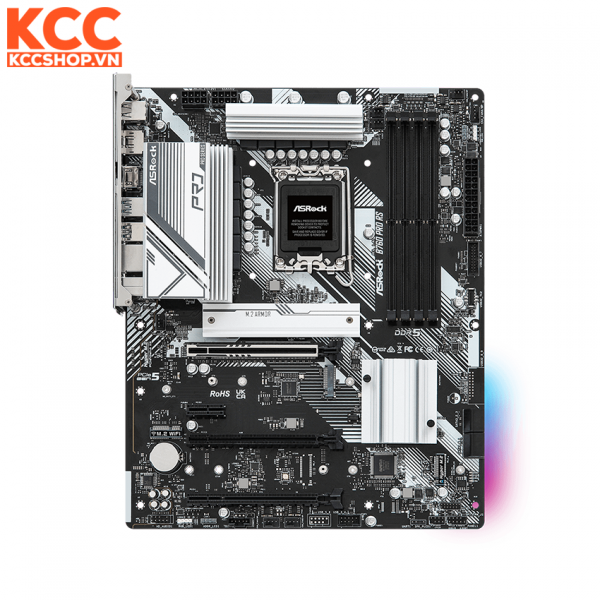

Mainboard Asrock B760 Pro RS DDR5 + So sánh

Loại sản phẩm

Mainboard

Thương hiệu

ASROCK

Model

B760 Pro RS

Chipset

Intel® B760

Hỗ trợ socket

Intel LGA 1700

Memory

- Dual Channel DDR5 Memory Technology

- 4 x DDR5 DIMM Slots

- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*

- Max. capacity of system memory: 192GB

- Supports Intel® Extreme Memory Profile (XMP) 3.0

BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support

Storage

CPU:

- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*

- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

- 4 x SATA3 6.0 Gb/s Connectors

Ethernet

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

- Dragon RTL8125BG

- Supports Dragon 2.5G LAN Software

- Smart Auto Adjust Bandwidth Control

- Visual User Friendly UI

- Visual Network Usage Statistics

- Optimized Default Setting for Game, Browser, and Streaming Modes

- User Customized Priority Control

USB

- 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front)

- 1 x USB 3.2 Gen2 Type-A (Rear)

- 6 x USB 3.2 Gen1 (4 Rear, 2 Front)

- 4 x USB 2.0 (2 Rear, 2 Front)

* All USB ports support ESD Protection

Slots

CPU:

- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*

- 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode*

- 1 x PCIe 3.0 x1 Slot (PCIE2)*

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

- Supports AMD CrossFire™

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

- Nahimic Audio

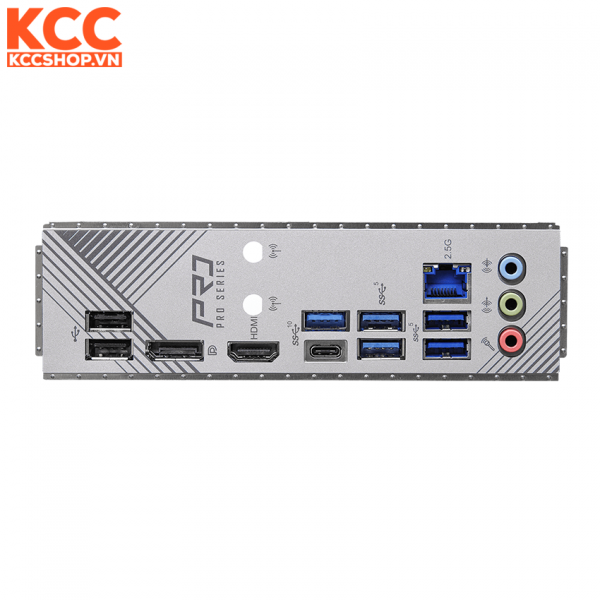

Back Panel I/O Ports

- 2 x Antenna Mounting Points

- 1 x HDMI Port

- 1 x DisplayPort 1.4

- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)

- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)

- 4 x USB 3.2 Gen1 Ports

- 2 x USB 2.0 Ports

- 1 x RJ-45 LAN Port

- HD Audio Jacks: Line in / Front Speaker / Microphone

Internal I/O Connectors

- 1 x eDP Signal Connector

- 1 x SPI TPM Header

- 1 x Power LED and Speaker Header

- 2 x RGB LED Headers*

- 2 x Addressable LED Headers**

- 1 x CPU Fan Connector (4-pin)***

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

- 1 x 24 pin ATX Power Connector

- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector

- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

- 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)

Operating System

- Microsoft® Windows® 10 64-bit / 11 64-bit

Kích thước

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
