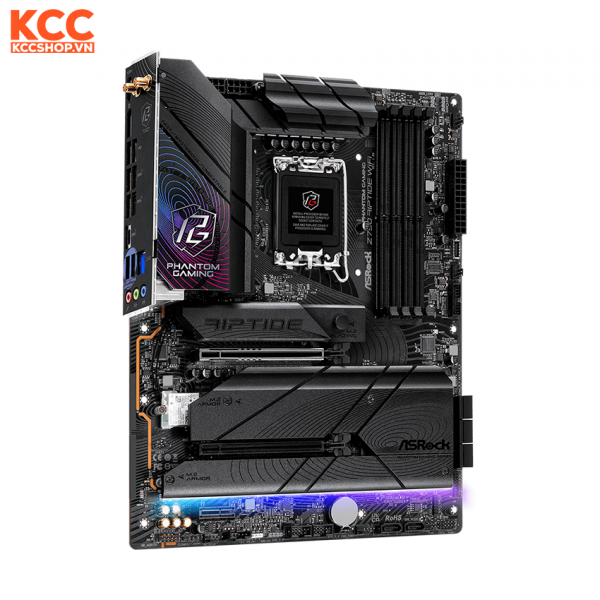

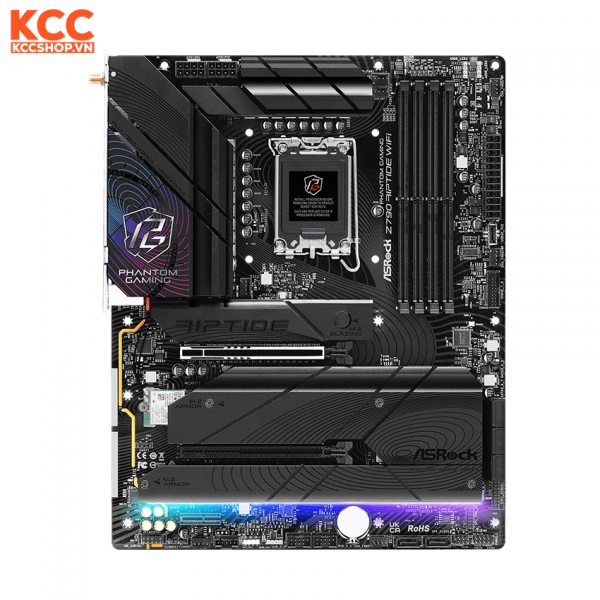

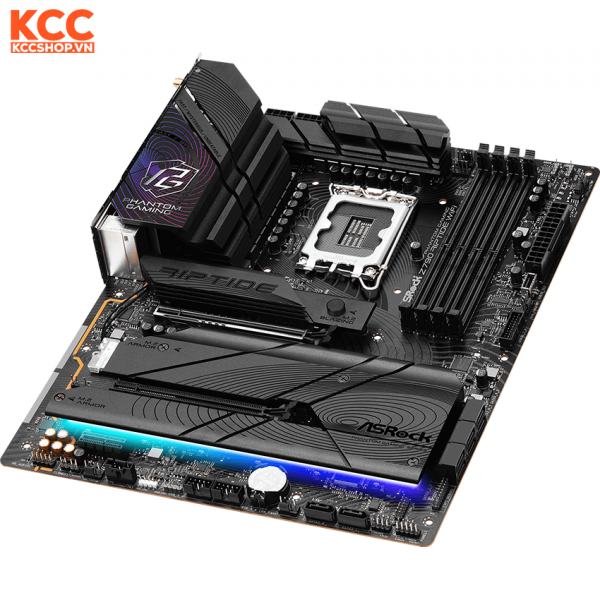

Mainboard Asrock Phantom Gaming Z790 Riptide WiFi (DDR5) + So sánh

Loại sản phẩm

Mainboard

Thương hiệu

Asrock

Model

Z790 Riptide WiFi

Bảo hành

36 tháng

CPU

- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)

- Supports Intel® Hybrid Technology

- Supports Intel® Turbo Boost Max 3.0 Technology

- Supports Intel® Thermal Velocity Boost (TVB)

- Supports Intel® Adaptive Boost Technology (ABT)

Chipset

- Intel® Z790

Memory

- Dual Channel DDR5 Memory Technology

- 4 x DDR5 DIMM Slots

- Supports DDR5 non-ECC, un-buffered memory up to 8000+(OC)*

- Max. capacity of system memory: 192GB

- Supports Intel® Extreme Memory Profile (XMP) 3.0

BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support

Graphics

- Intel® Xe Graphics Architecture (Gen 12)

- 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz

- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

- Impedance Sensing on Rear Out port

- Individual PCB Layers for R/L Audio Channel

- Nahimic Audio

LAN

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

- Killer E3100G

- Supports Killer LAN Software

Wireless LAN

- 802.11be 2x2 Wi-Fi 7 Module

- Supports IEEE 802.11a/b/g/n/ac/ax/be

- Supports 2.4GHz/5GHz/6GHz frequency band

- Supports 320MHz channel bandwidth with 6GHz frequency band

- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology

- Supports Bluetooth 5.4

- Supports MU-MIMO

Slots

CPU:

- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*

- 1 x PCIe 3.0 x1 Slot (PCIE3)*

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

- Supports AMD CrossFire™

Storage

CPU:

- 1 x Blazing M.2 Socket (M.2_GEN5, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*

- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

- 8 x SATA3 6.0 Gb/s Connectors

RAID

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

- Supports RAID 0, RAID 1 and RAID 5 and RAID 10 for M.2 NVMe storage devices

USB

- 1 x USB 3.2 Gen2x2 Type-C (Front)

- 2 x USB 3.2 Gen2 Type-A (Rear)

- 1 x USB 3.2 Gen1 Type-C (Rear)

- 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front)

- 6 x USB 2.0 (2 Rear, 4 Front)

Connector

- 1 x eDP Signal Connector

- 1 x Thermistor Cable Header

- 1 x SPI TPM Header

- 1 x Power LED and Speaker Header

- 1 x RGB LED Header

- 3 x Addressable LED Headers

- 1 x CPU Fan Connector (4-pin)

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

- 1 x Chassis Fan Connector (4-pin)

- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)

- 1 x 24 pin ATX Power Connector

- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector

- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

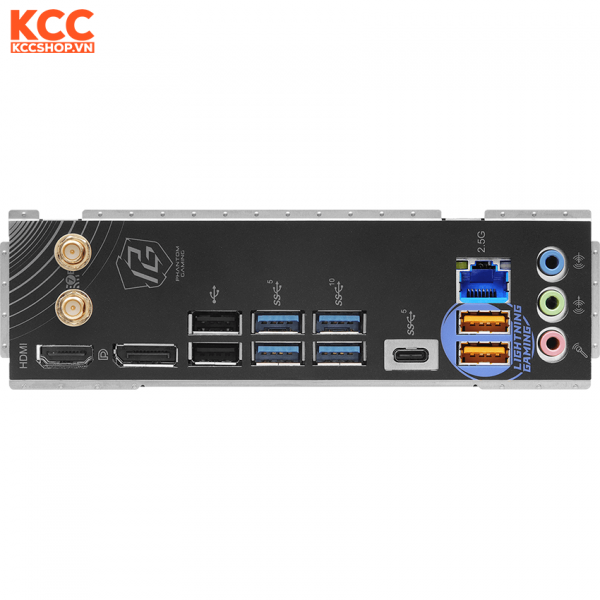

Rear Panel I/O

- 2 x Antenna Mounting Points

- 1 x HDMI Port

- 1 x DisplayPort 1.4

- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)

- 1 x USB 3.2 Gen1 Type-C Port

- 4 x USB 3.2 Gen1 Type-A Ports (USB32_56 are Lightning Gaming Ports.)

- 2 x USB 2.0 Ports

- 1 x RJ-45 LAN Port

- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software

- ASRock Motherboard Utility (Phantom Gaming Tuning)

- Killer Control Center

- ASRock Polychrome SYNC*

UEFI

- ASRock EZ Mode

- ASRock Full HD UEFI

- ASRock My Favorites in UEFI

- ASRock Auto Driver Installer

- ASRock Instant Flash

- ASRock Easy RAID Installer

Accessories

- 1 x User Manual

- 2 x SATA Data Cables

- 1 x ASRock WiFi 2.4/5/6 GHz Antenna

- 1 x ARGB Splitter Cable

- 1 x Thermistor Cable

Form Factor

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

- 8 Layer PCB

OS

- Microsoft® Windows® 10 64-bit / 11 64-bit
