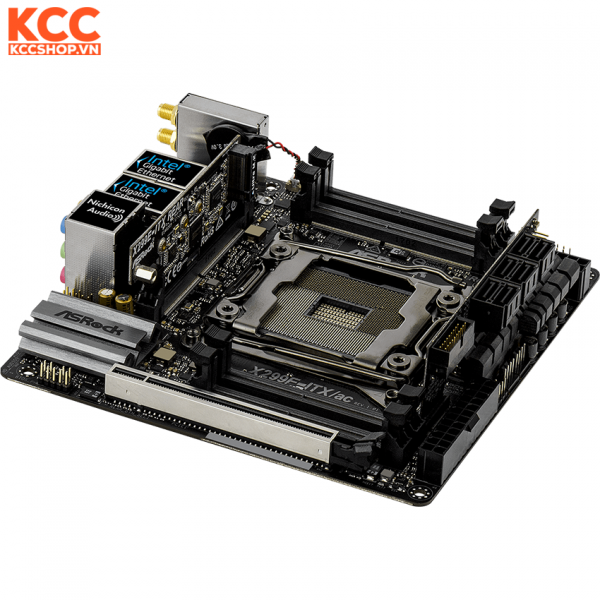

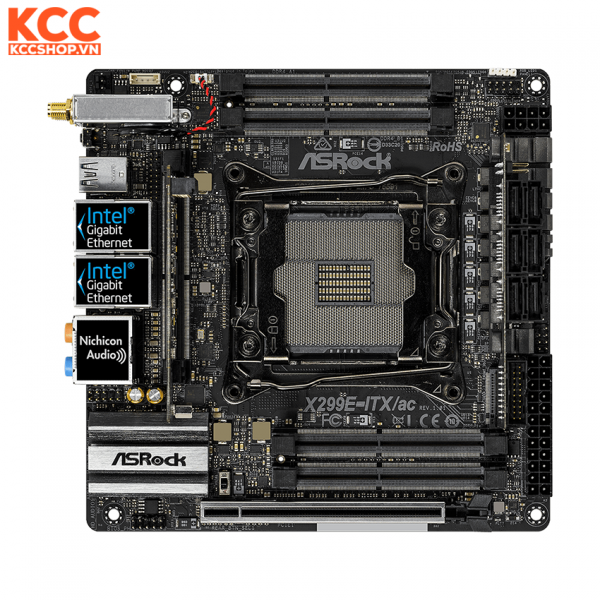

Mainboard Asrock X299E-ITX/ac + So sánh

Loại sản phẩm

Mainboard

Thương hiệu

Asrock

Model

X299E-ITX/ac

Bảo hành

36 tháng

CPU

- Supports Intel® Core™ X-Series Processor (79xx, 78xx Series) for the LGA 2066 Socket*

- Digi Power design

- 7 Power Phase design

- Supports Intel® Turbo Boost Max Technology 3.0

- Supports ASRock Hyper BCLK Engine III

Chipset

- Intel® X299

Memory

- Quad Channel DDR4 Memory Technology

- 4 x DDR4 SO-DIMM Slots

- Supports DDR4 4000+(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory

- Max. capacity of system memory: 128GB

- Supports Intel® Extreme Memory Profile (XMP) 2.0

BIOS

- 128Mb AMI UEFI Legal BIOS with multilingual GUI support

- ACPI 6.1 Compliant wake up events

- SMBIOS 3.0 Support

- CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, Voltage Multi-adjustment

Graphics

- n/a

Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

- Premium Blu-ray Audio support

- Supports Surge Protection

- Supports Purity Sound™ 4

- Nichicon Fine Gold Series Audio Caps

- 120dB SNR DAC with Differential Amplifier

- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)

- Pure Power-In

- Direct Drive Technology

- Impedance Sensing on Rear Out port

- Gold Audio Jacks

- 15μ Gold Audio Connector

- Supports DTS Connect

LAN

- Gigabit LAN 10/100/1000 Mb/s

- 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Dual LAN with Teaming*

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE

Wireless LAN

- Intel® Dual Band Wireless-AC 8265

- Supports IEEE 802.11a/b/g/n/ac

- Supports Dual-Band (2.4/5 GHz with 80Mhz bandwidth and MU-MIMO)

- Supports high speed wireless connections up to 867Mbps

- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology

- Supports Bluetooth 4.2 / 3.0 + High speed class II

Slots

- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*

- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)

- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Storage

- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug

- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*

- 2 x Ultra M.2 Sockets (M2_2 and M2_3), support M Key type 2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*

Connector

- 1 x Virtual RAID On CPU Header

- 1 x TPM Header

- 1 x Power LED and Speaker Header

- 1 x RGB LED Header

- 1 x CPU Fan Connector (4-pin)

- 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

- 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)

- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)

- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)

- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

- 1 x Rear Button Switch (A: Clear CMOS Button; B: Power Button)

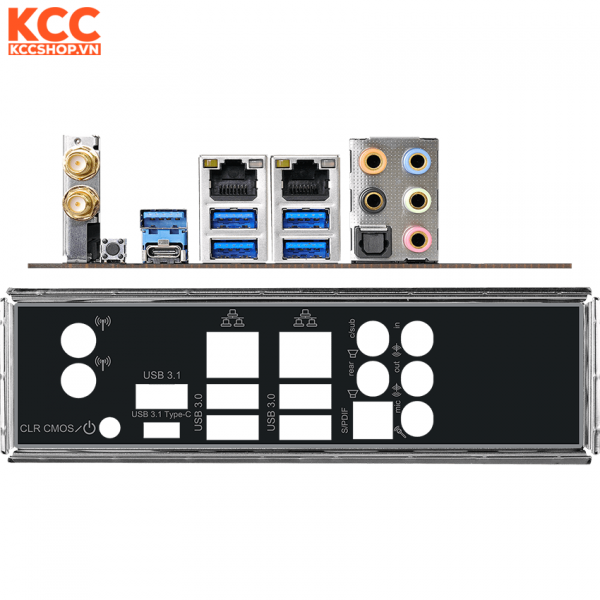

Rear Panel I/O

- 2 x Antenna Ports

- 1 x Optical SPDIF Out Port

- 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)

- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)

- 4 x USB 3.1 Gen1 Ports (ASMedia ASM1074 Hub) (Supports ESD Protection)*

- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)

- 1 x Clear CMOS Button / Power Button

- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

Software and UEFI

Software

- ASRock A-Tuning

- ASRock RGB LED

- ASRock XFast LAN

UEFI

- ASRock EZ Mode

- ASRock Full HD UEFI

- ASRock My Favorites in UEFI

- ASRock Instant Flash

- ASRock Internet Flash

- ASRock Crashless BIOS

- ASRock UEFI System Browser

- ASRock UEFI Tech Service

- ASRock Easy RAID Installer

Accessories

- Quick Installation Guide, Support CD, I/O Shield

- 4 x SATA Data Cables

- 1 x ASRock WiFi 2.4/5 GHz Antenna

- 3 x Screws for Ultra M.2 Sockets

Hardware Monitor

- Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis Fans

- Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis Fans

- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis Fans

- Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis Fans

- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCSA

Form Factor

- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm

- 10 Layer PCB

OS

- Microsoft® Windows® 10 64-bit
