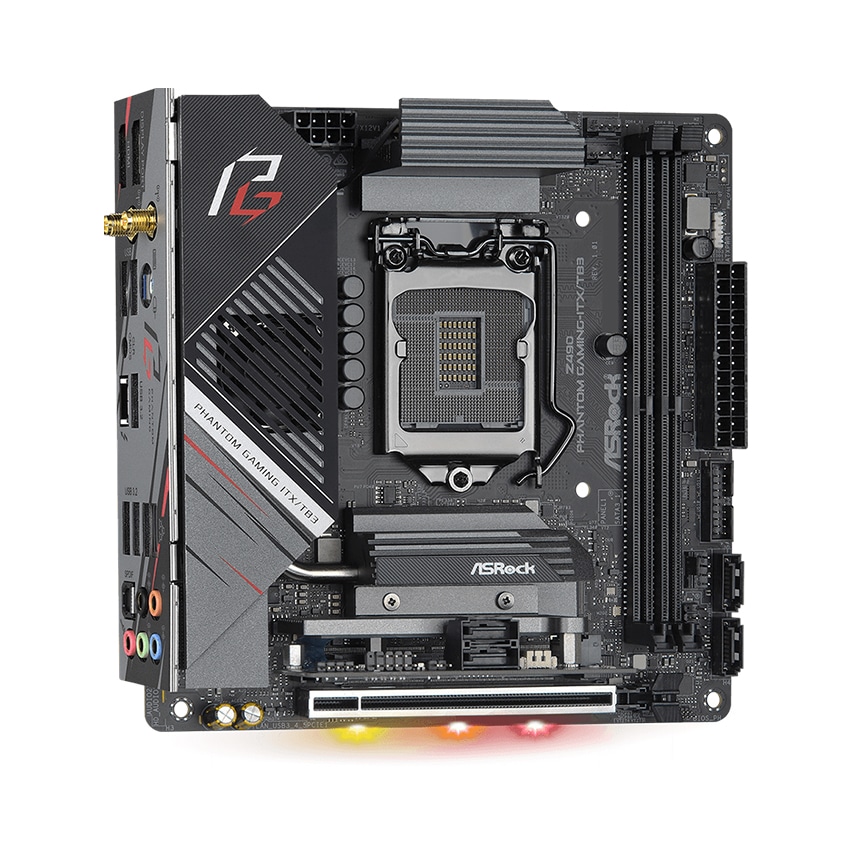

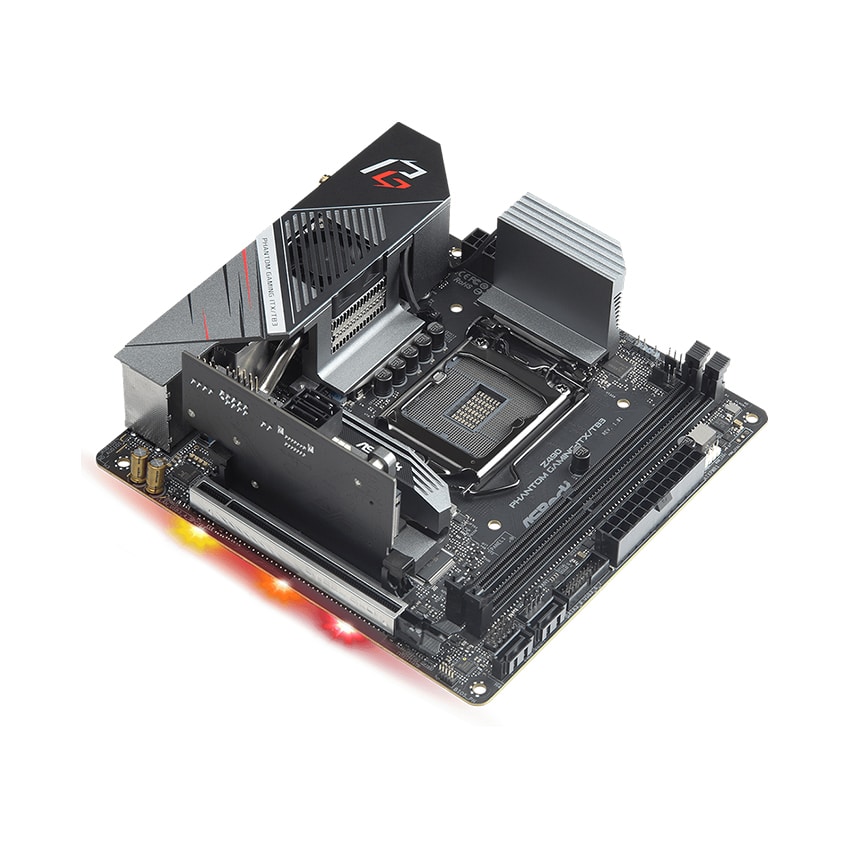

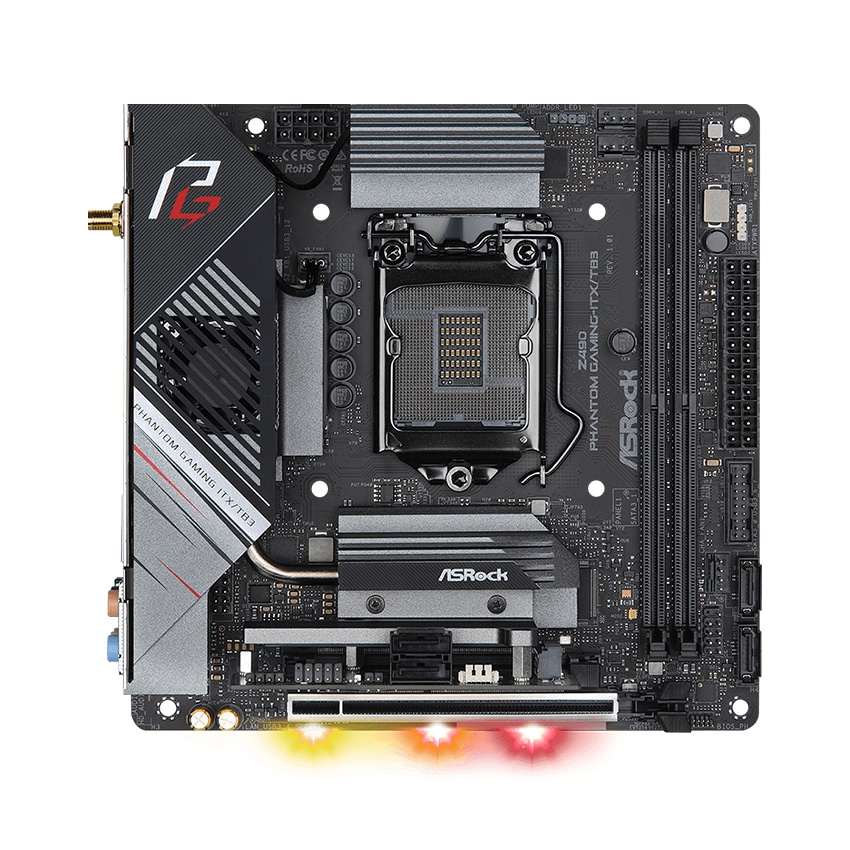

Mainboard ASROCK Z490 PHANTOM GAMING-ITX/TB3

Sản phẩm

Bo mạch chủ

Tên Hãng

Asrock

Model

Z490 Phantom Gaming-ITX/TB3

CPU hỗ trợ

Intel

Chipset

Z490

RAM hỗ trợ

2 x DDR4 DIMM Slots ( tối đa 64GB )
Supports DDR4 4666+(OC)* / 4600 / 4500 / 4400 / 4333/4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC

Khe cắm mở rộng

1 x PCI Express 3.0 x16 Slot
1 x Vertical M.2 Socket (Key E)

Ổ cứng hỗ trợ

4 x SATA3 6.0 Gb/s Connectors
1 x Ultra M.2 Socket (M2_1)
1 x Ultra M.2 Socket (M2_2)

Cổng kết nối (Internal)

1 x Chassis Intrusion Header
1 x RGB LED Header
1 x Addressable LED Header
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector (15μ Gold Audio Connector)
1 x USB 2.0 Headers (Support 2 USB 2.0 port) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

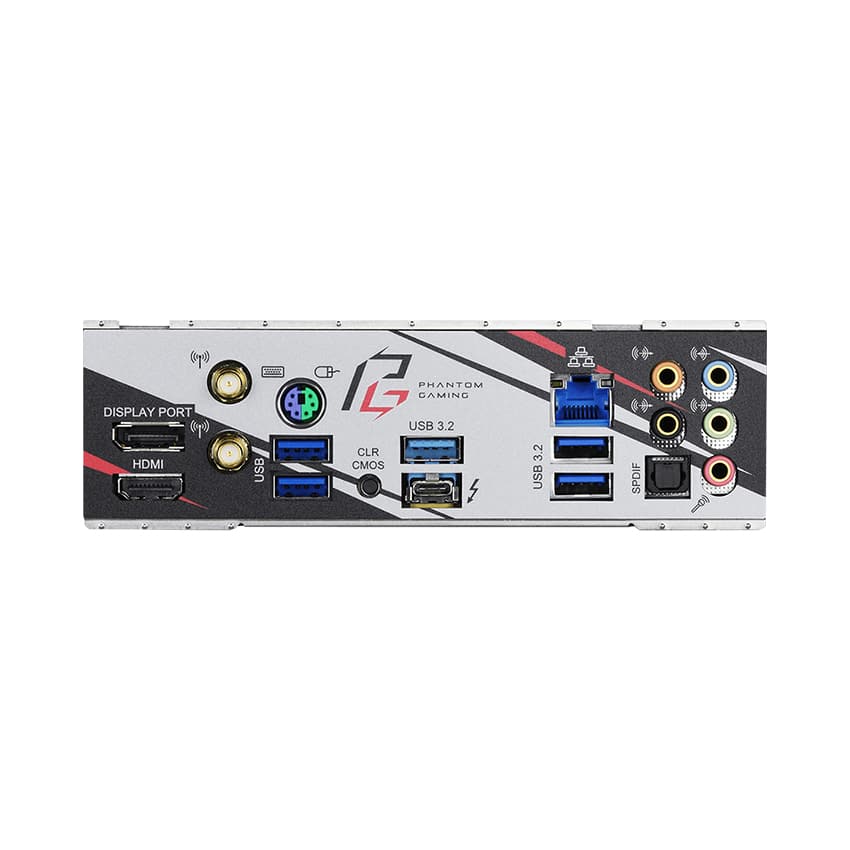

Cổng kết nối (Back Panel)

2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
3 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection)
1 x USB 3.2 Gen2 Thunderbolt™ 3 Type-C Port (40Gb/s for Thunderbolt™ protocol; 10 Gb/s for USB3.2 protocol) (Supports ESD Protection)*
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x Clear CMOS Button
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

LAN / Wireless

2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Phantom Gaming LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE

Kích cỡ

Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
