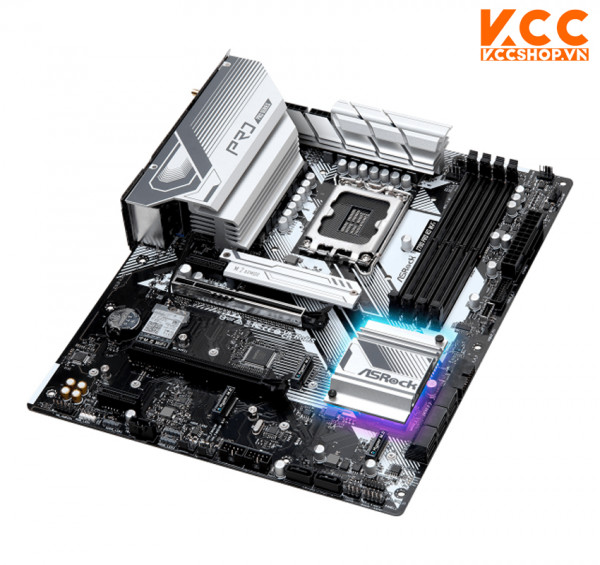

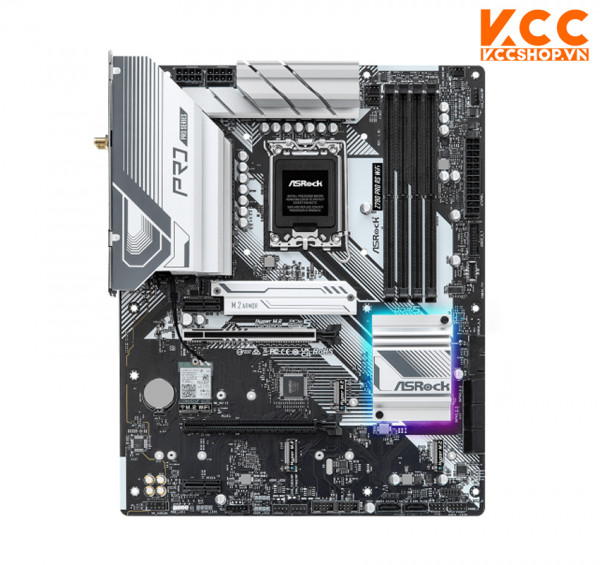

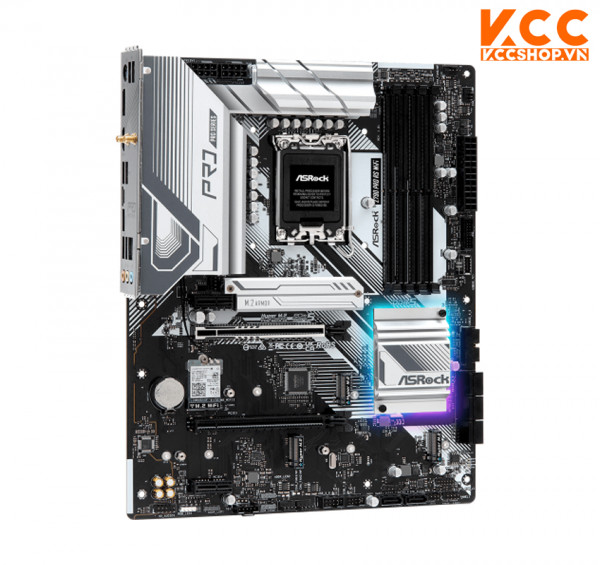

Mainboard ASROCK Z790 PRO RS WIFI DDR5 + So sánh

THÔNG SỐ KỸ THUẬT

• Unique Feature
  Superb Productivity
  - PCIe Gen5 (Graphics)
  - Dual Channel DDR5
  Rock-Solid Durability
  - 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor
  - Flexible Integrated I/O Shield
  Ultrafast Connectivity
  - 2.5G LAN, 802.11ax Wi-Fi 6E Module
  EZ Update
  - ASRock Auto Driver Installer
  EZ Troubleshooter
  - ASRock Post Status Checker
• CPU
  - Supports 13^th Gen & 12^th Gen Intel^® Core™ Processors (LGA1700)
  - Supports Intel^® Hybrid Technology
  - Supports Intel^® Turbo Boost Max 3.0 Technology
  - Supports Intel^® Thermal Velocity Boost (TVB)
  - Supports Intel^® Adaptive Boost Technology (ABT)
• Chipset
  - Intel^® Z790
• Memory
  - Dual Channel DDR5 Memory Technology
  - 4 x DDR5 DIMM Slots
  - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
  - Max. capacity of system memory: 128GB
  - Supports Intel^® Extreme Memory Profile (XMP) 3.0



  *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
  1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
  2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
  2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
• BIOS
  - 128Mb AMI UEFI Legal BIOS with GUI support
• Graphics
  - Intel^® Xe Graphics Architecture (Gen 12)*
  - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
  - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
  - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz



  *Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio
  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  - Nahimic Audio
• LAN
  - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  - Dragon RTL8125BG
  - Supports Dragon 2.5G LAN Software
  - Smart Auto Adjust Bandwidth Control
  - Visual User Friendly UI
  - Visual Network Usage Statistics
  - Optimized Default Setting for Game, Browser, and Streaming Modes
  - User Customized Priority Control

• Wireless LAN
  - 802.11ax Wi-Fi 6E Module
  - Supports IEEE 802.11a/b/g/n/ac/ax
  - Supports Dual-Band 2x2 with extended 6GHz band* support
  - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  - Supports Bluetooth + High speed class II
  - Supports MU-MIMO



  *Wi-Fi 6E (6GHz band) will be supported by Microsoft^® Windows^® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows^® Update and software updates once available.
  A 6GHz compatible router is required for 6E functionality.
• Slots
  CPU:
  - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode*
  Chipset:
  - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
  - 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)*
  - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel^® CNVio/CNVio2 (Integrated WiFi/BT)*
  - Supports AMD CrossFire™



  *Supports NVMe SSD as boot disks
• Storage
  CPU:
  - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  Chipset:
  - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 8 x SATA3 6.0 Gb/s Connectors



  *Supports Intel^® Volume Management Device (VMD)
  Supports NVMe SSD as boot disks
• RAID
  - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
• USB
  - 1 x USB 3.2 Gen2x2 Type-C (Front)
  - 1 x USB 3.2 Gen2 Type-C (Rear)
  - 1 x USB 3.2 Gen2 Type-A (Rear)
  - 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
  - 8 x USB 2.0 (4 Rear, 4 Front)
  * All USB ports support ESD Protection
• Connector
  - 1 x eDP Signal Connector
  - 1 x SPI TPM Header
  - 1 x Power LED and Speaker Header
  - 1 x RGB LED Header*
  - 3 x Addressable LED Headers**
  - 1 x CPU Fan Connector (4-pin)***
  - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  - 1 x 24 pin ATX Power Connector
  - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
  - 1 x Front Panel Audio Connector
  - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)



  *Supports in total up to 12V/3A, 36W LED Strip

  **Support in total up to 5V/3A, 15W LED Strip

  ***CPU_FAN1 supports the fan power up to 1A (12W).

  ****CPU_FAN2/WP supports the fan power up to 2A (24W).

  *****CHA_FAN1~5/WP support the fan power up to 2A (24W).
  CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.

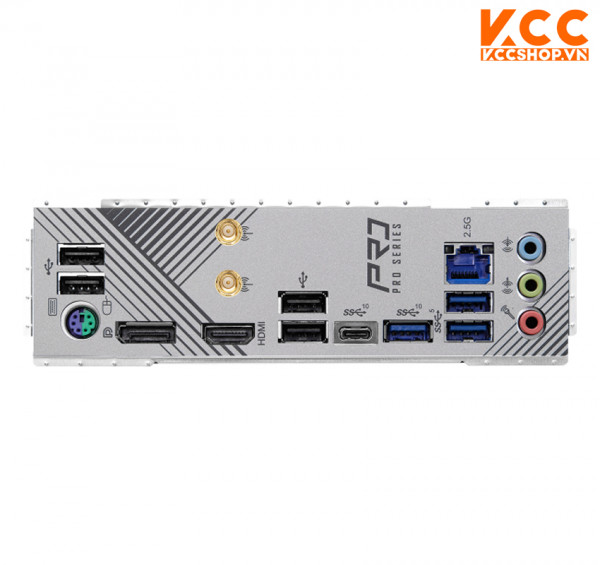

• Rear Panel I/O
  - 2 x Antenna Ports
  - 1 x PS/2 Mouse/Keyboard Port
  - 1 x HDMI Port
  - 1 x DisplayPort 1.4
  - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
  - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
  - 2 x USB 3.2 Gen1 Ports
  - 4 x USB 2.0 Ports
  - 1 x RJ-45 LAN Port
  - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  - ASRock Motherboard Utility (A-Tuning)
  - ASRock Dragon 2.5G LAN Software
  - ASRock Polychrome SYNC*
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock My Favorites in UEFI
  - ASRock Auto Driver Installer
  - ASRock Instant Flash
  - ASRock Easy RAID Installer



  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories
  - 1 x User Manual
  - 2 x SATA Data Cables
  - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
  - 4 x Screws for M.2 Sockets
  - 1 x Standoff for M.2 Socket
• Form Factor
  - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
  - 2oz Copper PCB
• OS
  - Microsoft^® Windows^® 10 64-bit / 11 64-bit



  *Windows^® 10 only supports version 21H2 or later
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
