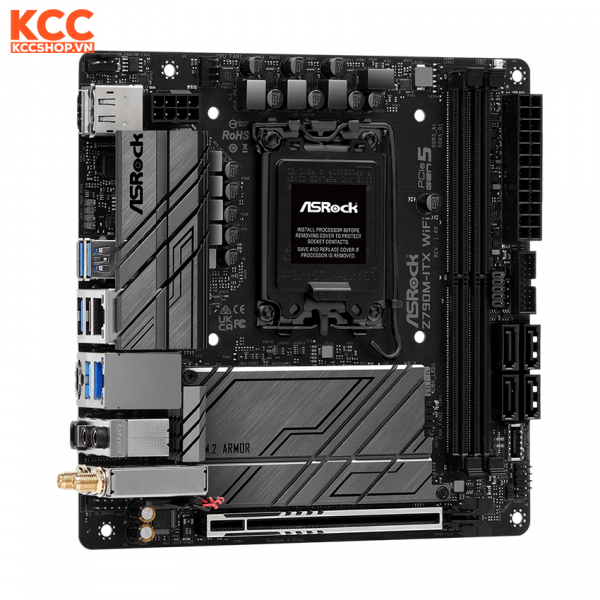

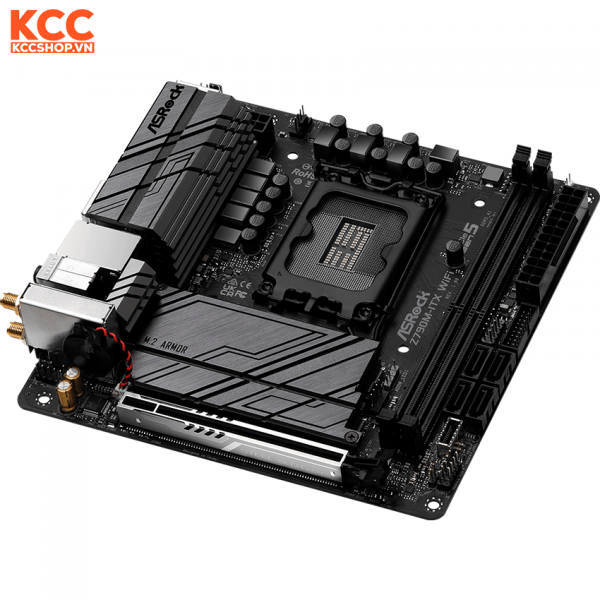

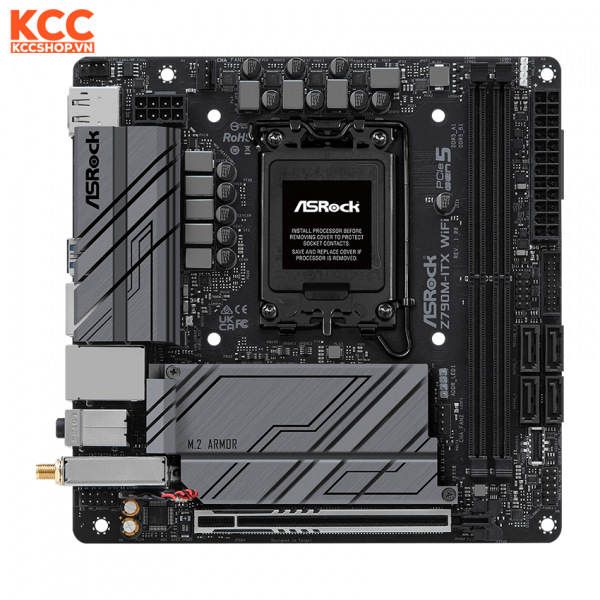

Mainboard Asrock Z790M-ITX WiFi DDR5 + So sánh

Loại sản phẩm

Mainboard

Thương hiệu

Asrock

Model

Z790M-ITX WiFi

Bảo hành

36 tháng

CPU

- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)

- Supports Intel® Hybrid Technology

- Supports Intel® Turbo Boost Max 3.0 Technology

- Supports Intel® Thermal Velocity Boost (TVB)

- Supports Intel® Adaptive Boost Technology (ABT)

Chipset

- Intel® Z790

Memory

- Dual Channel DDR5 Memory Technology

- 2 x DDR5 DIMM Slots

- Supports DDR5 non-ECC, un-buffered memory up to 7000+(OC)*

- Max. capacity of system memory: 96GB

- Supports Intel® Extreme Memory Profile (XMP) 3.0

BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support

Graphics

- Intel® Xe Graphics Architecture (Gen 12)

- 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz

- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

- Nahimic Audio

LAN

- 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I226V)

- 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)

Wireless LAN

- 802.11ax Wi-Fi 6E Module

- Supports IEEE 802.11a/b/g/n/ac/ax

- Supports Dual-Band 2x2 with extended 6GHz band support*

- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology

- Supports Bluetooth 5.3 + High speed class II

- Supports MU-MIMO

Slots

CPU:

- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

Storage

CPU:

- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode

Chipset:

- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes

- 4 x SATA3 6.0 Gb/s Connectors

RAID

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

USB

- 1 x USB 3.2 Gen2x2 Type-C (Rear)

- 1 x USB 3.2 Gen2x2 Type-C (Front)

- 4 x USB 3.2 Gen2 Type-A (Rear)

- 2 x USB 3.2 Gen1 (Front)

- 3 x USB 2.0 (1 Rear, 2 Front)

Connector

- 1 x eDP Signal Connector

- 1 x RGB LED Header

- 1 x Addressable LED Header

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

- 2 x Chassis Fan Connectors (4-pin)

- 1 x 24 pin ATX Power Connector

- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector

- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

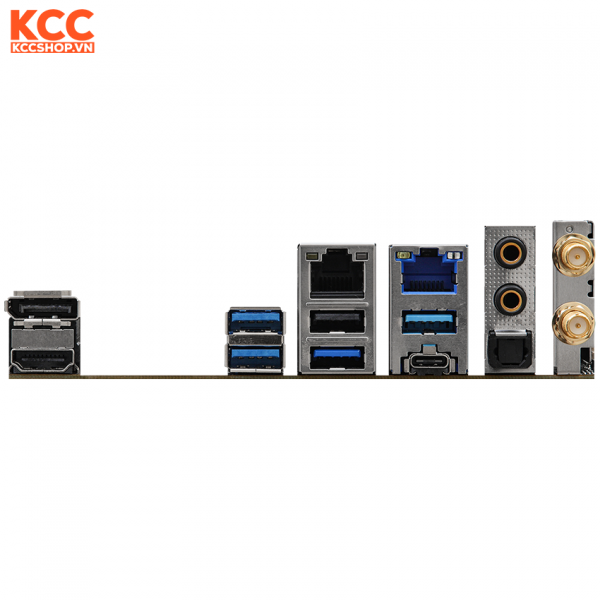

Rear Panel I/O

- 2 x Antenna Ports

- 1 x HDMI Port

- 1 x DisplayPort 1.4

- 1 x Optical SPDIF Out Port

- 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)

- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)

- 1 x USB 2.0 Port

- 2 x RJ-45 LAN Ports

- 1 x Line Out Jack (Gold Audio Jack)

- 1 x Microphone Input Jack (Gold Audio Jack)

Software and UEFI

Software

- ASRock Motherboard Utility (A-Tuning)

- ASRock Polychrome SYNC

- ASRock XFast LAN

UEFI

- ASRock EZ Mode

- ASRock Full HD UEFI

- ASRock My Favorites in UEFI

- ASRock Auto Driver Installer

- ASRock Instant Flash

- ASRock Easy RAID Installer

Accessories

- 1 x User Manual

- 1 x I/O Shield

- 2 x SATA Data Cables

- 2 x ASRock WiFi 2.4/5/6 GHz Antennas

- 2 x Screws for M.2 Sockets

Form Factor

- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm

- 8 Layer PCB

OS

- Microsoft® Windows® 10 64-bit / 11 64-bit
