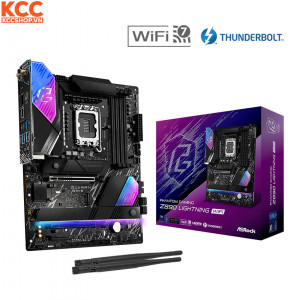

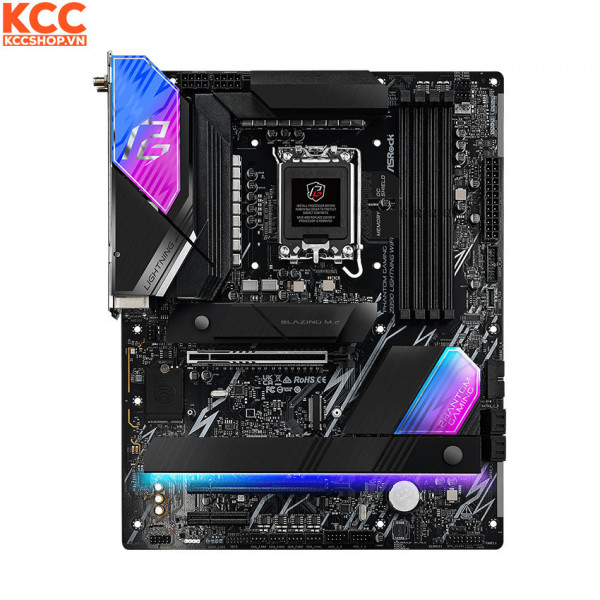

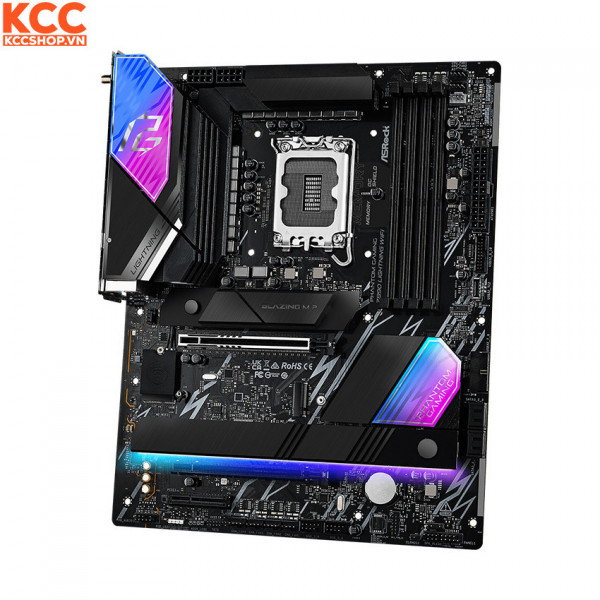

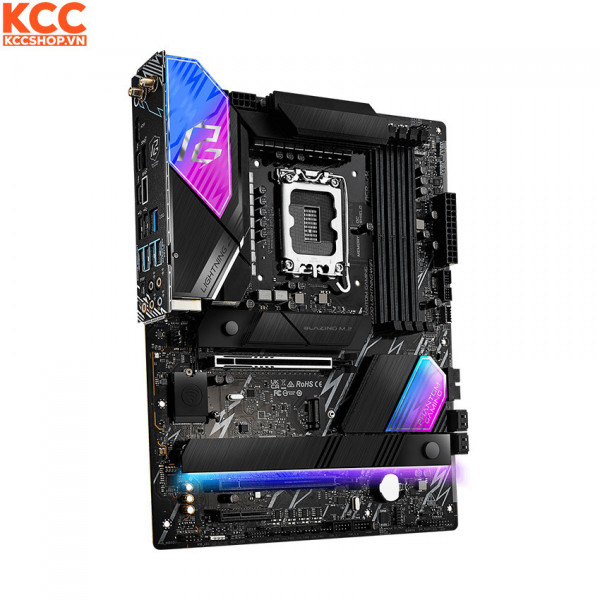

Mainboard Asrock Z890 Lightning Wifi

Loại sản phẩm

Mainboard

Thương hiệu

Asrock

Model

Z890 Lightning Wifi

Bảo hành

36 tháng

CPU

- Supports Intel^® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
- Supports Intel^® Hybrid Technology
- Supports Intel^® Turbo Boost Max 3.0 Technology
- Supports Intel^® Thermal Velocity Boost (TVB)
- Supports Intel^® Adaptive Boost Technology (ABT)
- Integrated NPU for dedicated AI acceleration

Chipset

- Intel^® Z890

RAM

- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)
- Max. capacity of system memory: 256GB
- Supports Intel^® Extreme Memory Profile (XMP) 3.0x

BIOS

- 256Mb AMI UEFI Legal BIOS with GUI support

Đồ họa

- Intel^® Xe LPG Graphics Architecture
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 2 x Intel^® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Âm thanh

- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio

LAN

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Killer E3100G
- Supports Killer LAN Software

Wifi

- 802.11be 2x2 Wi-Fi 7 Module
- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
- Supports 2.4GHz/5GHz/6GHz frequency band
- Supports 320MHz channel bandwidth with 6GHz frequency band
- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.4
- Supports MU-MIMO

Slot

CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
- 1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel^® CNVio/CNVio2 (Integrated WiFi/BT)

Storage

CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 4 x SATA3 6.0 Gb/s Connectors

RAID

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

USB

CPU:
- 2 x Thunderbolt™ 4 Type-C (Rear) Chipset:
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 2 x USB 3.2 Gen2 Type-A (Rear)
- 8 x USB 3.2 Gen1 (4 Rear, 4 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)

Kết nối

- 1 x Thermistor Cable Header
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header
- 3 x Addressable LED Headers
- 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
- 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

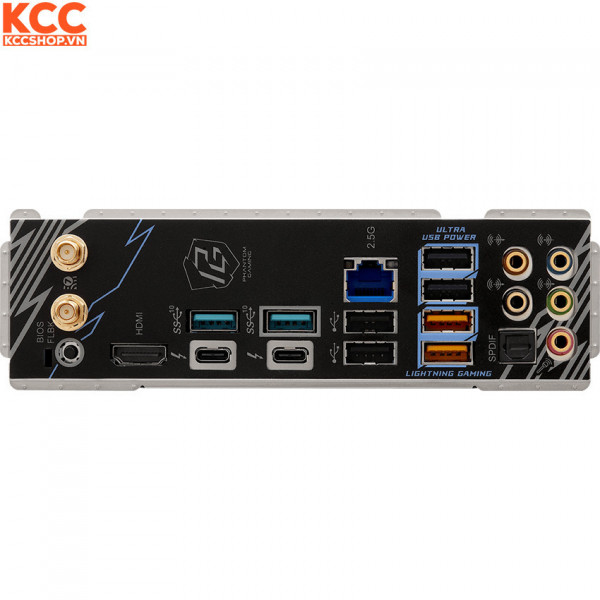

Bảng I/O

- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)
- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
- 4 x USB 3.2 Gen1 Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks with LED)

Form Factor

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 2oz Copper PCB

Hỗ trợ hệ điều hành

- Microsoft Windows^® 11 64-bit
