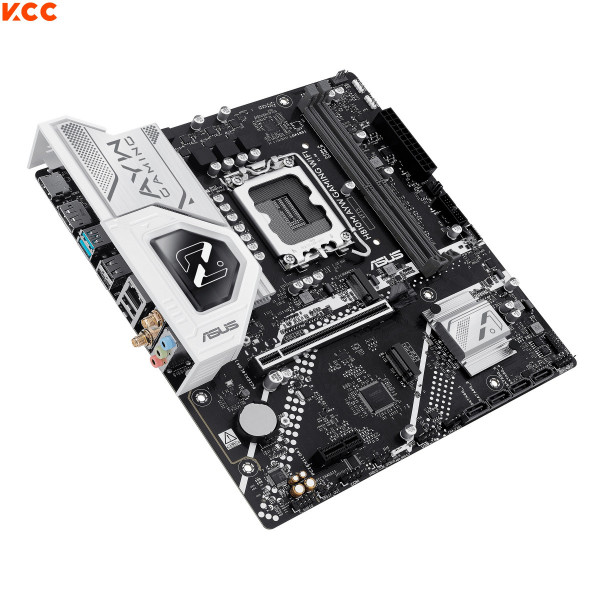

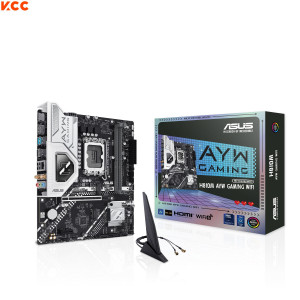

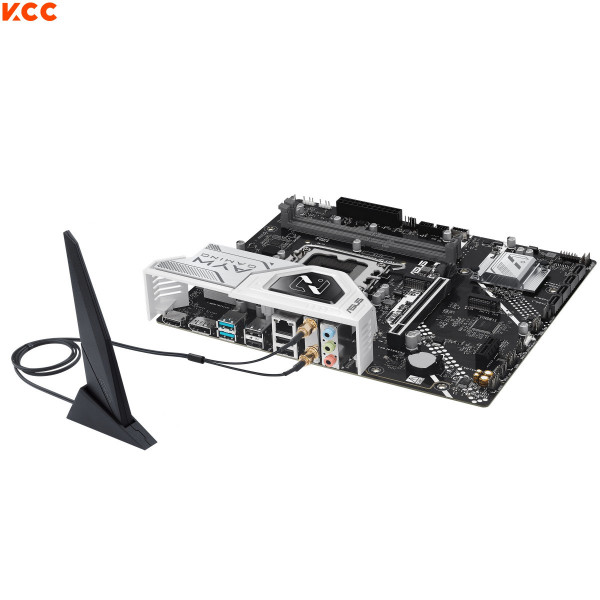

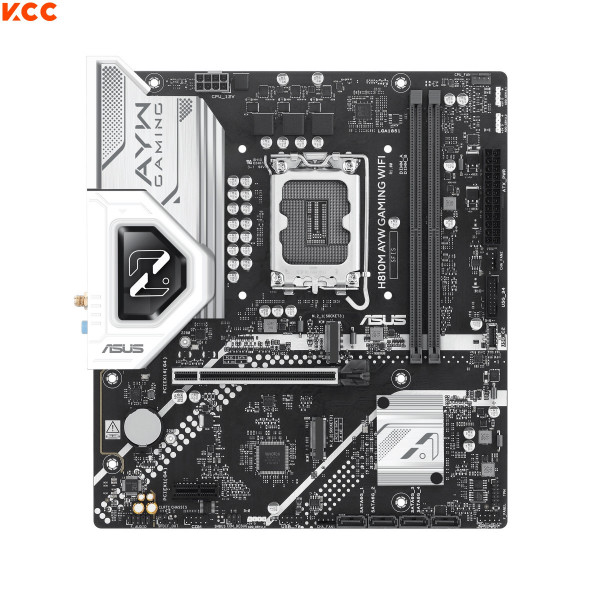

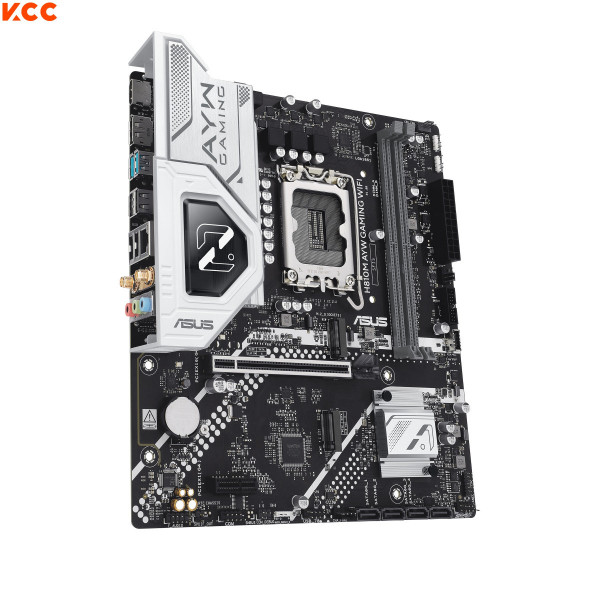

Mainboard Asus H810M AYW GAMING WIFI

Mã SP: 11422 Thương hiệu: ASUS Hết hàng + So sánh
Giá bán tại KCCSHOP
Liên hệ

Liên hệ với nhân viên kinh doanh

Thông số nổi bật

Model: H810M AYW GAMING WIFI

Hỗ trợ CPU: Intel Core Ultra (Series 2), LGA1851

Chipset: Intel H810

Bộ nhớ: 2 khe DIMM, tối đa 128GB, DDR5

Đồ họa: 1 x DisplayPort, 1 x HDMI

Khe mở rộng: 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x1

Âm thanh: Realtek 7.1 Surround Sound

Khả năng không dây: Wi-Fi 6, Bluetooth v5.3

Hệ điều hành: Windows 11, Windows 10 64-bit

Kích thước: micro-ATX, 24.4 x 22.2 cm

Mô tả sản phẩm

Bo mạch chủ H810M AYW GAMING WIFI - Nền tảng gaming đỉnh cao cho CPU Intel thế hệ mới

Mainboard Asus H810M AYW GAMING WIFI

Bo mạch chủ H810M AYW GAMING WIFI là sự lựa chọn hoàn hảo cho các game thủ và người dùng đang tìm kiếm một mainboard hiệu năng cao, tích hợp đầy đủ tính năng với thiết kế nhỏ gọn micro-ATX. H810M AYW GAMING WIFI mang đến trải nghiệm gaming và đa phương tiện vượt trội với sự hỗ trợ cho các bộ xử lý Intel Core Ultra Series mới nhất.

Đặc điểm nổi bật

Mainboard Asus H810M AYW GAMING WIFI

  • Hỗ trợ CPU Intel thế hệ mới nhất - Tương thích với dòng Intel Core Ultra Processors (Series 2) socket LGA1851
  • RAM DDR5 hiệu năng cao - Hỗ trợ RAM DDR5 lên đến 128GB với tốc độ 6400MT/s
  • Kết nối không dây hiện đại - Tích hợp Wi-Fi 6 và Bluetooth 5.3
  • Giải pháp lưu trữ đa dạng - 2 khe M.2 PCIe 4.0 và 4 cổng SATA 6Gb/s
  • Âm thanh chất lượng cao - Codec âm thanh HD 7.1 với công nghệ Audio Shielding

Ứng dụng lý tưởng

Mainboard Asus H810M AYW GAMING WIFI

  • Gaming hiệu năng cao với các tựa game AAA mới nhất
  • Làm việc đa nhiệm với các ứng dụng đòi hỏi xử lý mạnh
  • Streaming và sản xuất nội dung
  • Thiết kế đồ họa và render video

Tại sao nên mua tại KCCSHOP

Mainboard Asus H810M AYW GAMING WIFI

  • Hàng Chính Hãng 100% - Cam kết nguồn gốc xuất xứ rõ ràng
  • Giá Cạnh Tranh Nhất - Đảm bảo mức giá tốt nhất thị trường
  • Dịch Vụ Tận Tâm : - Hỗ trợ lắp đặt miễn phí - Tư vấn cấu hình chuyên nghiệp
  • Giao Hàng Nhanh Toàn Quốc - Đóng gói cẩn thận, an toàn
  • Hỗ trợ kỹ thuật 24/7 - Đội ngũ chuyên viên giàu kinh nghiệm

Câu hỏi thường gặp

Mainboard Asus H810M AYW GAMING WIFI

Bo mạch này có tương thích với các CPU Intel thế hệ trước không?

Mainboard Asus H810M AYW GAMING WIFI

Không, H810M AYW GAMING WIFI chỉ hỗ trợ CPU Intel Core Ultra Series 2 với socket LGA1851 mới nhất.

Có thể nâng cấp RAM trong tương lai không?

Có, mainboard hỗ trợ tối đa 128GB RAM DDR5 với 2 khe DIMM, cho phép nâng cấp dễ dàng.

Cần PSU công suất bao nhiêu cho hệ thống sử dụng mainboard này?

Tùy thuộc vào cấu hình hoàn chỉnh, nhưng thông thường nguồn từ 550W trở lên từ thương hiệu uy tín là đủ cho hệ thống gaming phổ thông.

Có thể kết nối nhiều màn hình cùng lúc không?

Có, bo mạch hỗ trợ xuất hình đa màn hình thông qua cổng DisplayPort và HDMI, đều hỗ trợ độ phân giải 4K@60Hz.

KCCSHOP là nhà cung cấp các sản phẩm Màn hình máy tính cao cấp, PC Gaming, CPU-Bộ vi xử lý, Laptop Gaming … chính hãng cùng với giá cả hợp lý, chất lượng hàng đầu tại Hà Nội và TP.HCM. Với phương châm luôn đặt sự hài lòng của khách hàng lên hàng đầu, chúng tôi mong muốn đem tới cho khách hàng những trải nghiệm mua sắm tuyệt vời nhất. Ngoài sản phẩm Mainboard Asus H810M AYW GAMING WIFI thì KCCSHOP còn có rất nhiều sản phẩm MAIN khác với chất lượng cao, giá thành tốt. Hãy liên hệ ngay với chúng tôi qua Hotline 0912.074.444 (HN), 0966.666.308 (HCM) hoặc truy cập https://kccshop.vn/ để được tư vấn và mua những sản phẩm ưng ý nhất.

Thông số kỹ thuật

Model H810M AYW GAMING WIFI
News & Updates Please visit our GLOBAL website to check and download the latest updates.
CPU Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® H810 Chipset
Memory 2 x DIMM slots, max. 128GB, DDR5
Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics 1 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel® H810 Chipset
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H810 Chipset

M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
Ethernet 1 x Intel® 1Gb Ethernet port*
ASUS LANGuard
*With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.
Wireless & Bluetooth Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3*
* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB Rear USB (Total 6 ports)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 5Gbps connector (supports USB Type-C®)*
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

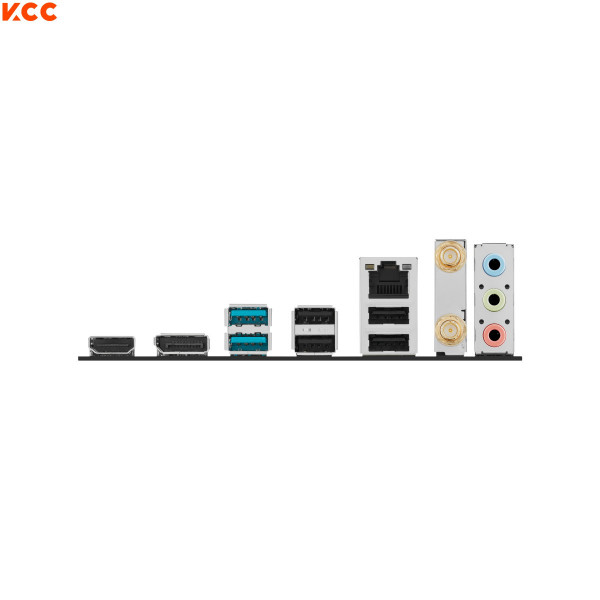

Back Panel I/O Ports 2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- Q-DIMM
- Q-Dashboard
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
Aura Sync
- Addressable Gen 2 headers
Software Features ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
BIOS 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x I/O shield
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide
Operating System Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form Factor micro-ATX Form Factor
9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)
