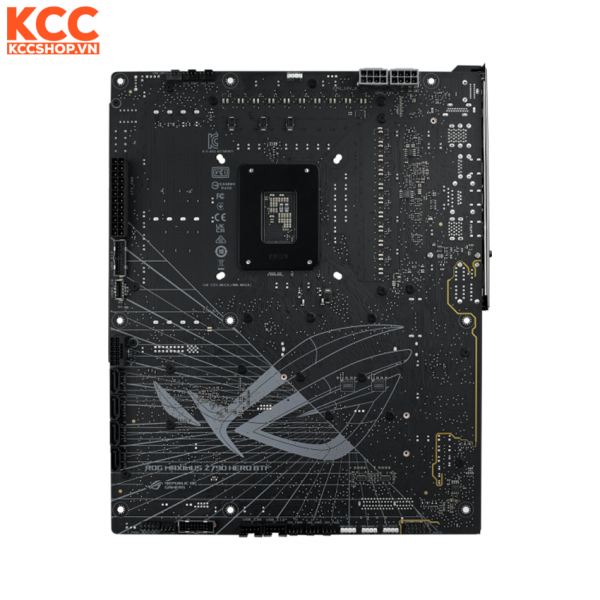

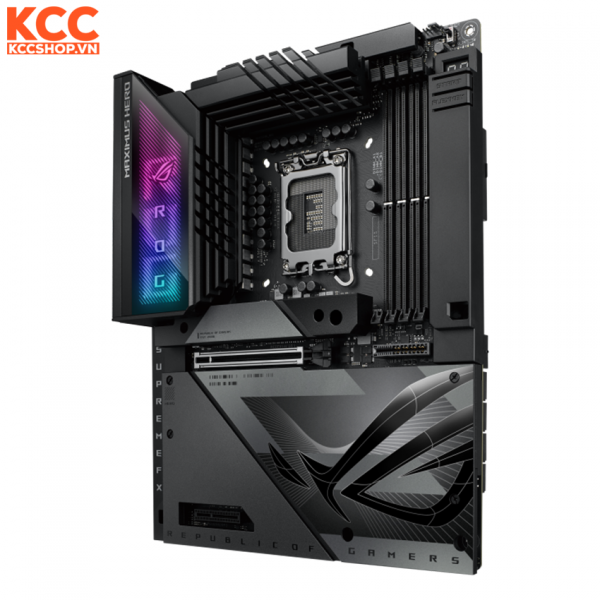

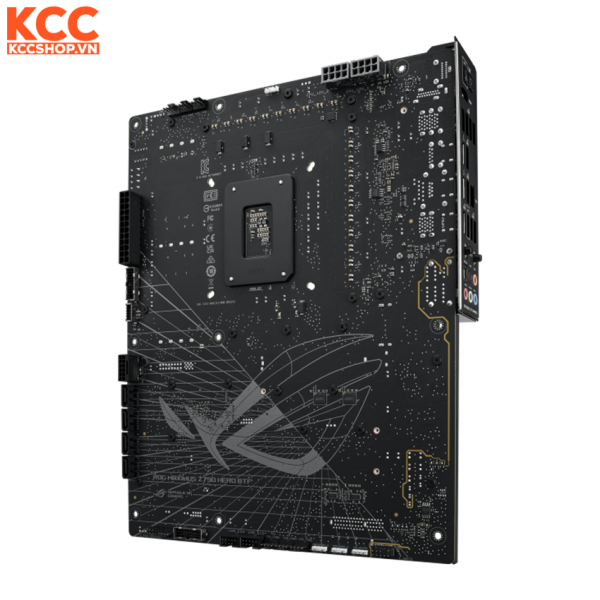

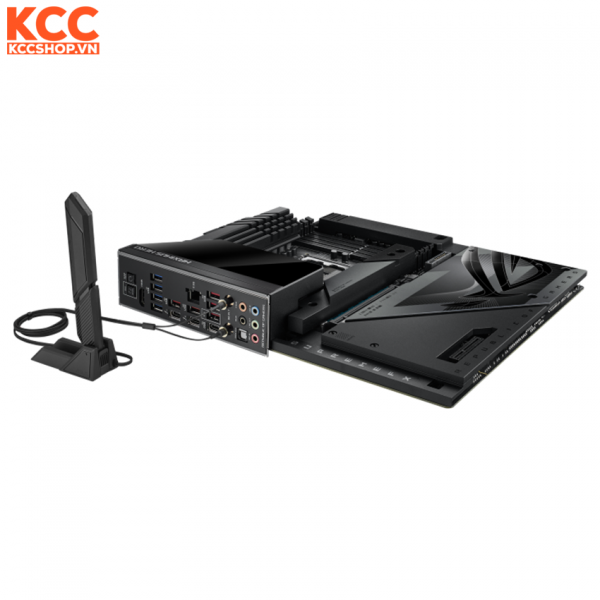

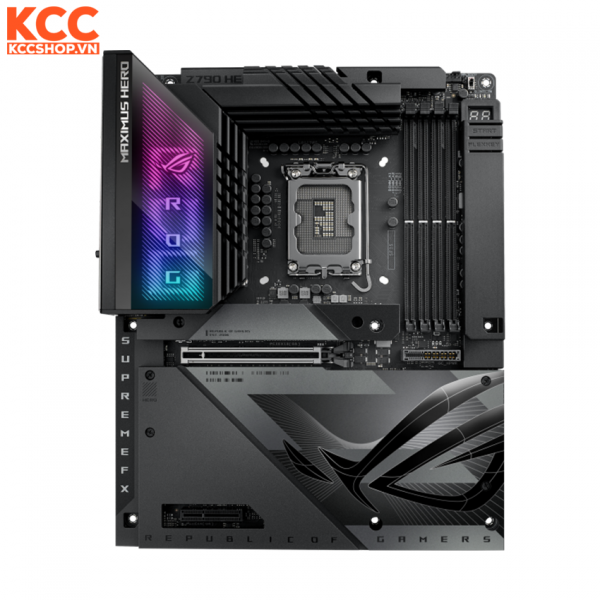

Mainboard ASUS ROG MAXIMUS Z790 HERO BTF DDR5 + So sánh

Loại sản phẩm

Mainboard

Thương hiệu

ASUS

Model

ROG MAXIMUS Z790 HERO BTF

CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset

Intel® Z790 Chipset

Memory

4 x DIMM slots, max. 192GB, DDR5

8000+(OC) / 7800+(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory*

Dual channel memory architecture

Supports Intel® Extreme Memory Profile (XMP) memory module

Supports DIMM Flex

ASUS Enhanced Memory Profile II (AEMP II)

Expansion Slots

Intel® CoreTM Processors (14th & 13th & 12th Gen)*

1 x PCIe 5.0 x16 slot (support x16 or x8 modes)**

Intel® Z790 Chipset

1 x PCIe 4.0 x4 slot

Storage

Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® CoreTM Processors (14th & 13th & 12th Gen)

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.)**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode.)

Intel® Z790 Chipset**

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

** When M.2_1 is enabled, PCIEX16(G5)_1 will run x8 only.

Ethernet

1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

Wireless and Bluetooth

Intel® Wi-Fi 7

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band

Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate.

Bluetooth® v5.4

USB

Rear USB (Total 12 ports)

2 x Thunderbolt™ 4 ports (2 x USB Type-C®)

6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®)

4 x USB 5Gbps ports (4 x Type-A)

Front USB (Total 9 ports)

1 x USB 20Gbps connector

2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback on front panel

Audio Features

- SupremeFX Shielding Technology

- ESS® ES9218 QUAD DAC

- Gold-plated audio jacks

- Rear optical S/PDIF out port

- Premium audio capacitors

*The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

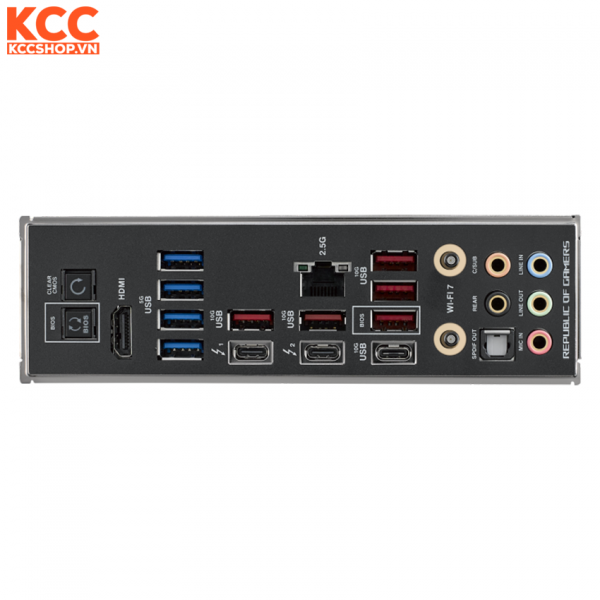

Back Panel I/O Ports

2 x Thunderbolt™ 4 USB Type-C® ports

6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®)

4 x USB 5Gbps ports (4 x Type-A)

1 x HDMITM port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™  button

1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

1 x W_PUMP+ header

Power related

1 x 24-pin main power connector

2 x 8-pin +12V power connector

1 x Graphics card high power slot

1 x 12V-2X6 Auxiliary power connector

Storage related

5 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 20Gbps connector (supports USB Type-C®)

2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x FlexKey button

1 x Front panel audio header (F_AUDIO)

1 x Start button

1 x 10-1 pin system panel header

1 x Thermal sensor header

1 x Q-Installation Switch

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Operating System

Windows® 11 , Windows® 10 64-bit

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
