Sản phẩm

Mainboard - Bo mạch chủ

Tên Hãng

ASUS

Model

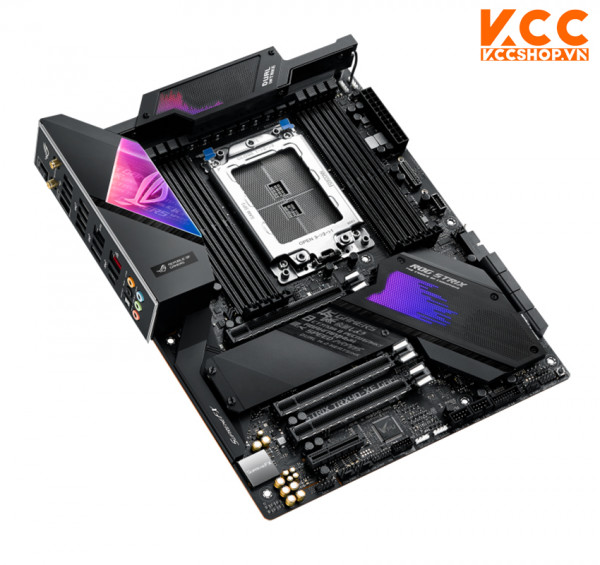

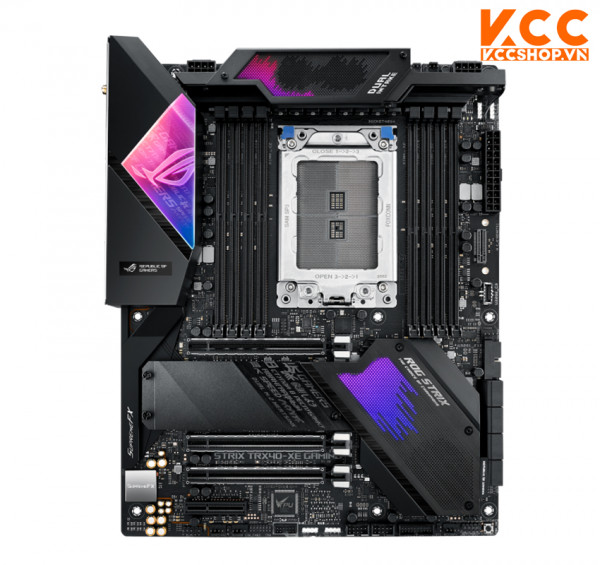

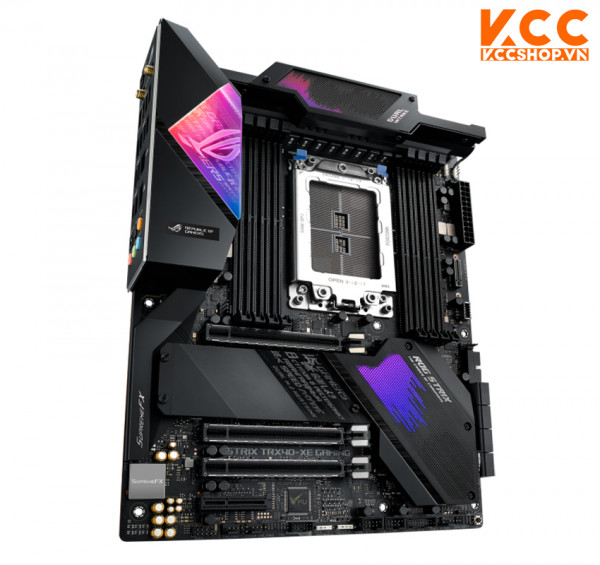

ROG STRIX TRX40-XE GAMING

CPU hỗ trợ

Build in AMD Socket sTRX4 for 3^rd Gen AMD Ryzen^™ Threadripper^™ Series Desktop Processors
Supports CPU up to 64 cores

Chipset

AMD TRX40

RAM hỗ trợ

3^rd Gen AMD Ryzen^™ Threadripper^™ Series Desktop processors

8 x DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C) /4333(O.C.)/4266(O.C.)/4133(O.C.) /3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/ 2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Quad Channel Memory Architecture

Multi-GPU Support

Supports NVIDIA® 2-Way SLI® Technology
Supports AMD 2-Way CrossFireX Technology

Khe cắm mở rộng

3^rd Gen AMD Ryzen^™ Threadripper^™ Series Desktop processors

3 x PCIe 4.0 x16 (x16/x16/x16)
1 x PCIe 4.0 x4

Lưu trữ

3^rd Gen AMD Ryzen^™ Threadripper^™ Series Desktop processors :
2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)

AMD TRX40 chipset :
1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

AMD TRX40 chipset :
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10

LAN / Wireless / Bluetooth

Realtek® RTL8125-CG 2.5G LAN
Intel® I211-AT, 1 x Gigabit LAN Controller(s)
Anti-surge LANGuard
ROG GameFirst V Technology

Intel® Wi-Fi 6 AX200
Wi-Fi 802.11 ax, Bluetooth® 5.0
Supports dual band frequency 2.4/5 GHz
Supports 2x2 MU-MIMO
Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed

Bluetooth® 5.0

Âm Thanh

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Dual OP Amplifiers
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output 108 dB SNR recording input
- Supports up to 32-Bit/192kHz playback

Audio Feature :
- SupremeFX Shielding™ Technology
- Sonic Studio III + Sonic Studio Virtual Mixer
- DTS® Sound Unbound
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III

USB

3rd Gen AMD Ryzen™ Threadripper™ Processors :
4 x USB 3.2 Gen 2 port(s) (4 at back panel, red)

AMD TRX40 chipset :
1 x USB 3.2 Gen 2 front panel connector port(s)

AMD TRX40 chipset :
4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, 3 x Type-A+1 x Type-C)

AMD TRX40 chipset :
8 x USB 2.0 port(s)

ASMedia® USB 3.2 Gen 1 controller :
4 x USB 3.2 Gen 1 port(s) (4 at mid-board)

Tính năng đặc biệt

5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.

Gamer's Guardian:
- DRAM Overcurrent Protection
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
- ESD Guards on LAN, Audio,and USB ports
LiveDash OLED 1.3 ”
AURA :
- Aura Lighting Control
- Addressable Gen 2 Header
ASUS Exclusive Features :
- USB BIOS FlashBack^™
- AI Suite 3
- Ai Charger
- Pre-mounted I/O Shield
- ASUS NODE: hardware control interface
- BIOS FlashBack^™ Button
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

Cổng kết nối ( I/O Phía sau)

1 x LAN (RJ45) port(s)
8 x USB 3.2 Gen 2 (7 x Type-A+1 x Type-C)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Anti-surge 2.5G LAN (RJ45) port
1 x USB BIOS FlashBack^™ Button(s)

Cổng kết nối ( I/O bên trong)

2 x Aura RGB Strip Header
2 x Addressable Gen 2 header(s)
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)
1 x M.2 Socket 2 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x USB BIOS FlashBack^™ button(s)
1 x System panel connector
1 x USB 3.2 Gen 2 front panel connector
1 x Speaker connector
1 x Chipset Fan Header
1 x VRM_HS_FAN Header

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Kích cỡ

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
