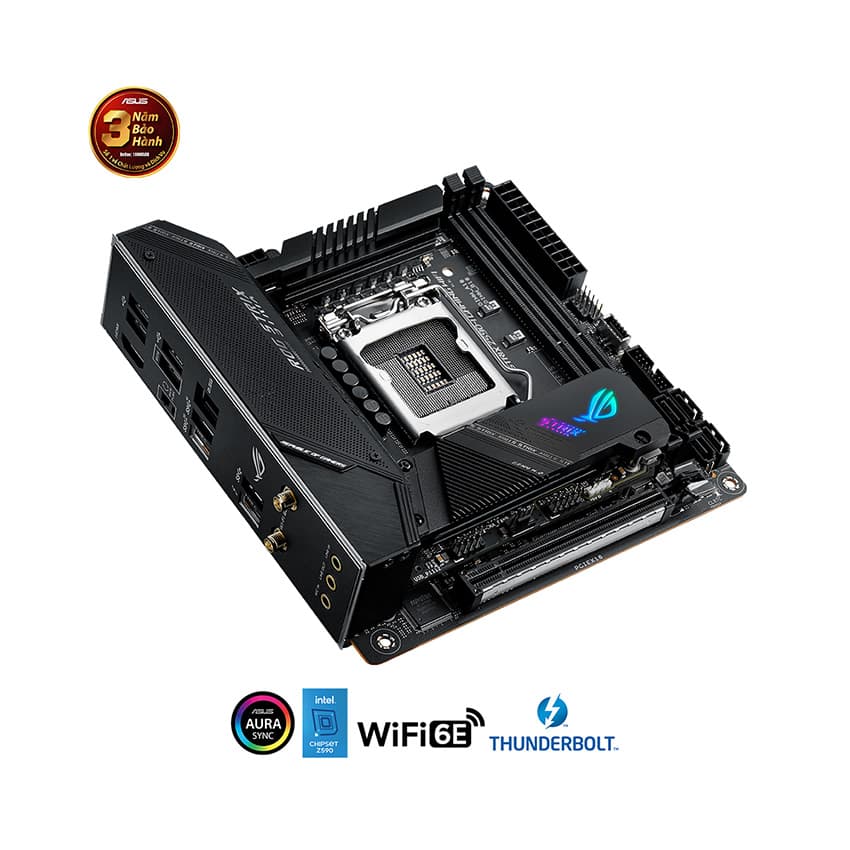

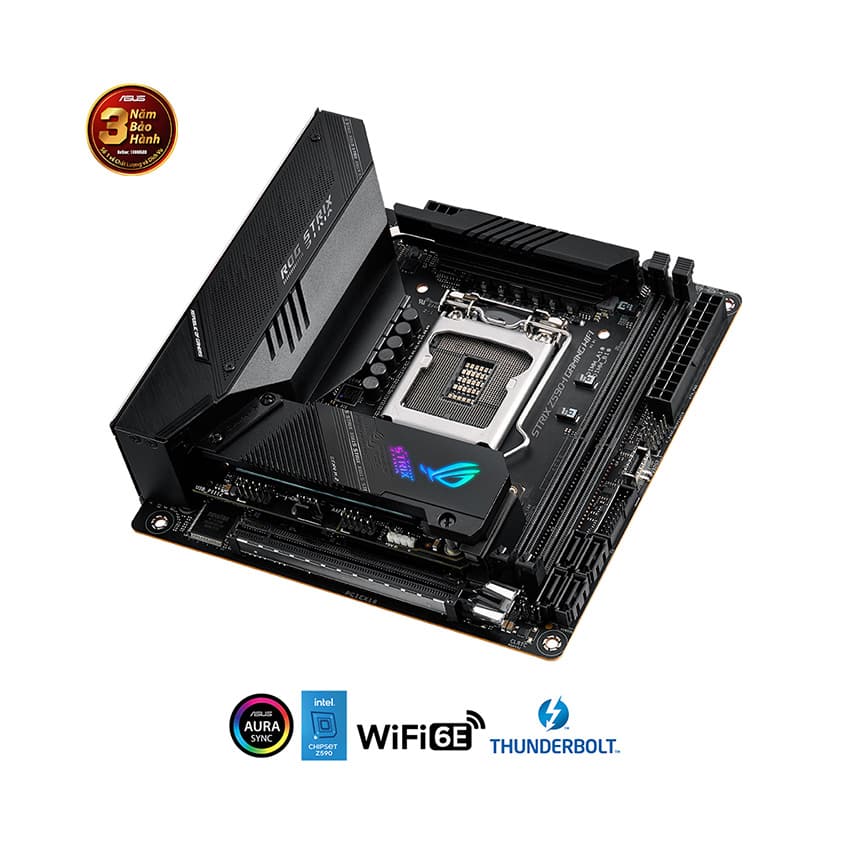

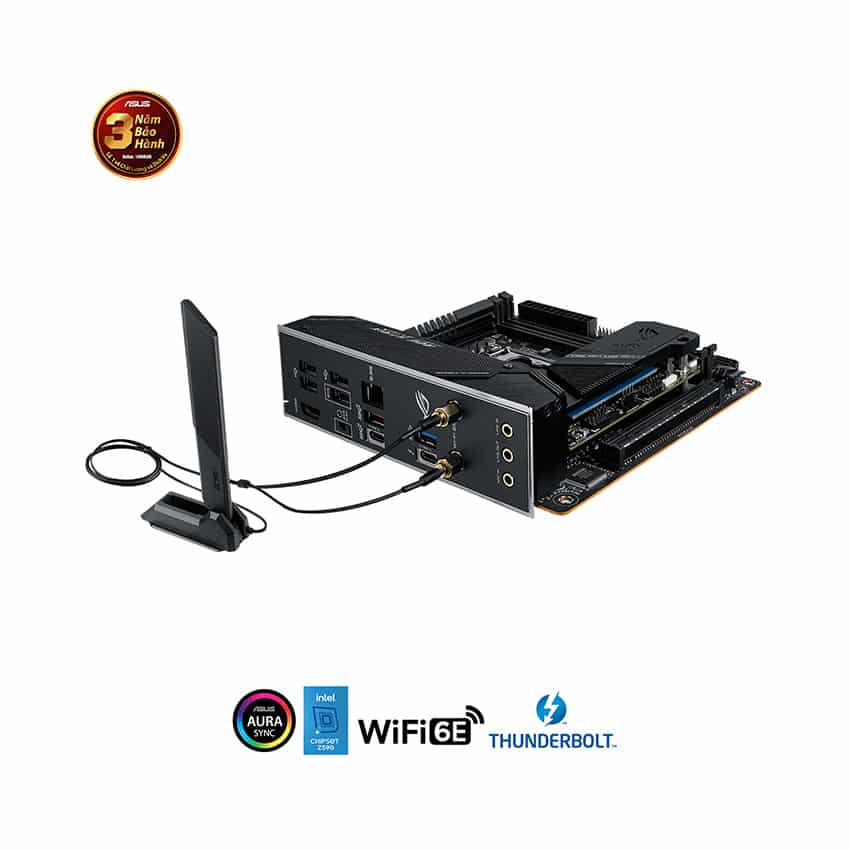

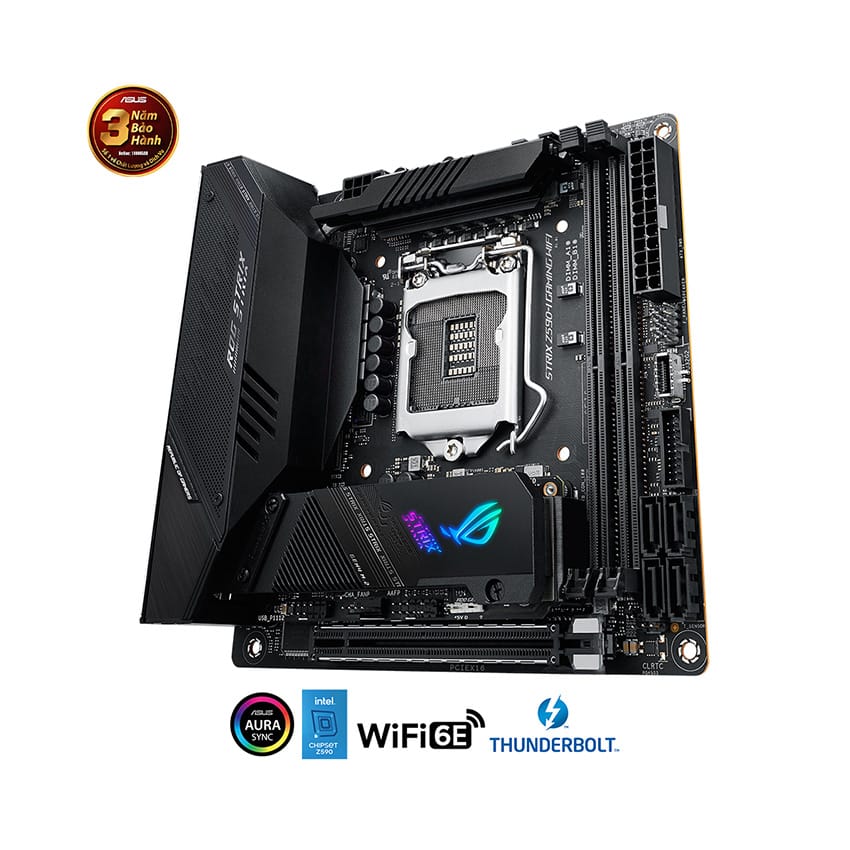

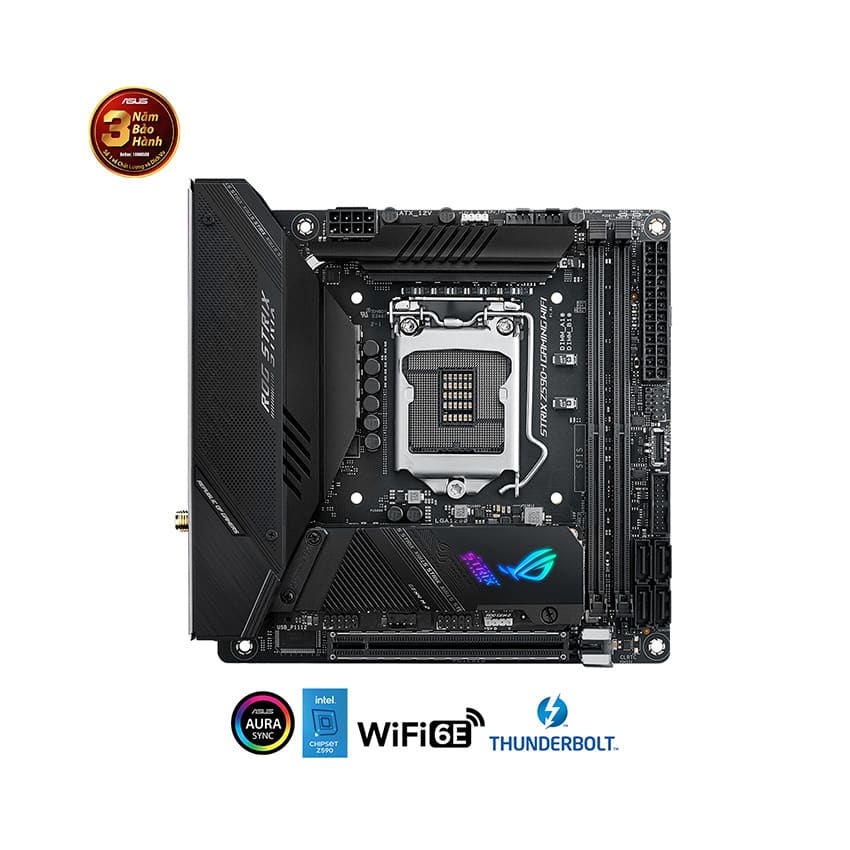

Mainboard ASUS ROG STRIX Z590-I GAMING WIFI + So sánh

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

ROG STRIX Z590-I GAMING WIFI

CPU hỗ trợ

Intel

Chipset

Z590

RAM hỗ trợ

Memory Channels:2DDR4 (Dual Channel)

Max Memory Size:64GB

5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/
4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/
3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/
2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Khe cắm mở rộng

1 x PCIe 4.0/3.0 x16 slot

Ổ cứng hỗ trợ

Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel®11th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

- Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.

Intel® Z590 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Cổng kết nối (Internal)

1 x Thunderbolt 4 (onboard)

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin AIO Pump header(s)

1 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports

Miscellaneous

1 x AURA Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x Speaker header

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

LAN / Wireless

1 x Intel® 2.5Gb Ethernet

Kích cỡ

Mini ITX

17cm x 17cm
