Mainboard ASUS TUF GAMING B550-PLUS (AMD B550, Socket AM4, ATX, 4 khe RAM DRR4) + So sánh

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

 ASUS TUF GAMING B550-PLUS

Socket

AM4

Hỗ trợ CPU

AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors *

Chipset

AMD B550

Hỗ trợ RAM

3rd Gen AMD Ryzen™ Processors

4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz

Cạc đồ họa

VGA onboard

Âm thanh

Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

Cạc mạng

Realtek RTL8125B 2.5Gb Ethernet

Khe cắm trong

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support

1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

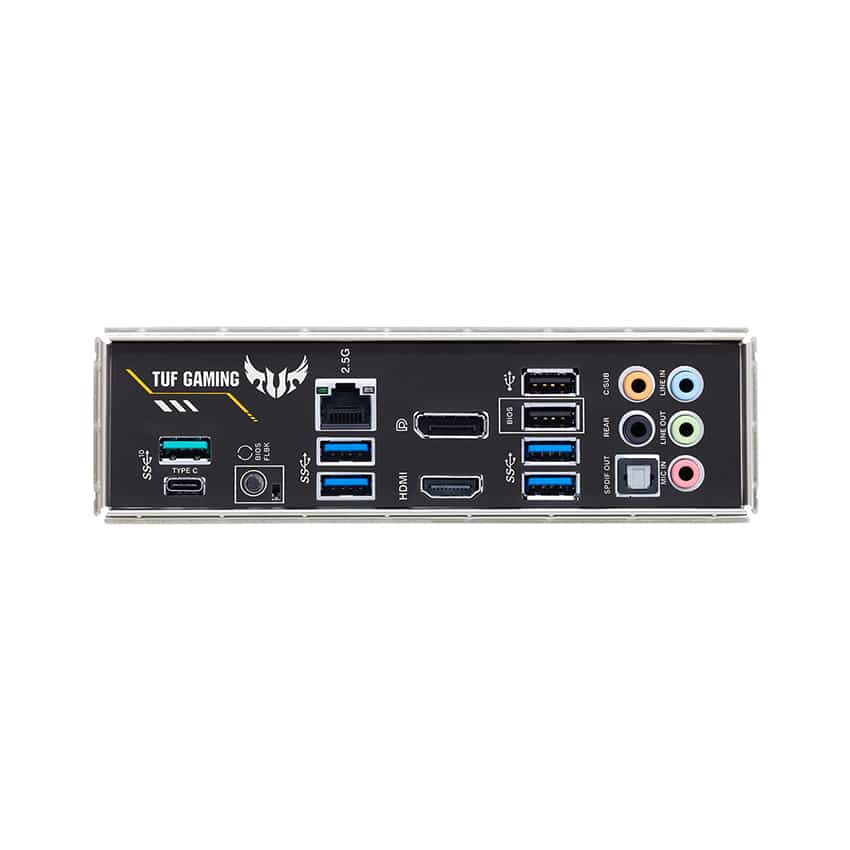

Cổng giao tiếp ngoài

1 x DisplayPort

1 x HDMI (4K@60HZ)

1 x LAN (2.5G) port(s)

2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)

4 x USB 3.2 Gen 1 (blue) Type-A

2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)

1 x Optical S/PDIF out

5 x Audio jack(s)

1 x BIOS FlashBack™ Button(s)

Kích thước

ATX Form Factor
