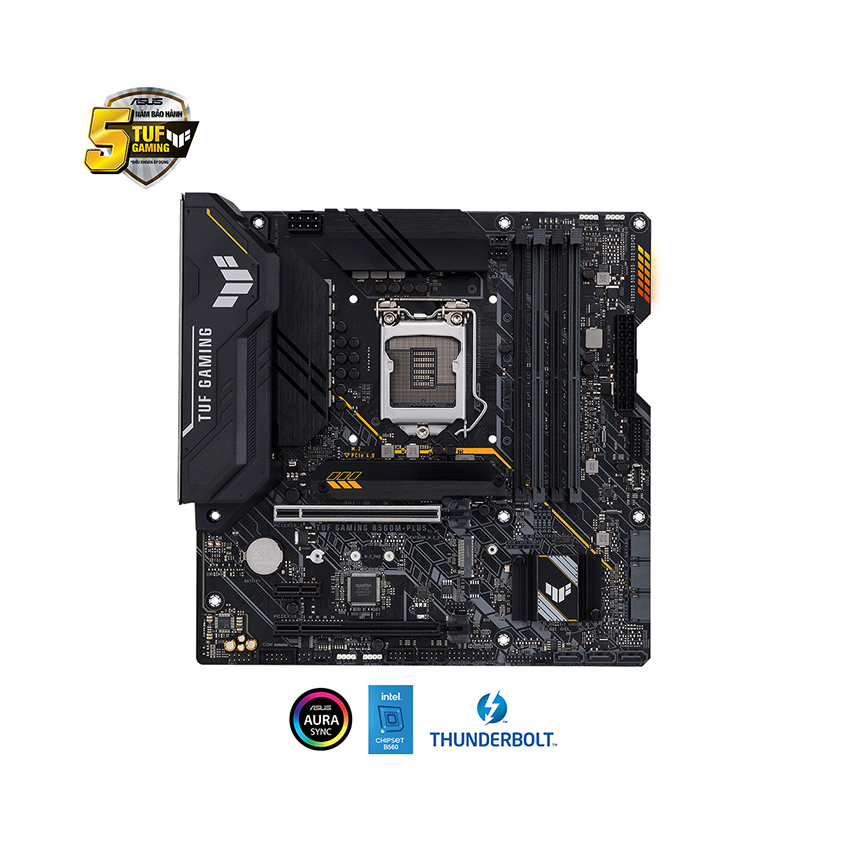

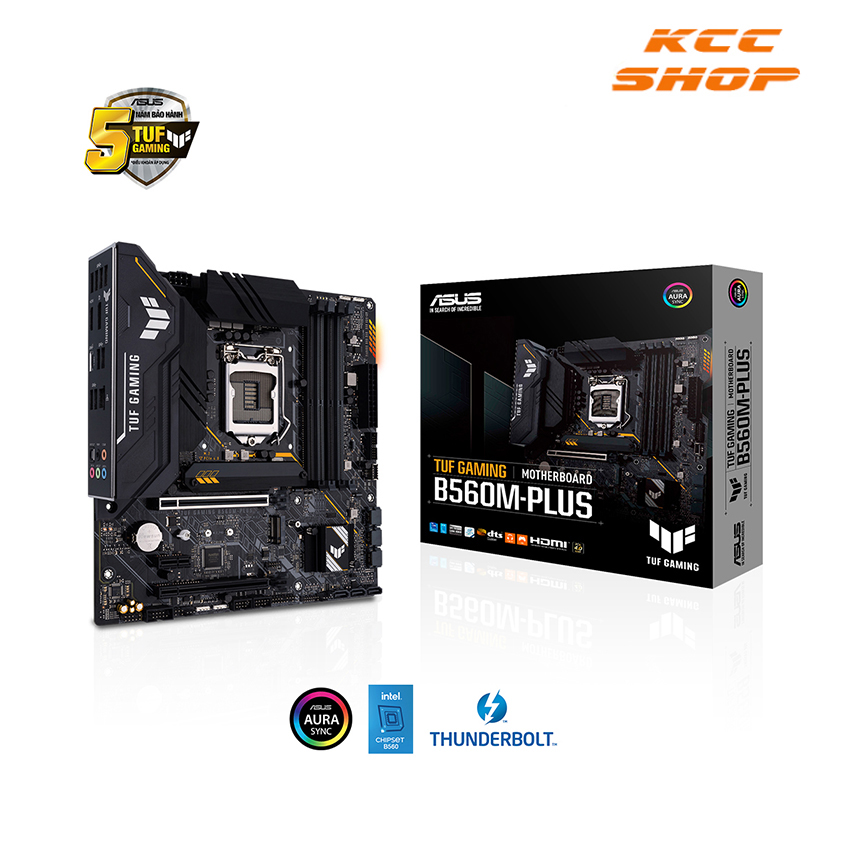

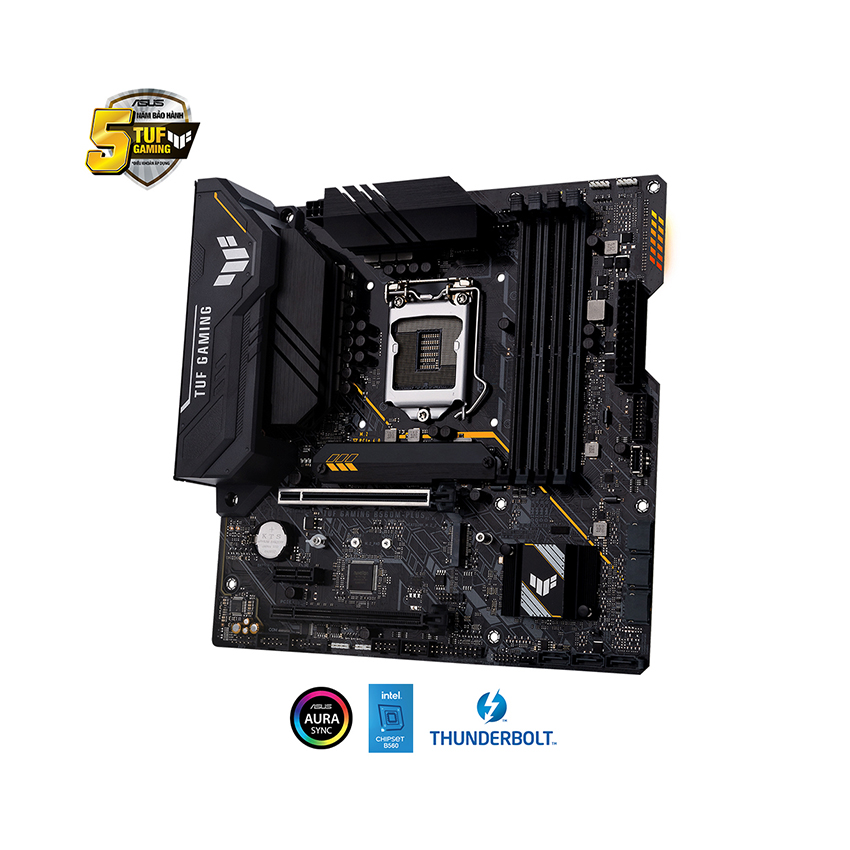

Mainboard ASUS TUF GAMING B560M-PLUS Intel B560, Socket 1200, m-ATX, 4 khe Ram DDR4)

DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/
3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666
/2400/2133 MHz Non-ECC, Un-buffered Memory

Intel® 11^th &10^th Gen Processors

1 x PCIe 4.0/3.0 x16 slot(s)*

– Intel® 11th Gen processors support PCIe 4.0 x16

– Intel®10th Gen processors support PCIe 3.0 x16

Intel® B560 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x1 slots

Intel®11^th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

– Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel® B560 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*

6 x SATA 6Gb/s ports

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

2 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 header(s)

2 x AURA RGB header(s)

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ header

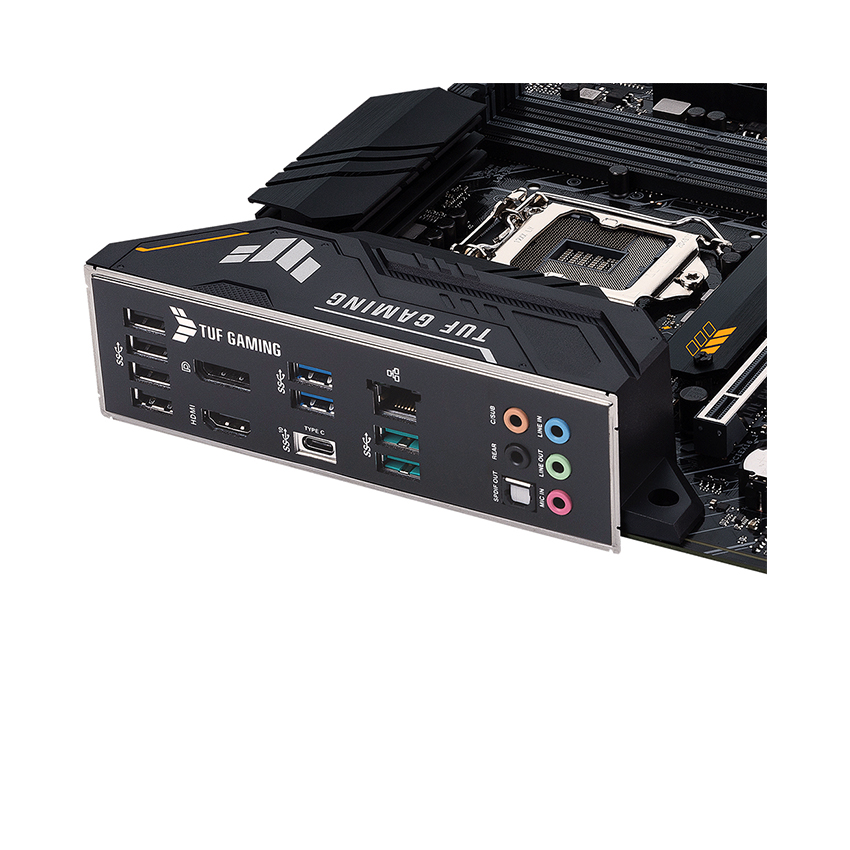

3 x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C®)

4 x USB 2.0 port(s) (4 x Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

TUF LANGuard
