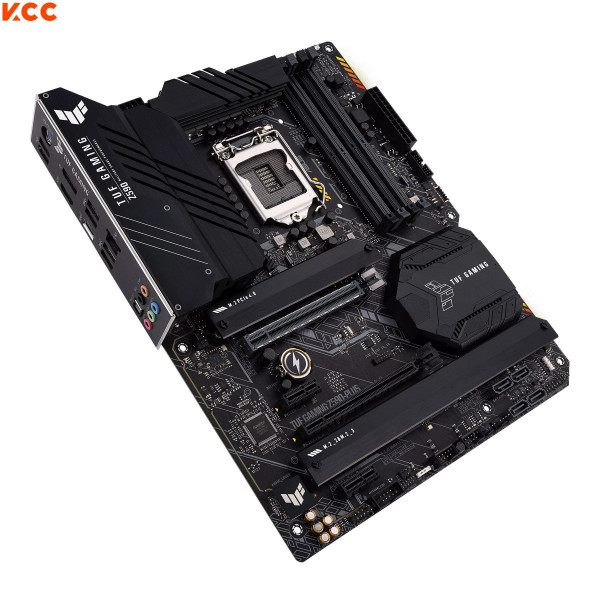

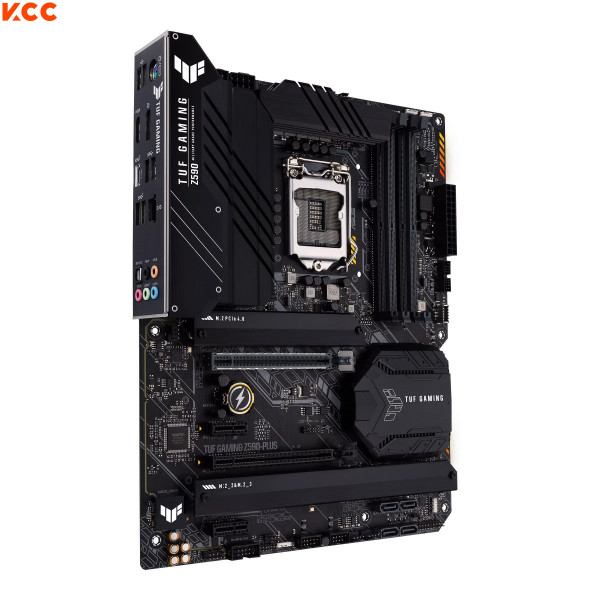

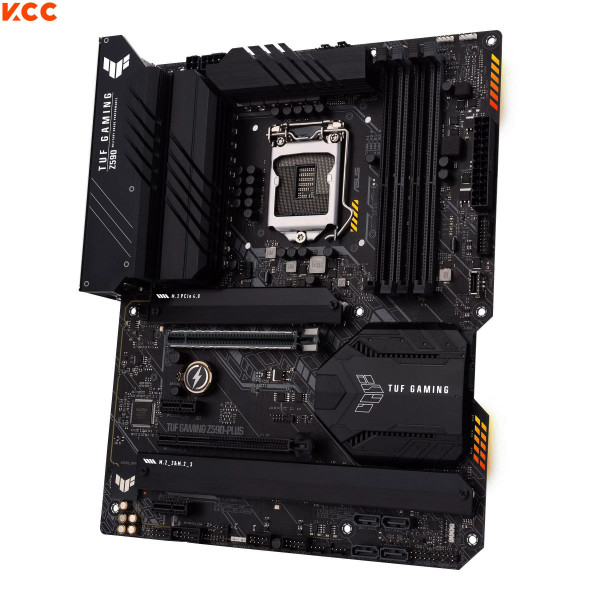

Mainboard ASUS TUF GAMING Z590-PLUS (2nd)

+ So sánh
Lượt xem: 1 | 0 đánh giá | Tình trạng : Còn hàng | Thương hiệu : ASUS | Cập nhật : 26/04/2025
Giá khuyến mại : Liên hệ
Thông số sản phẩm

Socket LGA1200 cho CPU Intel Core thế hệ 10/11.

Chipset Intel Z590 hỗ trợ ép xung mạnh mẽ.

RAM DDR4 tối đa 128GB, tốc độ đến 5133MHz (OC).

1 DisplayPort 1.4 và 1 HDMI 2.0 (tùy CPU).

1 PCIe 4.0/3.0 x16 (tùy CPU), 1 PCIe 3.0 x16 (x4).

3 M.2, 6 SATA 6Gb/s cho lưu trữ linh hoạt.

Ethernet 2.5Gb, USB 3.2 Gen 2x2 Type-C tốc độ cao.

Khuyến mại

🚩 Sản phẩm chỉ có hàng tại chi nhánh Hà Nội

Bảo hành: 3 tháng

Để lại số điện thoại, chúng tôi sẽ tư vấn cho Quý khách!

ƯU ĐÃI THÊM

YÊN TÂM MUA SẮM TẠI KCCSHOP
support-icon TOP 1 Bán Lẻ Rẻ Như Bán Buôn
support-icon Sản phẩm chính hãng 100%
support-icon 1 Đổi 1 trong 30 ngày đầu
support-icon Bảo hành tại nhà nhanh gọn.
support-icon Bảo vệ giá trong vòng 7 ngày.
CHÍNH SÁCH GIAO HÀNG
Giao hàng Grab siêu tốc trong 2h
Giao hàng toàn quốc
Nhận hàng và thanh toán tại nhà

Khách hàng đánh giá, nhận xét

0/5

0 đánh giá & nhận xét
  • 5 sao
    0 đánh giá
  • 4 sao
    0 đánh giá
  • 3 sao
    0 đánh giá
  • 2 sao
    0 đánh giá
  • 1 sao
    0 đánh giá

Bạn đã dùng sản phẩm này?

Gửi đánh giá của bạn

Hỏi và đáp (0 bình luận)

Lưu ý: Vui lòng ấn vào đây để xác thực Captcha trước khi gửi bình luận cho sản phẩm
re
CAPT
CHA
Để gửi bình luận, bạn cần nhập tối các trường có *
Thông số kỹ thuật
CPU Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Refer to www.asus.com for CPU support list.
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® Z590 Chipset
Memory 4 x DIMM, Max. 128GB, DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics 1 x DisplayPort 1.4
1 x HDMITM 2.0
Graphics specifications may vary between CPU types.
Intel® 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.
Only Intel® 11th processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update.
VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots Intel® 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel® 11th processors support PCIe 4.0 x16
- Intel®10th processors support PCIe 3.0 x16
Intel® Z590 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.
Storage Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel®11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® Z590 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
6 x SATA 6Gb/s ports
Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.
M.2_3 shares bandwidth with SATA6G_56. When M.2_3 is occupied, SATA6G_56 will be disabled.
Ethernet 1 x Intel® I225-V 2.5Gb Ethernet
TUF LANGuard
USB Rear USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio "Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
- Audio cover

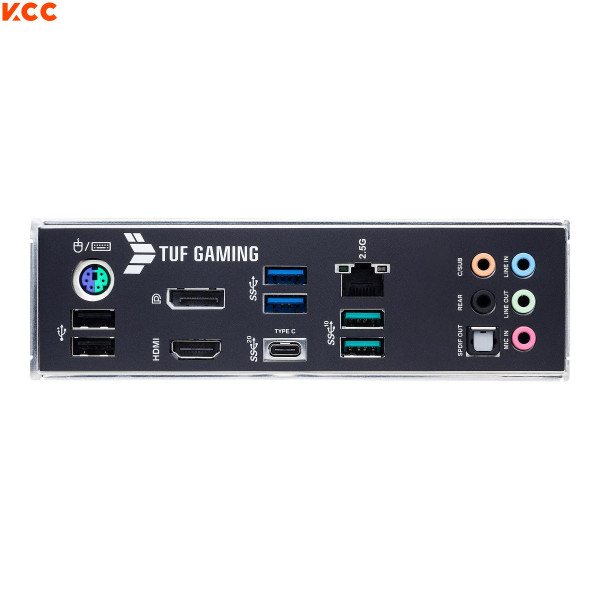

Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Intel® I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header
