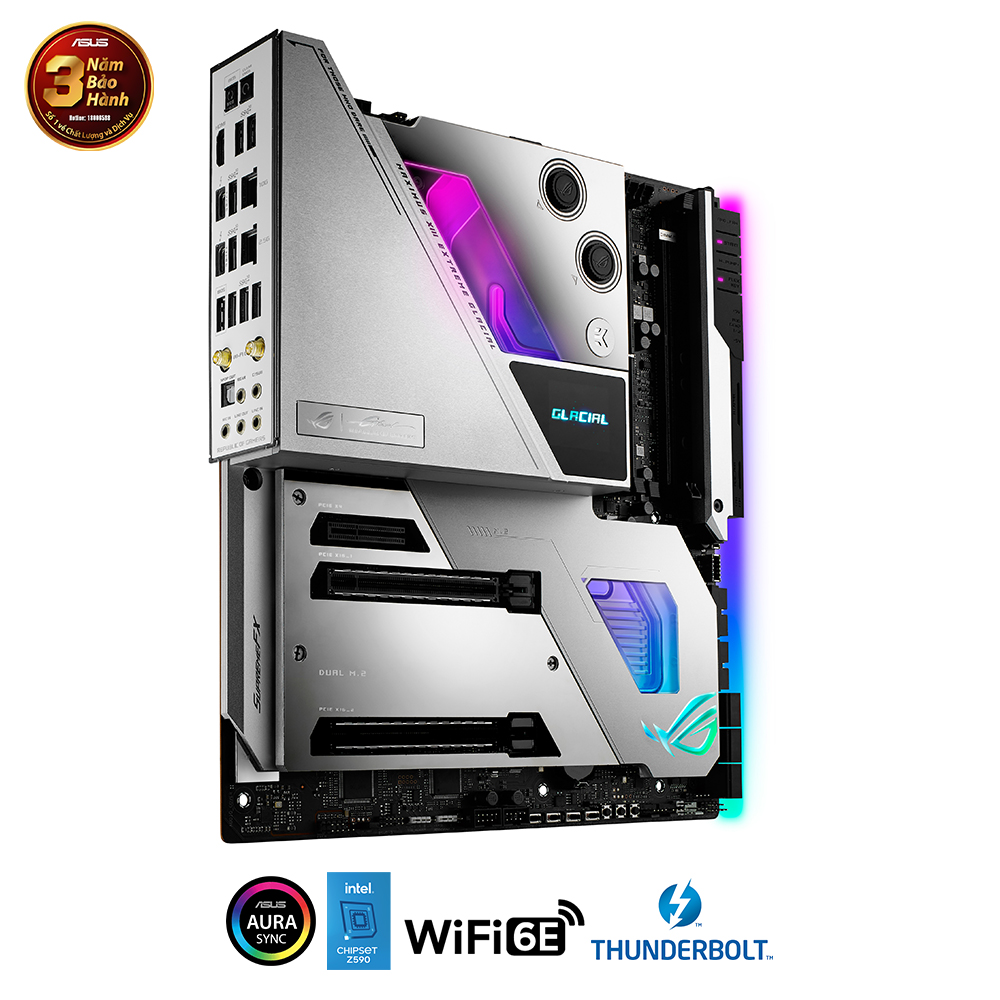

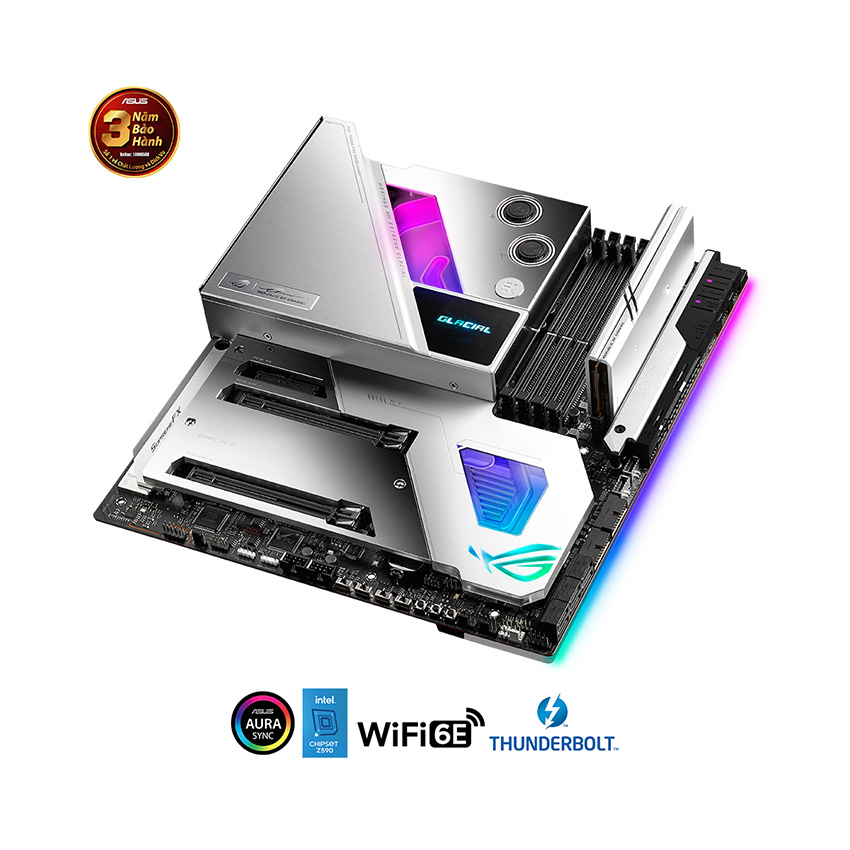

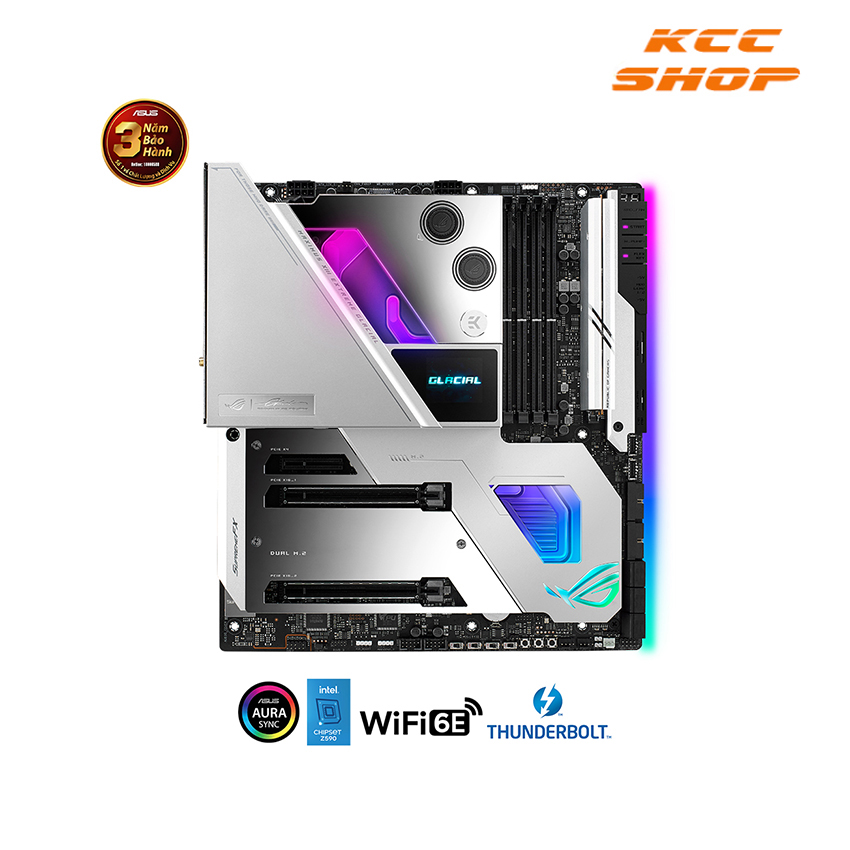

Mainboard ASUS Z590 ROG MAXIMUS XIII EXTREME GLACIAL + So sánh

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

 ROG MAXIMUS XIII EXTREME GLACIAL (Z590)

CPU hỗ trợ

Intel

Chipset

Z590

RAM hỗ trợ

4 x DIMM, Max. 128GB, DDR4
5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory

Khe cắm mở rộng

2 x PCIe 4.0/3.0 x16 (x16, x8/x8) + 1 x PCIe 3.0 x4

Intel® 11th & 10th Gen Processors

2 x PCIe 4.0/3.0 x16 slot(s)

– Intel® 11th Core™ processors support PCIe 4.0 x16 or x8/x8 mode(s)

– Intel® 10th Core™ processors support PCIe 3.0 x16 or x8/x8 mode(s)

Intel® Z590 Chipset

1 x PCIe 3.0 x4 slot*

Ổ cứng hỗ trợ

Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports

Intel®11^th & 10^th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

– Intel® 11^th Core™ processors support PCIe 4.0 x4 mode

– Intel® 10^th Core™ processors support PCIe 3.0 x4 mode

M.2_2 slot (Key M), type 2242/2260/2280

– Intel® 11^th Core™ processors support PCIe 4.0 x4 mode

– Intel® 10^th Core™ processors support PCIe 3.0 x4 mode

M.2_3 slot (Key M), type 2242/2260/2280

– Only Intel® 11^th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel® Z590 Chipset

DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)*

6 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and Cooling related

2 x 4-pin Chassis Fan header(s)

2 x 4-pin Radiator Fan header(s)

2 x W_PUMP+ header(s)

1 x WB_SENSOR header(s)

1 x 2-pin Water In header

1 x 2-pin Water Out header

1 x 3-pin Water Flow header

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

1 x 6-pin PCIe Graphics Card connector

Storage related

3 x M.2 slots (Key M)

1 x DIMM.2 slot supports 2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2×2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen Gen 2 connector (support(s) USB Type-C®)

2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

3 x AURA Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x WB_ADD header(s)

1 x BIOS Switch button

1 x FlexKey button

1 x Front Panel Audio header (AAFP)

1 x LN2 Mode jumper

8 x ProbeIt Measurement Points

1 x ReTry button

2 x RSVD switch

1 x RSVD header

1 x Safe Boot button

1 x Slow Mode switch

1 x Speaker header

1 x Start button

1 x V_LATCH switch

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

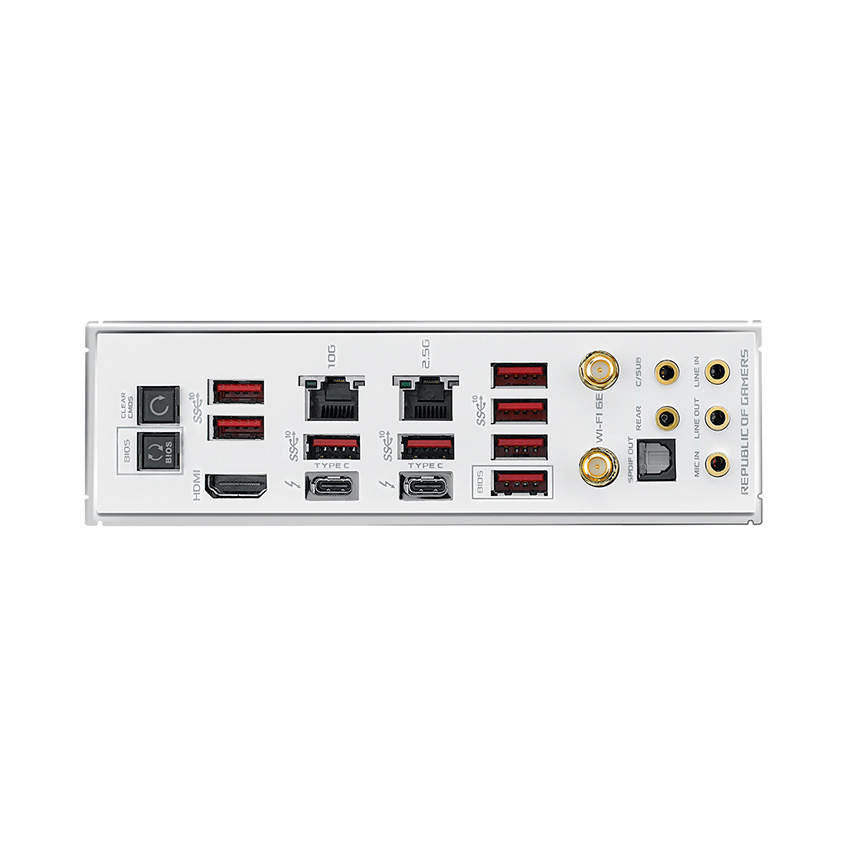

Cổng kết nối (Back Panel)

2 x Thunderbolt™ 4 USB Type-C® port(s)

8 x USB 3.2 Gen 2 port(s) (8 x Type-A)

1 x HDMI™ port

1 x ASUS Wi-Fi Module

1 x Marvell® AQtion AQC113CS 10Gb Ethernet

1 x Intel® I225-V 2.5Gb Ethernet

5 x LED-illuminated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

LAN / Wireless

1 x Intel® 2.5Gb Ethernet

1 x Marvell® 10Gb Ethernet

Kích cỡ

Extended ATX

30.5cm x 27.7cm
