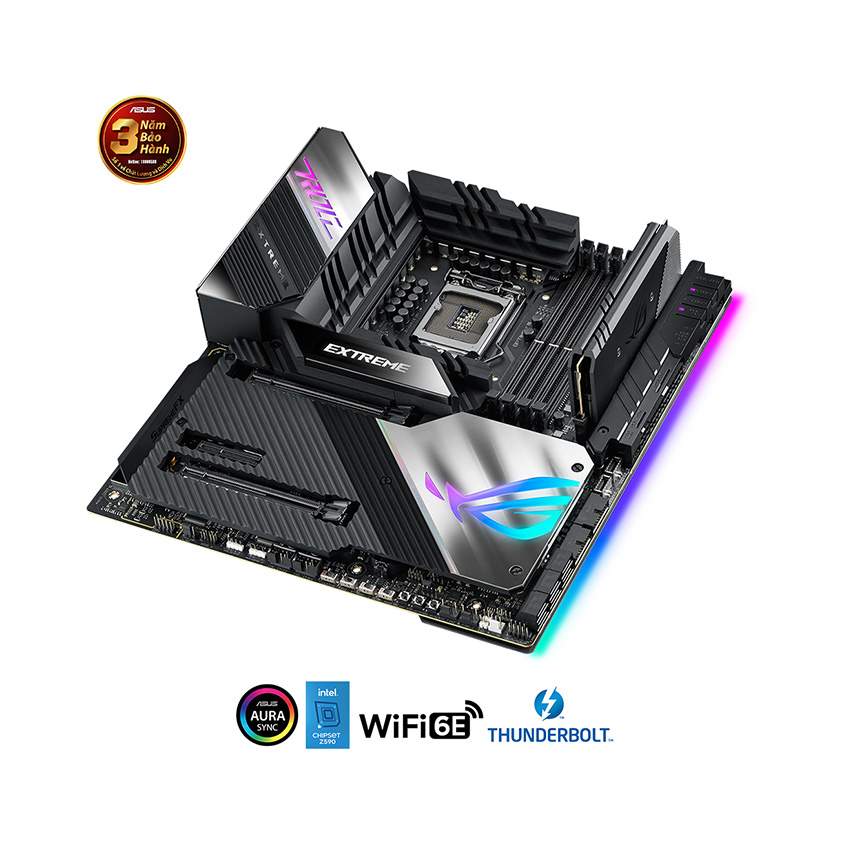

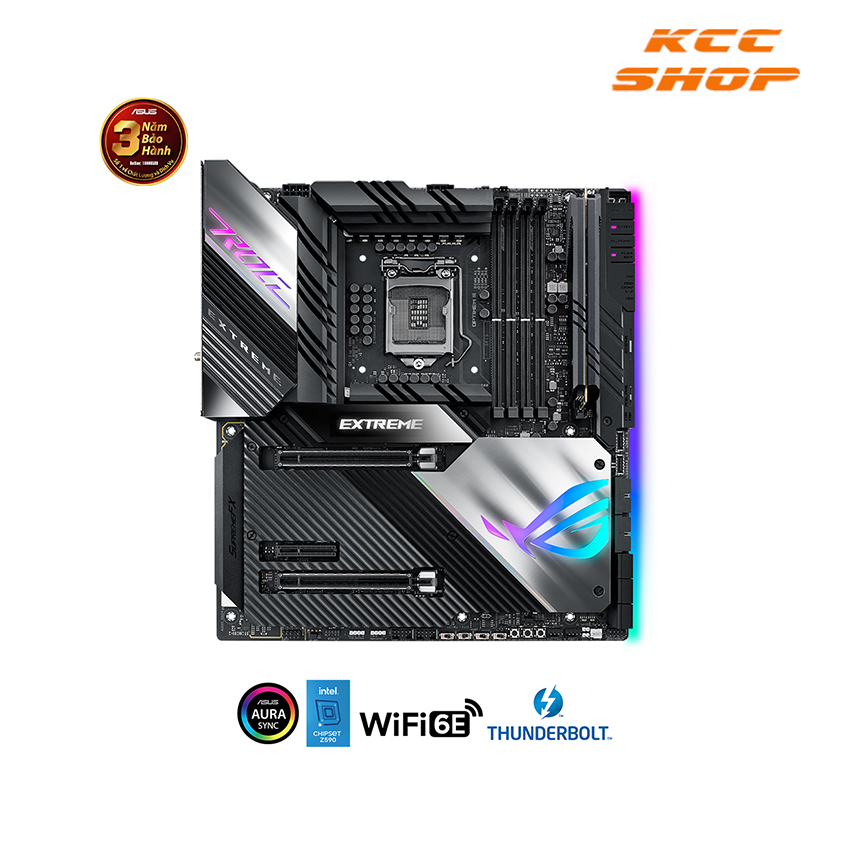

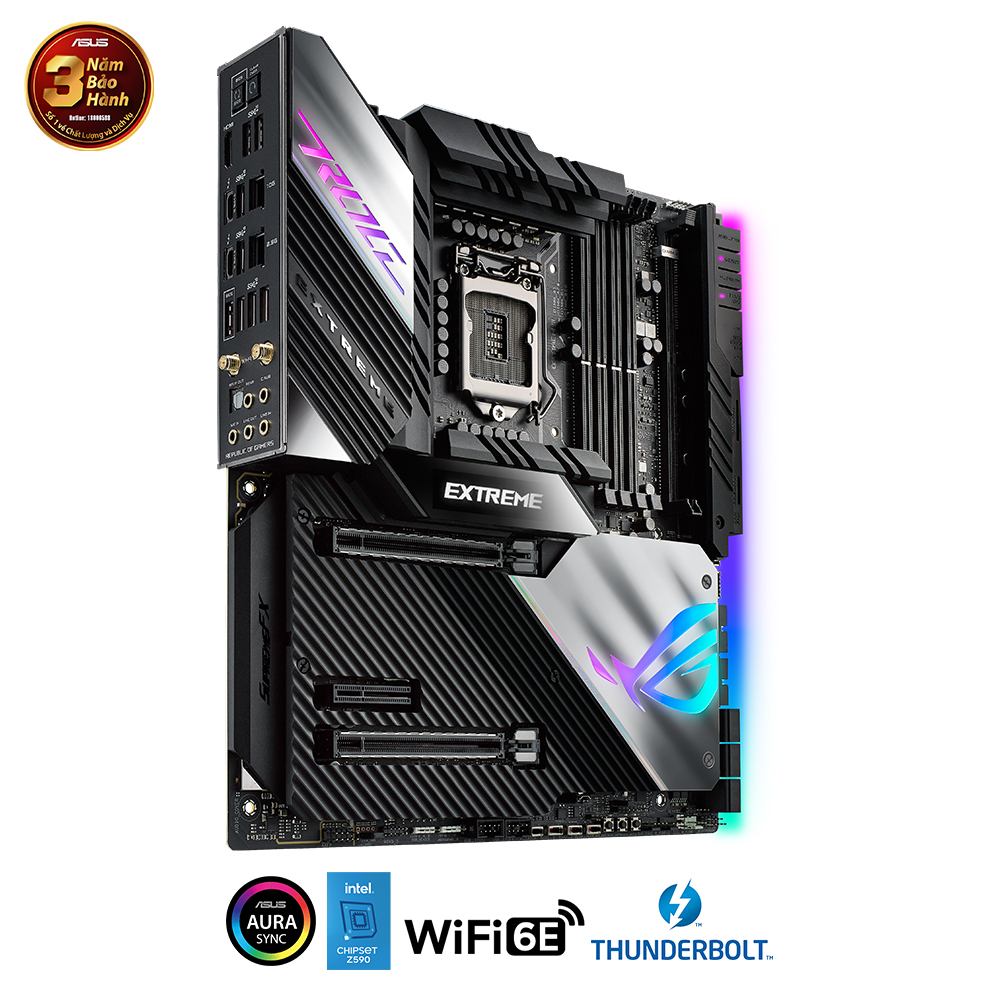

Mainboard ASUS Z590 ROG MAXIMUS XIII EXTREME + So sánh

Tên gọi

ASUS Z590 ROG MAXIMUS XIII EXTREME

CPU hỗ trợ

Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU

Chipset / Socket

Intel® Z590 Chipset

Bộ nhớ (RAM)

4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem III

Công nghệ đa GPU

NVIDIA 2-Way SLI® Technology

Khe cắm mở rộng

Intel® 11th &10th Gen Processors

2 x PCIe 4.0/3.0 x16 slot(s)

- Intel® 11th Core™ processors support PCIe 4.0 x16 or x8/x8 mode(s)

- Intel® 10th processors support PCIe 3.0 x16 or x8/x8 mode(s)

Intel® Z590 Chipset

1 x PCIe 3.0 x4 slot

LAN / Wireless

1 x Intel® I225-V 2.5Gb Ethernet

1 x Marvell® AQtion AQC113CS 10Gb Ethernet

Âm thanh

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/192 kHz playback* Audio Features

- SupremeFX Shielding Technology - ESS® SABRE9018Q2C DAC/AMP

- LED-illuminated audio jacks

- Rear optical S/PDIF out port

- Premium Japanese audio capacitors

- Audio cover

Cổng kết nối (Internal)

Fan and Cooling related

2 x 4-pin Chassis Fan header(s)

2 x 4-pin Radiator Fan header(s)

2 x W_PUMP+ header(s)

1 x WB_SENSOR header(s)

1 x 2-pin Water In header

1 x 2-pin Water Out header

1 x 3-pin Water Flow header

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

1 x 6-pin PCIe Graphics Card connector

Storage related

3 x M.2 slots (Key M)

1 x DIMM.2 slot supports 2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen Gen 2 connector (support(s) USB Type-C®)

2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

3 x AURA Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x WB_ADD header(s)

1 x BIOS Switch button

1 x FlexKey button

1 x Front Panel Audio header (AAFP)

1 x LN2 Mode jumper

8 x ProbeIt Measurement Points

1 x ReTry button

2 x RSVD switch

1 x RSVD header

1 x Safe Boot button

1 x Slow Mode switch

1 x Speaker header

1 x Start button

1 x V_LATCH switch

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

Cổng kết nối (Back Panel)

2 x Thunderbolt™ 4 USB Type-C®  port(s)

8 x USB 3.2 Gen 2 port(s) (8 x Type-A)

1 x HDMI™ port

1 x ASUS Wi-Fi Module

1 x Marvell® AQtion AQC113CS 10Gb Ethernet

1 x Intel® I225-V 2.5Gb Ethernet port

5 x LED-illuminated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™  button

1 x Clear CMOS button

Công nghệ độc quyền

Extreme OC Kit

- FlexKey button

- LN2 Mode

- Probelt

- ReTry button

- Safe boot button

- Start button

- Slow Mode

Extreme Engine Digi+

- 10K Black Metallic Capacitors

- MicroFine Alloy Choke

ASUS Q-Design

- Q-Code

- Q-Connector

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate

- M.2 heatsink

- Aluminum backplate

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- Clear CMOS button

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

AURA Sync

- ROG AURA sync backplate

- AURA RGB header(s)

- Addressable Gen 2 RGB header(s)

Dual BIOS

Color OLED 1.77"

ASUS HYDRANODE

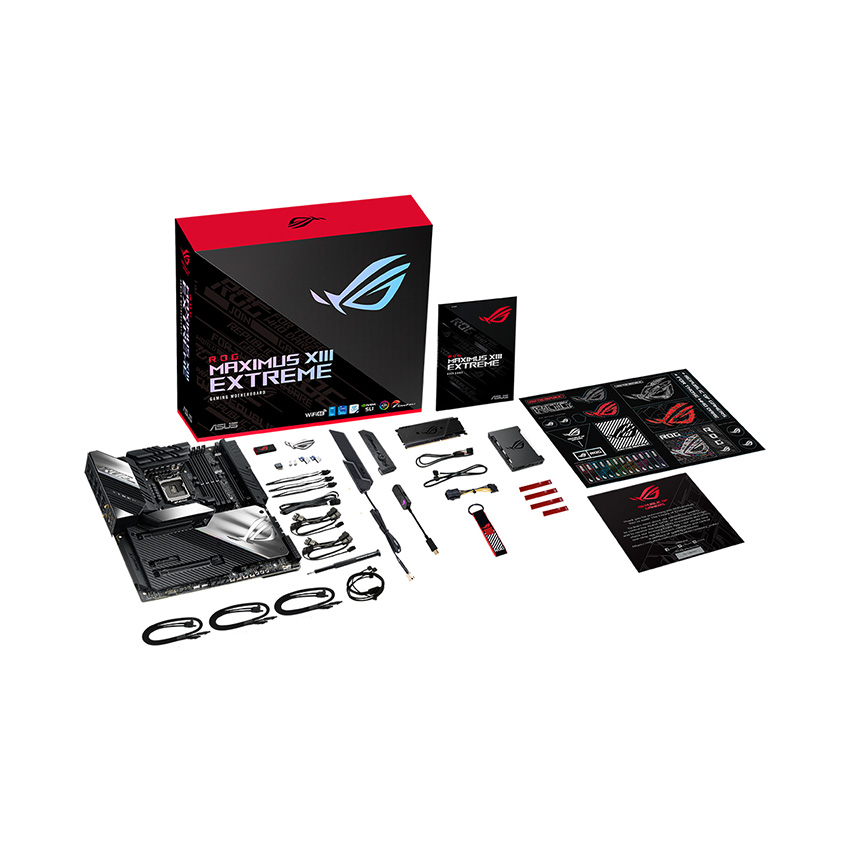

Phụ kiện đi kèm

Cables

1 x 1-to-3 ARGB splitter cable

2 x 1-to-4 fan splitter cable

1 x RGB extension cable

3 x ROG weave SATA 6G cables

1 x 3-in-1 Thermistor cables pack

ROG Fan Controller

1 x ROG Fan Controller

1 x Fan EXT PWR cable

1 x ARGB input cable

1 x USB input cable

1 x ROG Fan Controller velcro tape

1 x Fan Controller manual

ROG DIMM.2 with Heatsink

1 x ROG DIMM.2 with heatsink

1 x M.2 pad for ROG DIMM.2

2 x M.2 screw package for ROG DIMM.2

Additional Cooling Kit

1 x Monoblock

3 x Screw package for monoblock

1 x Thermal pad for monoblock

1 x Fittings for monoblock

Miscellaneous

1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas

1 x M.2 Rubber Package(s)

1 x M.2 SSD screw package(s)

1 x Q-connector

1 x ROG CLAVIS DAC

1 x ROG key chain

1 x ROG logo plate stickers

1 x ROG multi-bit screwdriver

1 x ROG stickers

1 x ROG thank you card

1 x ROG Graphics card holder

Installation Media

1 x USB drive with utilities and drivers

Documentation

1 x User manual

Hệ điều hành khuyến nghị

Windows® 10 64-bit

Chuẩn kích cỡ

EATX Form Factor
