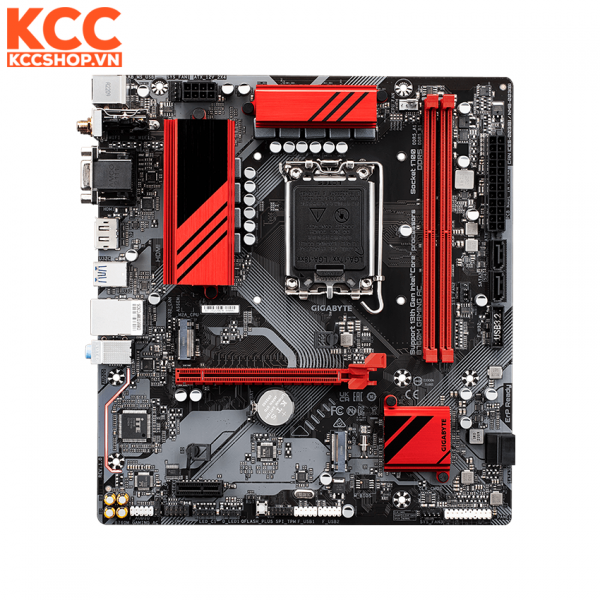

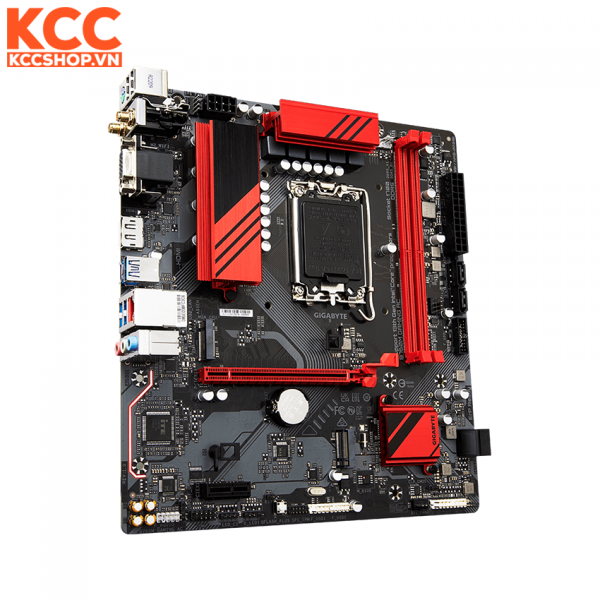

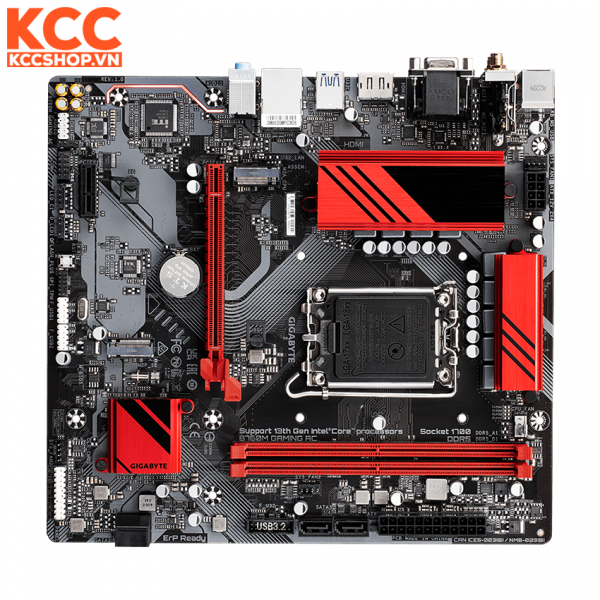

Mainboard Gigabyte AORUS B760M GAMING AC DDR5 + So sánh

Loại sản phẩm

Mainboard

Thương hiệu

GIGABYTE

Model

AORUS B760M GAMING AC

Chipset

Intel® B760 Express Chipset

Hỗ trợ socket

Intel LGA 1700

Memory

Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules

2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

BIOS

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Storage

CPU:

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Ethernet

Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

AzureWave Wi-Fi AW-CB304NF (Realtek®RTL8821CE)

WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 4.2

Support for 11ac wireless standard and up to 433 Gbps data rate

USB

Chipset:

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support

5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hubs:

4 x USB 2.0/1.1 ports available through the internal USB headers

Expansion Slots

CPU:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

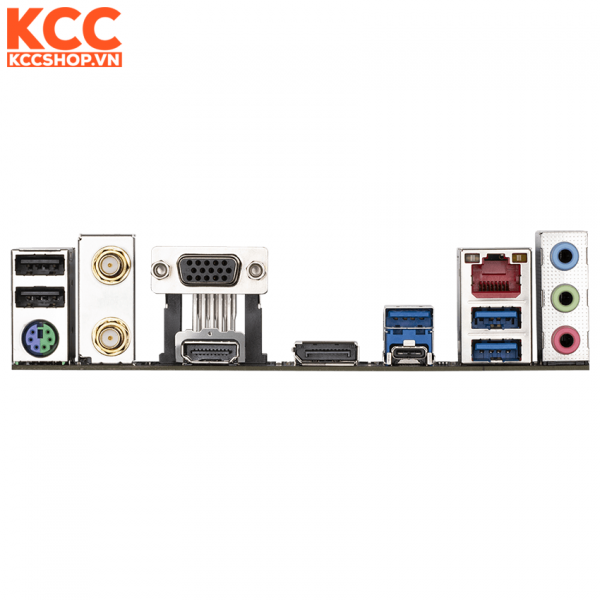

Back Panel I/O Ports

2 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

2 x SMA antenna connectors (1T1R)

1 x D-Sub port

1 x HDMI port

1 x DisplayPort

3 x USB 3.2 Gen 1 ports

1 x USB Type-C® port, with USB 3.2 Gen 1 support

1 x RJ-45 port

3 x audio jacks

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x addressable LED strip headers

1 x RGB LED strip headers

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

Operating System

Microsoft® Windows® 10 64-bit / 11 64-bit

Kích thước

Micro ATX Form Factor; 24.4cm x 22.5cm
