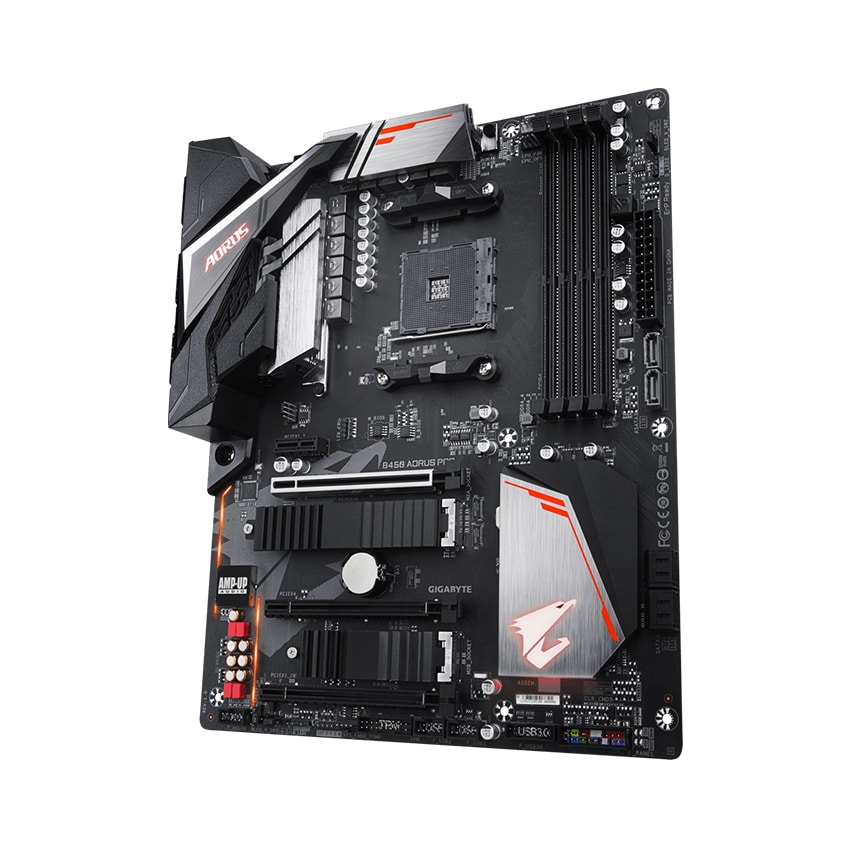

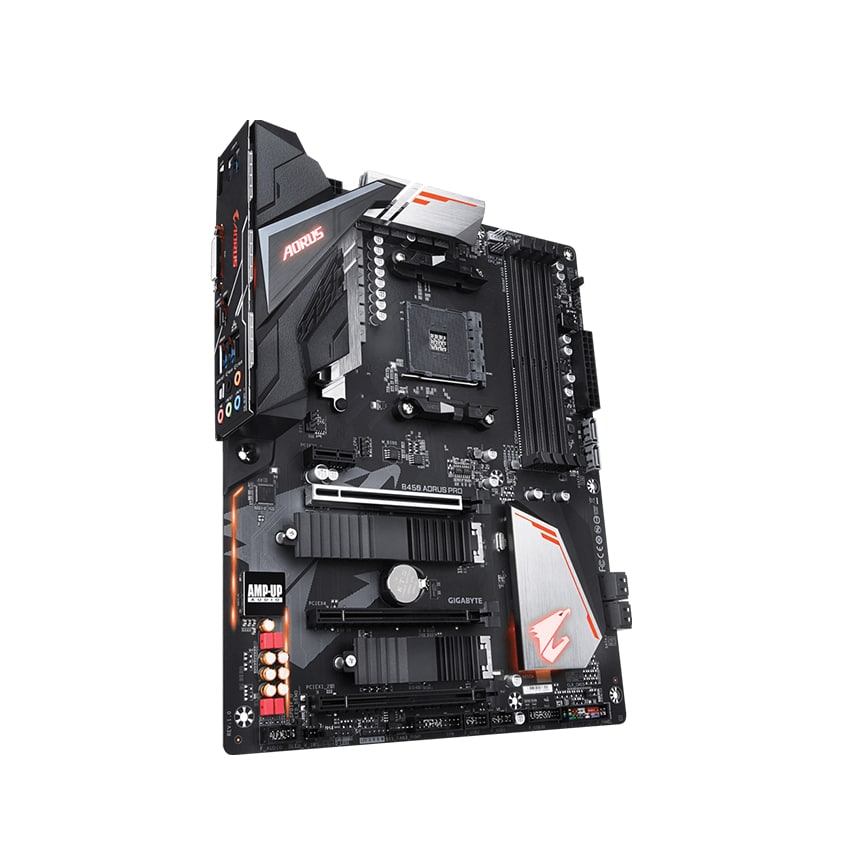

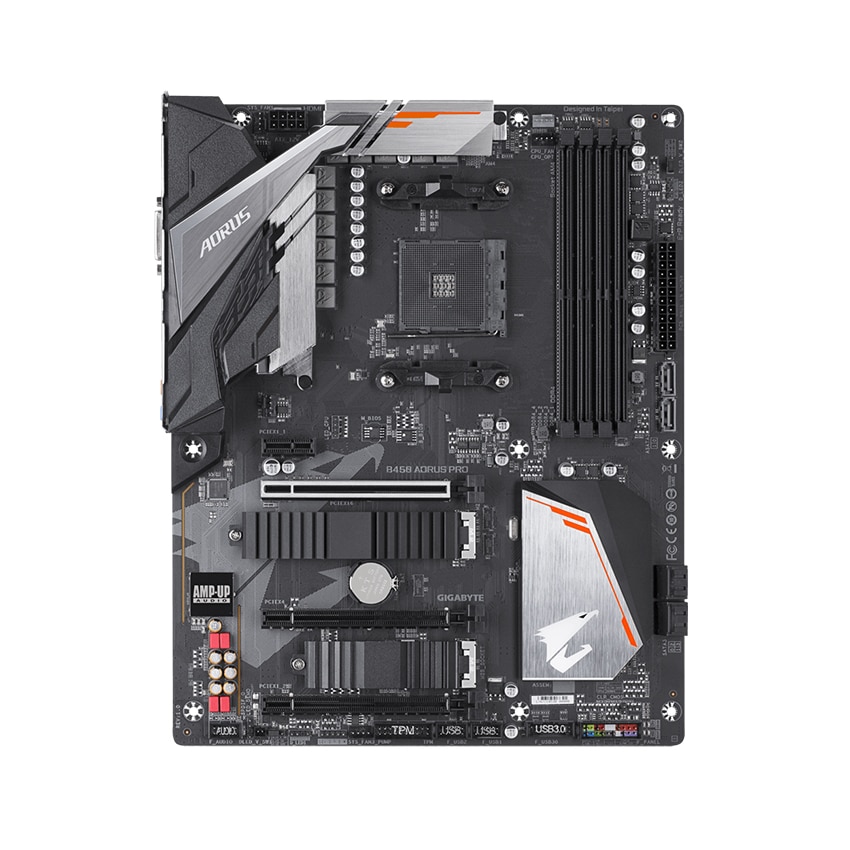

Mainboard Gigabyte B450 AORUS PRO + So sánh

Tên gọi

GIGABYTE B450 AORUS PRO

Chipset / Socket

AMD B450

CPU hỗ trợ

• AMD Ryzen™ 2nd Generation processors
• AMD Ryzen™ with Radeon™ Vega Graphics processors
• AMD Ryzen™ 1st Generation processors

Bộ nhớ (RAM)

• 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
• Dual channel memory architecture
• Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng

• 1 x PCI Express x16 slot, running at x16 (PCIEX16)
• 1 x PCI Express x16 slot, running at x4 (PCIEX4)
• 1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
• 1 x PCI Express x1 slot (PCIEX1_1)



Âm thanh

• Realtek® ALC1220-VB codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

LAN / Wireless

• Intel® GbE LAN chip (10/100/1000 Mbit)

Cổng kết nối (Internal)

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 2 x M.2 Socket 3 connectors
• 6 x SATA 6Gb/s connectors
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 2 x system fan headers
• 1 x system fan/water cooling pump header
• 1 x CPU cooler LED strip/RGB LED strip header
• 2 x digital LED strip headers
• 2 x digital LED strip power select jumpers
• 1 x RGB (RGBW) LED strip header
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB 3.1 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
• 1 x Clear CMOS jumper

Chuẩn kích cỡ

• 5cm x 24.4cm
  ATX Form Factor

Đa GPU

• Supports 2-Way AMD® CrossFire™ Technology*
