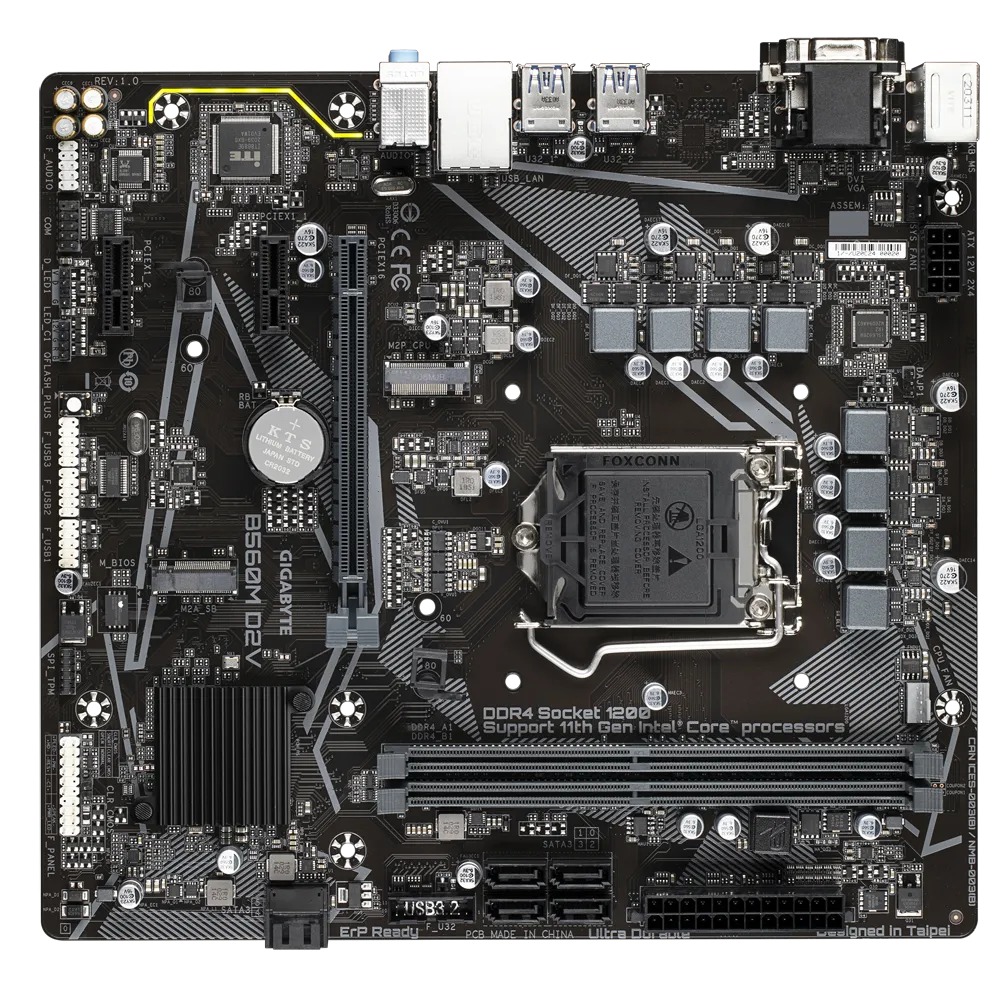

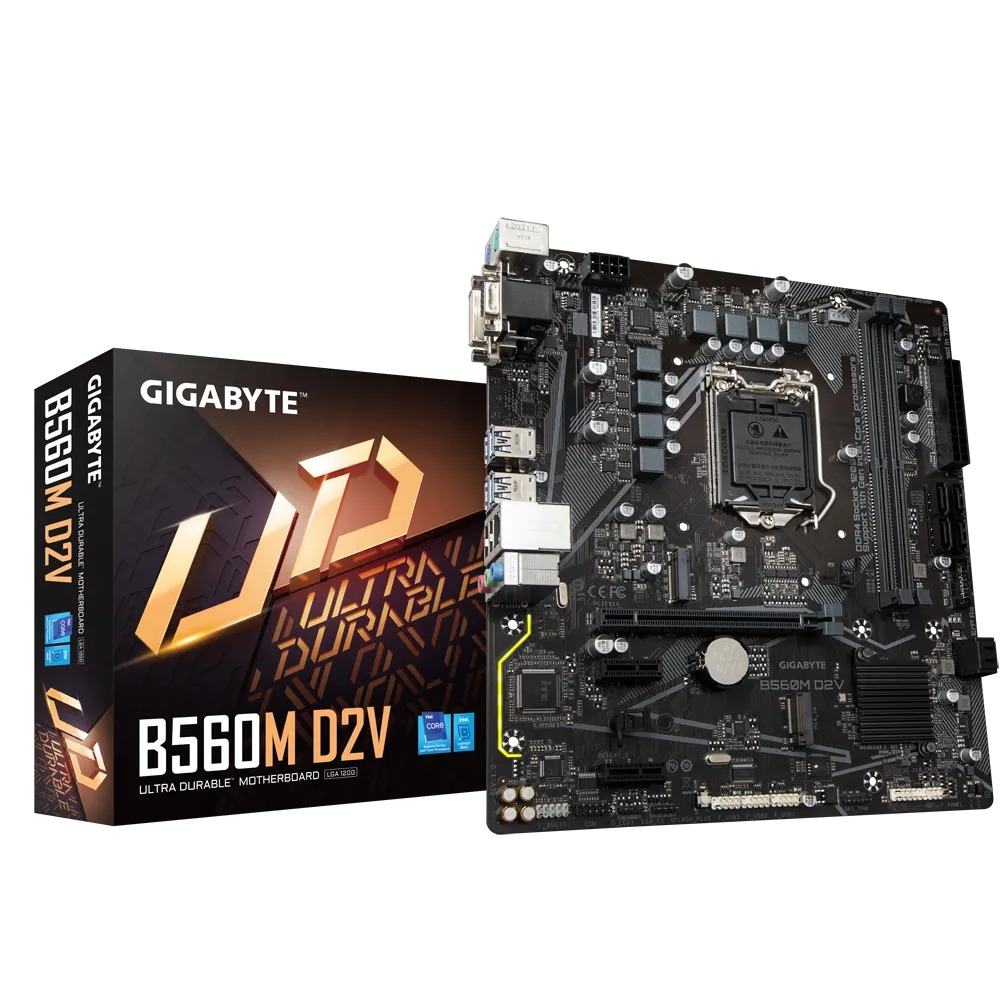

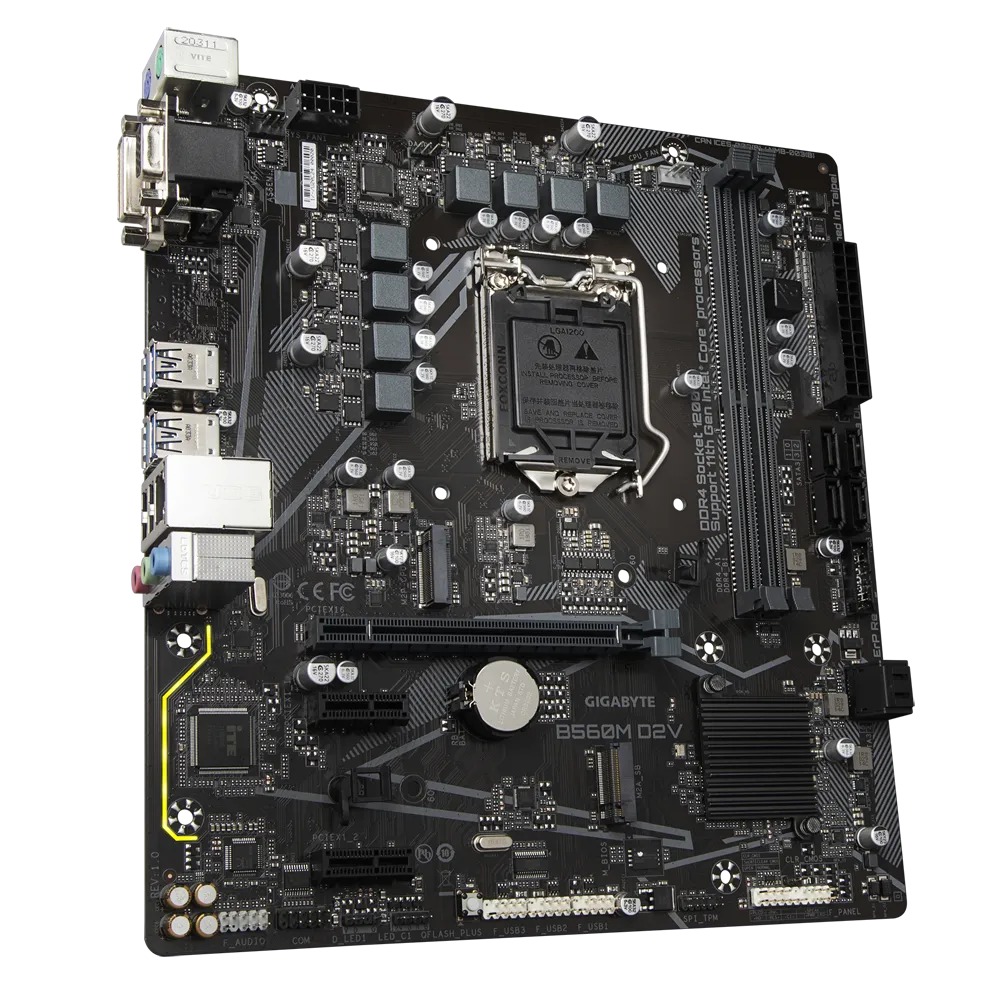

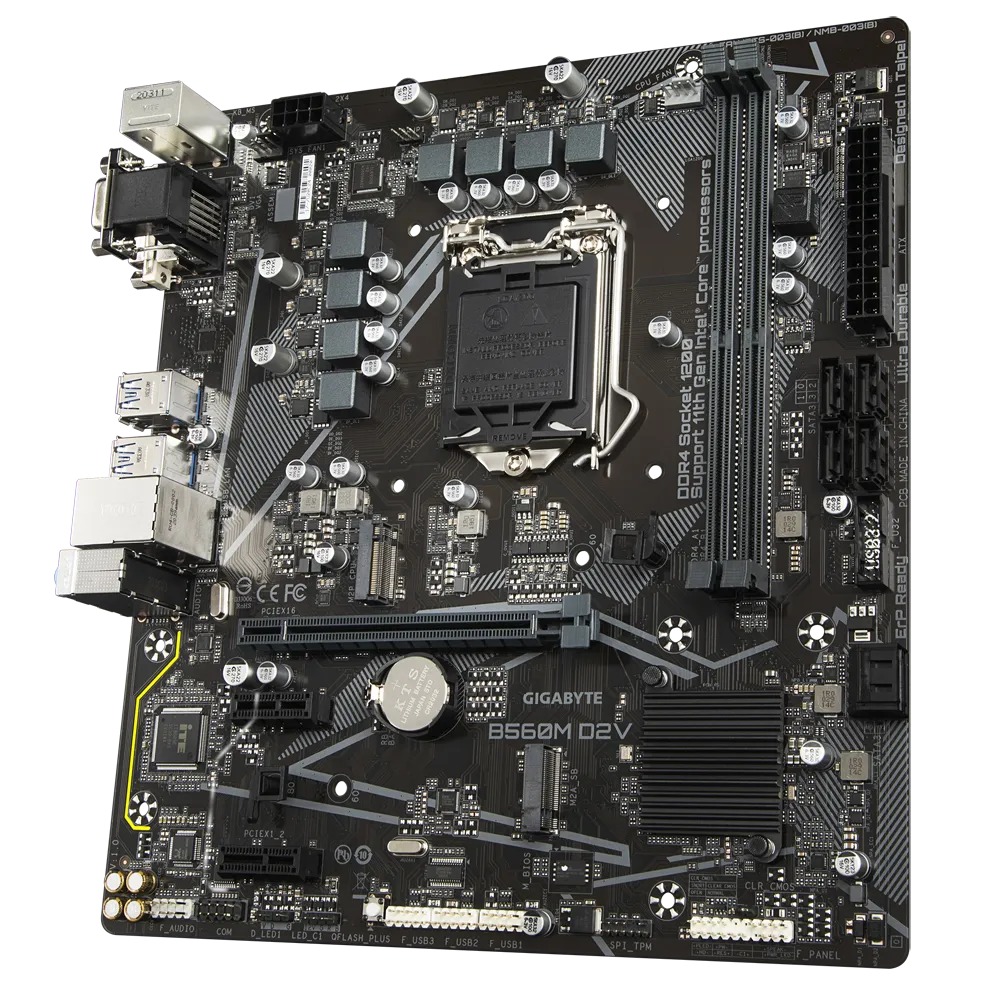

Mainboard Gigabyte B560M D2V + So sánh

CPU hỗ trợ

LGA1200 package:

- 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5

 processors

- 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5

 processors / Intel® Core™ i3 processors/ Intel® Pentium® process

Chipset

B560

Bộ nhớ trong

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Card đồ họa tích hợp

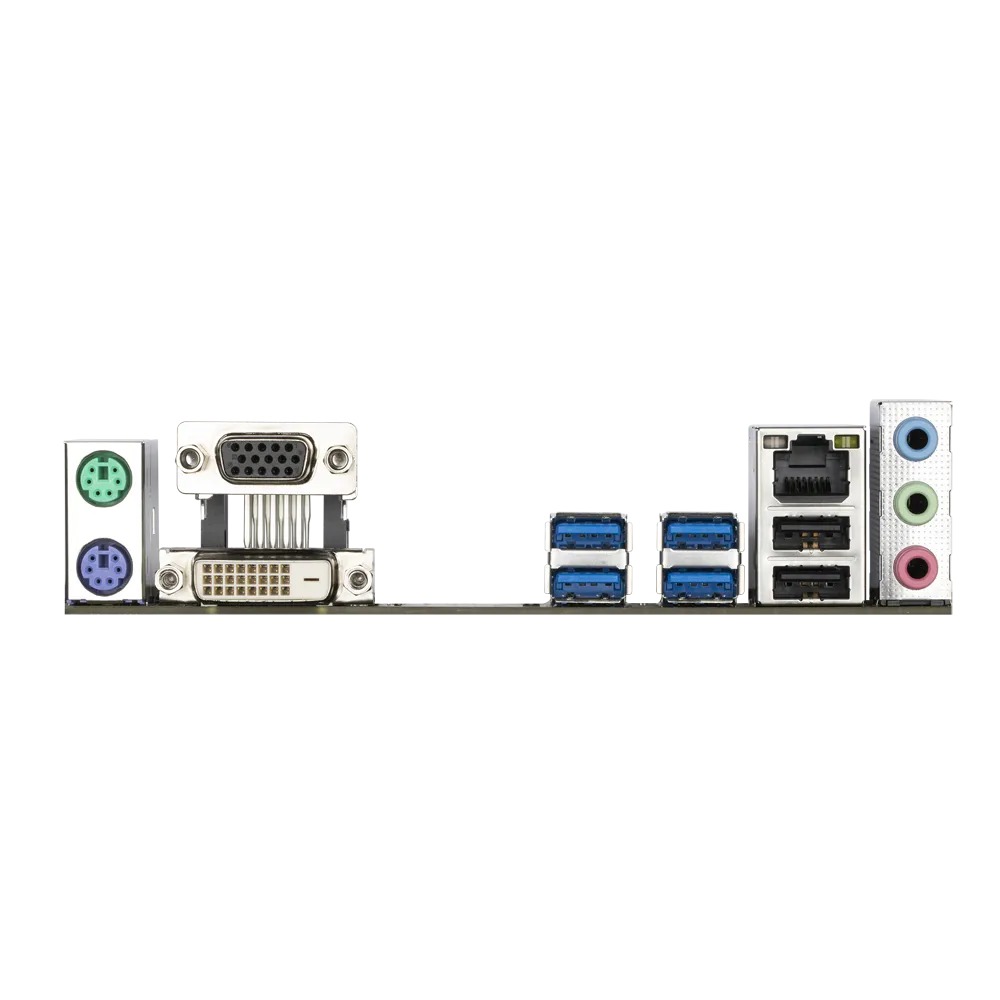

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

Khe mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)

2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2)

Chuẩn lưu trữ

1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0x4/x2 SSD support

6 x SATA 6Gb/s connectors
