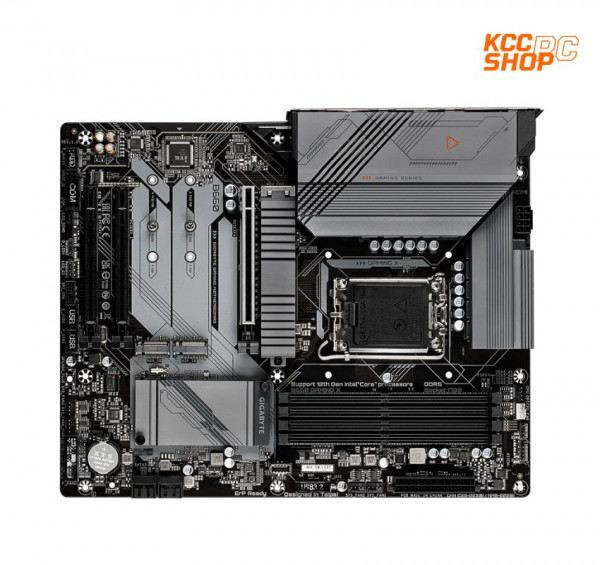

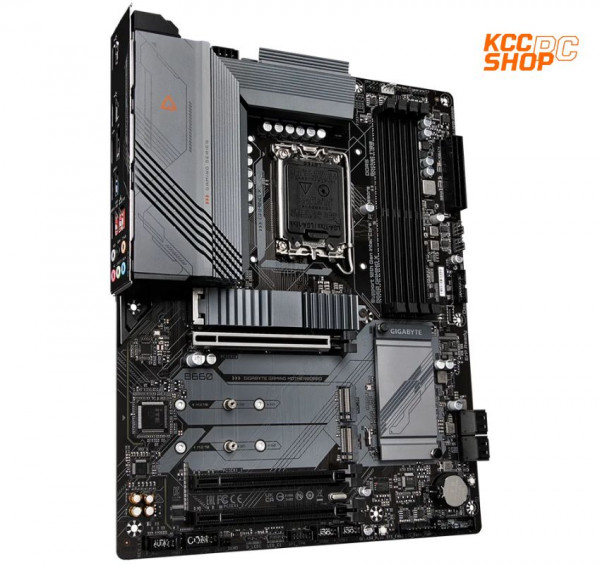

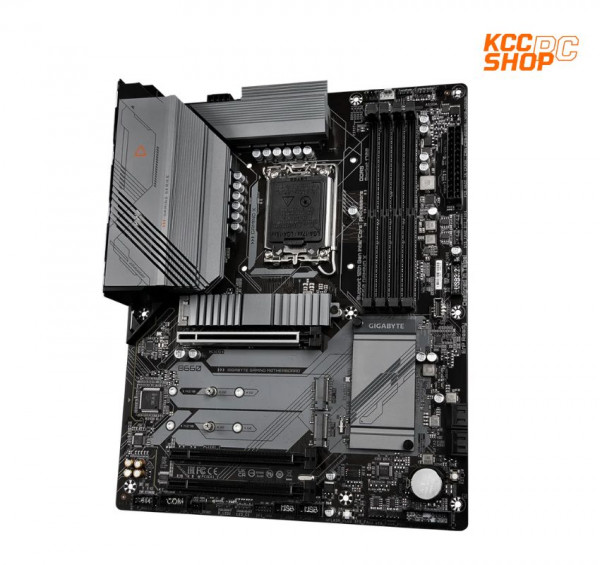

Mainboard GIGABYTE B660 GAMING X DDR5 (Intel B660 / LGA 1700 / 128 GB DDR5 / ATX) + So sánh

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

B660 GAMING X

CPU hỗ trợ

Intel

Chipset

B660

RAM hỗ trợ

1. Support for DDR5 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz memory modules
2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)

2 x PCI Express x16 slots, running at x1 (PCIEX1_1, PCIEX1_2)

Ổ cứng hỗ trợ

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB)
3. 4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

Intel^® Optane™ Memory Ready
* System acceleration with Intel^® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 3 x system fan headers
6. 1 x system fan/water cooling pump header
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 3 x M.2 Socket 3 connectors
10. 4 x SATA 6Gb/s connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x USB Type-C^® header, with USB 3.2 Gen 2 support
14. 1 x USB 3.2 Gen 1 header
15. 2 x USB 2.0/1.1 headers
16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
17. 1 x serial port header
18. 1 x Q-Flash Plus button
19. 1 x reset button
20. 1 x reset jumper
21. 1 x Clear CMOS jumper

Cổng kết nối (Back Panel)

1. 1 x USB 3.2 Gen 2 Type-A port (red)
2. 2 x USB 3.2 Gen 1 ports
3. 5 x USB 2.0/1.1 ports
4. 1 x DisplayPort
5. 1 x HDMI 2.0 port
6. 1 x RJ-45 port
7. 6 x audio jacks

LAN / Wireless

Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Kích cỡ

ATX Form Factor; 30.5cm x 24.4cm
