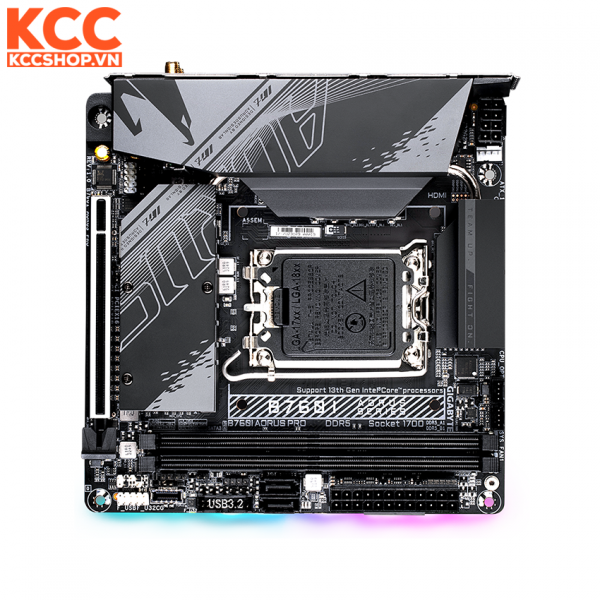

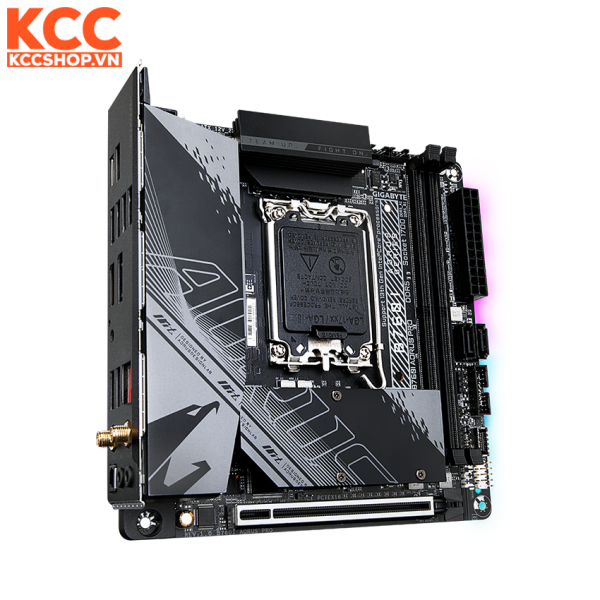

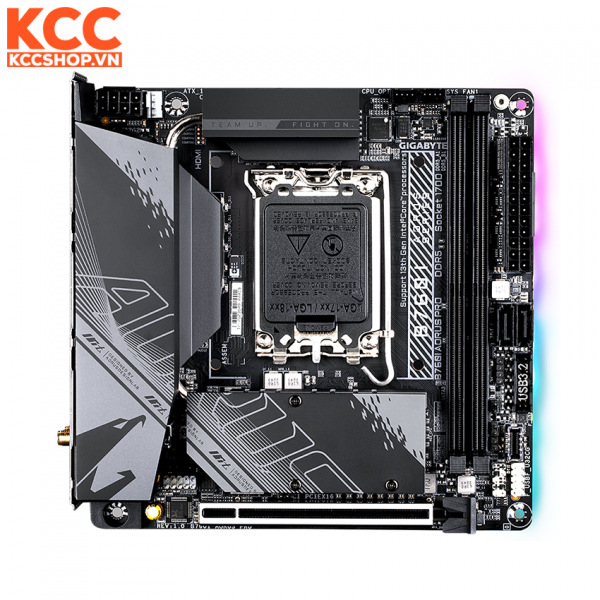

Mainboard Gigabyte B760I AORUS PRO DDR5 + So sánh

Loại sản phẩm

Mainboard

Thương hiệu

GIGABYTE

Model

B760I AORUS PRO

Chipset

Intel® B760 Express Chipset

Hỗ trợ socket

Intel LGA 1700

Memory

Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules

2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Storage

CPU:

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

2 x SATA 6Gb/s connectors

RAID 0 and RAID 1 support for SATA storage devices

Ethernet

Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Intel® Wi-Fi 6E AX211 (For PCB rev. 1.0)

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

BLUETOOTH 5.3

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.1)

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

BLUETOOTH 5.3

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

USB

Chipset:

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

2 x USB 3.2 Gen 1 ports available through the internal USB header

4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Chipset+USB 3.2 Gen 1 Hub:

4 x USB 3.2 Gen 1 ports on the back panel

Expansion Slots

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

- Nahimic Audio

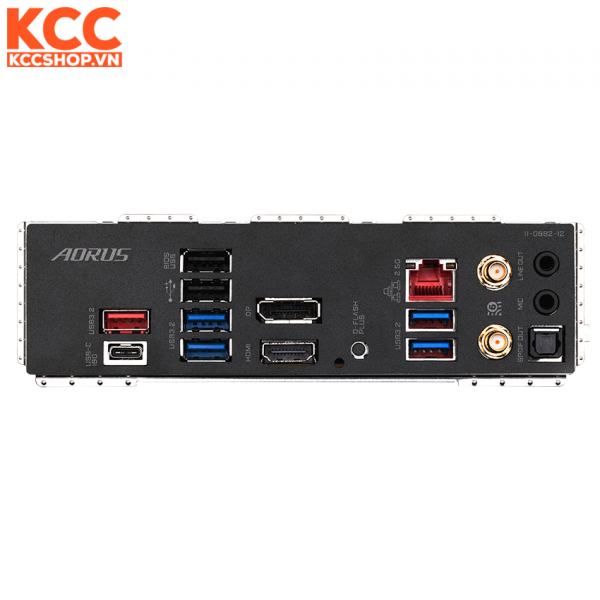

Back Panel I/O Ports

1 x USB Type-C® port, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 2 Type-A port (red)

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x DisplayPort

1 x HDMI port

1 x Q-Flash Plus button

1 x RJ-45 port

2 x SMA antenna connectors (2T2R)

1 x optical S/PDIF Out connector

2 x audio jacks

Internal I/O Connectors

4 x USB 3.2 Gen 1 ports on the back panel

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

1 x system fan header

1 x addressable LED strip header

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

2 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x speaker header

1 x USB Type-C® header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x reset jumper

1 x Clear CMOS jumper

1 x chassis intrusion header

Operating System

Microsoft® Windows® 10 64-bit / 11 64-bit

Kích thước

Mini-ITX Form Factor; 17.0cm x 17.0cm
