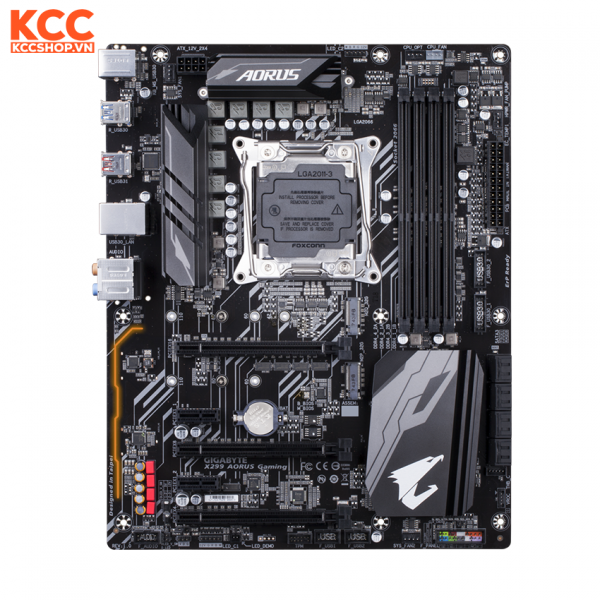

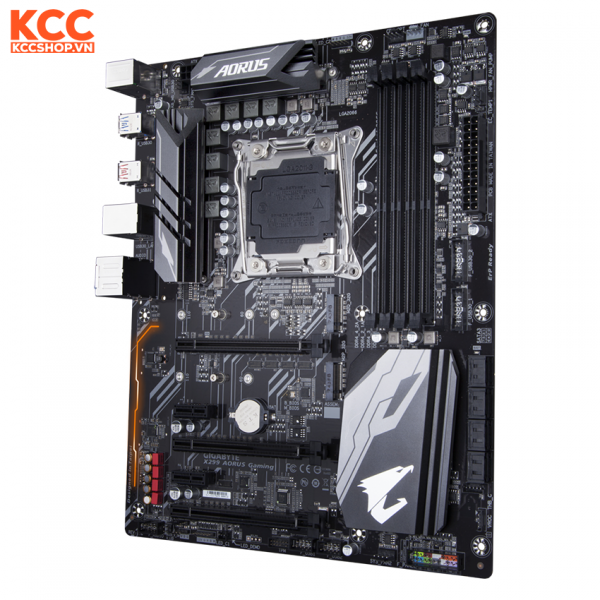

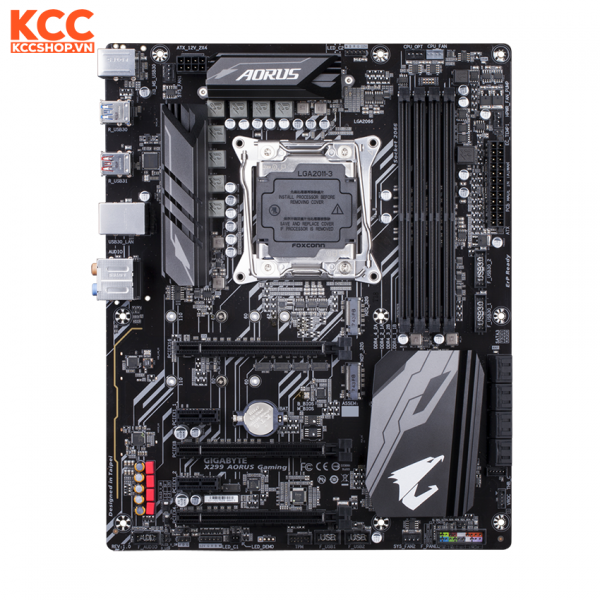

Mainboard Gigabyte X299 AORUS Gaming + So sánh

Loại sản phẩm

Mainboard

Thương hiệu

Gigabyte

Model

X299 AORUS Gaming

Bảo hành

36 tháng

CPU

Supports Intel® Core™ i7-7740X and i5-7640X (4 Cores) processors in the LGA2066 package only

L3 cache varies with CPU

Chipset

Intel® X299 Express Chipset

Bộ nhớ

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

Dual channel memory architecture

Support for DDR4 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules

Support for non-ECC Un-buffered DIMM memory modules

Support for Extreme Memory Profile (XMP) memory modules

Âm thanh

Realtek® ALC1220 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

Intel® GbE LAN chip (10/100/1000 Mbit)

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)

1 x PCI Express x16 slot, running at x8 (PCIEX8)

1 x PCI Express x16 slot, running at x4 (PCIEX4)

2 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Công nghệ đa card đồ họa

Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies

Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies

Giao diện lưu trữ

Chipset:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2Q_32G)

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G)

8 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

* Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel® Optane™ Memory Ready

USB

Chipset+ASMedia® USB 3.1 Gen 2 Controller:

2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel

Chipset:

10 x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)

4 x USB 2.0/1.1 ports available through the internal USB headers

Kết nối I/O bên trong

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

2 x system fan headers

1 x 3 Amp fan/water cooling pump header

1 x digital LED strip header

1 x digital LED strip power select jumper

2 x RGB (RGBW) LED strip extension cable headers

2 x M.2 Socket 3 connectors

8 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

2 x USB 3.1 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x Thunderbolt™ add-in card connector

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x temperature sensor header

1 x Clear CMOS jumper

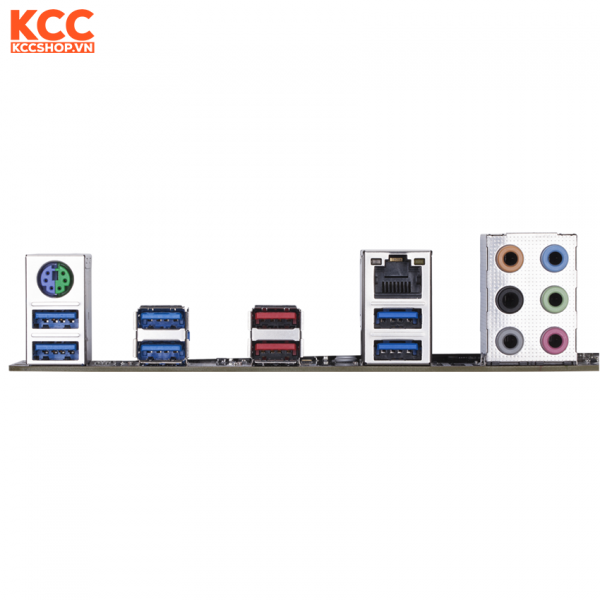

Kết nối bảng phía sau

1 x PS/2 keyboard/mouse port

2 x USB 3.1 Gen 2 Type-A ports (red)

6 x USB 3.1 Gen 1 ports

1 x RJ-45 port

6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

Điều khiển I/O

iTE® I/O Controller Chip

BIOS

2 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Hệ điều hành

Support for Windows 10 64-bit

Hệ số khuôn

ATX Form Factor; 30.5cm x 24.4cm
