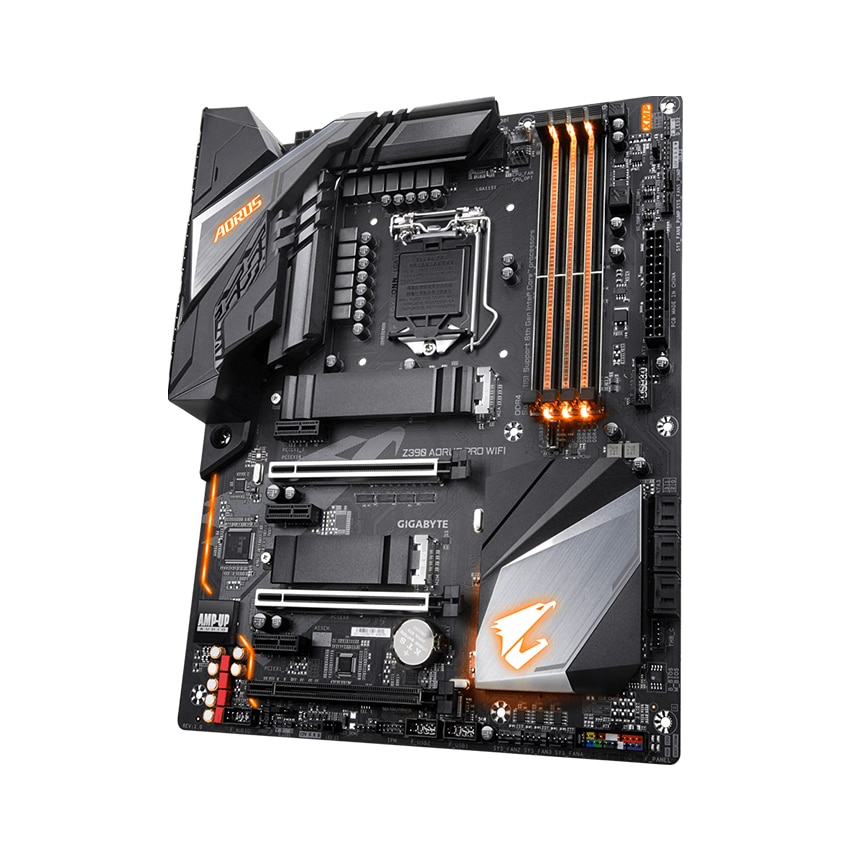

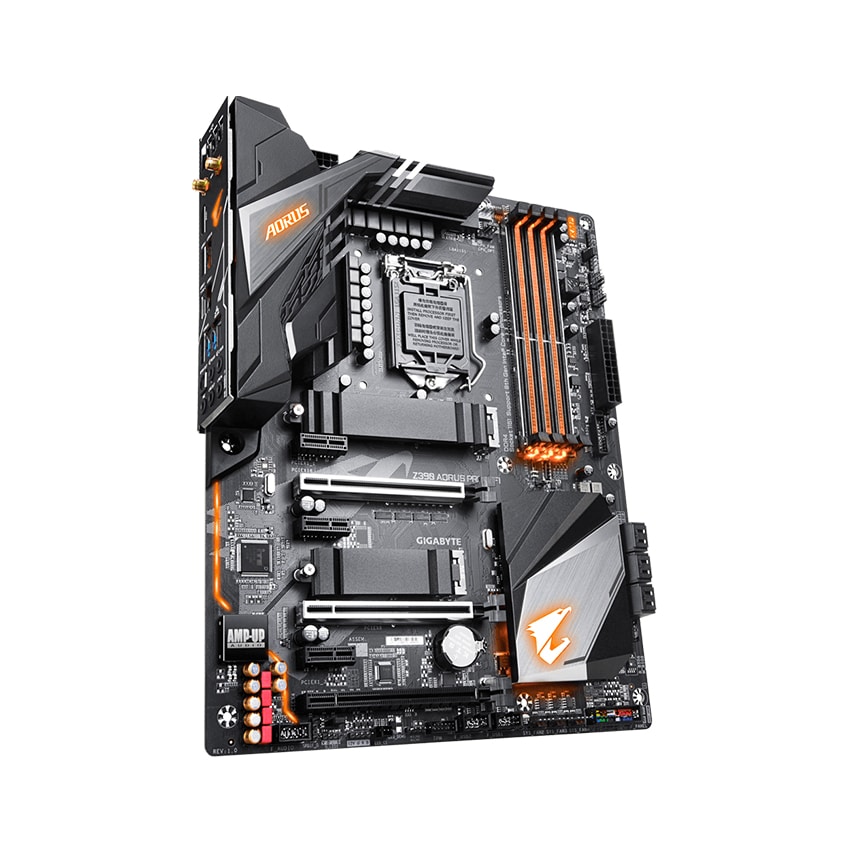

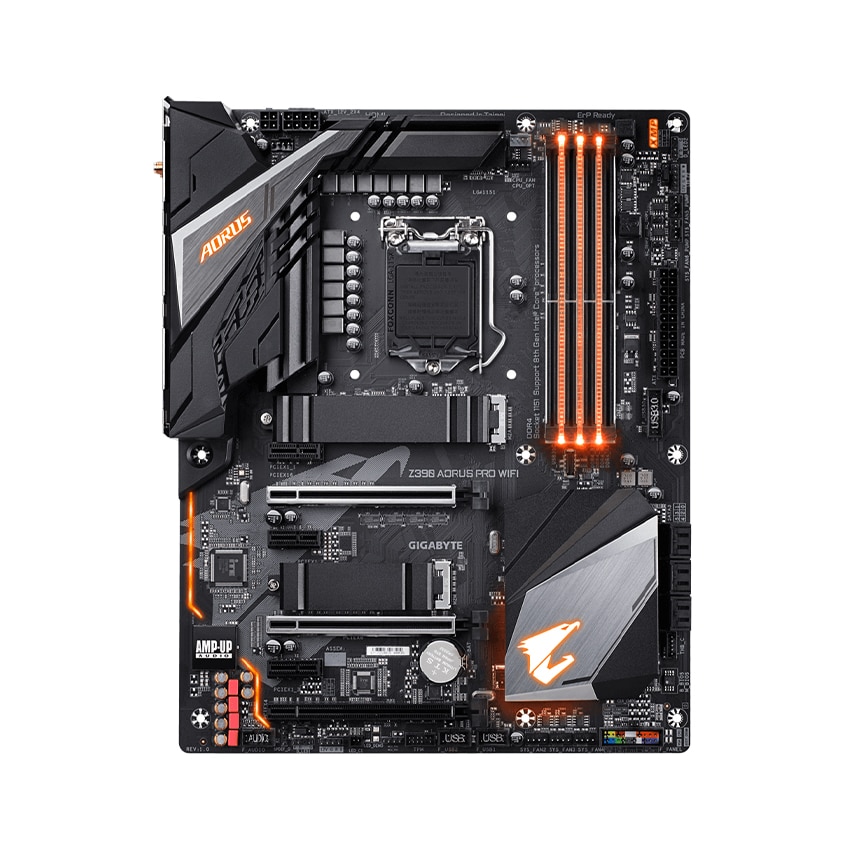

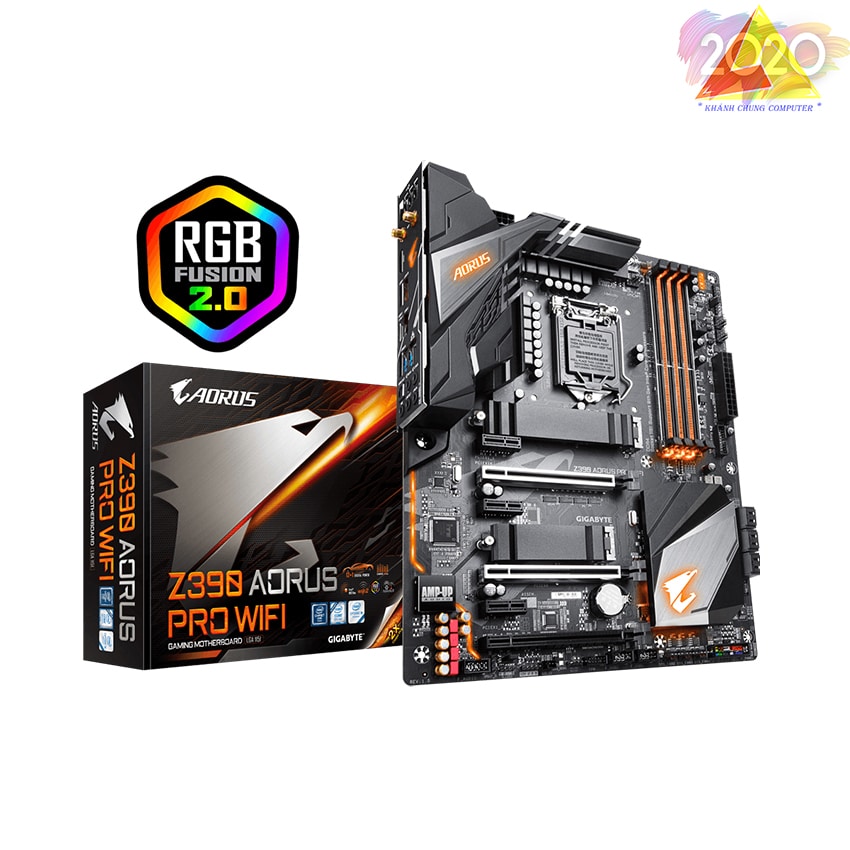

Mainboard Gigabyte Z390 Aorus Pro + So sánh

Sản phẩm

Bo mạch chủ

Tên Hãng

Gigabyte

Model

Z390 AORUS PRO WIFI

CPU hỗ trợ

Intel

Chipset

Z390

RAM hỗ trợ

4 x DIMM, Max. 64GB, DDR4

4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/

3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Khe cắm mở rộng

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
4. 3 x PCI Express x1 slots
5. 1 x M.2 Socket 1 connector for an Intel^® CNVi wireless module (CNVI)

Ổ cứng hỗ trợ

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support, prepared for Intel^® Hybrid SSD) (M2M)
3. 6 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10

Intel^® Optane™ Memory Ready

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 4 x system fan headers
7. 2 x system fan/water cooling pump headers
8. 2 x digital LED strip headers
9. 2 x digital LED strip power select jumpers
10. 2 x RGB LED strip headers
11. 6 x SATA 6Gb/s connectors
12. 2 x M.2 Socket 3 connectors
13. 1 x front panel header
14. 1 x front panel audio header
15. 1 x S/PDIF Out header
16. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
17. 1 x USB 3.1 Gen 1 header
18. 2 x USB 2.0/1.1 headers
19. 1 x Thunderbolt™ add-in card connector
20. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
21. 1 x Clear CMOS jumper
22. 2 x temperature sensor headers

Cổng kết nối (Back Panel)

1. 4 x USB 2.0/1.1 ports
2. 2 x SMA antenna connectors (2T2R)
3. 1 x HDMI port
4. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
5. 2 x USB 3.1 Gen 2 Type-A ports (red)
6. 3 x USB 3.1 Gen 1 ports
7. 1 x RJ-45 port
8. 1 x optical S/PDIF Out connector
9. 5 x audio jacks

LAN / Wireless

1. Intel^® GbE LAN chip (10/100/1000 Mbit)
2. Intel^® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band

Kích cỡ

ATX Form Factor; 30.5cm x 24.4cm
