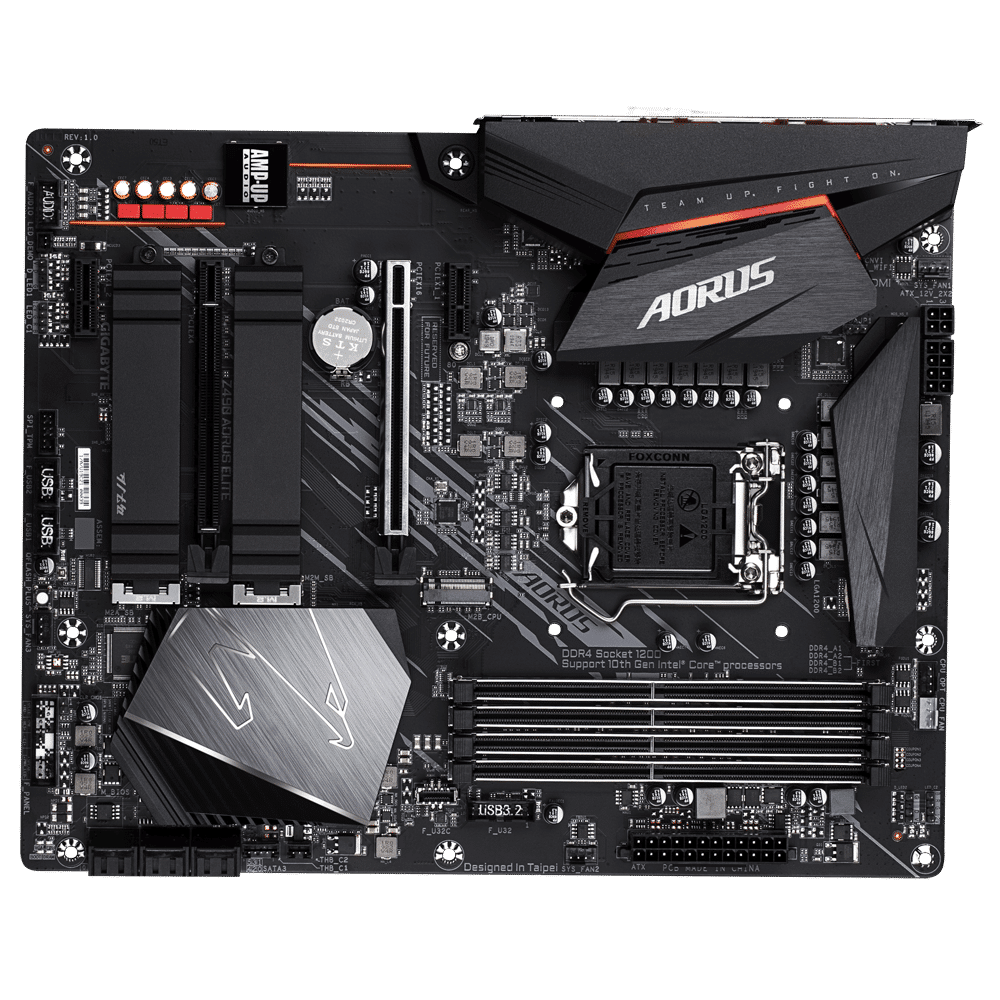

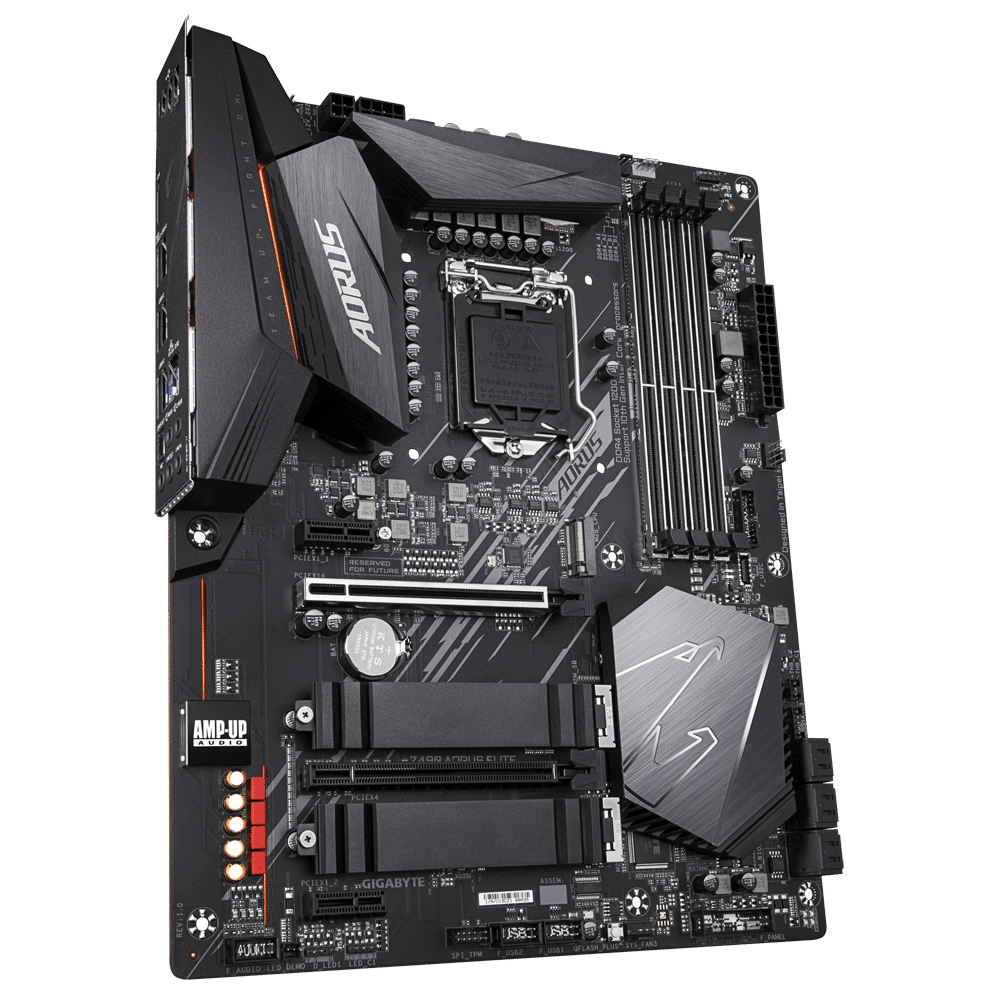

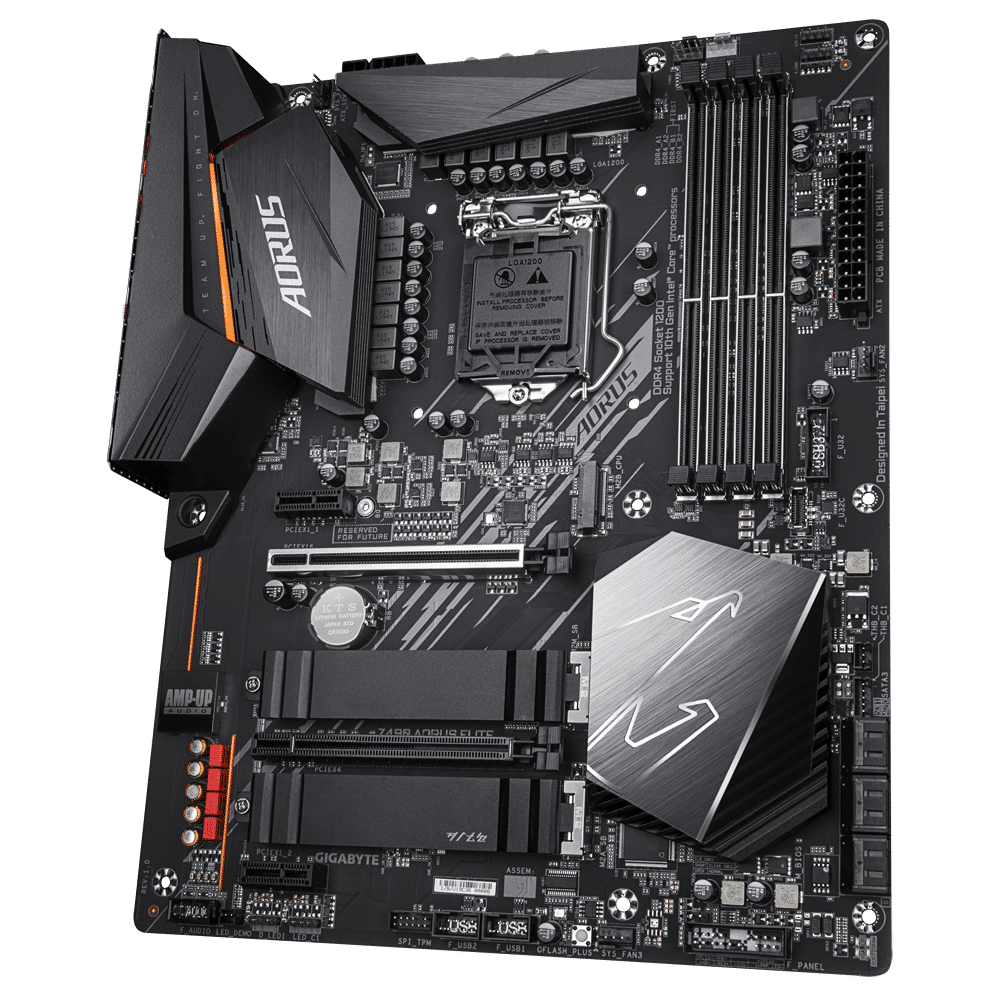

Mainboard GIGABYTE Z490 AORUS ELITE (Intel Z490, Socket 1200, ATX, 4 khe RAM DDR4) + So sánh

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

Z490 AORUS ELITE

CPU hỗ trợ

Intel

Chipset

Z490

RAM hỗ trợ

4 x DDR4 DIMM sockets supporting up to 128 GB

Support for DDR4 3200/2933/2666/2400/2133 MHz memory modules

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots

Ổ cứng hỗ trợ

2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB/M2A_SB)
6 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 2 x M.2 Socket 3 connectors
5. 6 x SATA 6Gb/s connectors
6. 1 x CPU fan header
7. 1 x water cooling CPU fan header
8. 3 x system fan headers
9. 2 x addressable LED strip headers
10. 2 x RGB LED strip headers
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
14. 1 x USB 3.2 Gen 1 header
15. 2 x USB 2.0/1.1 headers
16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
17. 2 x Thunderbolt™ add-in card connectors
18. 1 x Clear CMOS jumper
19. 1 x Q-Flash Plus button

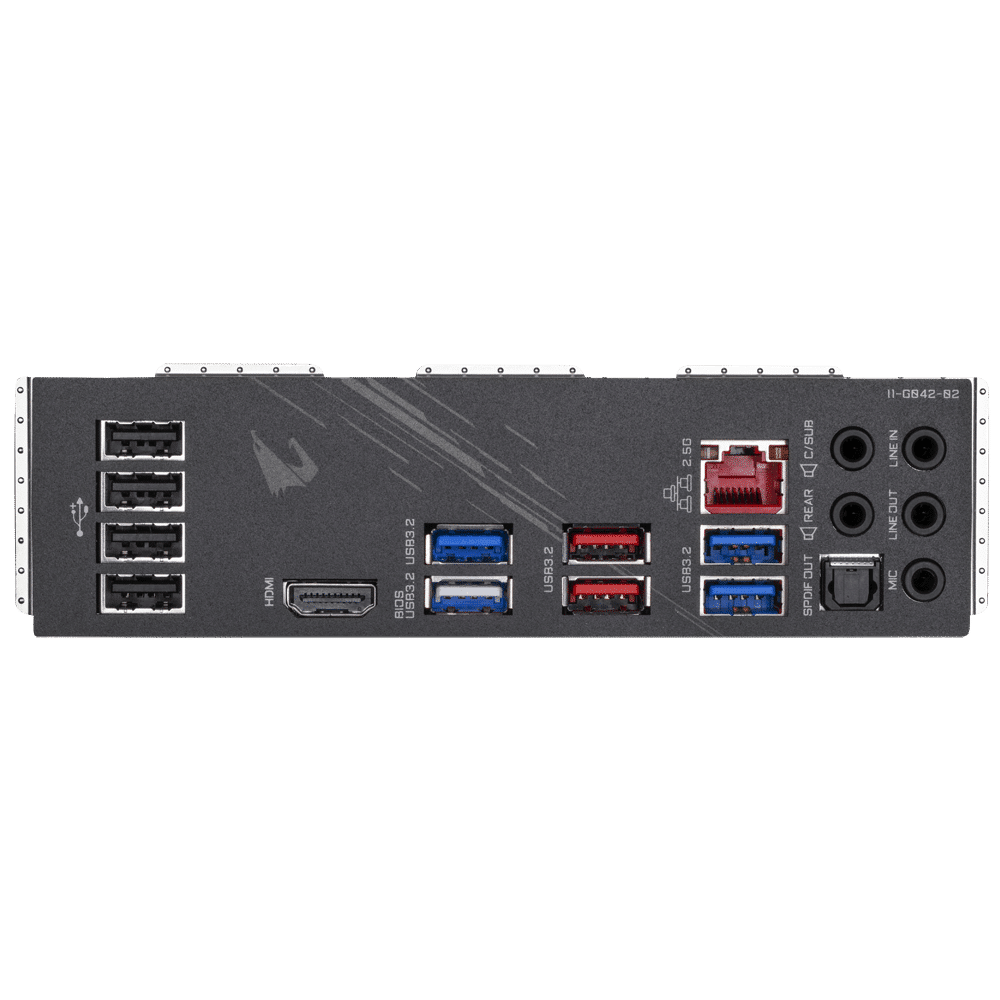

Cổng kết nối (Back Panel)

1. 2 x USB 3.2 Gen 2 Type-A ports (red)
2. 4 x USB 3.2 Gen 1 ports
3. 4 x USB 2.0/1.1 ports
4. 1 x HDMI port
5. 1 x RJ-45 port
6. 1 x optical S/PDIF Out connector
7. 5 x audio jacks

LAN / Wireless

Realtek^® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Kích cỡ

ATX Form Factor; 30.5cm x 24.4cm
