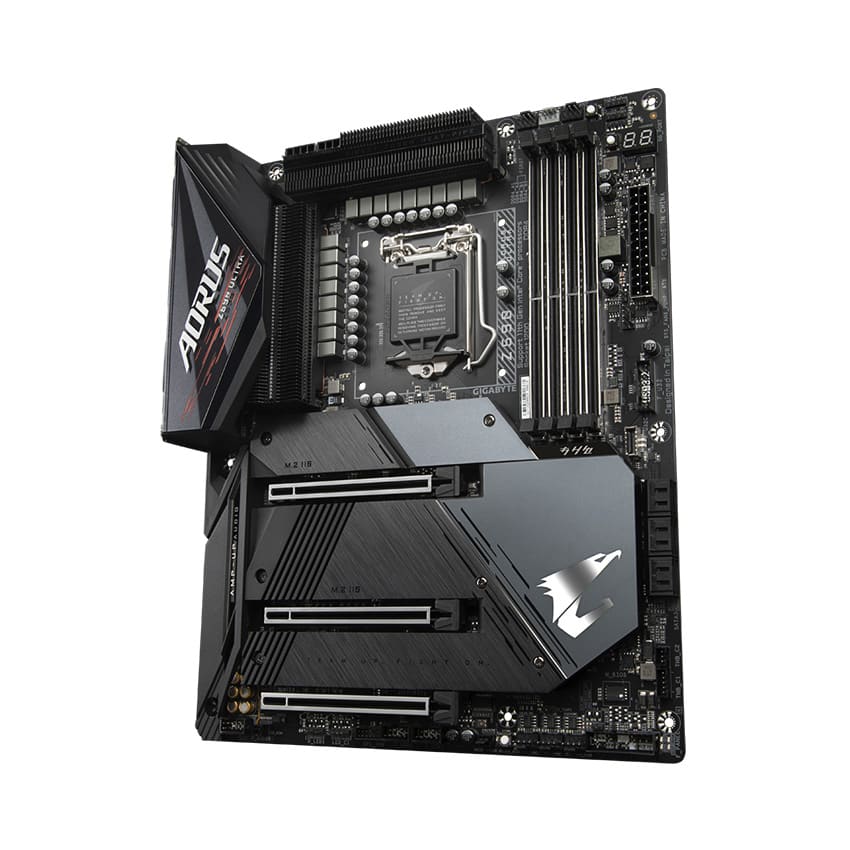

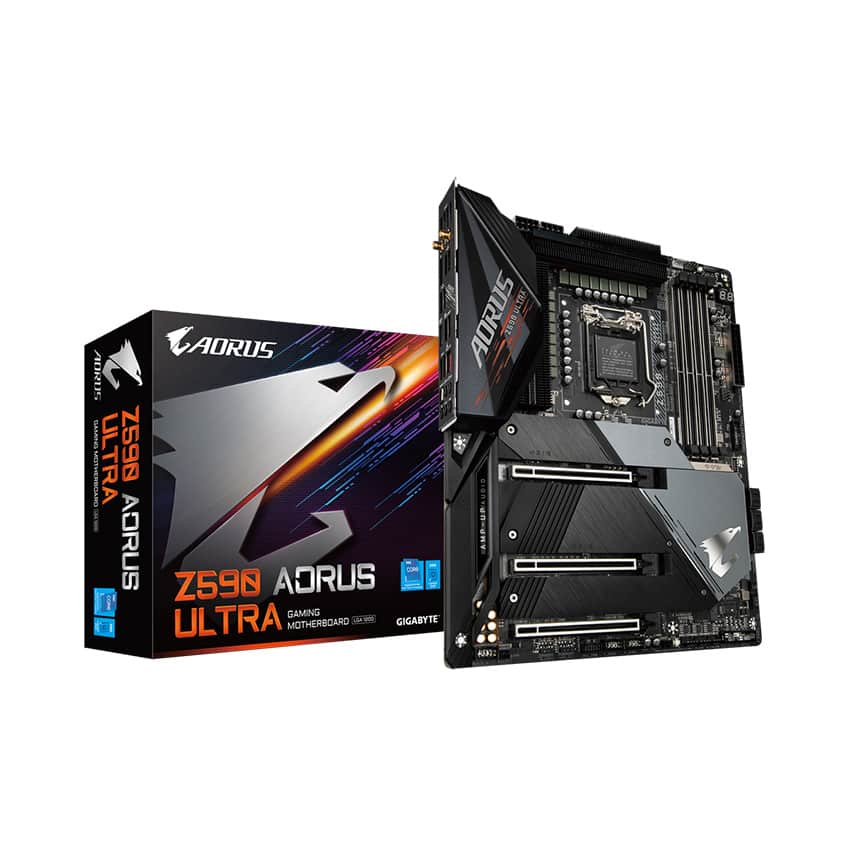

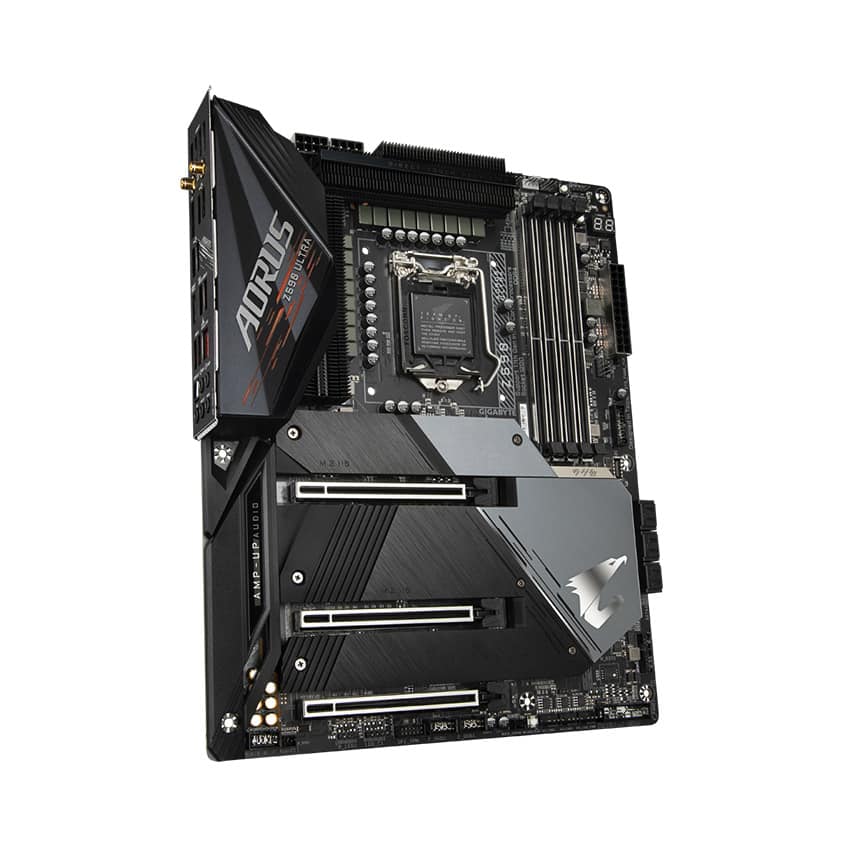

Mainboard Gigabyte Z590 AORUS ULTRA (Intel Z590, Socket 1200, ATX, 4 khe Ram DDR4)

1.      1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*

Chipset:

1.      1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)

4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

2 x system fan/water cooling pump headers

2 x addressable LED strip headers

2 x RGB LED strip headers

3 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt™ add-in card connectors

1 x noise detection header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x reset button

1 x Clear CMOS button

1 x Q-Flash Plus button

1 x Clear CMOS jumper

2 x temperature sensor headers

2        x SMA antenna connectors (2T2R)

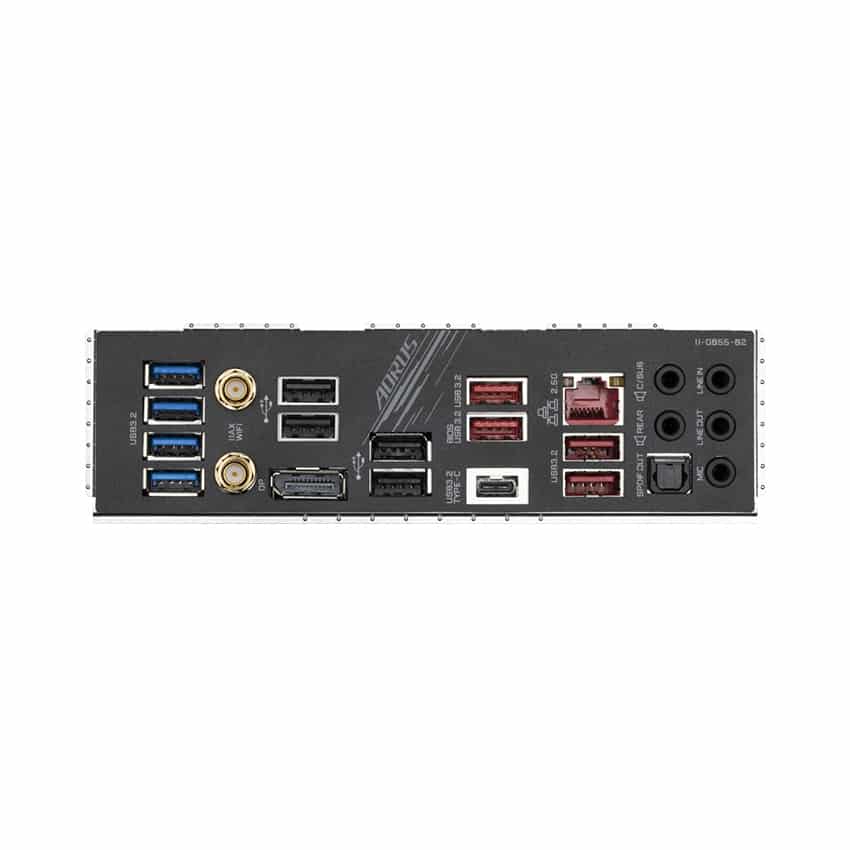

1 x USB Type-C® port, with USB 3.2 Gen 2×2 support

4 x USB 3.2 Gen 2 Type-A ports (red)

4 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

1 x optical S/PDIF Out connector

5 x audio jacks

LAN: Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Intel® Wi-Fi 6 AX200

1.      WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band

2.      BLUETOOTH 5.1

3.      Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
