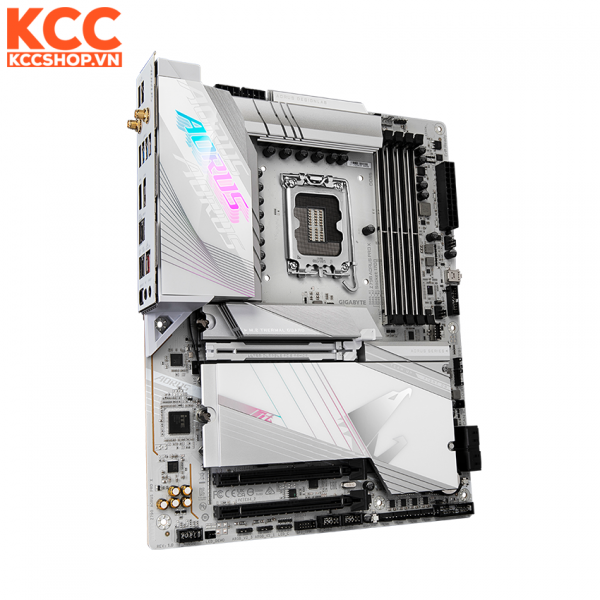

Mainboard Gigabyte Z790 AORUS PRO X DDR5 + So sánh

Loại sản phẩm

Mainboard

Thương hiệu

GIGABYTE

Model

Z790I AORUS PRO X

Chipset

Intel® Z790 Express Chipset

Hỗ trợ socket

Intel LGA 1700

Memory

Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Storage

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

CPU:

- 1 x M.2 connector (Socket 3, M key, type 25110/2580 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)

- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Ethernet

Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

MediaTek Wi-Fi 7 MT7927, RZ738 (For PCB rev. 1.0)

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11be 320MHz wireless standard

Intel® Wi-Fi 7 BE200 (For PCB rev. 1.1)

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11be 320MHz wireless standard

USB

Chipset:

- 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)

- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

- 1 x USB Type-C® port onboard, with USB 2.0 support

- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

- 2 x USB 3.2 Gen 1 ports available through the internal USB header

- 2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 3.2 Gen 1 Hub:

- 4 x USB 3.2 Gen 1 ports on the back panel

Chipset+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Expansion Slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot shares bandwidth with the M2C_CPU connectors.

The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

Audio

Realtek® ALC1220-VB CODEC

*The back panel line out jack supports DSD audio.

High Definition Audio

2/4/5.1/7.1-channel

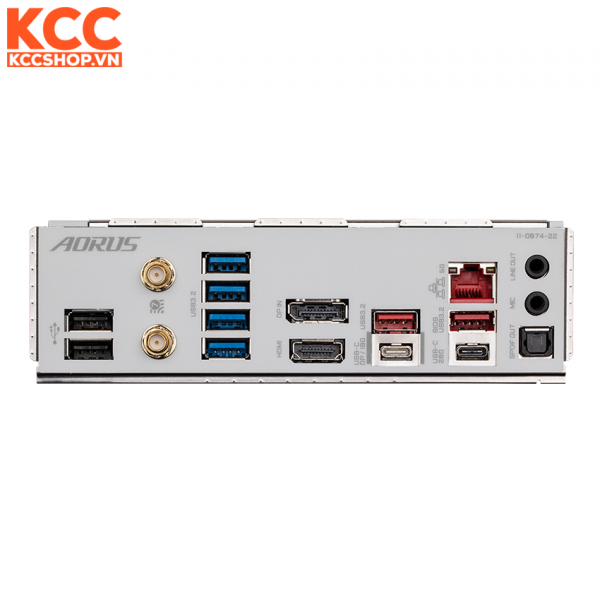

Back Panel I/O Ports

2 x USB 2.0/1.1 ports

2 x SMA antenna connectors (2T2R)

4 x USB 3.2 Gen 1 ports

1 x DisplayPort In port

1 x HDMI port

2 x USB 3.2 Gen 2 Type-A ports (red)

1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support

1 x RJ-45 port

1 x optical S/PDIF Out connector

2 x audio jacks

Internal I/O Connectors

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x CPU fan/water cooling pump header

4 x system fan headers

2 x system fan/water cooling pump headers

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

5 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

1 x USB Type-C® port (DisplayPort), with USB 2.0 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x noise detection header

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)

1 x Q-Flash Plus button

1 x reset button

1 x reset jumper

2 x temperature sensor headers

1 x Clear CMOS jumper

Operating System

Microsoft® Windows® 10 64-bit / 11 64-bit

Kích thước

ATX Form Factor; 30.5cm x 24.4cm
