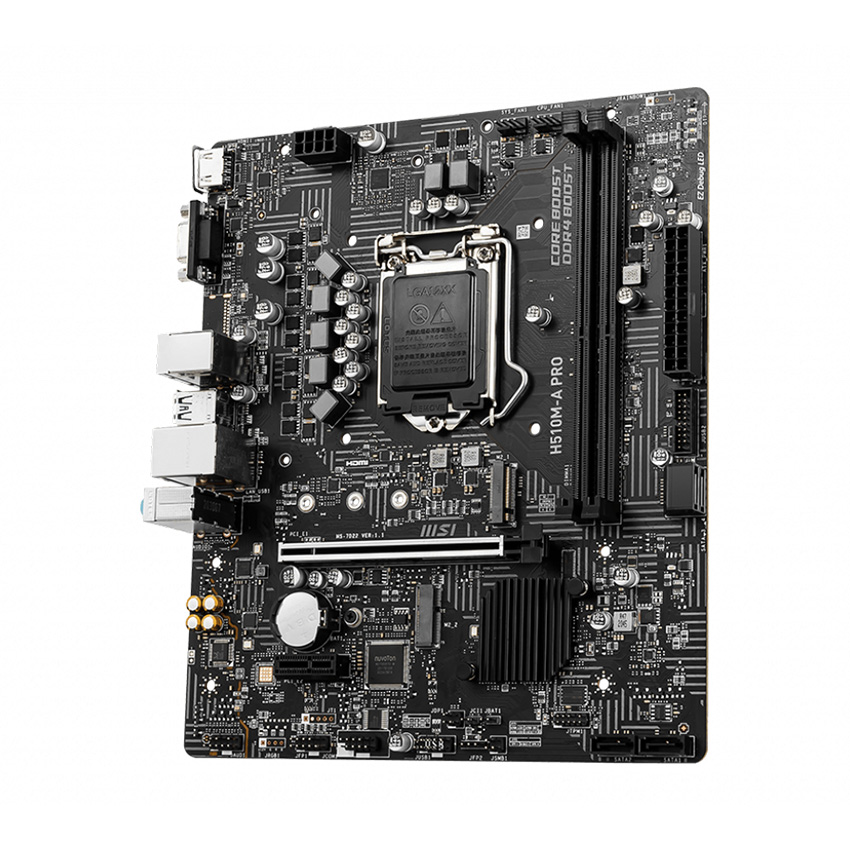

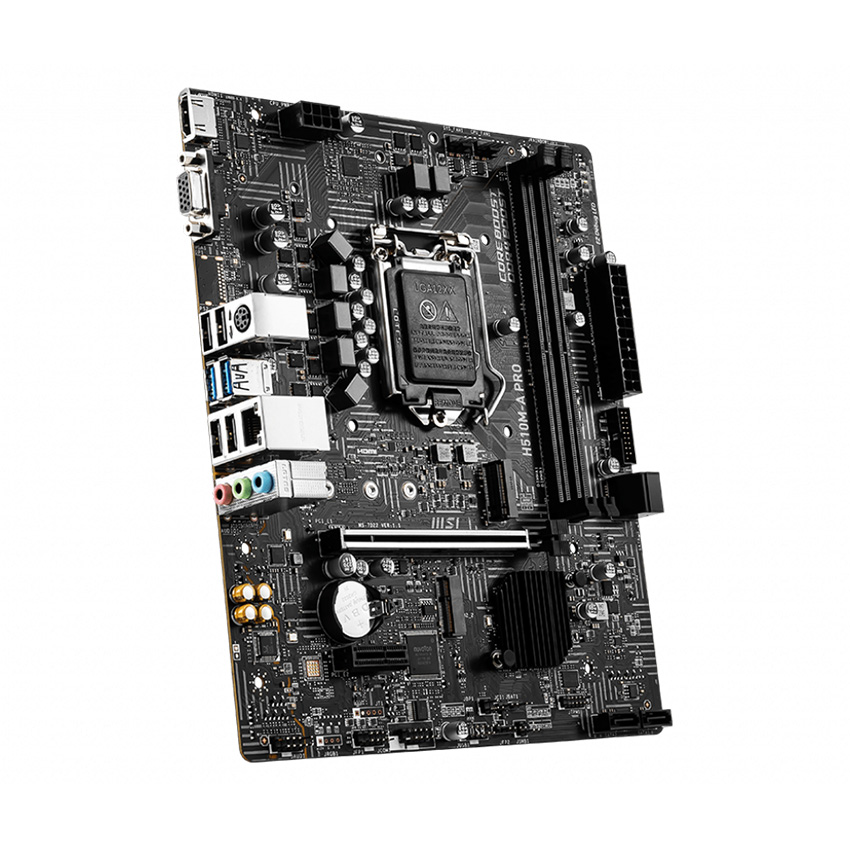

Mainboard MSI H510M-A PRO (Intel H510, Socket 1200, m-ATX, 2 khe Ram DDR4) + So sánh

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

H510M-A PRO

CPU hỗ trợ

Intel

Chipset

H510

RAM hỗ trợ

2 x DDR4 DIMM Slots ( tối đa 64GB )
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Khe cắm mở rộng

1x PCIe x16 slot (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel® CPU
1x PCIe 3.0 x1 slot (From PCH)
1x M.2 slot with E key for WiFi module only(M2_2)

Ổ cứng hỗ trợ

4x SATA 6Gb/s ports (From H510 Chipset)
1x M.2 slot (Key M)
M2_1 slot (From H510 Chipset)
Supports up to PCIe 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices

Cổng kết nối (Internal)

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector

Cổng kết nối (Back Panel)

1 x HDMI
1 x VGA
1 x PS2 Mouse / Keyboard
1 x LAN port
1 x Audio connector
4 x USB 2.0
2 x USB 3.2 Gen 1 5Gbps Type-A

LAN / Wireless

1x Intel® I219V 1Gbps LAN controller

Kích cỡ

mATX Form Factor
9.29 x 7.95 in. (23.6 cm x 20.2 cm)
