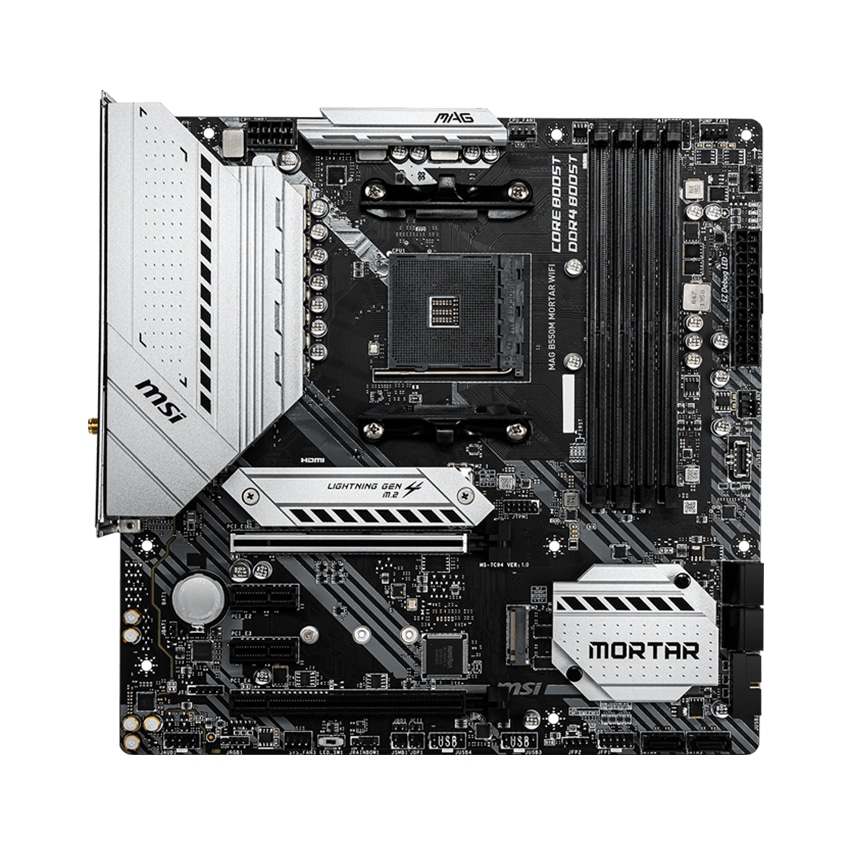

Mainboard MSI MAG B550M MORTAR WIFI (AMD B550, Socket AM4, m-ATX, 4 khe RAM DDR4) + So sánh

Sản phẩm

Mainboard - Bo mạch chủ

Tên Hãng

MSI

Model

MAG B550M MORTAR WIFI

CPU hỗ trợ

Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update.

Chipset

AMD B550 Chipset

RAM hỗ trợ

• 4x DDR4 memory slots, support up to 128GB 1
• Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
• Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
• 1DPC 1R max speed 4400 MHZ
• 1DPC 2R max speed 3733 MHZ
• 2DPC 1R max speed 3866 MHZ
• 2DPC 2R max speed 3466 MHZ
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

Khe cắm mở rộng

1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1

1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode 2

2x PCIe 3.0 x1 slots

The supported specification depends on installed processor.

PCI_E4 will be unavailable when an M.2 SSD is installed in the M2_2 slot.

Đa card màn hình

Supports 2-Way AMD CrossFire™ Technology

Hình ảnh

• 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1
• 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1

Maximum shared memory of 2048 MB

Available for the processor with integrated graphics.

Lưu trữ

AMD B550 Chipset

6x SATA 6Gb/s ports

2x M.2 slots (Key M)

M2_1 slot (from AMD processor)

Supports PCIe 4.0/ 3.0 x4 1

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

M2_2 slot (from AMD B550 chipset)

Supports PCIe 3.0x4

Supports 2242/ 2260/ 2280 storage devices

The supported specification depends on installed processor.

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD B550 Chipset

• 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

• 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
• 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Âm Thanh

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1x Realtek® RTL8125B 2.5Gbps LAN controller

Wireless & Bluetooth

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.1

Cổng kết nối ( I/O bên trong)

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen 1 5Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 3x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 1xTPM module connector
• 1x Clear CMOS jumper

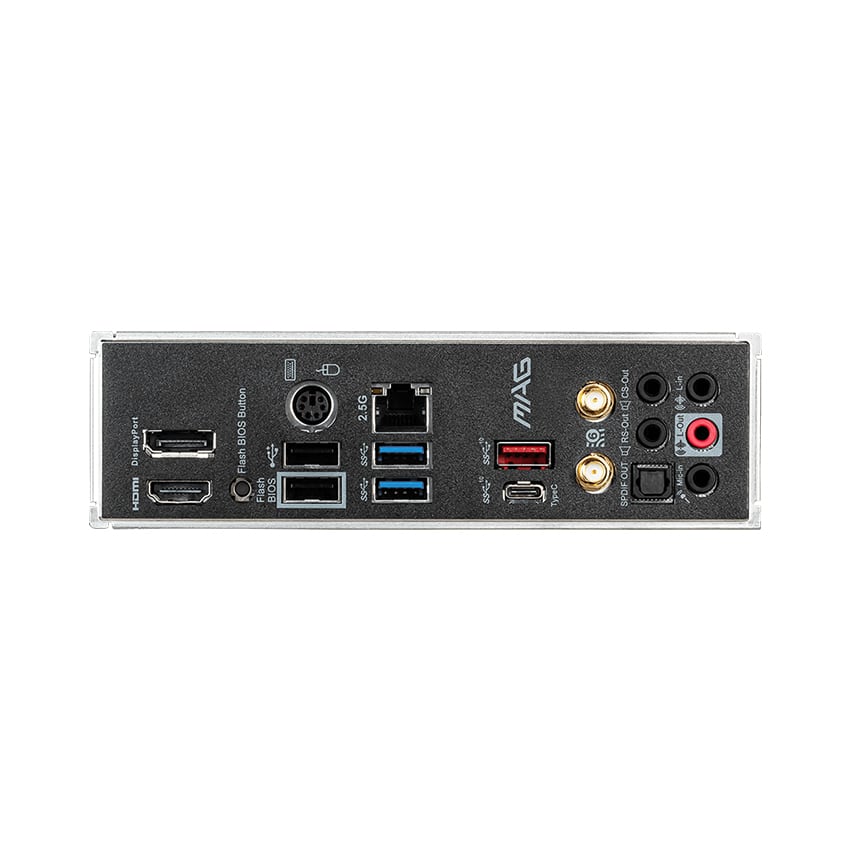

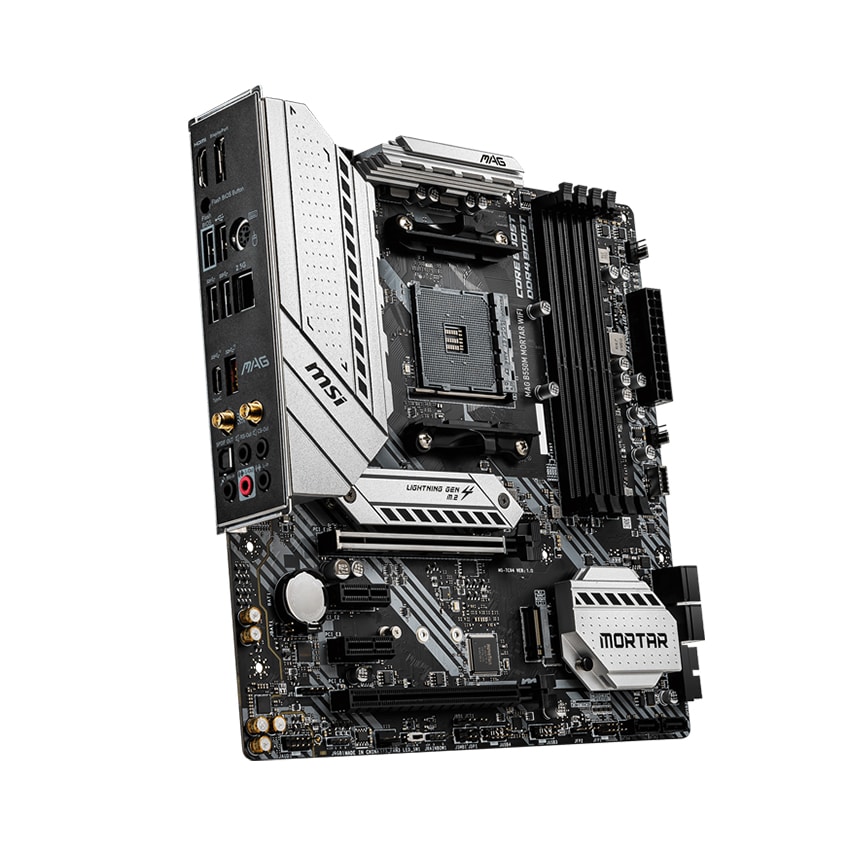

Cổng kết nối ( I/O Phía sau)

1. DisplayPort
2. PS/2 Combo Port
3. 2.5G LAN Port
4. USB 3.2 Gen 2 10Gbps (Type-A)
5. Wi-Fi / Bluetooth
6. HD Audio Connectors
7. HDMI Port
8. Flash BIOS Button
9. USB 2.0 port
10. USB 3.2 Gen 1 5Gbps (Type-A)
11. USB 3.2 Gen 2 10Gbps (Type-C)
12. Optical S/PDIF OUT

Kích cỡ

• Micro-ATX Form Factor
• 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
