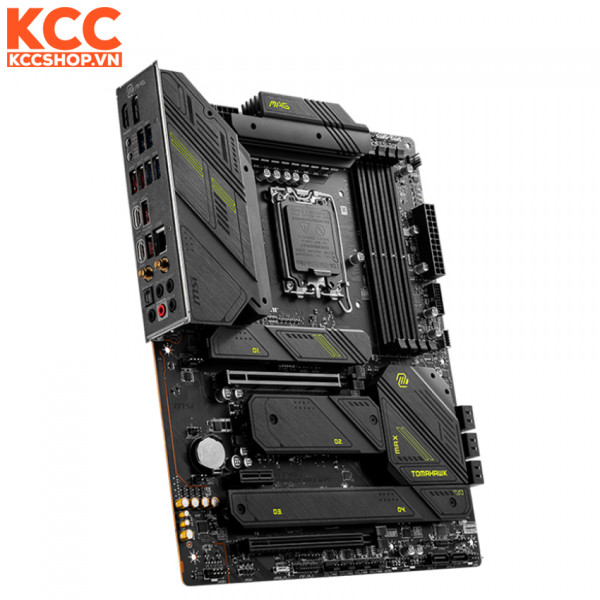

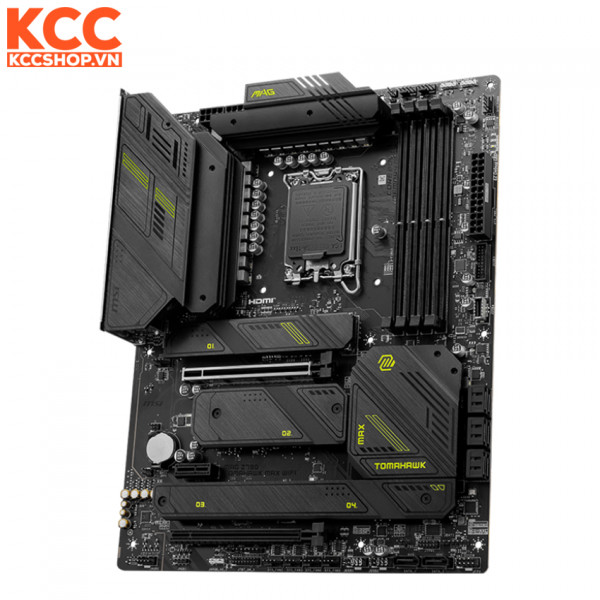

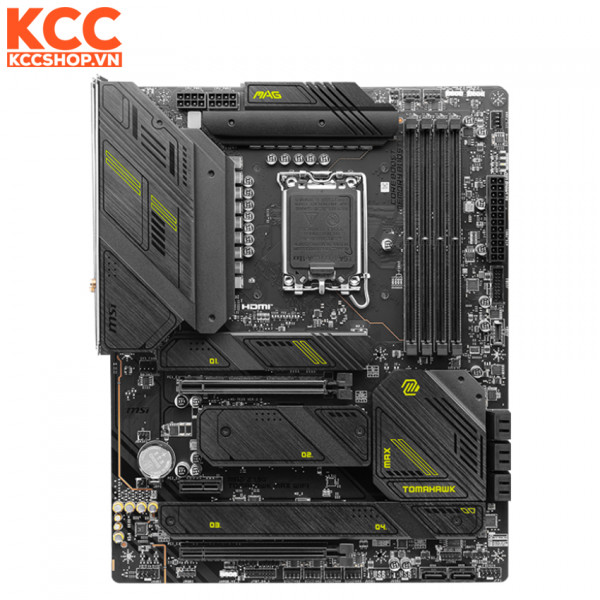

Mainboard MSI MAG Z790 TOMAHAWK MAX WIFI DDR5 + So sánh

Loại sản phẩm

Mainboard

Thương hiệu

MSI

Model

Z790 TOMAHAWK MAX WIFI

Chipset

Intel Z790

MEMORY

4x DDR5 UDIMM, Maximum Memory Capacity 192GB

Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

ONBOARD GRAPHICS

1x HDMI™

Support HDMI™ 2.1, maximum resolution of 4K 60Hz*

1x DisplayPort

Support DP 1.4, maximum resolution of 8K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT

2x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

STORAGE

4x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

8x SATA 6G

* SATA_1 will be unavailable when installing M.2 SATA SSD in the M2_3 slot.

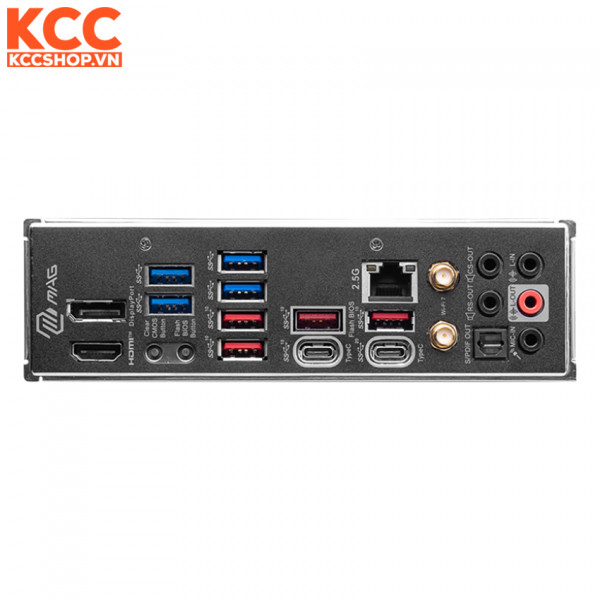

USB

4x USB 2.0 (Front)

4x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

4x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Rear)

1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)

LAN

Intel® 2.5Gbps LAN

WIRELESS / BLUETOOTH

Wi-Fi 7

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

AUDIO

Realtek® ALC4080 Codec

7.1-Channel USB High Performance Audio

Supports up to 32-Bit/384 kHz playback on front panel

INTERNAL I/O

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

6x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Tuning Controller connector(JDASH)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen2 Type C ports

1x USB4 card connector (JTBT_U4_1, supports RTD3)

LED FEATURE

4x EZ Debug LED

OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB DIMENSION (W × L)

ATX

243.84mmx304.8mm
