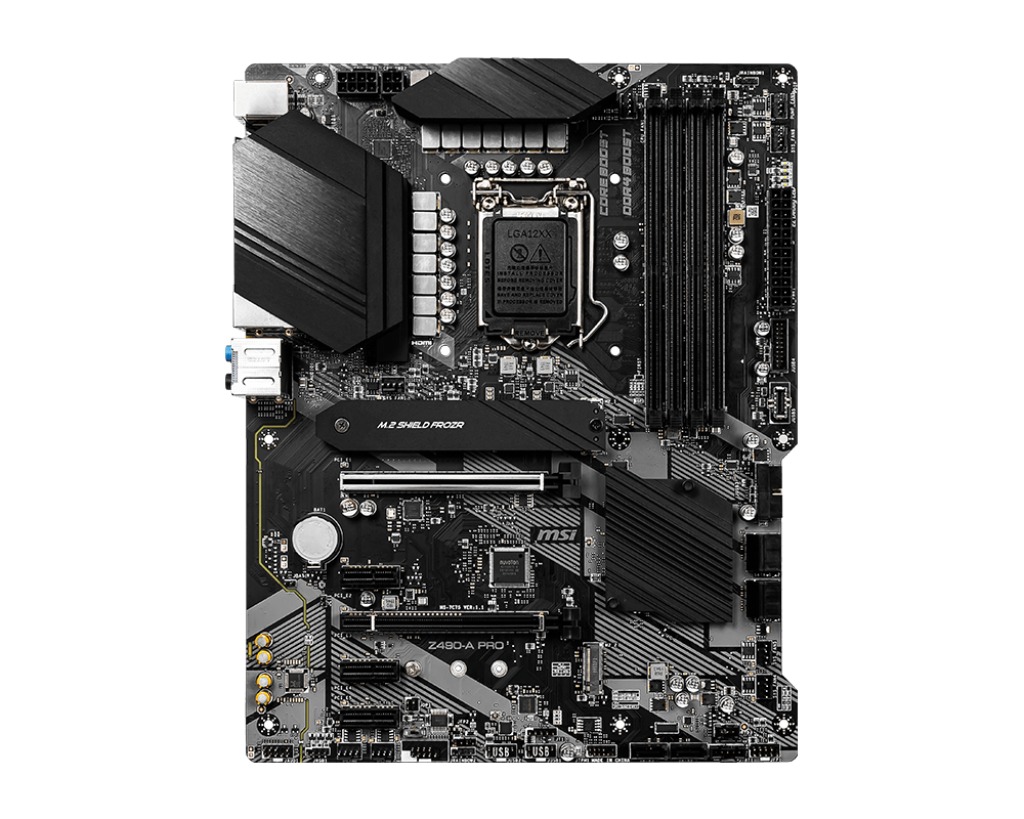

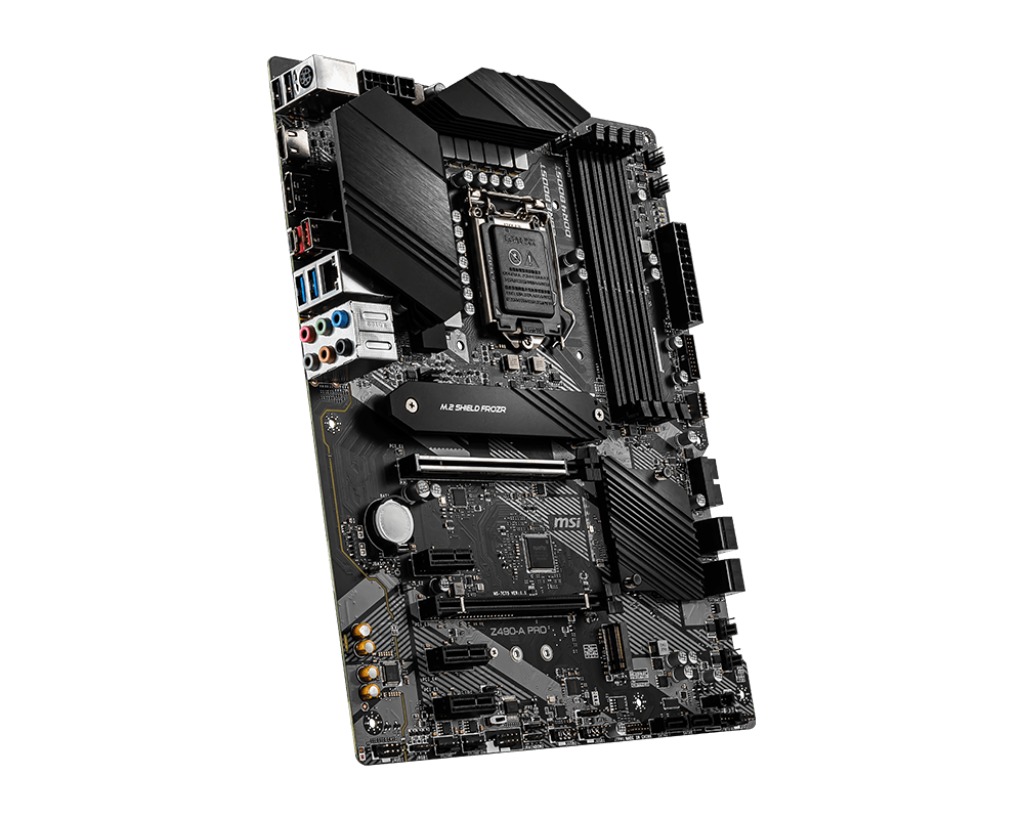

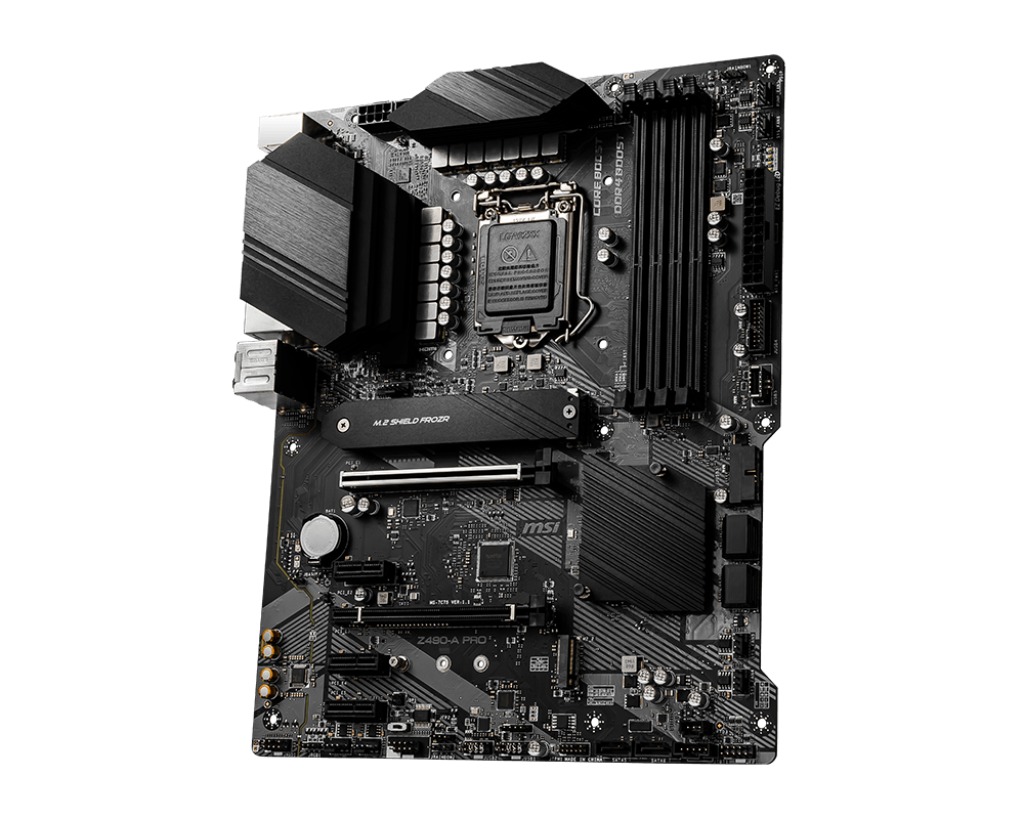

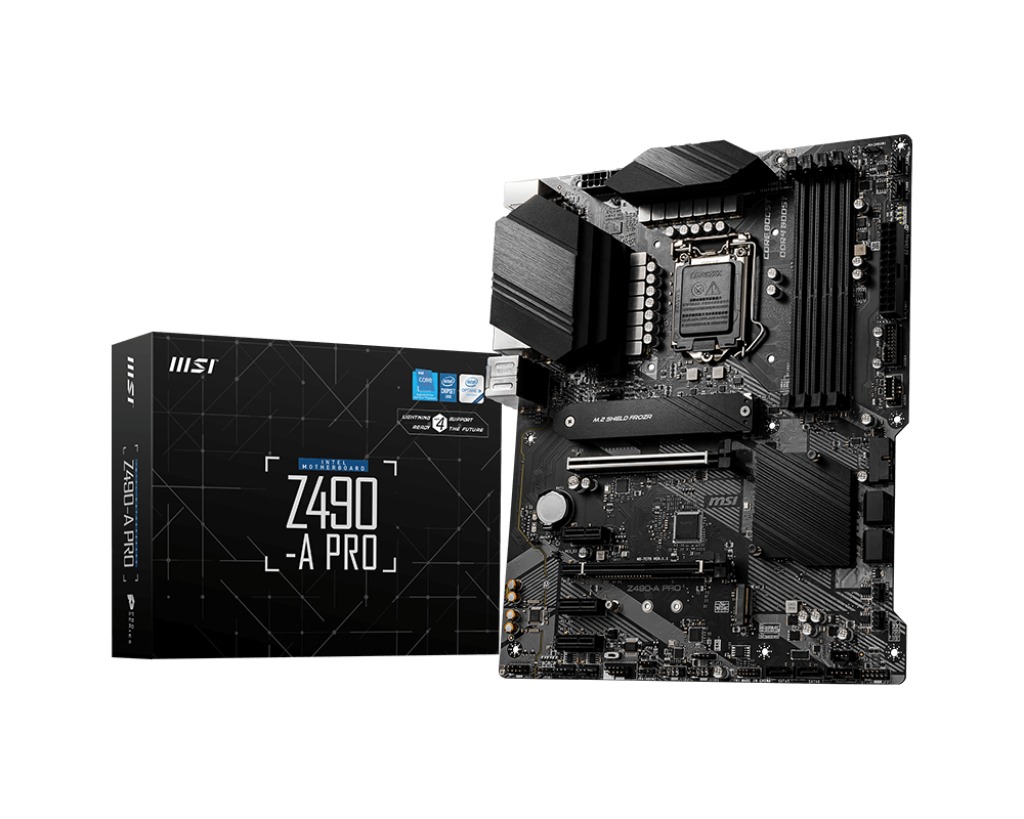

Mainboard MSI Z490 A PRO – 4 KHE RAM + So sánh

Sản phẩm

Mainboard – Bo mạch chủ

Tên Hãng

MSI

Model

Z490-A PRO

CPU hỗ trợ

Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket

Chipset

Intel® Z490 Chipset

RAM hỗ trợ

4 x DDR4 memory slots, support up to 128GB

Supports 1R 2133/2666/2933 MHz

1DPC 1R Max speed up to 4800+ MHz

1DPC 2R Max speed up to 4266+ MHz

2DPC 1R Max speed up to 4400+ MHz

2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

Khe cắm mở rộng

1x PCIe 3.0 x16 slot (from CPU)

1x PCIe 3.0 x16 slot (from PCH， supports x4 mode)

3x PCIe x1 slots (from PCH)

Cổng xuất hình ( ONBOARD GRAPHICS )

1x HDMI port, supports a maximum resolution of 4096×2160 @ 30Hz

1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz

Hỗ trợ đa card màn hình

Supports 2-Way AMD®CrossFire™ Technology

Lưu trữ

6x SATA 6Gb/s ports

M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices

SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

USB

2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel)

7x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors, 1 Type-C internal connector)

6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

Âm Thanh

Realtek® ALC892 Codec

LAN / Wireless / Bluetooth

1x Realtek® RTL8125B-CG 2.5G LAN Controller

Cổng kết nối ( I/O bên trong)

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x 4-pin ATX 12V power connector

6x SATA 6Gb/s connectors

1x USB 3.2 Gen 1 5Gbps Type-C port

2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (support additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water pump connector

6x 4-pin system fan connectors

1x front panel audio connector

2x system panel connectors

1x Chassis Intrusion connector

1x Clear CMOS jumper

1x 4-pin RGB LED connector

2x 3-pin RAINBOW LED connectors

1x serial port connector

1x TPM module connector

1x TBT connector 1

Thunderbolt card need support RTD3

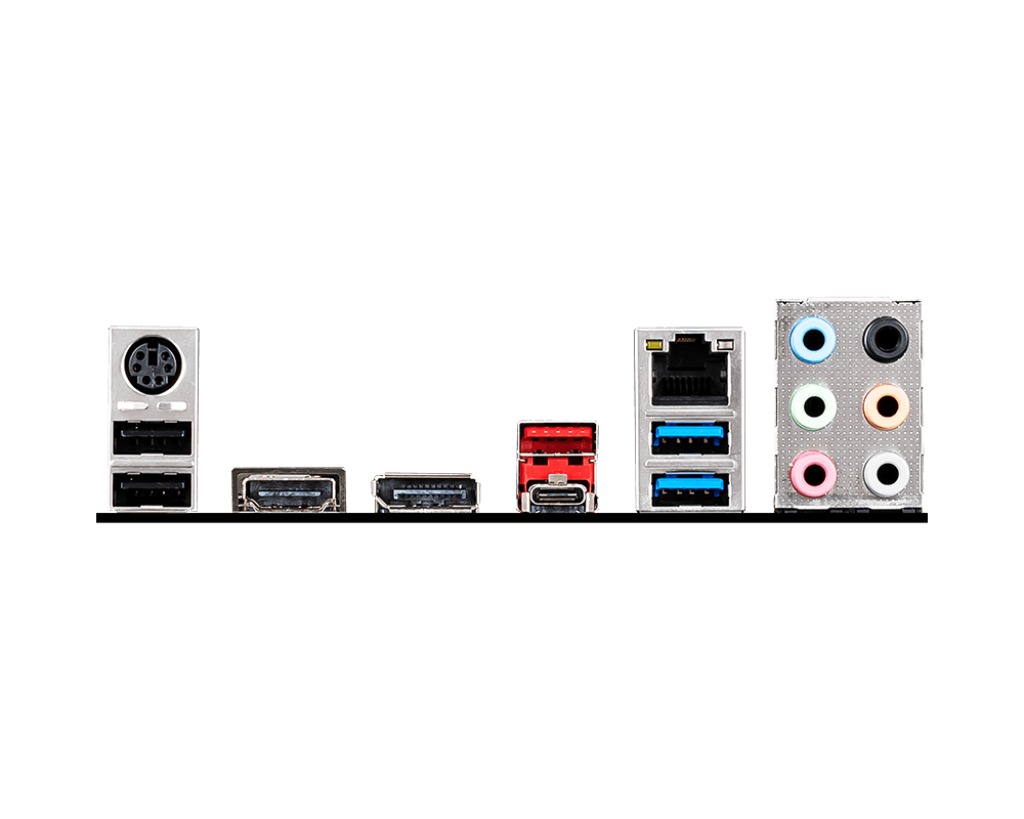

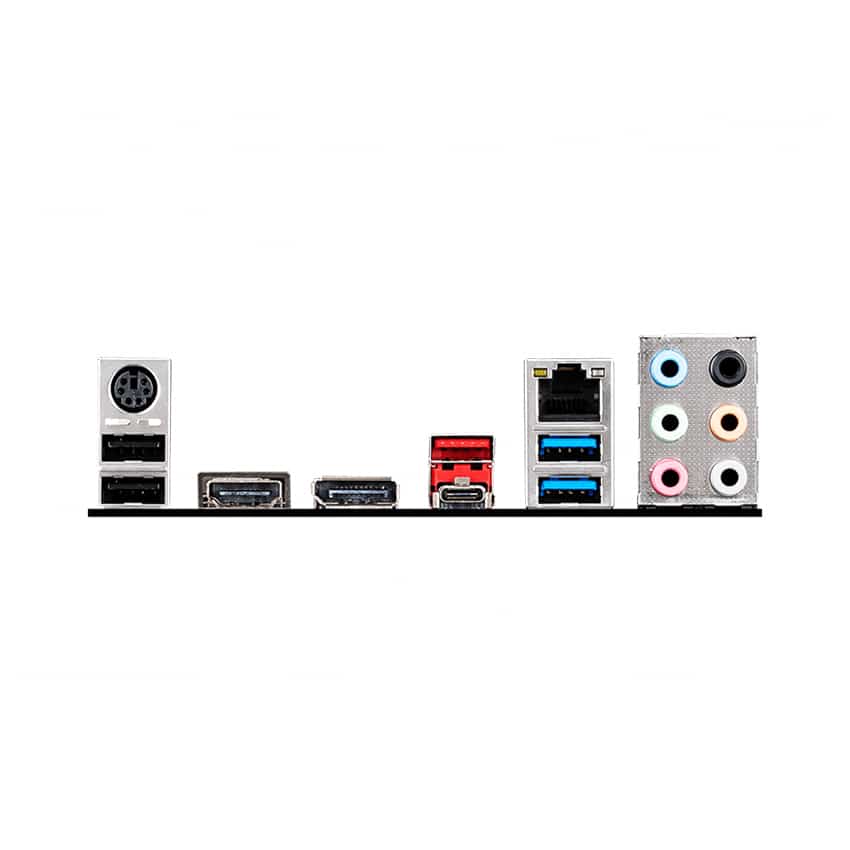

Cổng kết nối ( I/O Phía sau)

Keyboard / Mouse

5G LAN

Audio Connectors

USB 2.0

HDMI

DisplayPort

USB 3.2 Gen 2 10Gbps Type-A + Type-C

USB 3.2 Gen 1 5Gbps Type-A

Kích cỡ

ATX Form Factor

12 in. x 9.6 in. (30.5 cm x 24.4 cm)
