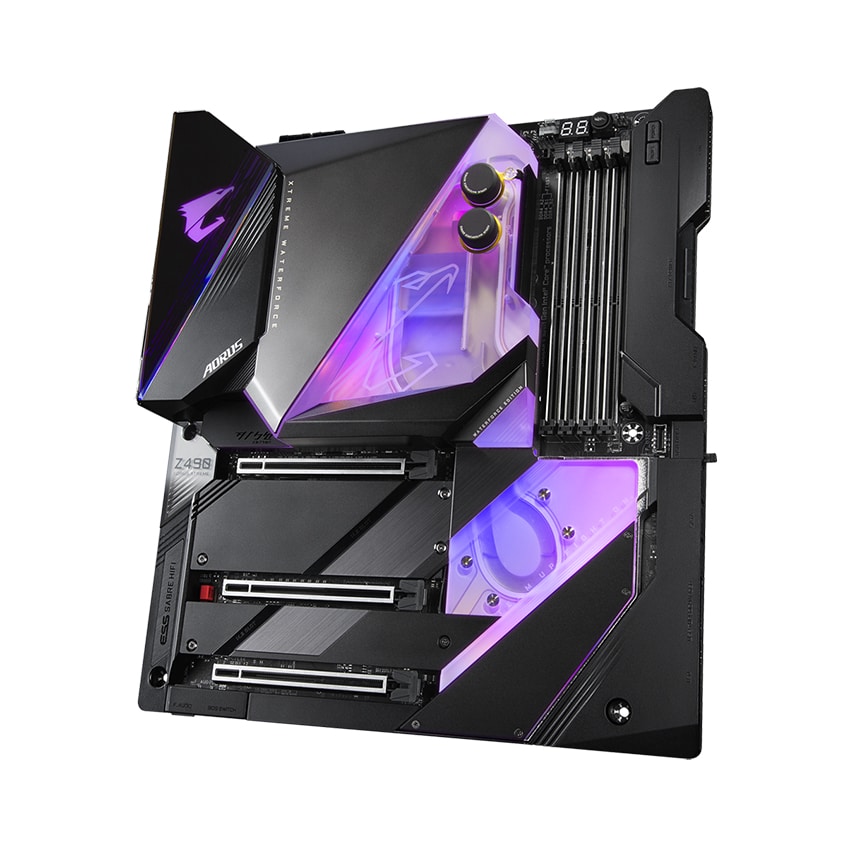

Z490 AORUS XTREME WATERFORCE + So sánh

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

Z490 AORUS XTREME WATERFORCE

CPU hỗ trợ

Intel

Chipset

Z490

RAM hỗ trợ

4 x DDR4 DIMM sockets supporting up to 128 GBIntel^® Core™ i9/i7 processors:

Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz

Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
Support for DDR4 2666/2400/2133 MHz

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
1 x PCI Express x16 slot, running at x4 (PCIEX4)

Ổ cứng hỗ trợ

1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2M_PCH)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_PCH)
6 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 1 x water cooling kit CPU LED header (LED_CPU)
6. 1 x water cooling kit Chipset LED header (LED_PCH)
7. 4 x system fan headers
8. 2 x system fan/water cooling pump headers
9. 1 x noise detection header
10. 2 x addressable LED strip headers
11. 2 x RGB LED strip headers
12. 6 x SATA 6Gb/s connectors
13. 3 x M.2 Socket 3 connectors
14. 1 x front panel header
15. 1 x front panel audio header
16. 1 x USB Type-C™ header, with USB 3.2 Gen 2 support
17. 1 x USB 3.2 Gen 1 header
18. 1 x USB 2.0/1.1 header
19. 2 x temperature sensor headers
20. 1 x power button
21. 1 x reset button
22. 1 x OC button
23. 2 x BIOS switches
24. Voltage Measurement Points

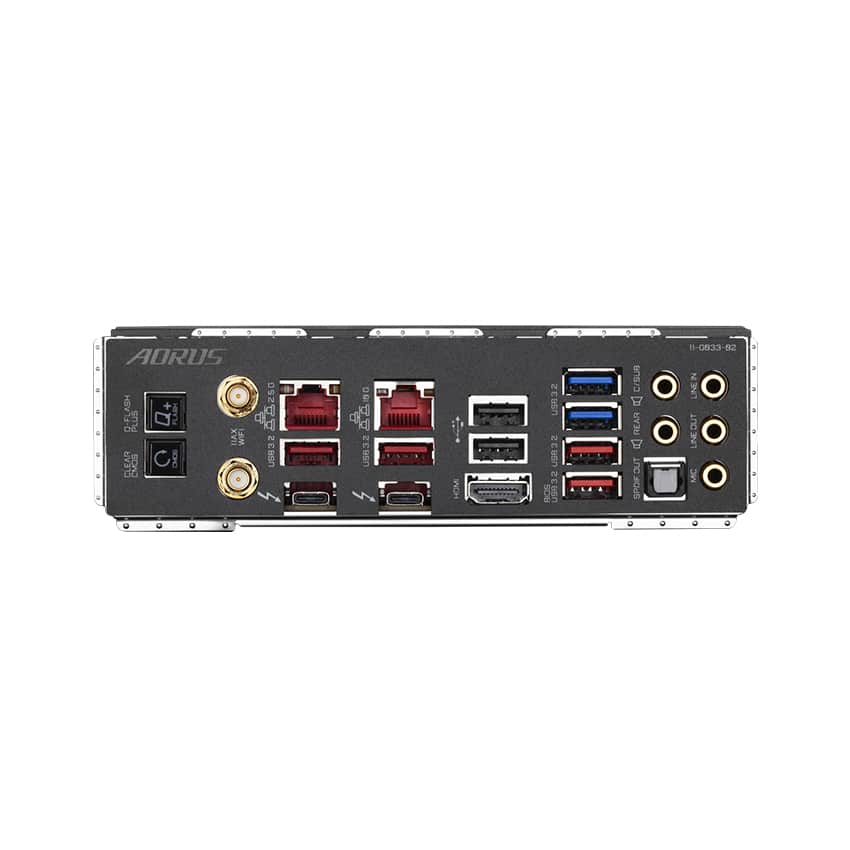

Cổng kết nối (Back Panel)

1. 1 x Q-Flash Plus button
2. 1 x Clear CMOS button
3. 2 x SMA antenna connectors (2T2R)
4. 2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.2 Gen 2 support)
5. 4 x USB 3.2 Gen 2 Type-A ports (red)
6. 2 x USB 3.2 Gen 1 ports
7. 2 x USB 2.0/1.1 ports
8. 1 x HDMI port
9. 2 x RJ-45 ports
10. 1 x optical S/PDIF Out connector
11. 5 x audio jacks

LAN / Wireless

1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit//1 Gbit/100 Mbit) (LAN1)
1 x Intel^® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)

Kích cỡ

E-ATX Form Factor; 30.5cm x 27.1cm
