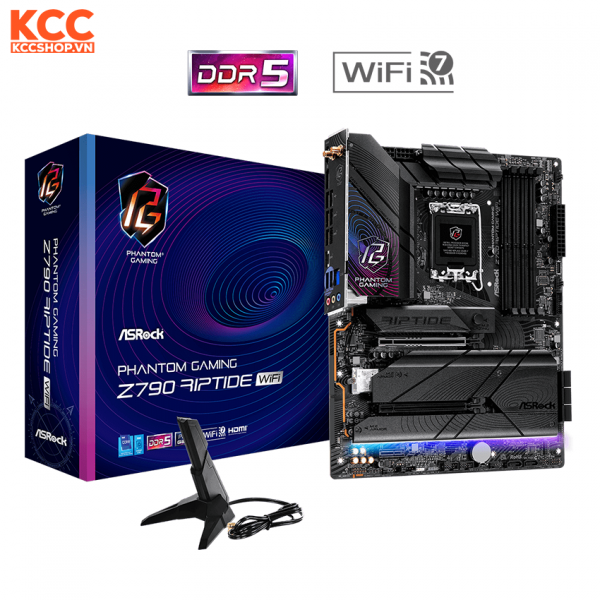

Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)

20+1+1 Power Phase, SPS for VCore+GT, 8-Layer 2OZ PCB

4 x DDR5 DIMMs, supports up to 8000+(OC)

1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1

Graphics Output Options: 1 HDMI, 1 DisplayPort

Realtek ALC4082 7.1 CH HD Audio Codec,
Nahimic Audio

4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 4 Hyper M.2 (PCIe Gen4 x4), 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)

2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front), 4 USB 3.2 Gen2 Type-A (Rear), 7 USB 3.2 Gen1 Type-A (3 Rear, 4 Front)

Intel® Killer 2.5G LAN

802.11be WiFi 7 + Bluetooth

Supports Graphics Card Holder, Toolless Multi-Layer M.2 Heatsink

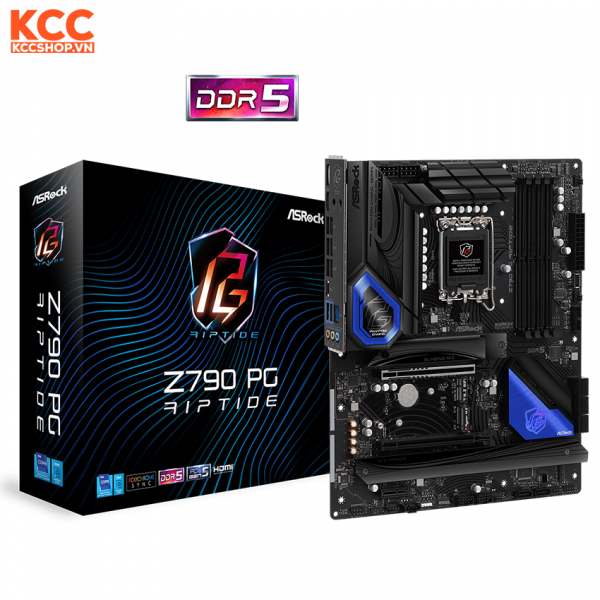

Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)

16+1+1 Power Phase, SPS for VCore+GT, 8-Layer PCB

4 x DDR5 DIMMs, supports up to 8000+(OC)

1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1

Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 eDP

Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio

8 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 4 Hyper M.2 (PCIe Gen4 x4)

1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Rear), 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front)

Intel® Killer 2.5G LAN

802.11be WiFi 7 + Bluetooth

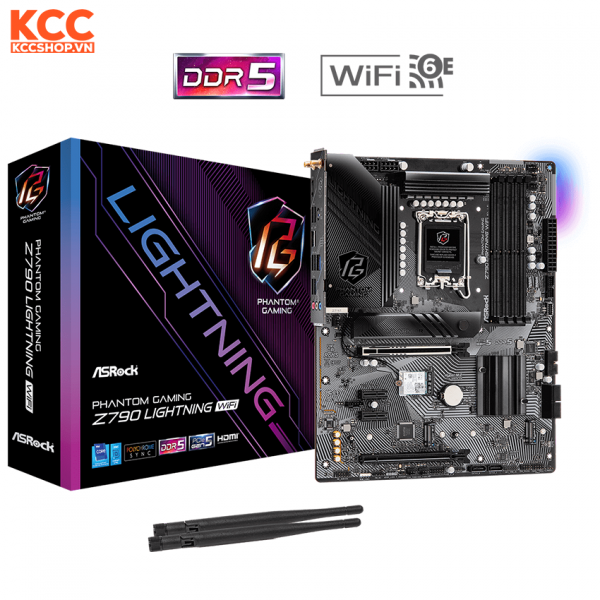

Supports ASRock Lightning Gaming Ports, Toolless Multi-Layer M.2 Heatsink

Supports 14th, 13th & 12th Gen Intel® Core™ Processors

14+1+1 Phase Power Design, Dr.MOS for VCore+GT

4 x DDR5 DIMMs, supports up to 7200+(OC)

1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi

Graphics Output Options: 1 HDMI, 1 DisplayPort

7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio

1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3

1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Rear), 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)

Killer 2.5G LAN

Supports 14th, 13th & 12th Gen Intel® Core™ Processors

14+1+1 Phase Design With Dr.MOS

Lightning Gaming Ports

Blazing M.2[PCIe Gen5 x4]

PCIe 5.0 + Surface-Mount Tech

DDR5 Memory

Killer 2.5G Networking

USB 3.2 Gen2x2 Type-C Header

Nahimic Audio

Polychrome SYNC

Supports 14th, 13th & 12th Gen Intel® Core™ Processors

10+1+1 Phase Power Design, Dr.MOS for VCore+GT

4 x DDR4 DIMMs, supports up to 5333+(OC)

1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi

Graphics Output Options: 1 HDMI

7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio

1 Hyper M.2 (PCIe Gen4x4), 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 4 SATA3

1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Front), 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)

Intel® 1G LAN

Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)

16+1+1 Power Phase, Dr.MOS for VCore+GT, 8-Layer PCB

Supports DDR5 7600+ (OC)

1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1

Graphics Output Options: 1 HDMI, 1 eDP

Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio

6 SATA3, 3 Hyper M.2 (PCIe Gen4 x4)

1 USB 3.2 Gen2x2 Type-C (Rear), 2 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Front), 8 USB 3.2 Gen1 Type-A (4 Rear, 4 Front)

Intel® Killer 2.5G LAN

Killer 802.11ax WiFi 6E + Bluetooth

Supports ASRock Auto Driver Installer, Toolless Multi-Layer M.2 Heatsink

Supports 14th, 13th & 12th Gen Intel® Core™ Processors

10+1+1 Phase Power Design, SPS for VCore

2 x DDR5 DIMMs, supports up to 7000+(OC)

1 PCIe 5.0 x16

Graphics Output Options: 2 USB4 Type-C, 1 HDMI, 1 DisplayPort

7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec), Nahimic Audio

1 Hyper M.2 (PCIe Gen4x4 & SATA3), 2 Hyper M.2 (PCIe Gen4x4), 3 SATA3

1 USB 3.2 Gen2x2 Type-C (Front), 6 USB 3.2 Gen2 Type-A (Rear), 2 USB 3.2 Gen1 (Front), 2 USB 2.0 (Front)

Killer 2.5G LAN

Killer 802.11ax Wi-Fi 6E + Bluetooth 5.3

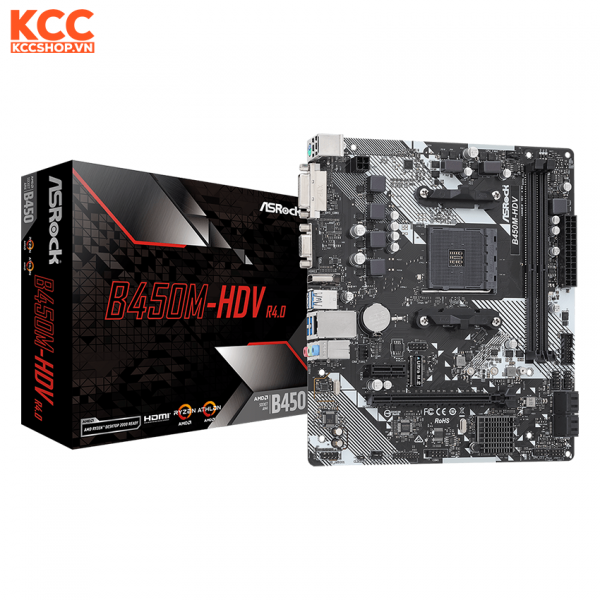

Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors

2 DIMMs, Supports DDR4 3200+(OC)*

1 PCIe 3.0 x16, 1 PCIe 2.0 x1

Graphics Output : HDMI, DVI-D, D-Sub

7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)

4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)*

6 USB 3.1 Gen1 (2 Front, 4 Rear)

Realtek Gigabit LAN

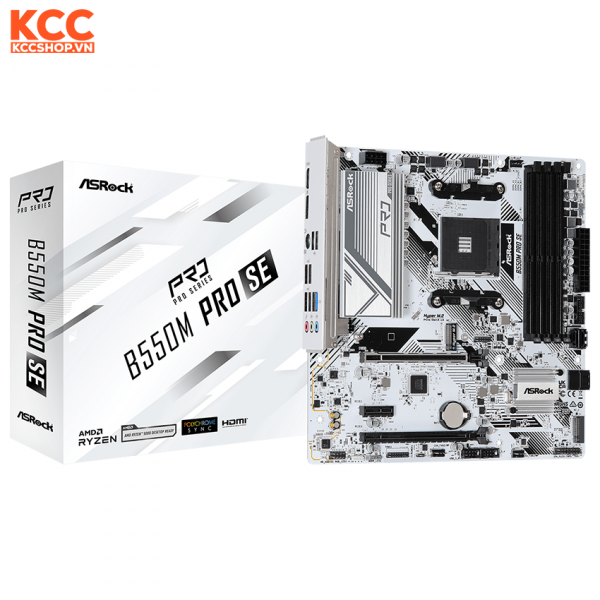

Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*

Supports DDR4 4733+ (OC)

1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1

Graphics Output Options: HDMI, DisplayPort

Realtek ALC897 7.1 CH HD Audio Codec

4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4),
1 M.2 (PCIe Gen3 x2 & SATA3)

6 USB 3.2 Gen1 (4 Rear, 2 Front)
6 USB 2.0 (2 Rear, 4 Front)

Dragon 2.5G LAN

Supports Pre-Installed I/O Shield

Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)

24+1+2 Power Phase, 105A SPS for VCore+GT with Enlarged Heatsink Armor

Supports DDR5 7200MHz (OC)

2 PCIe 5.0 x16, 1 PCIe 4.0 x16

Graphics Output Options: HDMI, 2 Thunderbolt™ Type-C

Realtek ALC4082 5.1 CH HD Audio Codec, ESS SABRE 9218 DAC, WIMA Audio Caps, Nahimic Audio

8 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 4 Hyper M.2 (PCIe Gen4 x4)

2 Thunderbolt™ 4/USB4 Type-C, 1 USB 3.2 Gen2x2 Front Type-C (Supports 60W Fast Charging 20V/3A), 2 Rear USB 3.2 Gen2 Type A, 10 USB 3.2 Gen1 (6 Rear, 4 Front)

Killer E3100G 2.5G LAN, Intel® 1G LAN, Killer 802.11ax (WiFi 6E) + Bluetooth 5.3

Killer DoubleShot™ Pro

Supports ASRock Auto Driver Installer, Lightning Gaming Ports, Ultra USB Power

Supports 14th, 13th & 12th Gen Intel® Core™ Processors

7+1+1 Phase Power Design, Dr.MOS for VCore+GT

2 x DDR5 DIMMs, supports up to 7000+(OC)

1 PCIe 5.0 x16

Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP

7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio

1 Hyper M.2 (PCIe Gen4x4), 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 4 SATA3

1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2x2 Type-C (Rear), 4 USB 3.2 Gen2 Type-A (Rear), 2 USB 3.2 Gen1 (Front), 3 USB 2.0 (1 Rear, 2 Front)

Intel® 2.5G LAN, Intel® 1G LAN

802.11ax Wi-Fi 6E + Bluetooth 5.3

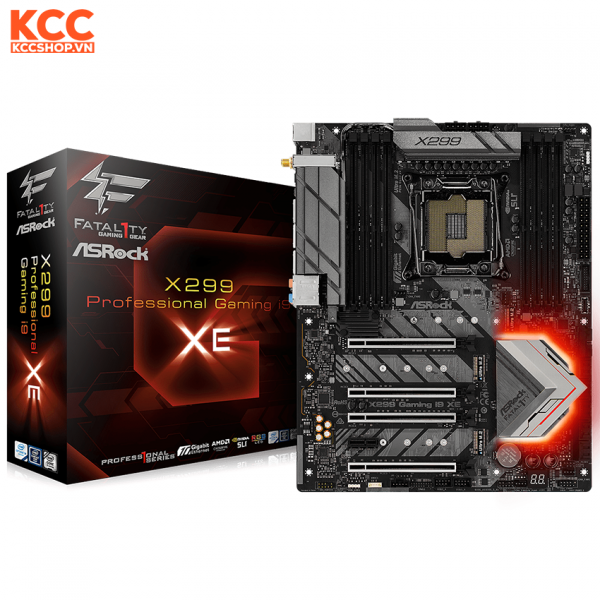

Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket

13 Phase CPU Power Design + 2 Phase Memory Power Design, Dr. MOS

Supports Quad Channel DDR4 4600+(OC) Memory

5 PCIe 3.0 x16, 1 PCIe 3.0 x4, 1 PCIe 2.0 x1

NVIDIA® 4-Way SLI™, AMD 4-Way CrossFireX™

7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound™ 4 & DTS Connect

8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)

3 USB 3.1 Gen2 (1 Front Type-C, 1 Rear Type-C, 1 Rear Type-A)

6 USB 3.1 Gen1 (2 Front, 4 Rear)

Dual Intel® Gigabit LAN

ASRock RGB LED

Hyper BCLK Engine III

OC Formula Kit, Nick Shih's OC Profile

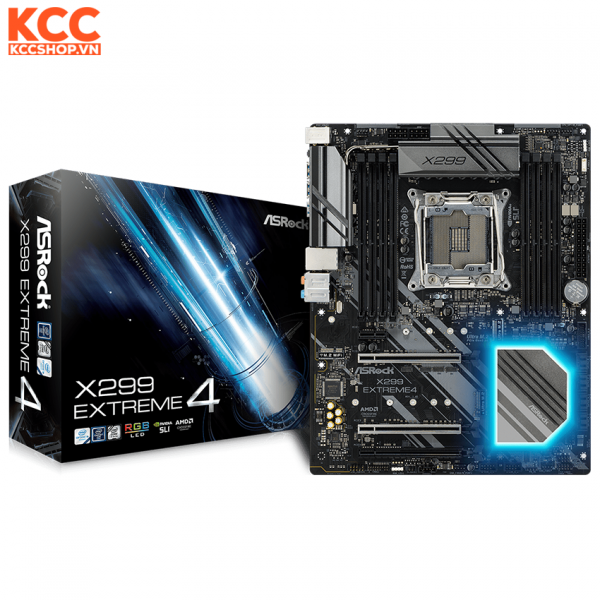

Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket

11 Power Phase Design, Dual Power Connectors

Supports DDR4 4200+(OC)

XXL Aluminum Alloy Heatsink & Heatpipe Design

3 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 (Key E)

NVIDIA® Quad SLI™, AMD Quad CrossFireX™

8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)

2 USB 3.1 Gen2 10Gb/s (1 Type-A, 1 Type-C)

6 USB 3.1 Gen1 (2 Front, 4 Rear)

Intel® Gigabit LAN

7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
Supports Purity Sound™ 4 & DTS Connect

ASRock RGB LED

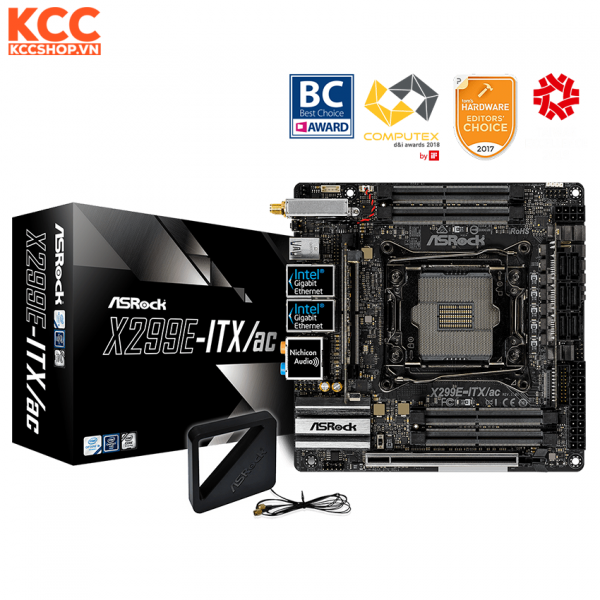

Supports Intel® Core™ X-Series Processor

Digital PWM, Dr. MOS

Supports 4 SO-DIMMs Quad Channel, DDR4 4000+(OC)

7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
Supports Purity Sound™ 4 & DTS Connect

6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 2 Ultra M.2 (PCIe Gen3 x4)

2 USB 3.1 Gen2 10Gb/s (1 Type-A + 1 Type-C), 6 USB 3.1 Gen1 (2 Front, 4 Rear)

Dual Intel® Gigabit LAN

Intel® 2T2R Dual Band 802.11ac WiFi + BT v4.2 Module, 1 ASRock WiFi 2.4/5 GHz Antenna

ASRock RGB LED Header

ASRock Super Alloy

Gaming Armor: Power / Memory / VGA / Internet / Cooling / Audio

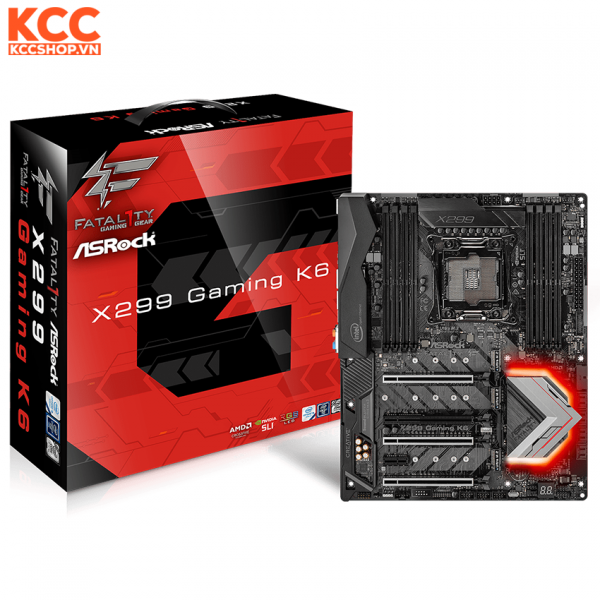

Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket

11 Power Phase design, Digi Power

Supports DDR4 4400+(OC)

4 PCIe 3.0 x16, 1 PCIe 3.0 x1

NVIDIA® 3-Way SLI™, AMD 3-Way CrossFireX™

7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster™ Cinema 3

8 SATA3, 3 Ultra M.2 (PCIe Gen3 x4 & SATA3)

2 USB 3.1 Gen2 10Gb/s (1 Type-A + 1 Type-C), 8 USB 3.1 Gen1 (4 Front, 4 Rear)

Dual Intel® Gigabit LAN

ASRock RGB LED

Hyper BCLK Engine III

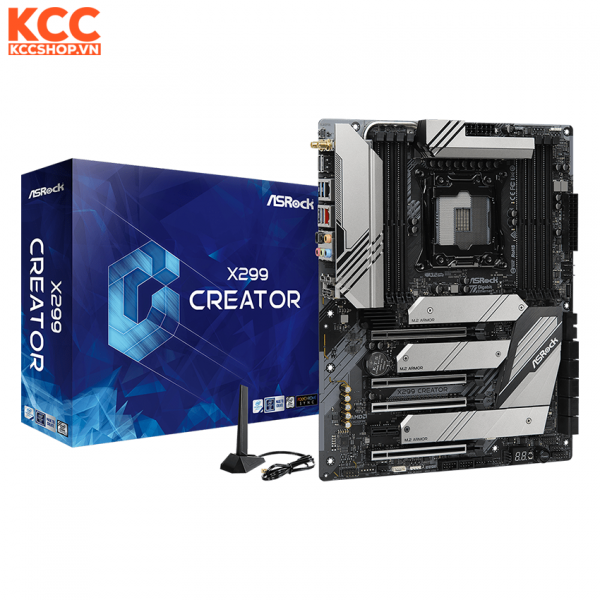

Supports Intel® Core™ X-Series Processor Family

13 Power Phase Design, Dr. MOS, Dual Power Connectors

XXL Aluminum Alloy Heatsink & Heatpipe Design

Supports DDR4 4200+(OC)

4 PCIe 3.0 x16, 1 PCIe 3.0 x1

NVIDIA® 3-Way SLI™, AMD 3-Way CrossFireX™

10 SATA3, 2 Ultra M.2 (PCIe Gen3 x4), 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)

2 Intel® Thunderbolt™ 3 Type-C

1 Front USB 3.2 Gen2 Type-C

6 USB 3.2 Gen1 (2 Front, 4 Rear)

7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound™ 4 & DTS Connect

AQUANTIA® / Marvell 10G LAN, Intel® Gigabit LAN

Intel® Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0

Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket

13 Power Phase Design, Dr. MOS, Dual Power Connectors

XXL Aluminum Alloy Heatsink & Heatpipe Design

Supports DDR4 4400+(OC)

4 PCIe 3.0 x16, 1 PCIe 2.0 x1

NVIDIA® 3-Way SLI™, AMD 3-Way CrossFireX™

7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound™ 4 & DTS Connect

10 SATA3, 3 Ultra M.2 (PCIe Gen3 x4 & SATA3)

2 USB 3.1 Gen2 10Gb/s (1 Type-A, 1 Type-C)

8 USB 3.1 Gen1 (4 Front, 4 Rear)

Dual Intel® Gigabit LAN

Intel® 802.11ac WiFi

ASRock RGB LED

BIOS Flashback

Hyper BCLK Engine III

Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket

11 Power Phase Design, Dual Power Connectors

Supports DDR4 4266+(OC)

XXL Aluminum Alloy Heatsink & Heatpipe Design

3 PCIe 3.0 x16

NVIDIA® Quad SLI™, AMD Quad CrossFireX™

8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)

2 USB 3.1 Gen2 10Gb/s (1 Type-A, 1 Type-C)

6 USB 3.1 Gen1 (2 Front, 4 Rear)

Dual Intel® Gigabit LAN

7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound™ 4 & DTS Connect

ASRock RGB LED

Gaming Armor: Power / Memory / VGA / Internet / Cooling / Audio

Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket

13 Power Phase Design, Dr. MOS

XXL Aluminum Alloy Heatsink & Heatpipe Design

Supports DDR4 4400+(OC)

4 PCIe 3.0 x16, 1 PCIe 2.0 x1

NVIDIA® 3-Way SLI™, AMD 3-Way CrossFireX™

7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
Supports Creative Sound Blaster™ Cinema 3

10 SATA3, 3 Ultra M.2 (PCIe Gen3 x4 & SATA3)

3 USB 3.1 Gen2 10Gb/s (1 Front Header, 1 Type-A + 1 Type-C), 8 USB 3.1 Gen1 (4 Front, 4 Rear)

AQUANTIA® / Marvell 10 Gigabit LAN, Dual Intel® Gigabit LAN

Intel® 802.11ac WiFi

ASRock RGB LED

BIOS Flashback

Hyper BCLK Engine III

Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket

11 Power Phase Design, Dr. MOS, Dual Power Connectors

XXL Aluminum Alloy Heatsink & Heatpipe Design

Supports DDR4 4200+(OC)

4 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi

NVIDIA® NVLINK™, 3-Way SLI™, AMD 3-Way CrossFireX™

7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound™ 4

8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)

1 USB 3.2 Gen2 x2 Type-C (20Gb/s)

6 USB 3.2 Gen1 (2 Front, 3 Rear, 1 x Front Type-C)

8 USB 2.0 (4 Front, 4 Rear)

Dual Intel® Gigabit LAN

ASRock Polychrome RGB LED
